Brand: SainSmart

[Discontinued] SainSmart FC-6S Optical Fiber Cleaver for SUMITOMO Cutting Tools Optical Cutter Stripping FTTH

[Discontinued] SainSmart FC-6S Optical Fiber Cleaver for SUMITOMO Cutting Tools Optical Cutter Stripping FTTH

SKU:  101-92-202
Regular price $56.99
-Liquid error (snippets/price line 160): divided by 0 Regular price Sale price $56.99
Shipping calculated at checkout.
  • 101-92-202

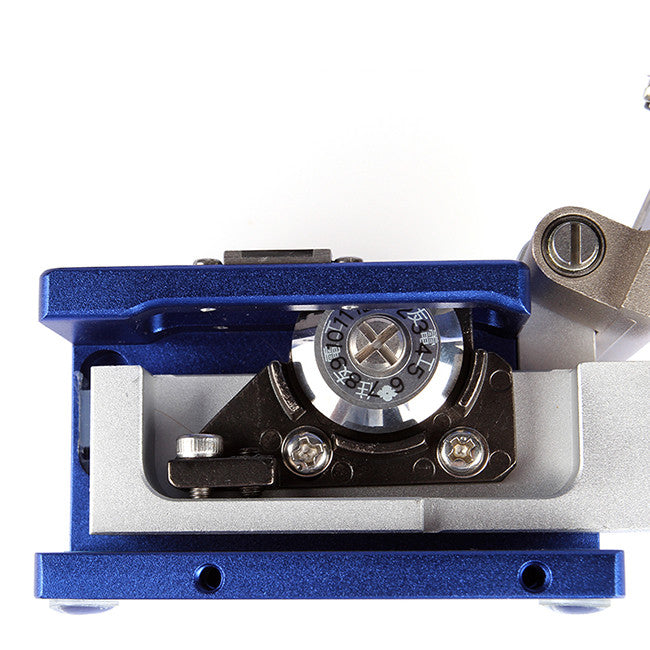

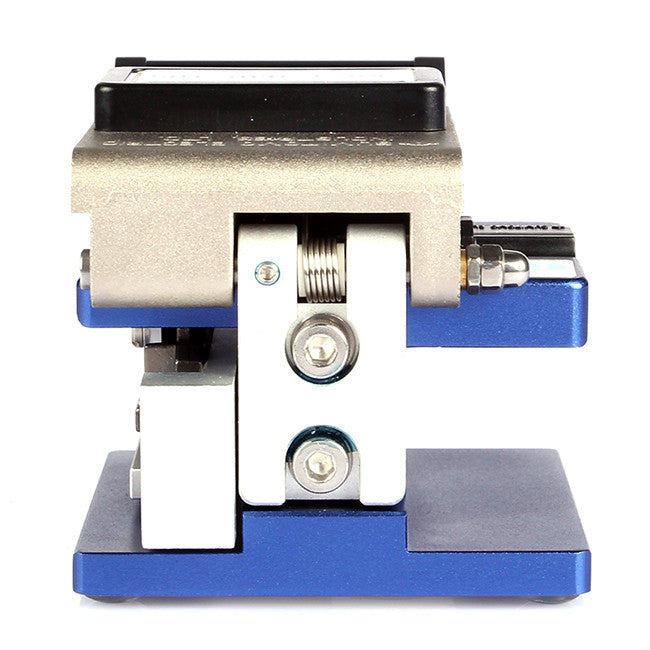

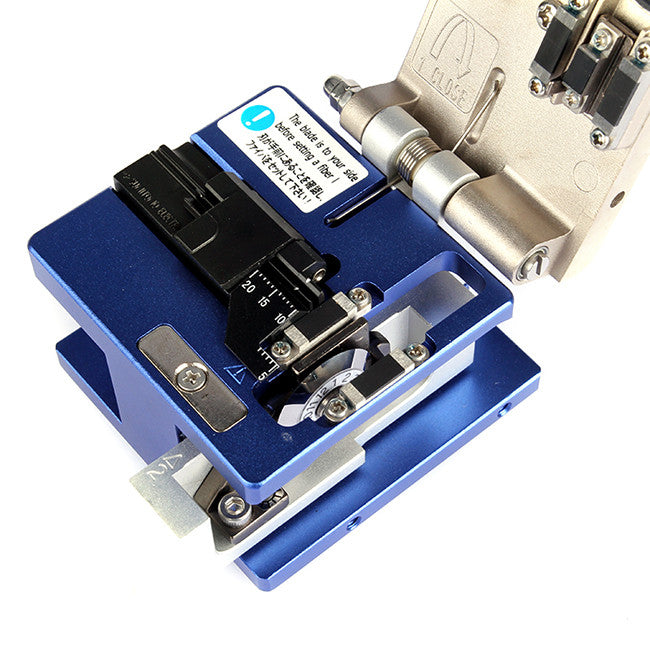

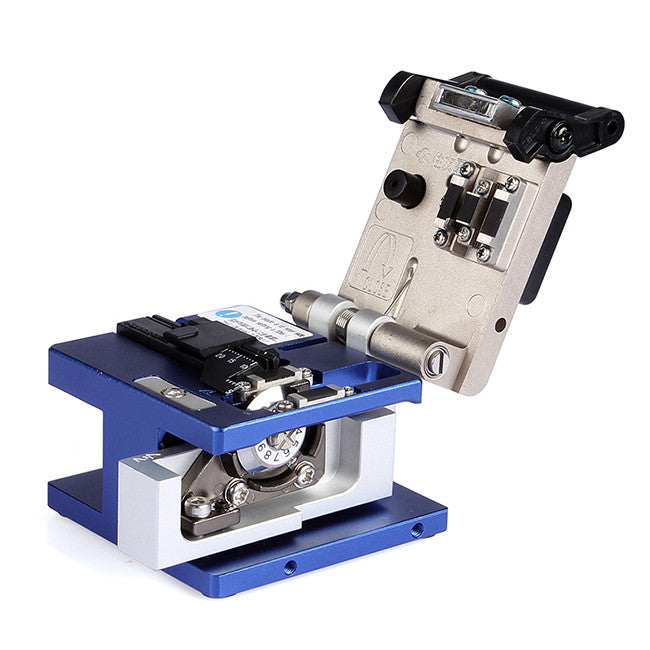

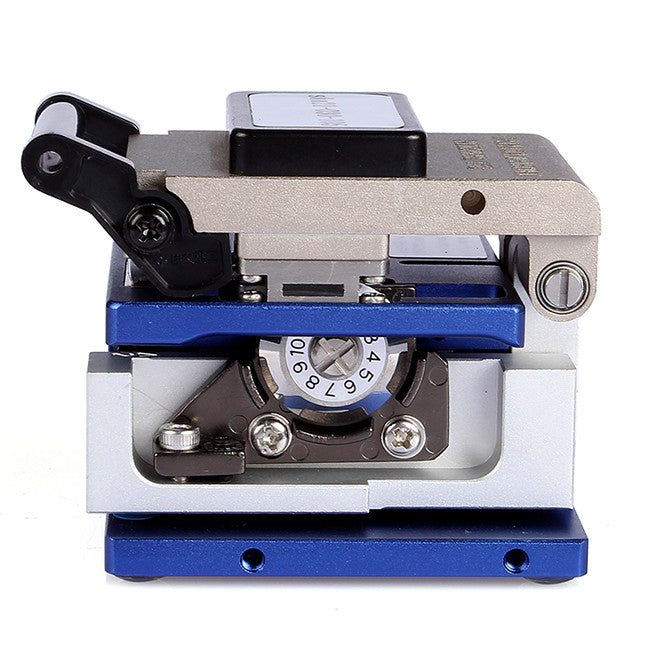

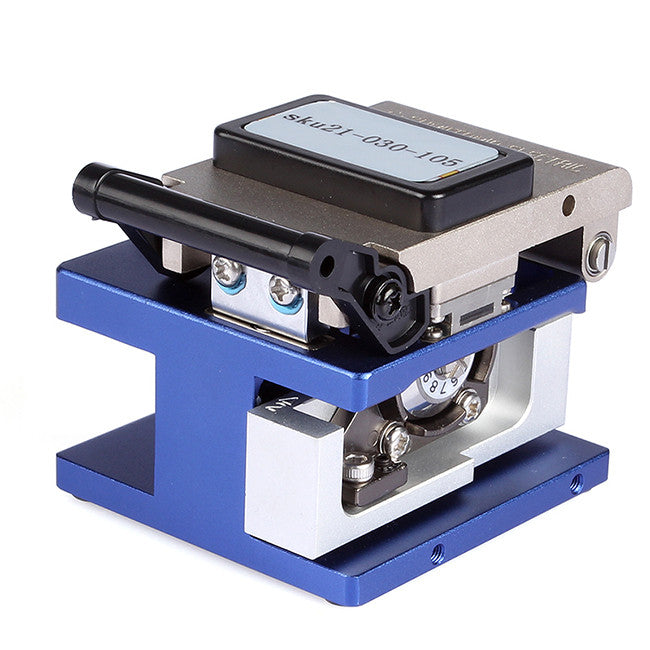

The FC-6S fiber optic cleaver is  used for single fiber cleaving. This FC-6S optical  fiber cleaver is available with a single fiber  adapter for 250 to 900 micron coated single fibers.  It is a simple operation for the user to remove or  install the single fiber adapter and alternate  between mass and single fiber cleaving.

fiber optic cleaver FC-6S, high precision,  preparation for single fiber(cleave length  6~20mm)/ribbon fiber cables (up to 12 counts, cleave  length 10mm).

View full details
DESCRIPTION

Sumitomo Fiber Optic Cleaver FC-6S Features:
Compact body& light weight
Applicable up to 12-fiber cleaving
36000 fibers blade life(3 height x 12 positions)
Fiber scrap collection-free

Sumitomo Fiber Optic Cleaver FC-6S Application:
Fiber preparation

SPECIFICATION

Type

FC-6S

Coating Diameter

0.25mm - 0.9mm (Single)

Cladding Diameter

0.125mm

Cleave Length

9mm - 16mm (Single Fiber - 0.25mm coating)
10mm - 16mm (Single Fiber - 0.9mm coating)

Typical Cleave Angle

0.5 Degrees

Typical Blade Life

36,000 Fiber Cleaves

Number of Steps for Cleave

2

Blade Adjustments

Rotational & Height

Weight

430g Without Scrap Collector; 475g With Scrap Collector

Dimensions

63 x 65 x 63 (mm)
