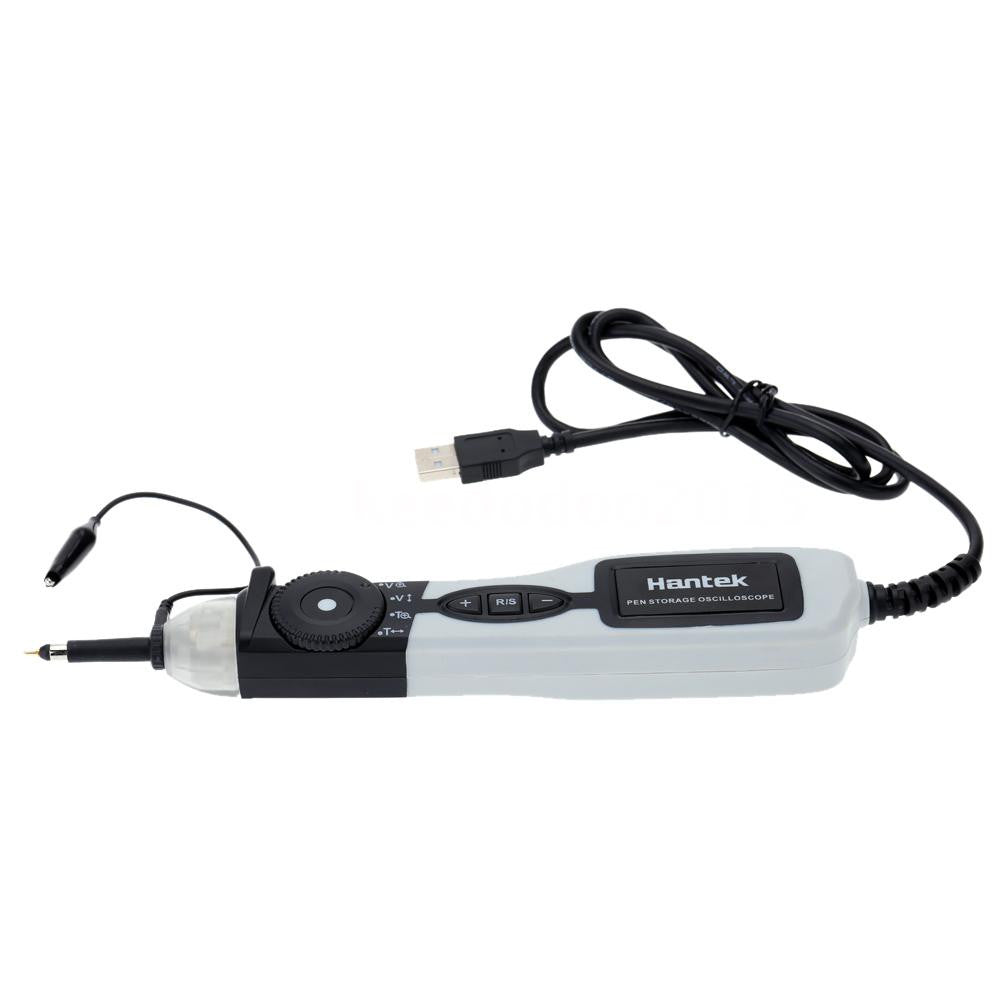

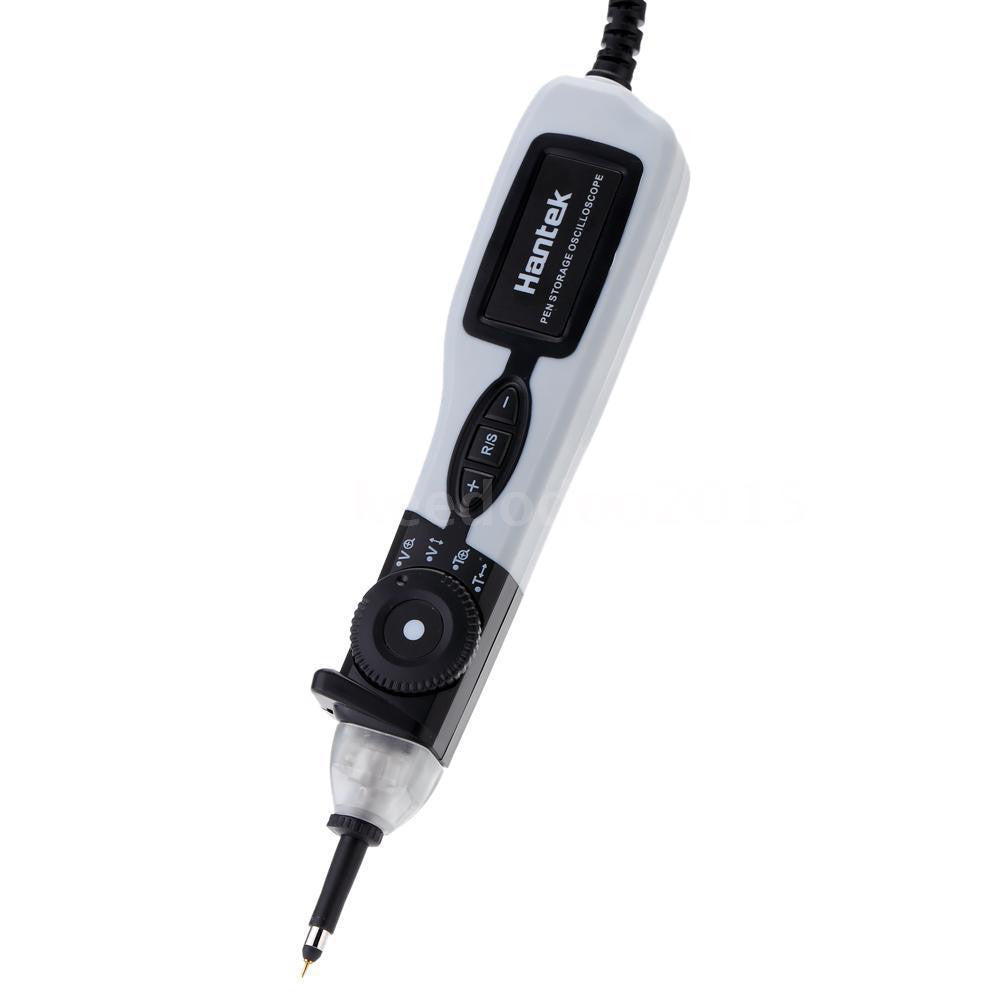

Hantek PSO2020 USB Pen Type Storage Oscilloscope 20MHz Bandwidth 96MSa/s

brand: Hantek SKU: 20-010-724
$68.60 FREE SHIPPING
Oops, 0 In Stock

Description:
As a plug and play device with automatically measurement function, it's powered by USB interface and easy and convenient in operation. You can change the voltage/time division gear with single hand, no need any operation by keyboard or mouse.

owered by USB Interface. Plug and Play Device. Automatically Measurement Function. Easy for Operation; Change the Voltage/Time Division Gear with Single Hand. No Need to Operate on the Computer; Built-in LED Light, Providing Better Light for User's Convenient Operation in Dark Environment; Light Weight and Portable. Suitable for Human Body's Design; DVM Function, Real-time Display the Voltage Measurement Results; 20MHz Bandwidth. Meet the Requirements of Measurement; Different Kinds of Language Available. 20 Types of Auto Measurement Function, Pass/Fail Function; Operating System:Windows NT,Windows2000/XP,WIN7/8; Possible to Connect to Laptop Directly. High Cost Performance.



Features:

  • Powered by USB interface, plug and play device; with automatically measurement function, easy for operation.
  • Change the voltage/time division gear with single hand, no need to operate on the computer.
  • Built-in LED light, providing better light for user's convenient operation in dark environment.
  • Light weight and portable in design, suitable for use.
  • DVM(digital voltmeter)function, real-time display the voltage measurement results.
  • 20MHz bandwidth, meet the requirements of measurement.
  • Different kinds of language available, 20 types of auto measurement functions, pass/fail function.
  • Operating system:Windows NT,Windows2000/XP, WIN7/8.
  • Possible to connect to laptop directly, high cost performance.


Specifications:
Vertical
Channel: 1
Bandwidth: 20MHz
Input Impedence: 1MΩ
Input Sensitivity: 20mV/div to 50V/div
Input Coupling: DC/AC/GND
Vertical Accuracy: ±3%
Resolution: 8 bits
Memory Depth:Maximum 1M/CH
Max. Measurement Voltage: ±50V (Without any attenuation)
Input Protection: 100V (DC+AC Peak)

Horizontal
Max. Sample Rate: 96MSa/s
Time Base Range: 1ns/div to 5000s/div (Step by 1-2-5)

Trigger
Trigger Source: CH1
Trigger Type: Edge Trigger

Cursor and Measurement
Voltage Measurement: Vmax, Vmin, Vpp, Vamp, Vtop, Vmid, Vbase, Vavg, Vrms, Vcrms, Preshoot, Overshoot,
Time Measurement: Frequency, Period, Rise Time, Fall Time, Positive Width, Negative Width, Duty Cycle
Cursors Measurement: Cross, Trace, Horizontal, Vertical
Math: +,- , x,÷, FFT
Voltage Range: 20mV to 20V/div @ x 1 probe

Others
FFT: Rectangular, Hanning, Hamming, Blackman
Auto Set: Yes
Interface: USB 2.0
Power Supply: USB Power Supply
Dimensions: 230 * 40 * 20mm / 9.05 * 1.57 * 0.8in
Weight: 135g / 4.76oz
Package Size: 30 * 12 * 3.5cm / 11.8 * 4.72 * 1.4in (L * W * H)
Package Weight: 263g / 9.29oz

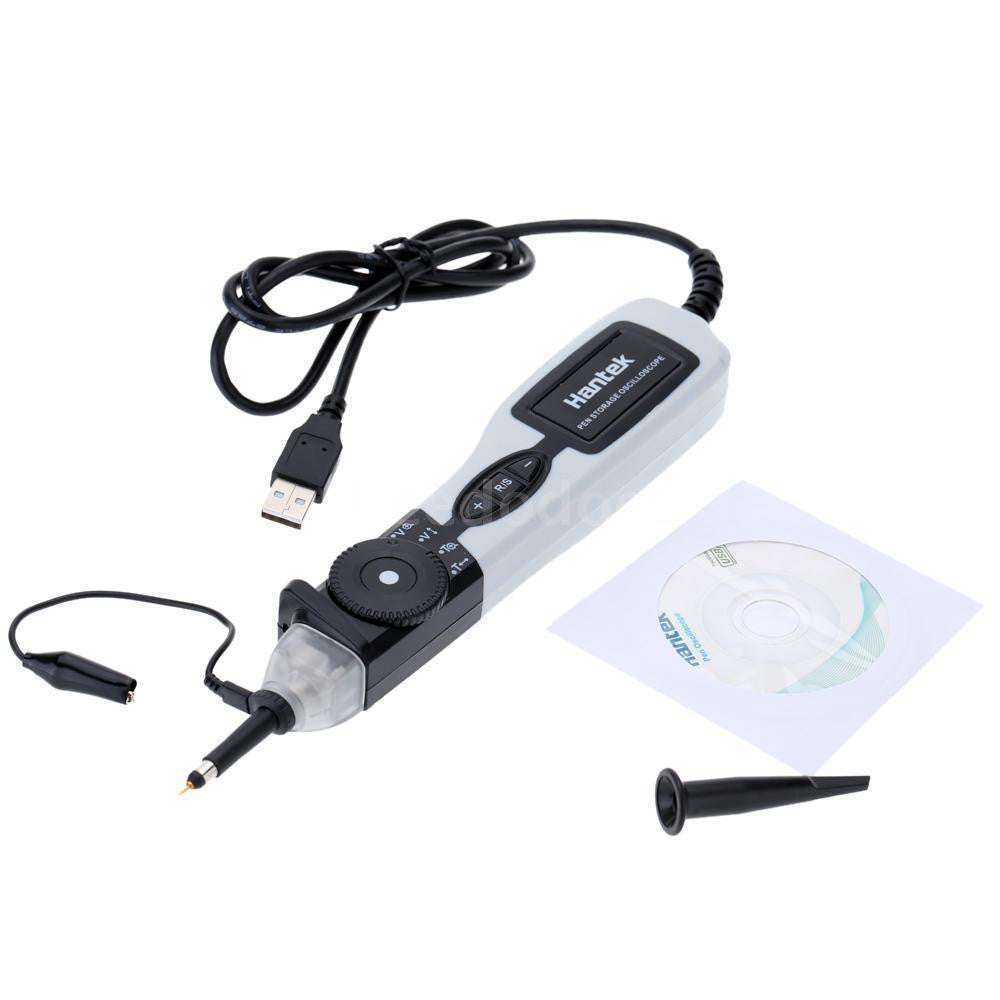

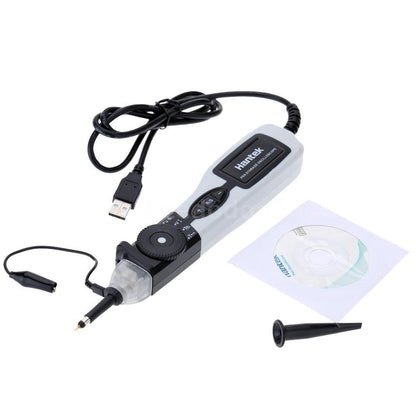

Package List:

  • 1 X PSO 2020 Pen Oscilloscope
  • 1 X CD
