[Discontinued] High Precision L/C Inductance/Capacitance Meter LC100-A
Brand: SainSmart SKU: 101-92-137

[Discontinued] High Precision L/C Inductance/Capacitance Meter LC100-A

SKU: 101-92-137 Variants ID: 45101410644
$25.99

SPECIFICATION
  • Modle:LC100-A
  • Effective display digits: 4 digits
  • Interface: Mini USB interface and 5.5DC Socket
  • Capacitance measuring range: 0.01 pF to 10uF
  • The minimum resolution: 0.01 pF
  • Inductance measuring range: 0.001 uH to 100mH
  • Big inductance measuring range: 0.001 mH to 100H
  • The minimum resolution: 0.001uH
  • Measurement accuracy:1 percent
  • LCD display mode: 1602
  • Test frequency range: L/C about 500KHZ Big inductance 500HZ
  • Size:3.15x1.97x0.82 inch
  • Pls reset to zero before testing
  • Test frequency of this item is higher, it is not suitable for measuring the electrolytic capacitor
WHAT'S IN THE PACKAGE

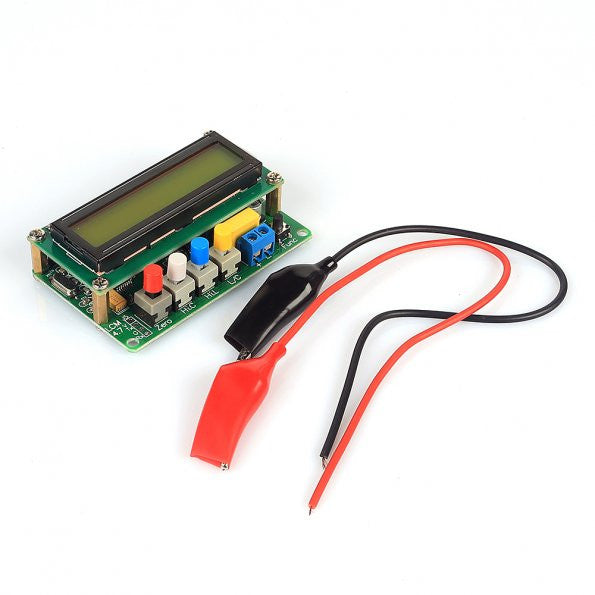

  • 1x High precision L/C meter board
  • 1x mini usb power cable

Note: The color of the item may vary slightly due to photography and your own computer

DOCUMENT
Download Link
