Description:
- Working voltage: DC5V
- Operating Current: 50mA
- The temperature measuring range: -200°C - 1300 °C [Test procedure for 0-1023 °C]
- The temperature measurement accuracy: ± 1.5 °C
- The temperature resolution: 0.25 °C
- The output mode: SPI digital signal
- With a fixed mounting holes for easy fixed installation.
- Storage temperature: -50 ~ 150 °C
- The module weight: 4g
- Module size: 25mm * 15mm * 13mm
- This module is only for reference routines and instructions, please note left after shoot-mail or contact sales technical hair item.
Package List:
- 1xSainSmart MAX6675 module

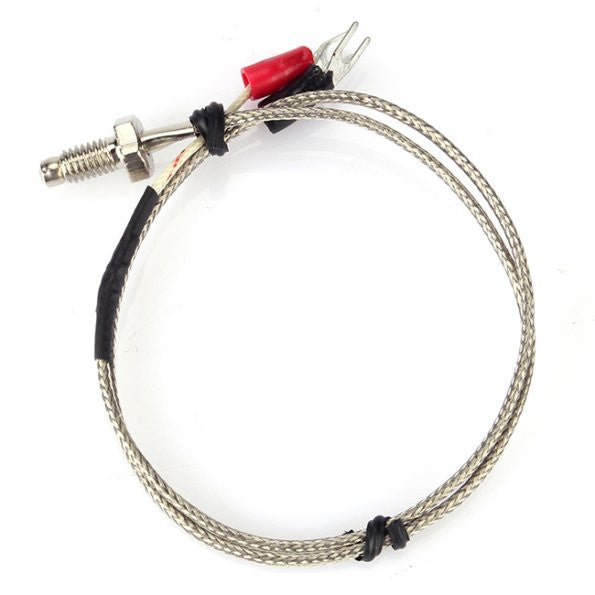

- 1xSainSmart K-type thermocouple
