Megatronics + A4988 LCD12864 Controller Heatbed Endstop Kit For Reprap 3D Print

brand: SainSmart SKU: 20-013-218
$114.42 FREE SHIPPING
Only 1 in stock. Order now!

Note:Expedited Shipping via DHL or UPS,EMS.

Description:

This is the new SainSmart 3D Printer  Starter Kit, developed specially for those beginners who are interested in 3D printer.  You will have a complete set of Sainsmart's most common and useful electronic components. What's more. We will offer you a detailed tutorials including project introduction and their source codes.You may learn about Sainsmart through using these basic projects.



Overview:

http://www.selloutsoon.com/albums/SKU/20/20-013/20-013-218/20-013-218/01.JPG

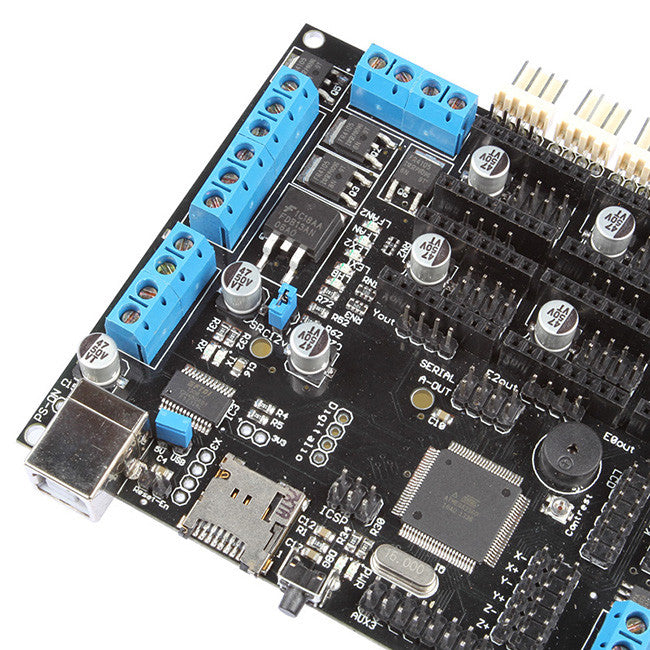

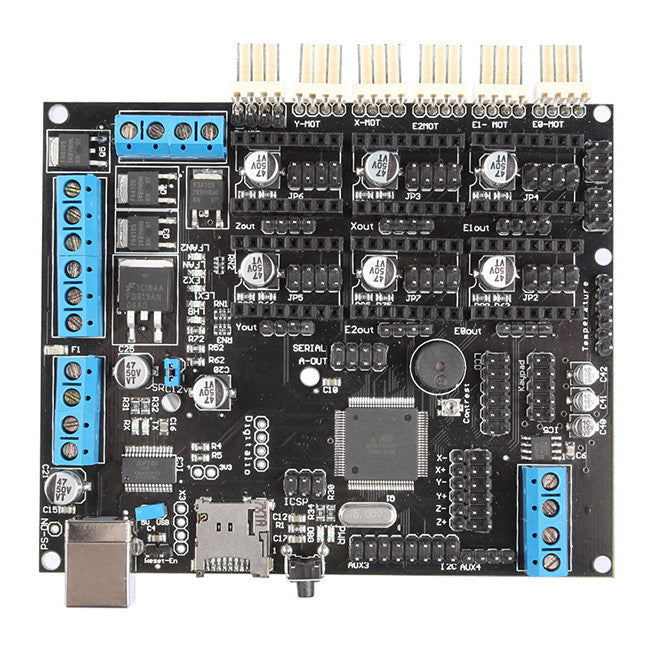

1.Megatronics Board for RepRap  3D-printing

Megatronics is based on many famous open-source products including: Arduino Mega 2560, RAMPS, SD Ramps. Therefor this product is an already proven design. It combines all major features of these board into a single board solution for more reliable 3D-printing. Megatronics has a powerful Atmega2560 processor with 256 kB memory, running at 16Mhz. The board can be connected to a PC using a normal USB cable. It will register as FTDI FT232R device. The board is compatible with the Arduino Mega 2560 and will therefor be easily programmed from the Arduino IDE.

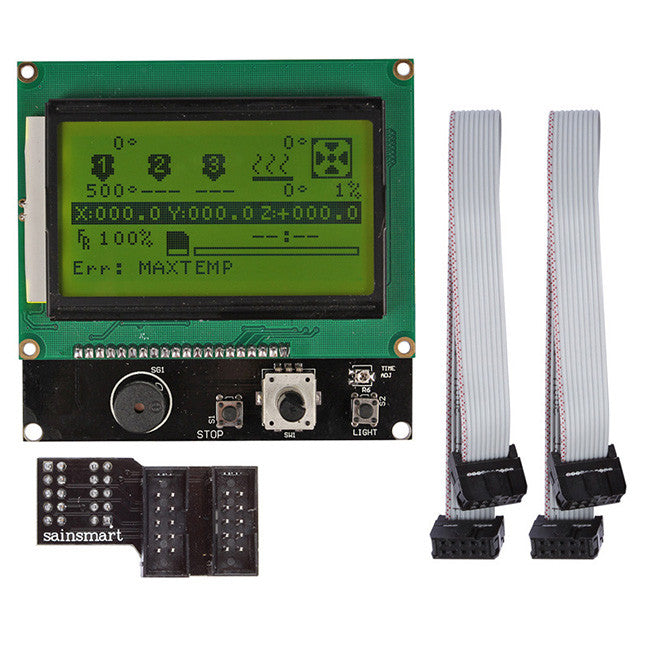

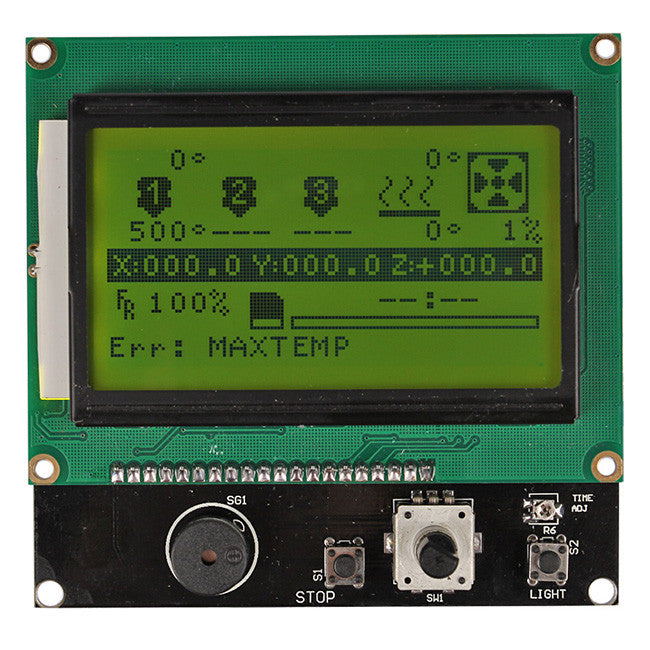

2.Sainsmart LCD 12864 with Controller For Megatronics

This Smart Controller contains a SD-Card reader, an rotary encoder and a 128 Character x 64 Line LCD display. You can easy connect it to your megatronics board using the "smart adapter" included. After connecting this panel to your megatronics you don't need your pc any more, the Smart Controller supplies power for your SD card. Further more all actions like calibration, axes movements can be done by just using the rotary encoder on the Smart Controller. Print your 3D designs without PC, just with a g-code design stored on the SD card.

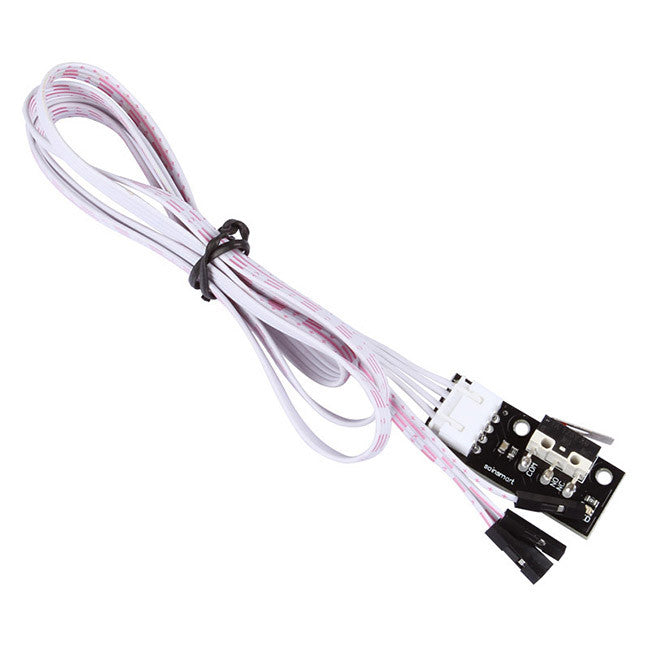

3. SainSmart Mechanical Endstop

SainSmart Mechanical Endstop perfect for any 3D printer (Including Prusa Mendel i2, Prusa i3, MendelMax, Rostock etc...) also for use on CNC machines and other electronic applications.

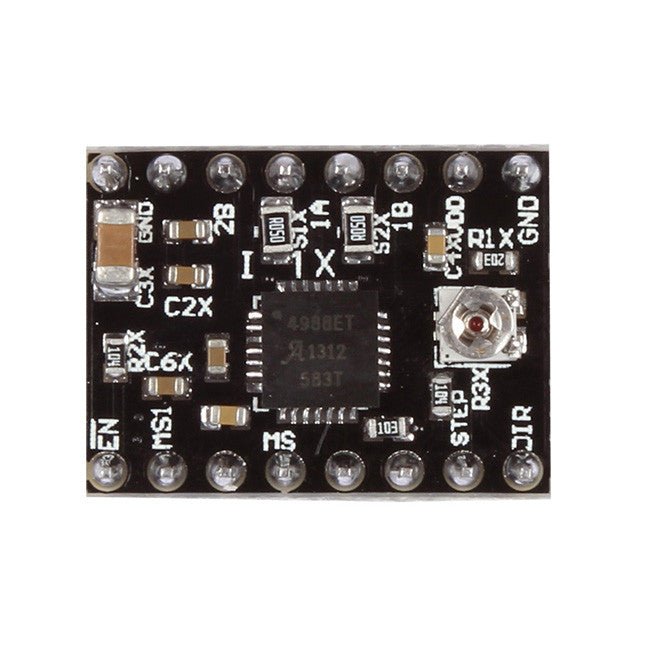

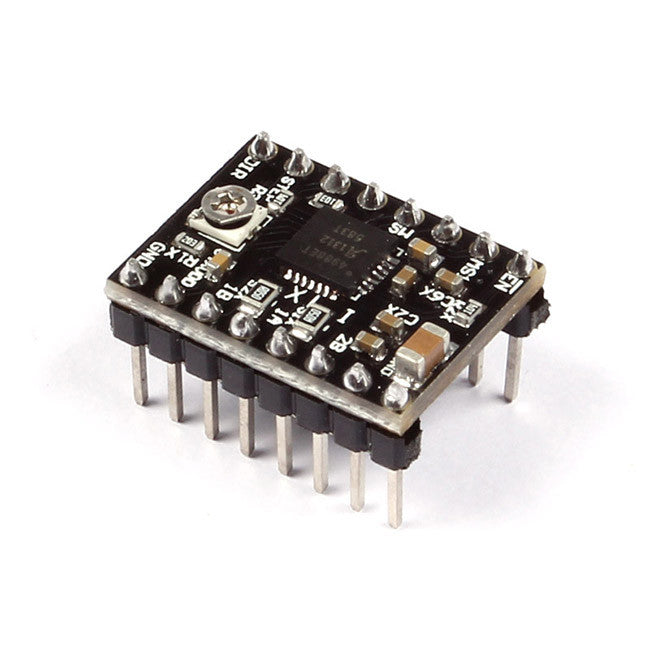

4. Sainsmart A4988 driver

This product is a carrier board or breakout board for Allegro's A4988 DMOS Microstepping Driver with Translator and Overcurrent Protection by Pololu; we therefore recommend careful reading of the A4988 datasheet before using this product. This stepper motor driver lets you control one bipolar stepper motor at up to 2 A output current per coil.

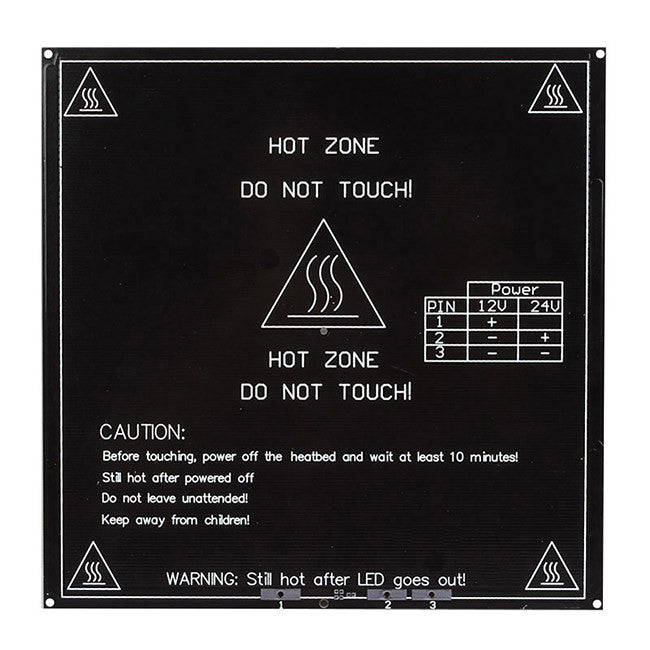

5. SainSmart Heatbed MK2a

MK2a is the latest and the best type of heatbed money can buy as of today. 100% compatible with all Prusa and Mendel 3d printer variants.

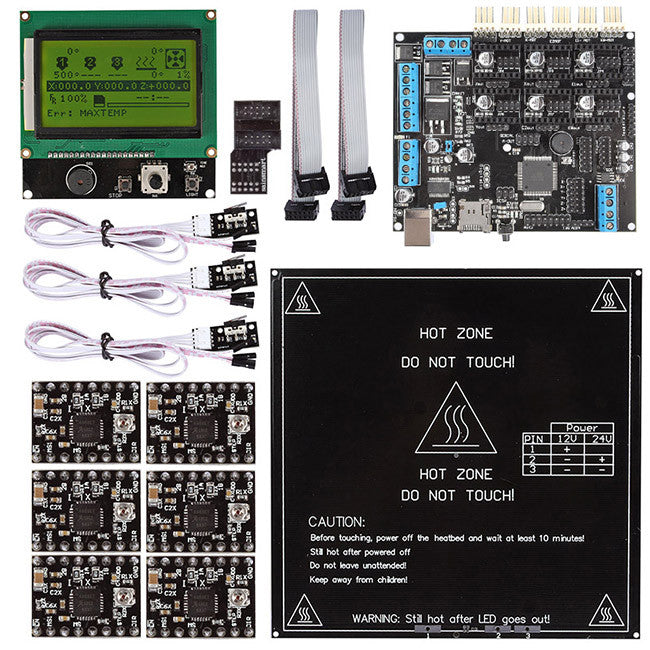

Package List:

1x Sainsmart Megatronics board
6x Sainsmart A4988 driver
1x Sainsmart LCD 2004 With Controller
3x Sainsmart Mechanical Endstop with cable
1x SainSmart Heatbed MK2a
