Megatronics V2.0 + A4988 + Mega2560 R3 + LCD 12864 3D Printer Controller Kit For RepRapBrand: SainSmart SKU: 20-013-222 SKU: 20-013-222
This is the new SainSmart 3D Printer Starter Kit, developed specially for those beginners who are interested in 3D printer. You will have a complete set of Sainsmart's most common and useful electronic components. What's more. We will offer you a detailed tutorials including project introduction and their source codes.You may learn about Sainsmart through using these basic projects.

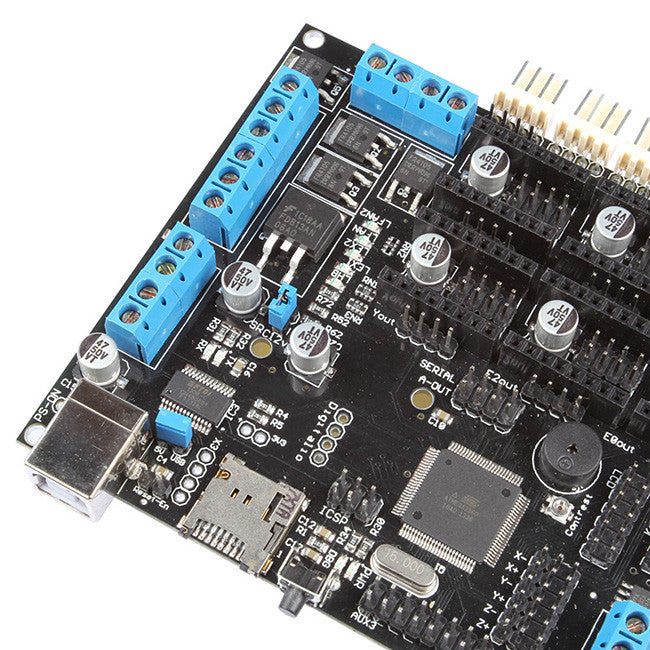

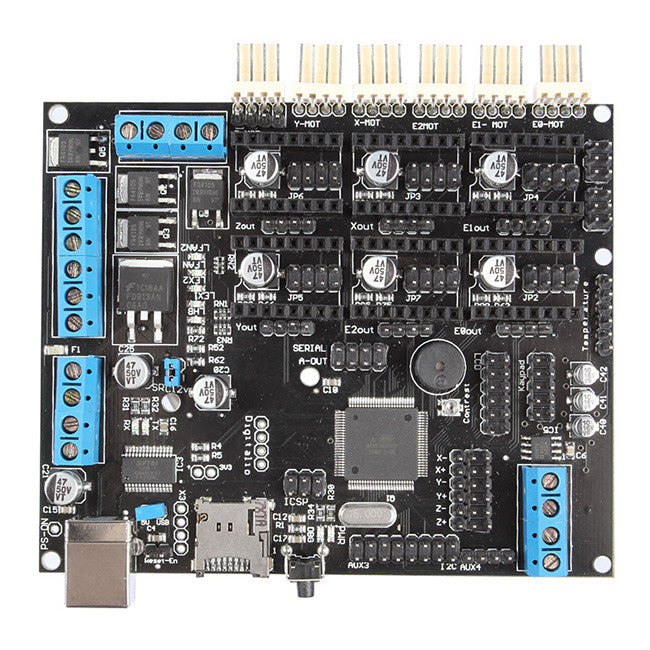

- SainSmart Megatronics V2.0 Controller
Megatronics is based on many famous open-source products including: Arduino Mega 2560, RAMPS, SD Ramps. Therefor this product is an already proven design. It combines all major features of these board into a single board solution for more reliable 3D-printing. Megatronics has a powerful Atmega2560 processor with 256 kB memory, running at 16Mhz. The board can be connected to a PC using a normal USB cable. It will register as FTDI FT232R device. The board is compatible with the Arduino Mega 2560 and will therefor be easily programmed from the Arduino IDE.What's more. We will offer you a detailed tutorial including project introduction and their source code.
- Sainsmart A4988 driver
This product is a carrier board or breakout board for Allegro's A4988 DMOS Microstepping Driver with Translator and Overcurrent Protection by Pololu; we therefore recommend careful reading of the A4988 datasheet before using this product. This stepper motor driver lets you control one bipolar stepper motor at up to 2 A output current per coil.
- SainSmart 2004 Smart Yellow LCD Controller With Adapter
This Smart Controller contains a SD-Card reader, an rotary encoder and a 20 Character x 4 Line Yellow LCD display. You can easy connect it to your Ramps board using the "smart adapter" included.
After connecting this panel to your Ramps you don't need your pc any more, the Smart Controller supplies power for your SD card. Further more all actions like calibration, axes movements can be done by just using the rotary encoder on the Smart Controller. Print your 3D designs without PC, just with a g-code design stored on the SD card.
- SainSmart Mechanical Endstop
SainSmart Mechanical Endstop perfect for any 3D printer (Including Prusa Mendel i2, Prusa i3, MendelMax, Rostock etc...) also for use on CNC machines and other electronic applications.
- SainSmart SD Ramps
Breakout board for the microSD socket that is not much bigger than your fingernail. Compatible with the SPI interface found on any SD card, this tiny form factor was created for cell phone storage and is perfect for your next 3D printer project! Board comes fully assembled and tested.The bare socket is available.
- SainSmart Heatbed MK2a
MK2a is the latest and the best type of heatbed money can buy as of today. 100% compatible with all Prusa and Mendel 3d printer variants.

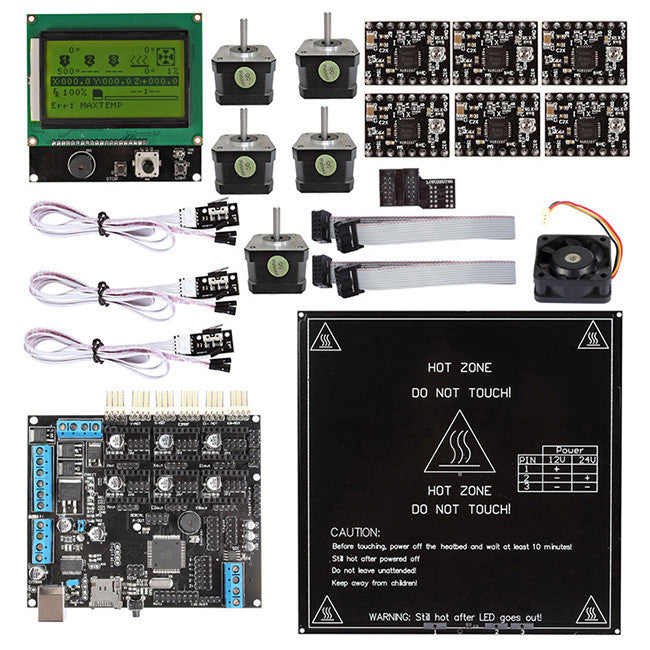

- 5 PCS NEMA 17 Stepper Motors Minebea Mill Robot RepRap Makerbot Prusa 3D Printer
- 1xSainSmart Megatronics V2.0 Controller
- 5x Sainsmart A4988 driver
- 1x SainSmart 2004 Smart Yellow LCD Controller With Adapter
- 1x Sainsmart SD card breakout For ramps
- 1x Sainsmart Cooler Fan for 3D ramps
- 3x Sainsmart Mechanical Endstop with cable
- 1x Sainsmart Megatronics 1.4 wiring cable
- 1x SainSmart Heatbed MK2a
- 5x NEMA 17 Stepper Motors Minebea Mill Robot RepRap Makerbot Prusa 3D Printer
