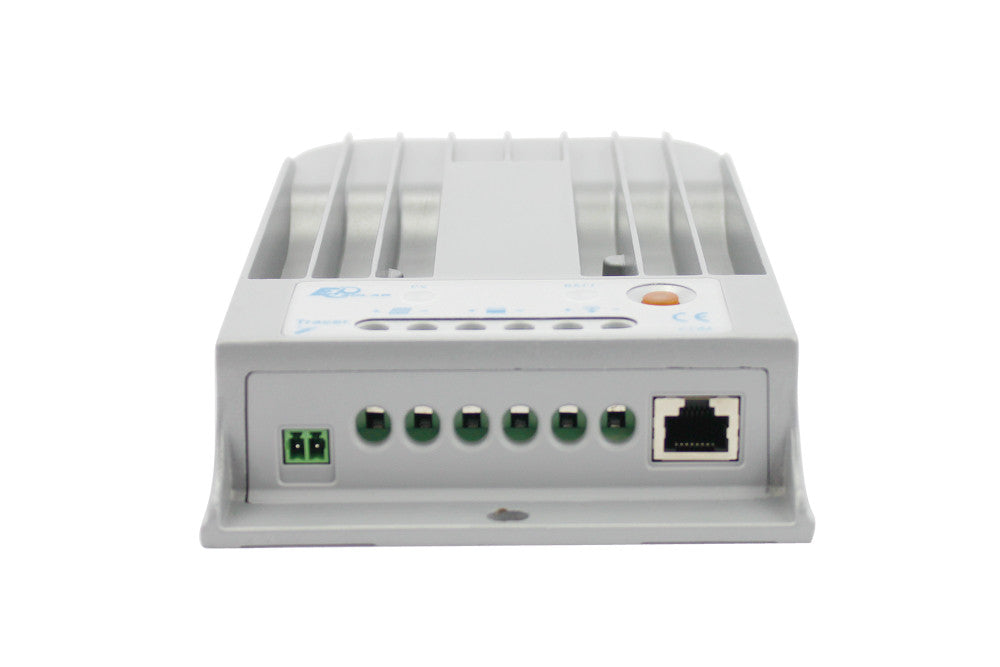

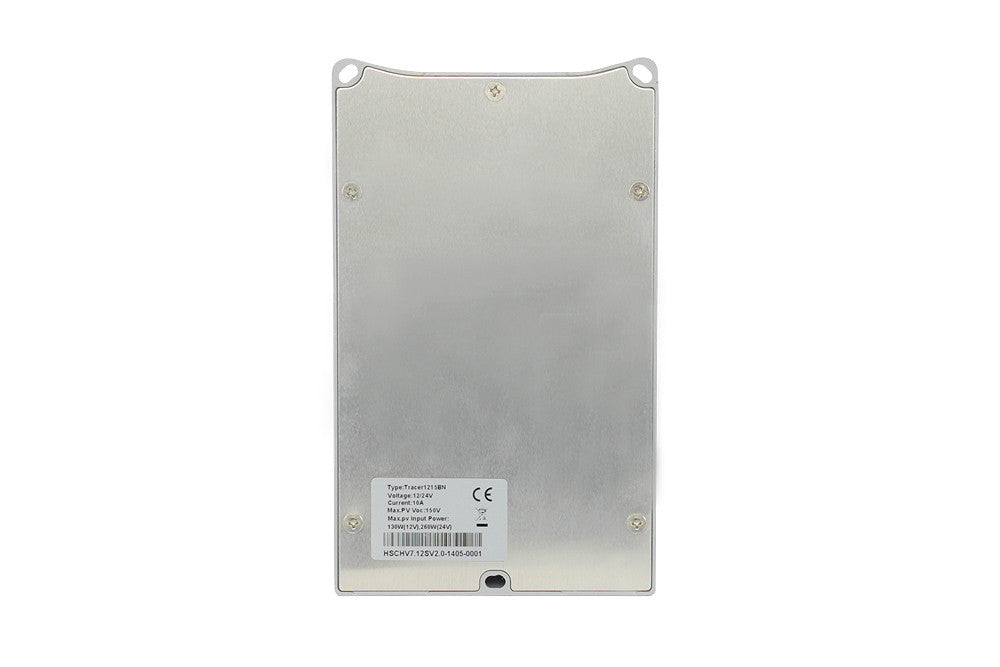

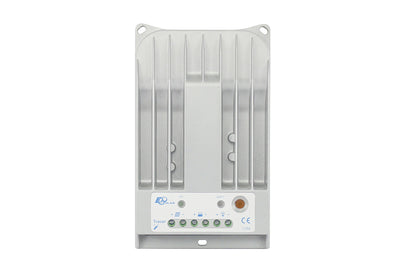

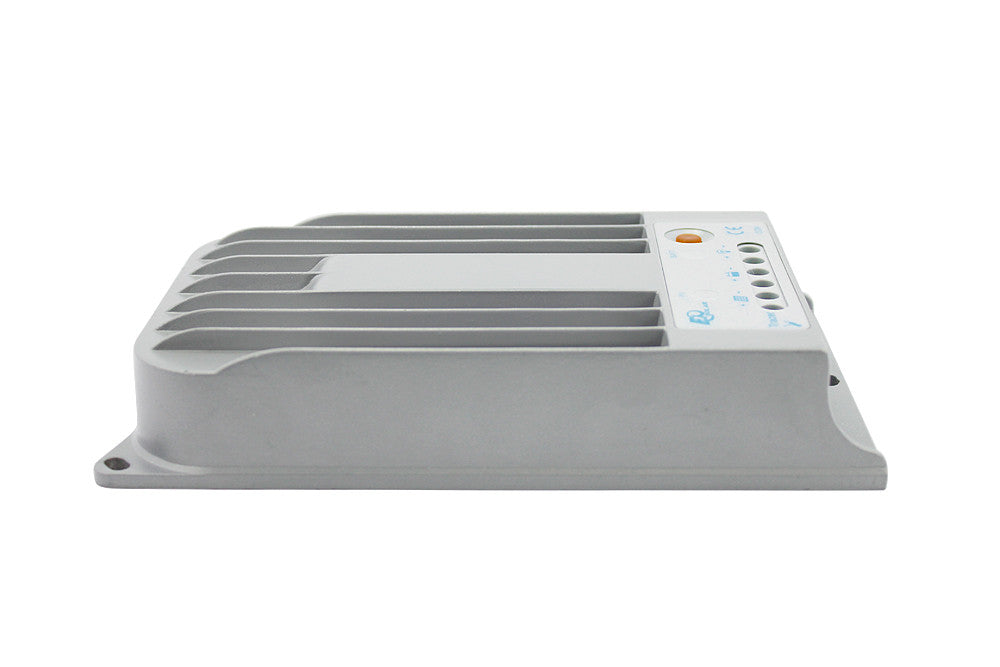

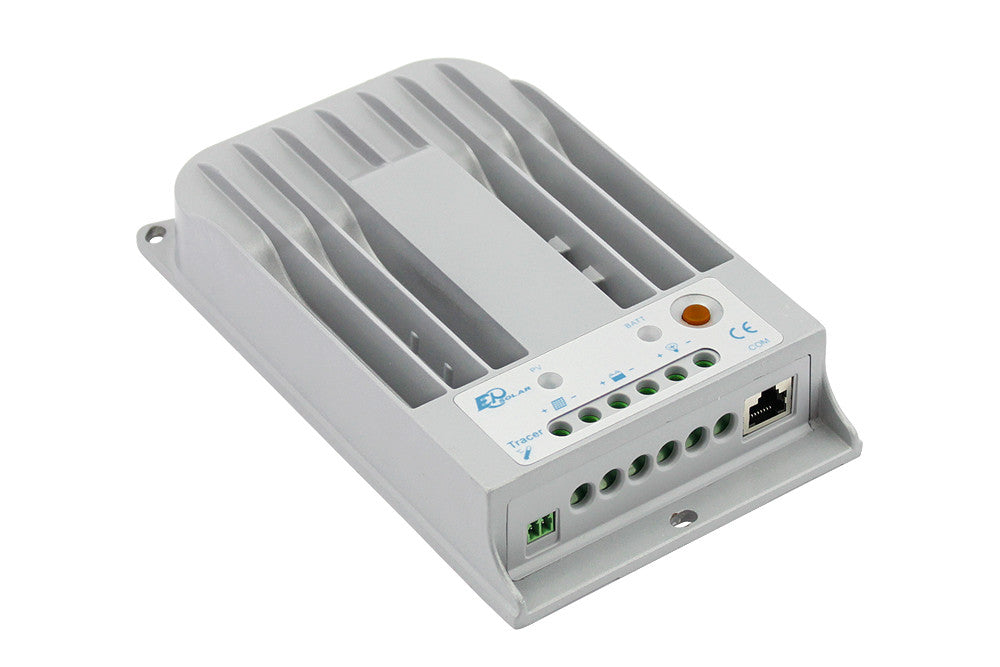

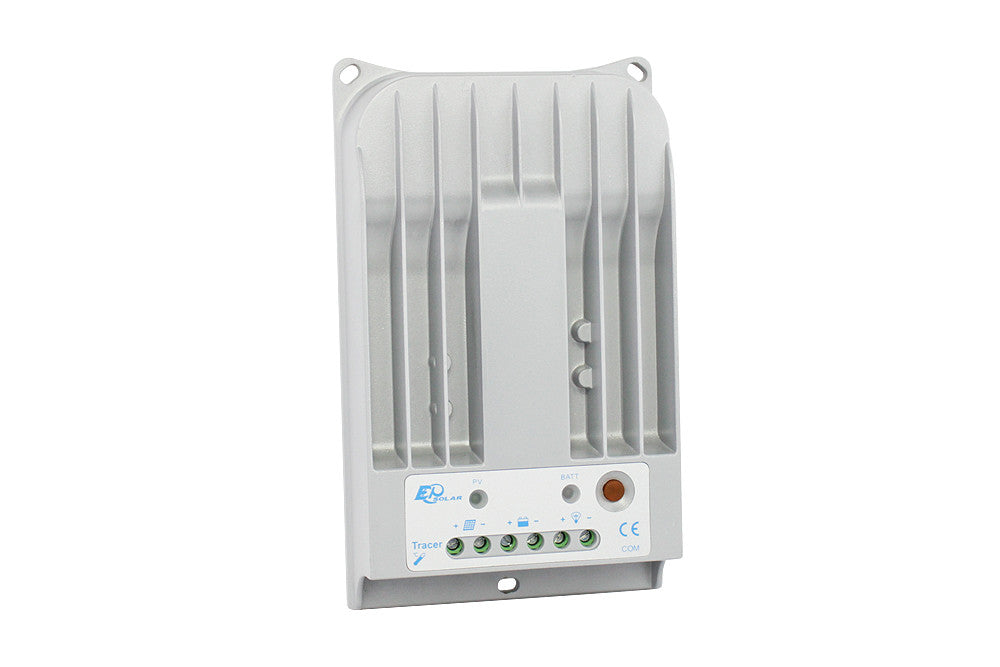

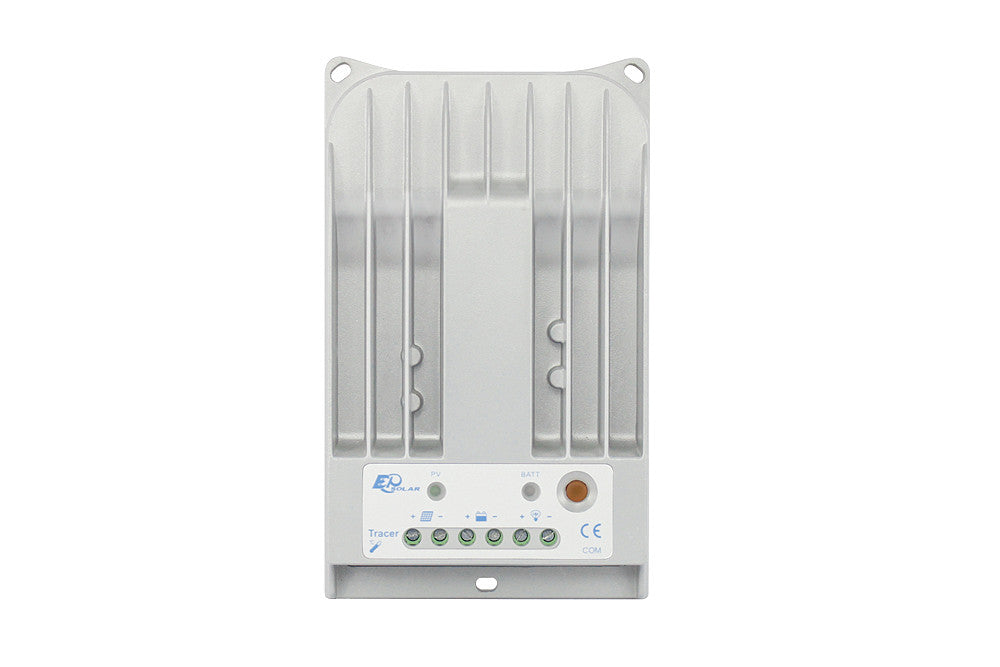

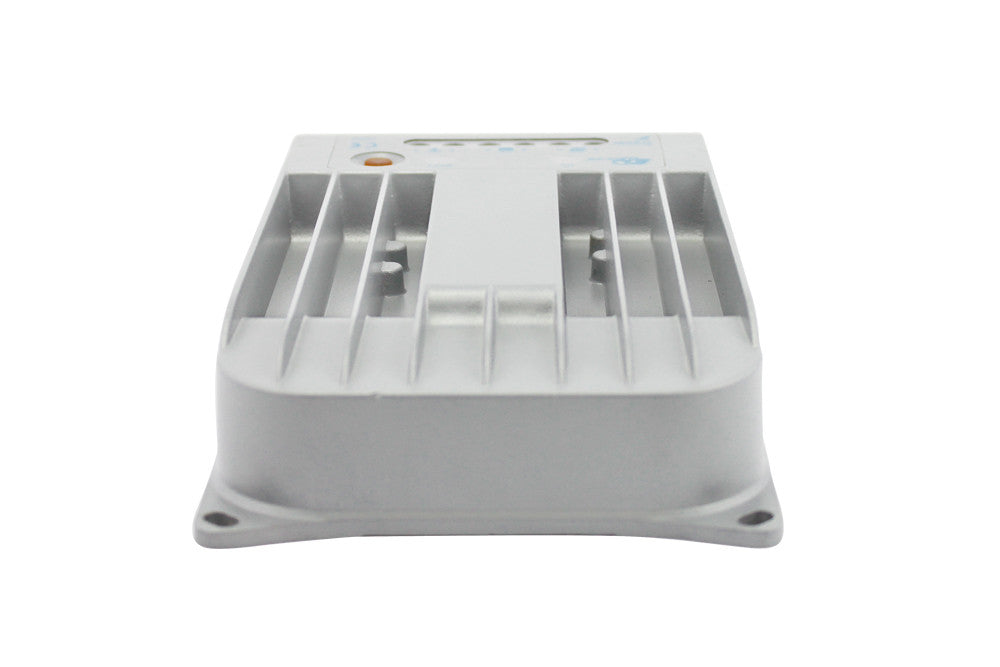

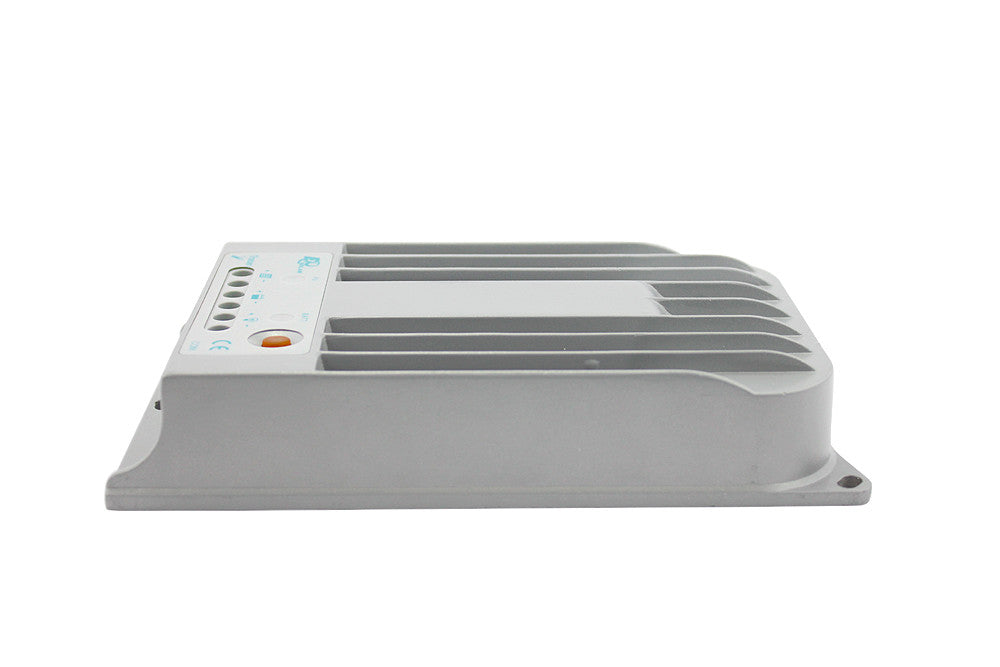

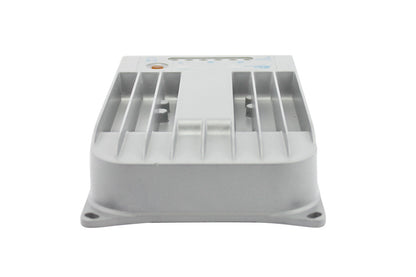

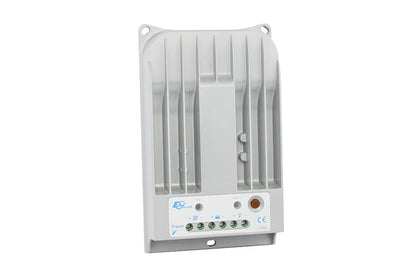

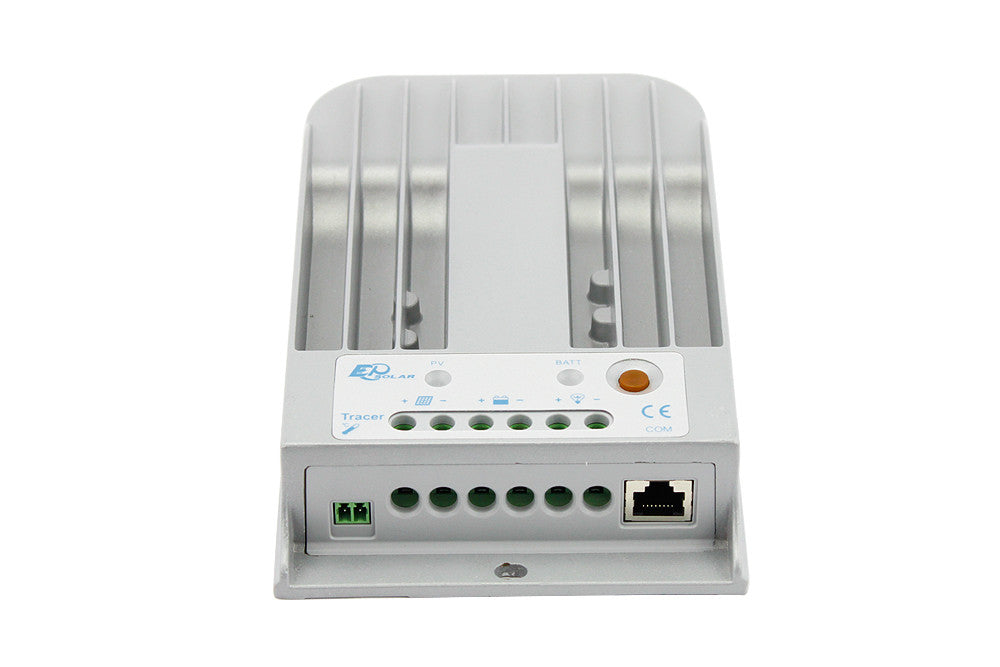

[Discontinued] MPPT 10A 12/24V Tracer 1215BN Solar Battery Charge Controller Regulator

[Discontinued] MPPT 10A 12/24V Tracer 1215BN Solar Battery Charge Controller Regulator

SKU:  101-97-120
$89.99
-Liquid error (snippets/price line 160): divided by 0 $89.99
Shipping calculated at checkout.
  • 101-97-120

This is MPPT 10A 12/24V Tracer 1215BN Solar Battery Charge Controller Regulator

  • Innovative MPPT technology
  • Peak conversion efficiency of 98%
  • High tracking efficiency up to 99%
  • Several seconds tracking speed
  • Die-cast aluminum design and nature cooling
  • Temperature compensation
  • Diversified load control to meet different requirements
  • Four battery type options: Sealed, Gel, Flooded, and USER
  • Intelligent lighting and timer control for solar lighting system
  • Energy statistics function
  • RS485 ports with MODBUS communication protocol
  • Optional PC monitoring software and remote meter for real-time monitoring and battery management parameter setting
  • Field upgradable firmware
View full details



SPECIFICATION

  • Nominal system voltage: 12VDC / 24VDC Auto work
  • Rated charge current: 10A
  • Rated discharge current: 10A
  • Maximum battery voltage: 32V
  • Max. solar input voltage: 150VDC
  • Max. PV input power: 130W(12V) 260W(24V)
  • Self-consumption*: â‰?0mA(12V)  â‰?7mA(24V)
  • Charge circuit voltage drop: â‰?.26V
  • Discharge circuit voltage drop:    â‰?.15V
  • Temperature compensate coefficient: -3mV/ºC/2V(default)
  • Communication: RS485(RJ45 interface)


WHAT'S IN THE PACKAGE

  • 1 x Solar Charge Controller



Note: If you need to monitoring the solar system or setting the controller, you may have to buy a MT-50 remote meter separately,MT-50 is not included.
