SPECIFICATION
Battery Parameters:
- System Voltage :12V
- Max Charging Current :8A
- MPPT Charging Voltage :<14.5V@25?
- Boost Voltage :14.5 @25?
- Equalization Voltage : 14.8 @25?(Liquid)
- Float Voltage :13.7 @25?
- Low Volt. Disconnect :10.8~11.8V,SOC1~5
- Reconnect Voltage :11.4~12.8V
- Overcharge Protect :15.5V
- Max volt on Bat. terminal :25V
- Temp. Compensation :-4.17mV/K per cell (Boost, Equalization), -3.33mV/K per cell (Float)
- Battery Type :Liquid, Gel
Panel Parameters:
- Max volt on PV terminal : 60V
- Max input power: 100
- Dusk/Dawn detect volt.: 3.0~20.0V(Programmable)
- Day/Night delay time: 0~30Min(Programmable)
- MPPT tracking range: (Battery Voltage + 1.0V)~Voc*0.9
Output Current: Load: 8A
System Parameters:
- Max tracking efficiency: >99.9%
- Max charge conversion: 96.00%
- Self consumption: 6mA
- Dimensions: 85.8 x 81 x 23.1mm
- Weight: 260g
- Ambient temperature: -35~+60?
- Ambient humidity: 0~100%RH

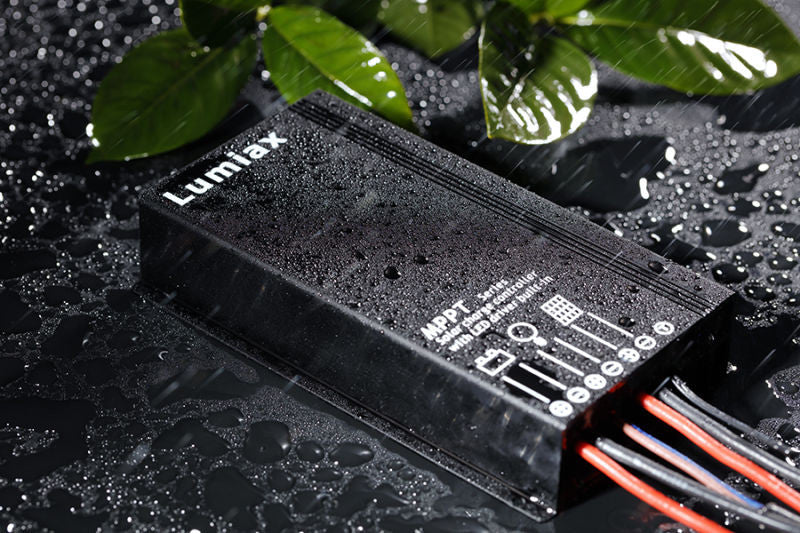

- Protection degree: IP67
- Max Altitude: 4000m
Note: Around oblique line value separately on behalf of 12V and 24V system's value.
WHAT'S IN THE PACKAGE

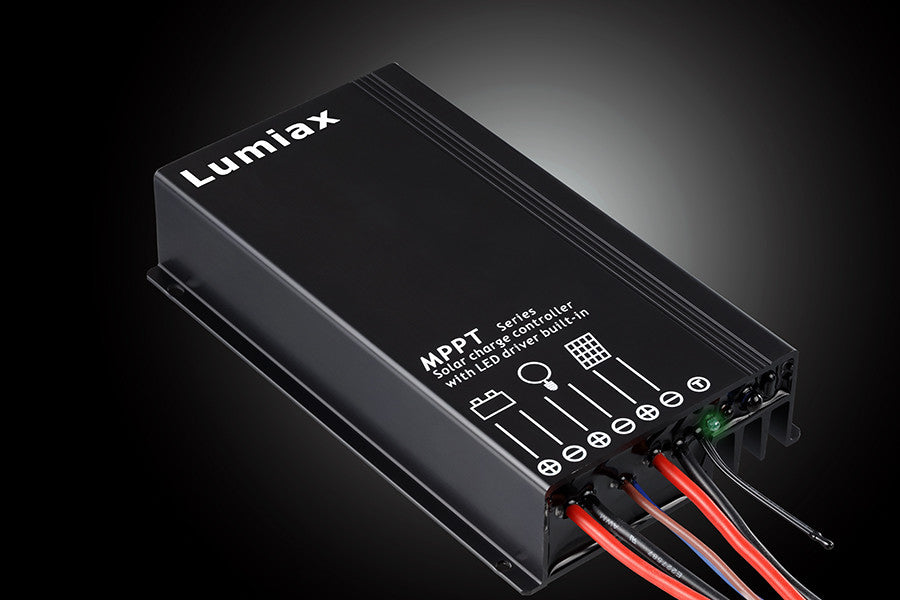

- 1 x SMR-MPPT0875 Solar Charging Controller
- 1 x User Manual
