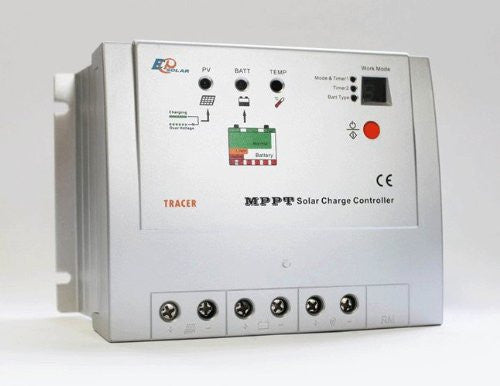

MPPT Tracer 1215RN Solar Charge Controller Regulator 12/24V INPUT 10A

brand: SainSmart SKU: 21-024-104
$73.91 FREE SHIPPING
Oops, 0 In Stock

Why we recommend buy MPPT Solar Controller?

MPPT circuit solar controllers are considerably more elaborate than PWM. The voltage of the solar panel changes with time of day and temperature. The optimum voltage for battery charging changes as the state of charge of the battery. The MPPT charge controller matches these voltages and can result in 30% more efficient transfer of power. This means good MPPT solar charge controllers can reduce the number of solar panels needed by up to 30%- a tremendous benefit. Even if the excess panels are purchased, benefits are realized in a Grid Tie system because more electricity can be sold back to the grid. While only a small part of system price, a MPPT solar panel charge controller can leverage the rest of the system to better performance.

Specification:

* Model No: Tracer-1215RN
* Nominal System Voltage: 12VDC | 24VDC Auto work
* Rated Battery Current: 10A
* Maximum Battery Voltage: 32V
* Max. Solar Input Voltage: 150VDC
* Max. PV input power: 12V/ 130W 24V /260W
* Self-consumption: <10mA(24V)
* Charge Circuit Voltage Drop: <=0.26V
* Discharge Circuit Voltage Drop: <=0.15V
* Communication: TTL232 / 8pin RJ45

Environmental Parameter:

* Working temperature: -35 to +55 C
* Storage temperature: -35 to +80 C
* Humidity: 10%-90% NC
* Enclosure: IP30

Mechanical Parameter:

* Dimension: 156 x 97 x 68 / mm
* Mounting holes: 147 x 60 / mm
* Mounting hole size: ?5
* Terminal: 4mm²
* Weight: 0.55kg
