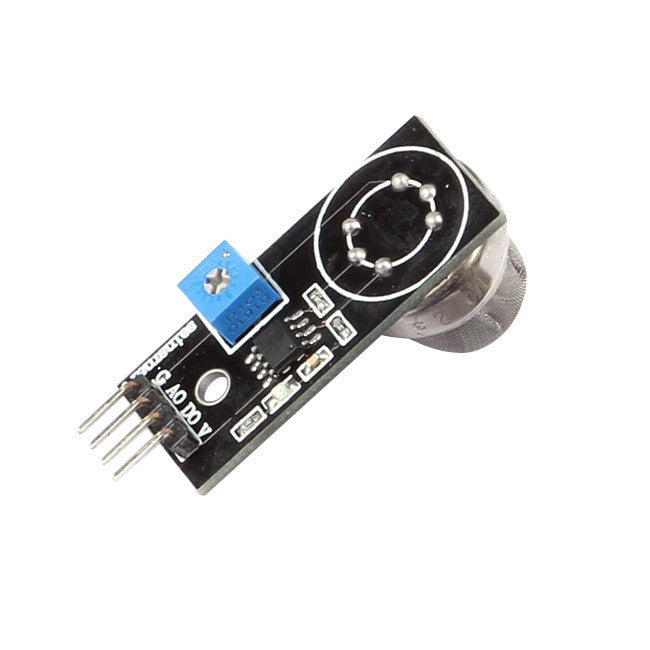

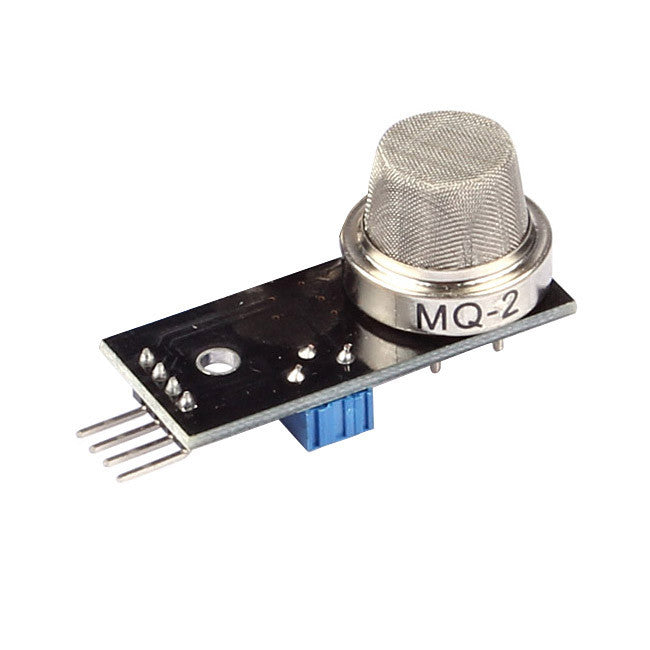

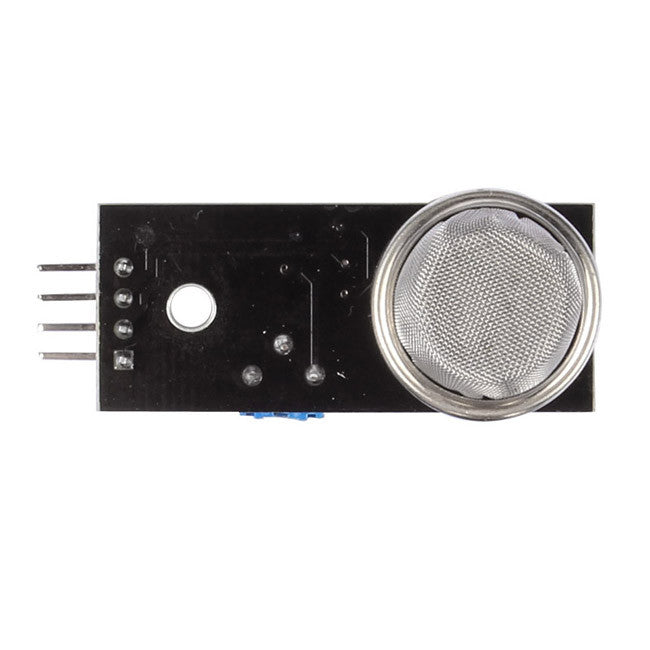

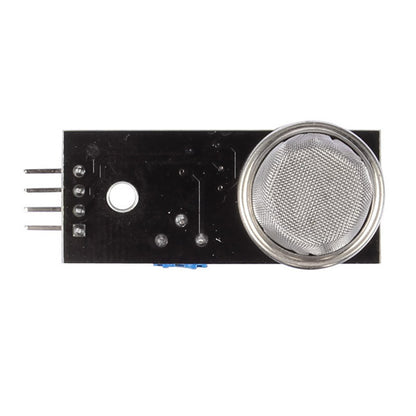

MQ-2 Gas Sensor for LPG Propane Hydrogen

brand: SainSmart SKU: 101-60-105
$7.99
Oops, 0 In Stock

Description:

The analog gas sensor - MQ2 is used in gas leakage detecting equipments in consumer and industry markets, this sensor is suitable for detecting LPG, i-butane, propane, methane ,alcohol, Hydrogen, smoke.It has a high sensitivity and fast response time.And the sensitivity can be adjusted by the potentiometer.

Features:

  • Power supply needs: 5V
  • Interface type: Analog

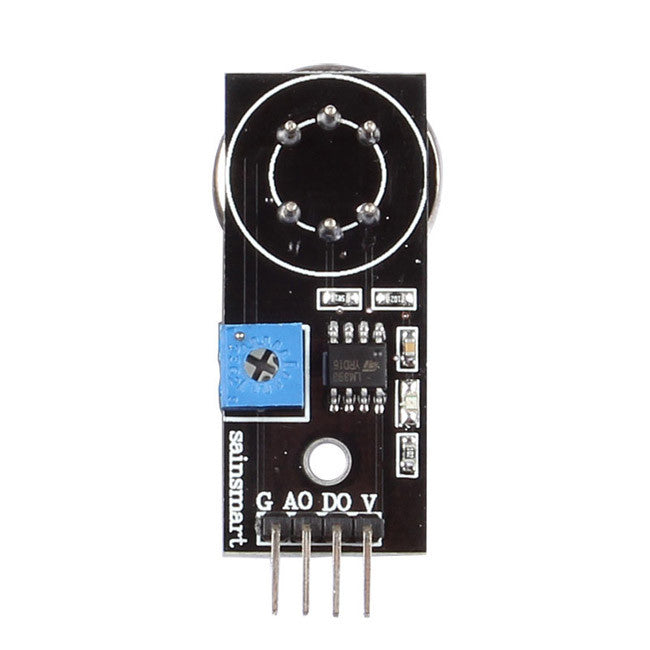

  • Pin Definition:  1-Output  2-GND  3-VCC
  • Wide detecting scope
  • Fast response and High sensitivity
  • Simple drive circuit
  • Stable and long life

Shipping List

  • Analog Gas sensor (MQ2) 1unit
