MS8236 Digital Multimeter AC DC Volt Current Meter with Auto Power off, Temperature Test

brand: SainSmart SKU: 101-92-313
$55.99 FREE SHIPPING

This meter is a handheld measuring Instruments, with high accuracy true rms digital multimeter analog bar and dual display. With a large-screen lcd digital display, and a backlight, the user can easily read. With overload protection and battery voltage indicator. Whether professionals, factories, schools, amateur or home use, it is an ideal multi-function instrument.



SPECIFICATION
  • DC voltage measurement 600Mv/6V/60V/600V/1000V ± (0.7% + 2)
  • AC voltage measurement 60Mv/600Mv/6V/60V/600V ± (0.8% + 3) 750V ± (1.0% + 3)
  • DC current measurement 600μa/6000Ua/60Ma/600Ma ± (1.2% + 3) 10a ± (2.0% + 10)
  • AC current measurement 600μa/6000Ua/60Ma/600Ma ± (1.5% + 3) 10a ± (3.0% + 10)
  • Resistance measurement 600ω/6kω/60kω/600kω/6mω ± (1.2% + 5) 60mω ± (2.0% + 5)
  • Capacitance measurement 60Nf/600Nf/6μf/60μf/600μf/6000μf/6Mf ± (3.0% + 3)
  • Rrequency measurement 10Hz ~ 10Mhz ± (1.0% + 5) duty cycle measurement 1% ~ 99% ± (2.0% + 2)
  • Temperature measurement -20 ° c ~ 1000 ° c ± (2.0% + 2)
  • Display 6000 count automatic and manual range âˆ?/li>
  • Relative measurement âˆ?/li>
  • The maximum/minimum holding âˆ?/li>
  • Data hold âˆ?/li>
  • Non-contact voltage detector (ncv) âˆ?/li>
  • DIODE test âˆ?/li>
  • Transistor âˆ?/li>
  • Continuity âˆ?/li>
  • Backlight âˆ?/li>
  • Power supply: 4 x 1.5V aa (not included)
  • Safety rating ce cat.iii1000v cat.iv600v rohs

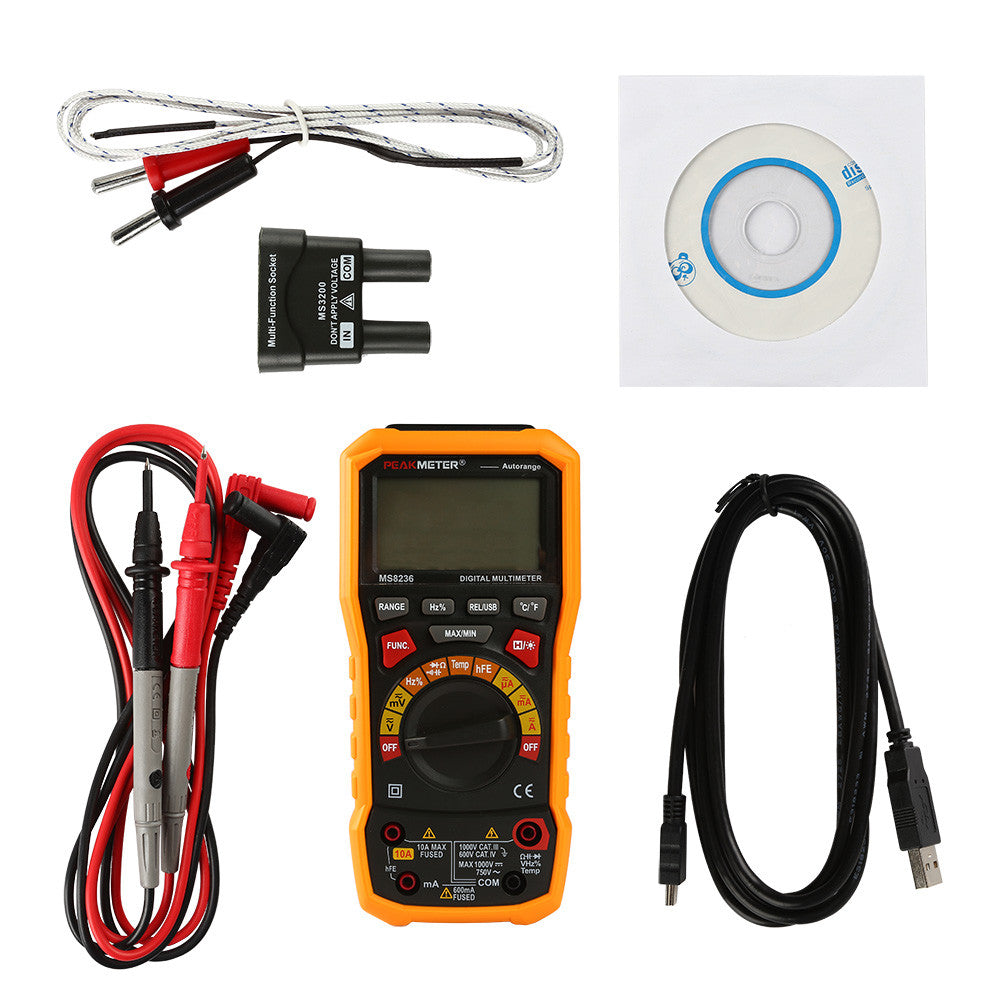

WHAT'S IN THE PACKAGE
  • 1x MS8236 digital multimeter
  • 1x User manual
