Description:
Feature:
1. Strictly follow the national security product standard.Suitable for the entrances and exits of office, factory, hotel, school, etc.

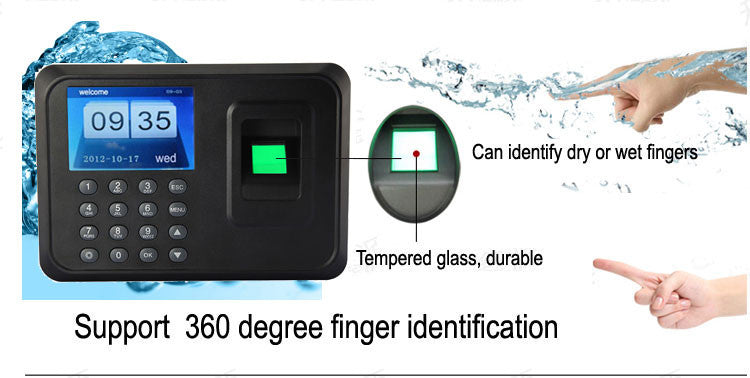

2. Adopting the Energy-saving fingerprint sensor and power management function, makes the product perfect.
3. Easy to learn, once enroll the fingerprint, you can share it on other Realand terminals.

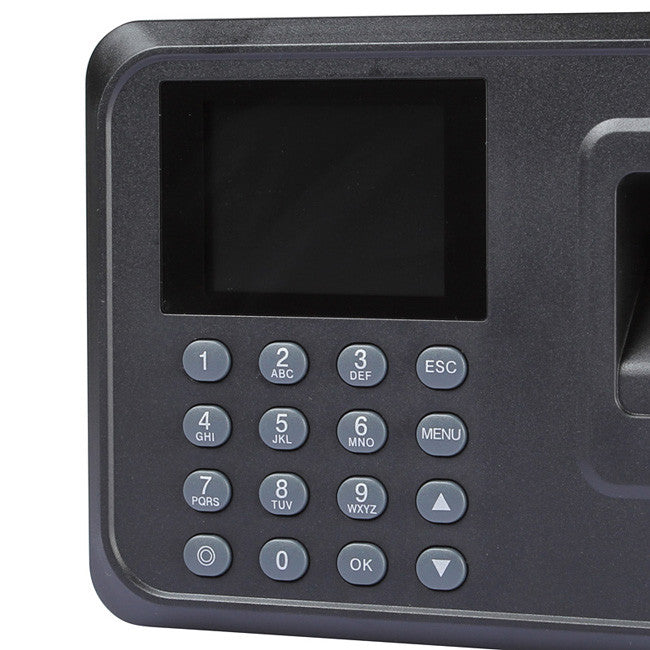

4. 2.4 inch TFT screen.

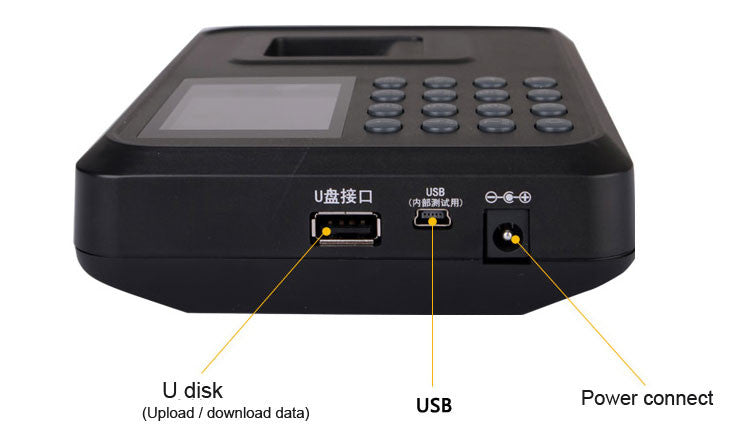

5. USB Flash Drive Download + USB Communication.

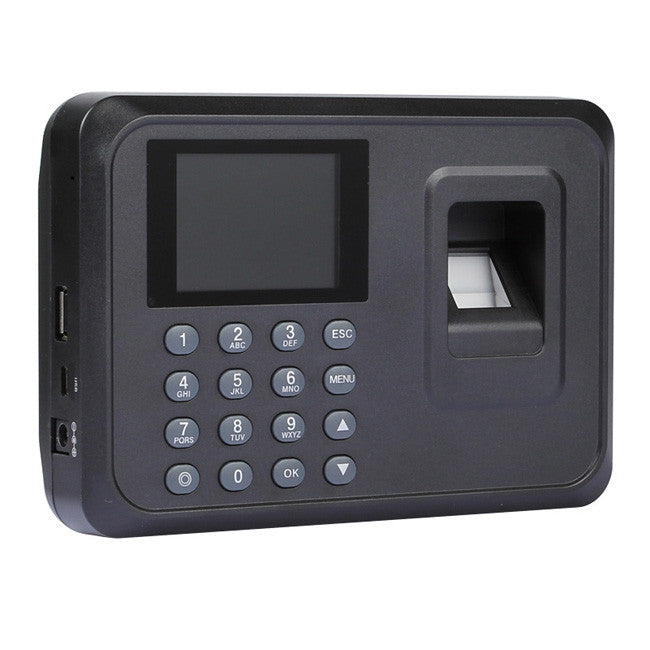

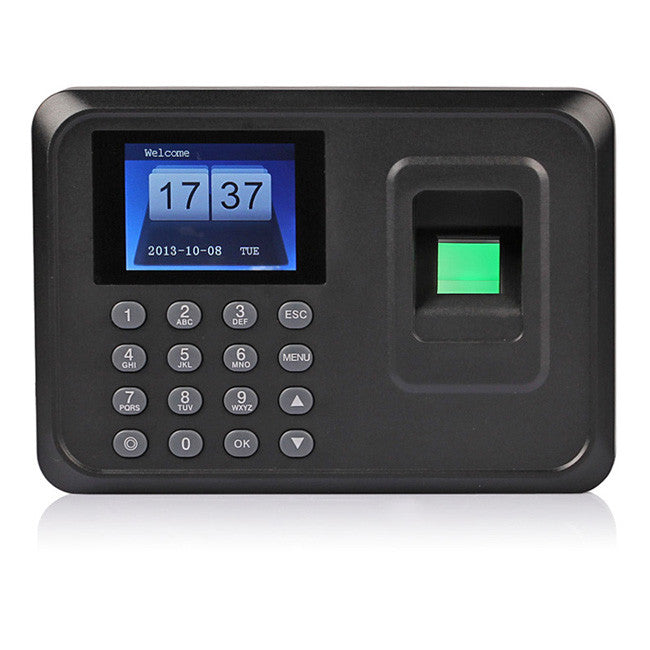

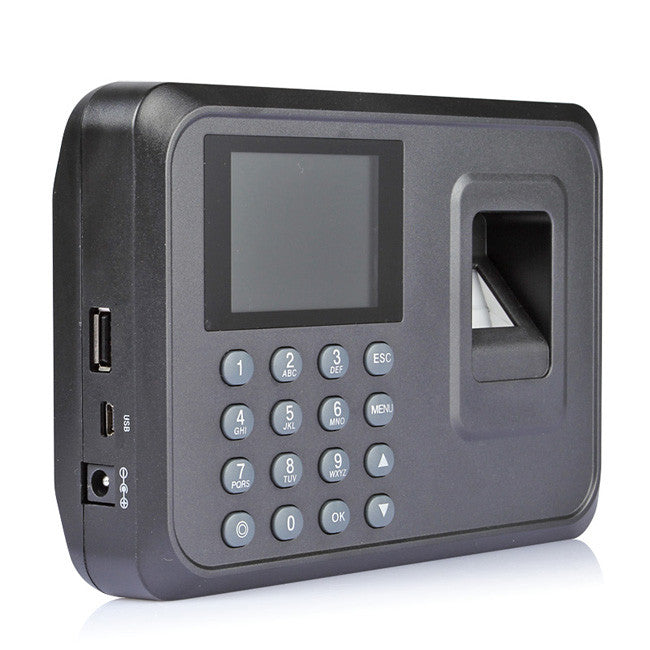

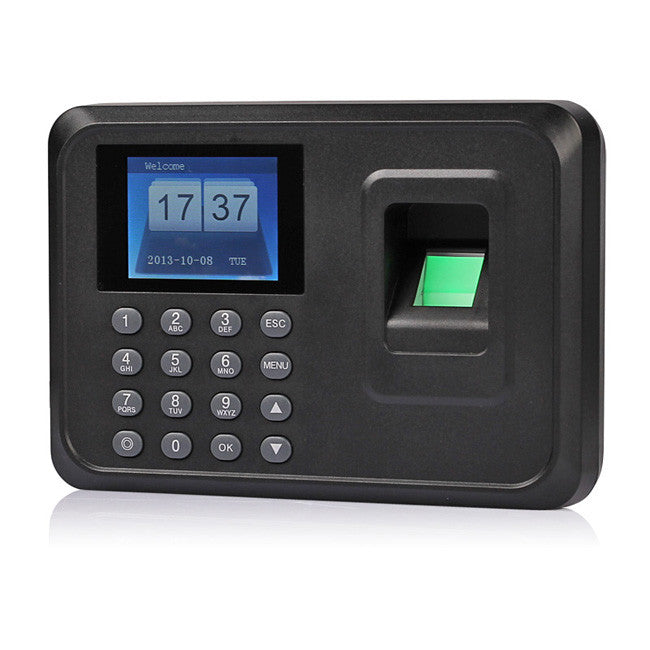

6. no need software, T9 input method editors, on the machine name, Department, frequency and other information, can be directly output attendance reports, user operation is simpleN-A6 2.4" TFT fingerprint time attendance Clock Employee Payroll Recorder
Specification:
|
Model |
ZDC30 |
|
Model |
A6 |
|
TFT |
2.4 inch TFT |
|

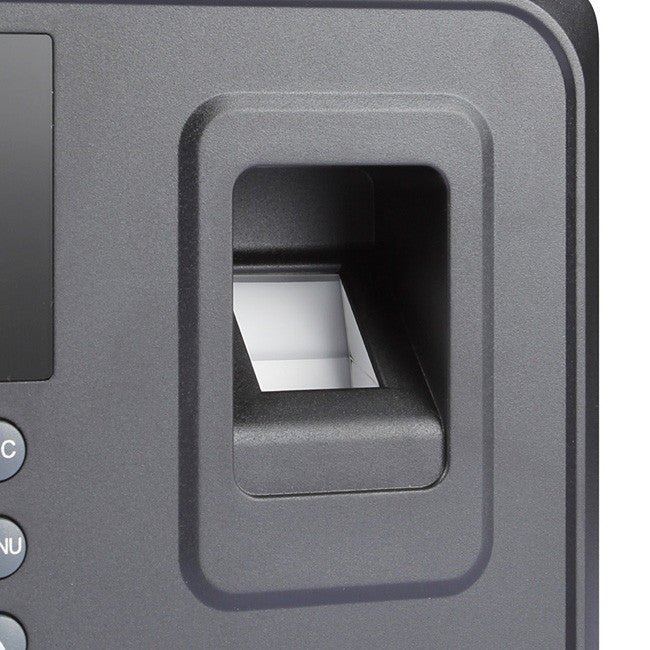

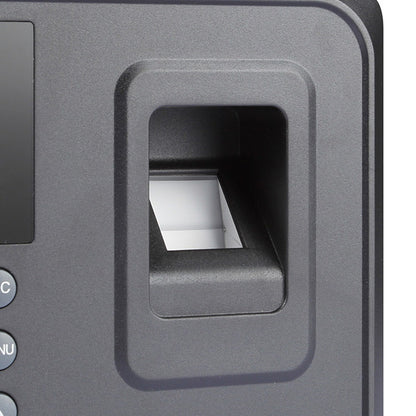

Fingerprint Sensor |
(Energy-saving)Optical Fingerprint Sensor (Resolution:500DPI) |
|
CPU |
32bit CPU |
|
Fingerprint Capacity |
600 |
|
Log Capacity |
150,000 events |
|

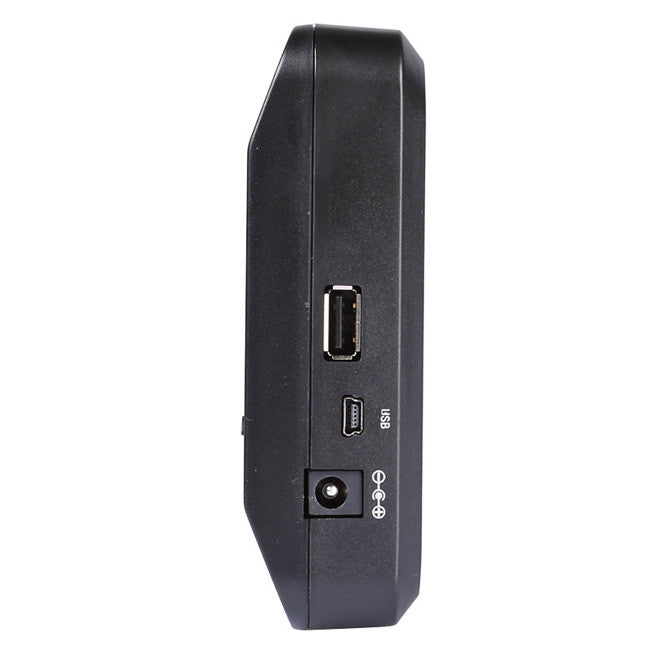

Communication |
USB |
|
Identification Mode |
Fingerprint, Password, |
|
USB Flash Drive Up/Download |
Available |
|
Record Query |
Available(people can query their own attendance record after authentication) |
|
Rotational Angle |
Total Rotational Angle |
|
Effective collecting area |
16*16mm |
|
Identification Time |
�s |
|
FRR |
�.1% |
|
FAR |
�.0001% |
|
Operating Mode |
Off-line / Online |
|
Authentication Mode |
1:1, 1:N |
|
Language |
Chinese, English |
|
Voice Prompt |
Available |
|
Power Management |
Auto Sleep Time, Auto Power Off Time |
|
Power Adapter |
DC 5V/1A |
|
Operating Environment |
Operating Temp:0?~ +45?, Humidity(RH):20%~80% |
|
Size of the Terminal |
170(L) × 118W) × 30(H) mm |
|
Size of the Packing |
255(L) × 145(W) ×50(H) mm |
|
Weight |
0.65 KG |
|
TFT |
2.8 inch TFT 320*240 |
|
Fingerprint Sensor |
(Energy-saving)Optical Fingerprint Sensor (Resolution:500DPI) |
|
CPU |
32bit CPU |
|
Fingerprint Capacity |
1,000 |
|
Log Capacity |
100,000 events |
|
Communication |
USB / TCP/IP(Optional) |
|
Identification Mode |
Fingerprint, Password, Proximity Card |
|
Proximity Card |
125Khz, EM4100 or other Compatible Contactless ID Card |
|
USB Flash Drive Up/Download |
Available |
|
Record Query |
Available people can query their own attendance record after authentication) |
|
Rotational Angle |
Total Rotational Angle |
|
Identification Time |
<1s |
|
FRR |
<0.1% |
|
FAR |
<0.0001% |
|
Operating Mode |
Off-line / Online |
|
Authentication Mode |
1:1, 1:N |
|
Language |
Chinese,English,Korean |
|
Voice Prompt |
Available |
|
Bell |
Built-in Timing Bell |
|
Self Test |
Available |
|
Power Management |
Auto Sleep Time, Auto Power Off Time |
|
Power Adapter |
DC 12V/1A |
|
Operating Environment |
Operating Temp:-10C ~ +60C, Humidity(RH):20%~80% |
|
Size of the Terminal |
180(L) �34(W) �6(H) mm |

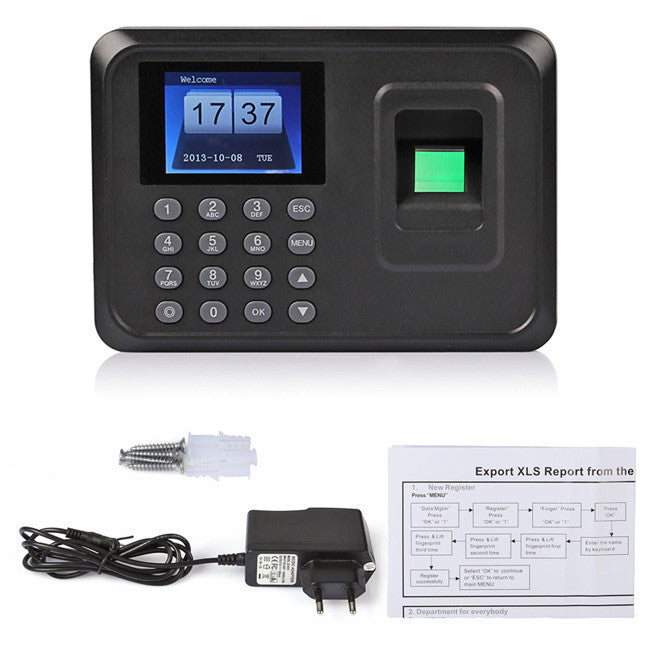

Package List:
1 x Fingerprint Time Attendance Clock
1 x US Power plug
1 x User Manual
1 x screws package
