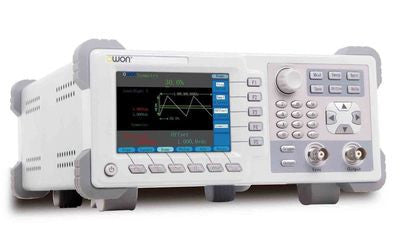

[Discontinued] New Owon AG4151 150Mhz 400MSa/S signal generator 14bits FSK SWEEP burst
Specification:
|
Bandwidth |
one channel 150MHz |
|
Sample rate |
400Msa/S |
|
Vertical solution |
14bits |
|
Auto waveform record length |
1Mpoints |
|
Amplitude Flatness |
20mVPP-20VPP |
|
Modulation |
AM,FM,PM,PWM,FSK,SWEEP,Burst |
|
Standard waveforms |
Sine,Square,Pulse,Ramp,Noise |
|
Arbitrary waveforms |
Exponential Rise and Decay,DC,Sine,User defined 32 channels digital waveform |
|
Frequency characteristics |
400MSa/S,Resolution 1μHz |
|
sine |
1μHz -150MHz |
|
square |
1μHz-50MHz |
|
pulse |
1μHz-30MHz |
|
Ramp |
1μHz-1MHz |
|
Noise |
50MHz |
|
Wave length |
1Mpts |
|
Sample Rate |
200MSa/s |
|
Vertical Resolution |
14bits |
|
Non-Volatile memory |
4waveforms |
|
Amplitude |
10mVPP-10CPP(50Ω )20mVPP-20VPP(high impendance) |
|
Resolution |
1mVPP or 14bits |
|
DC offset range(AD+DC) |
±5V(50Ω)?±10V(High Impedance) |
|
DC offset range |
1mV |
|
Load Ipedance |
50Ω(typical) |
|
Modulation waveforms |
AM\FM\PM\FSK\PWM,linear/logarithm sweep and burst waveform |
|
Modulation frequency |
2mHz-20.00kHz(FSK 2mHz-100kHz) |
|
Display |
3.9-inch(480×320)TFT LCD |
|
Interface |
USB Host,USB Device,RS232,LAN |
