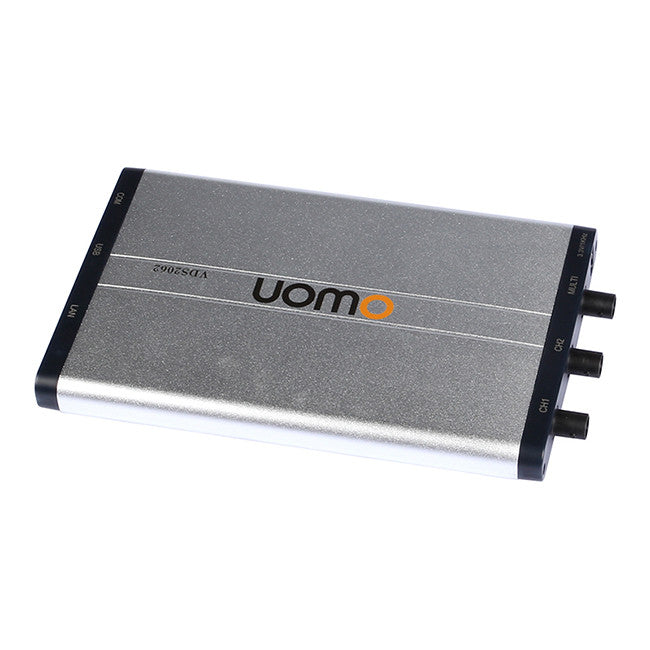

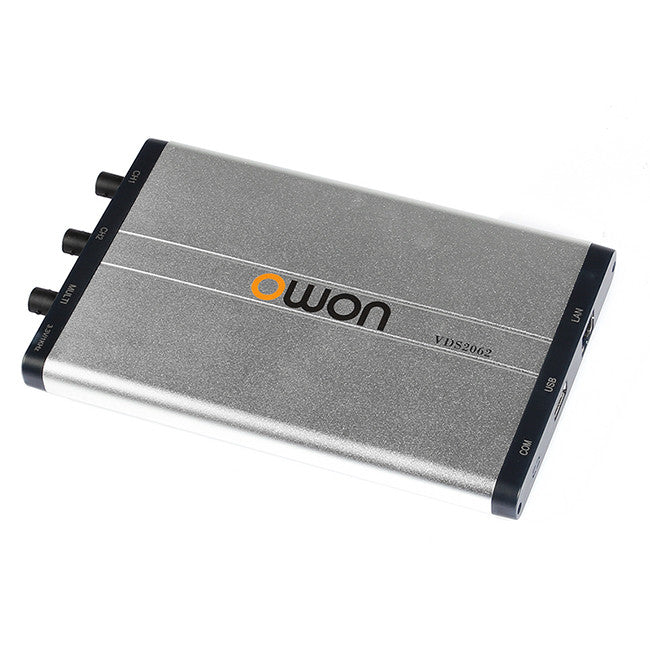

[Discontinued] New Owon PC Oscilloscope VDS2062 60MHz
Brand: OWON SKU: 20-010-610

[Discontinued] New Owon PC Oscilloscope VDS2062 60MHz

SKU: 20-010-610 Variants ID: 45100518036
$225.76


Description:
OWON witnesses the new-born USB oscilloscope working on PC - OWON VDS series oscilloscope in the new era. In contrast with bench type digital storage oscilloscope, the PC oscilloscopes in the current market equipped with either incomplete function, or lower performance, very inconvenient for users, especially for engineers. OWON VDS PC oscilloscope accommodates users with 100MHz bandwidth, 1GSa/s real-time sample rate, and multiple trigger modes - edge, video, slope, pulse, and alternate. OWON VDS PC oscilloscope attracts more eyesight from the market upon with its ultra-thin body design - only 18mm of body depth, which is much portable, and its USB powering facilitates mobile tests under powerless conditions to the largest degree.

Functions:
Up to 600MHz bandwidth, and max 500MS/s real-time sample rate 10M record length
Friendly UI : FFT, or X-Y, and waveform 2 views displayed on the same screen
Multi-trigger option : edge, video, slope, pulse, and alternate
USB isolation - less signal inference, more PC protenction
USB bus powering, and LAN remote control (optional)
Ultra-thin body design, easy portability



Specification:

Model

VDS1022I

VDS1022

VDS2062

VDS3102

Bandwidth

25MHz

60MHZ

100MHZ

Channel

2+1 (multi)

Sample Rate

100MS/s

500MSa/s

1GSa/s

Horizontal Scale (s/div)

5ns/div~100s/div, step by 1~2~5

2ns/div~100s/div,

step by 1~2~5

Rise Time

<=14ns

<=5.8 ns

<=3.5 ns

Record Length

5K

10M

Input Coupling

DC AC GND

Input Impedance

1MΩ+-2%,in parallel with10Pf+-5pF

Channels Isolation

50Hz : 100 : 1, 10MHz : 40 : 1

Max Input Voltage

400V (PK - PK) (DC+AC, PK - PK)

40V (PK - PK) (DC+AC, PK - PK)

DC Gain Accuracy

+-3%

DC Accuracy

Average>=16: +-(3% reading + 0.05div) for ?T

Probe Attenuation Factor

1X, 10X, 100X, 1000X

LF Respond (AC, -3dB)

>=5Hz (at input, AC coupling, -3dB)

Sampling Rate / Relay Time Accuracy

150ps

Interpolation

sin(x) / x

Interval (?T) Accuracy (full bandwidth)

Single: +-(1 interval time + 100ppm × reading + 0.6ns),
Average >16: +-(1 interval time + 100ppm × reading + 0.4ns)

Vertical Resolution (A/D)

8 bits resolution (2 channels simultaneously)

Vertical Sensitivity

5mV/div~5V/div

Trigger Type

Edge, Pulse, Video, Slope, Alternate

Trigger Mode

Auto, Normal, Single

Trigger Level

+-5 divisions from screen center

Acquisition Mode

Sample, Peak Detect, and Average

Line / Field Frequency (video)

NTSC, PAL, and SECAM standard

Cursor Measurement

?V, and ?T between cursors

Automatic Measurement

Vpp, Vavg, Vrms, Freq, Period, Vmax, Vmin, Vtop, Vbase, Overshoot, Preshoot,
Rise Time, Fall Time, Delay A→Bâ†? Delay  A→Bâ†? +Width, -Width, +Duty, -Duty

Waveform Math

 +,-,*,/ invert, FFT

Lissajou’s

Figure

Bandwidth

full bandwidth

Phase Difference

±3 degrees

Communication Interface

USB 1.1

USB 2.0, LAN (optional)

Multi-function Interface

Signal Type

synchronized input / output, Pass / Fail , external trigger input

Level Standard

TTL

Power Supply

/

5.0V/1A

Power Consumption

/

<=5W

Dimensions (W × H × D)

170 X120X18 (mm)

190 X120X18 (mm)

Weight (without package)

About 0.26 kg

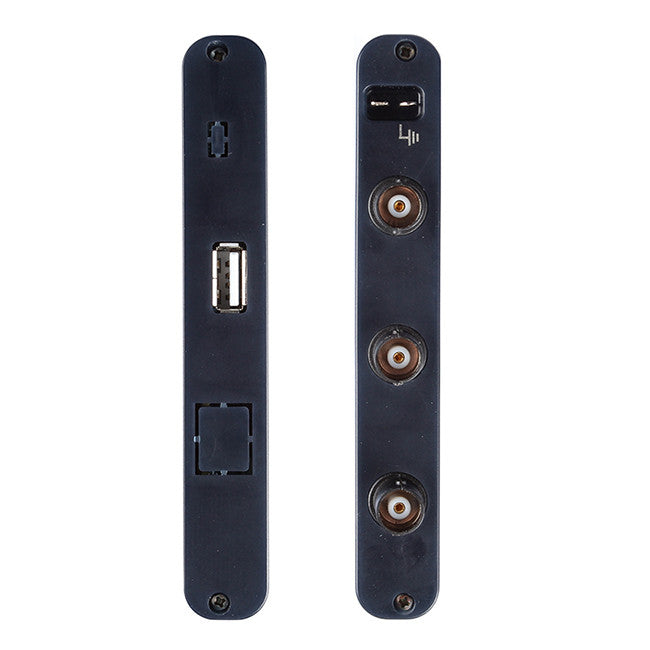

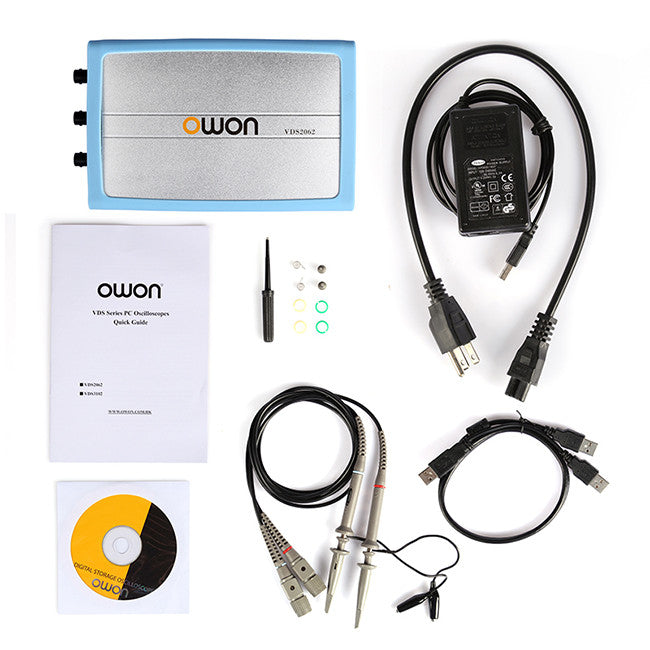

 Package list:

  • 1xVDS2062

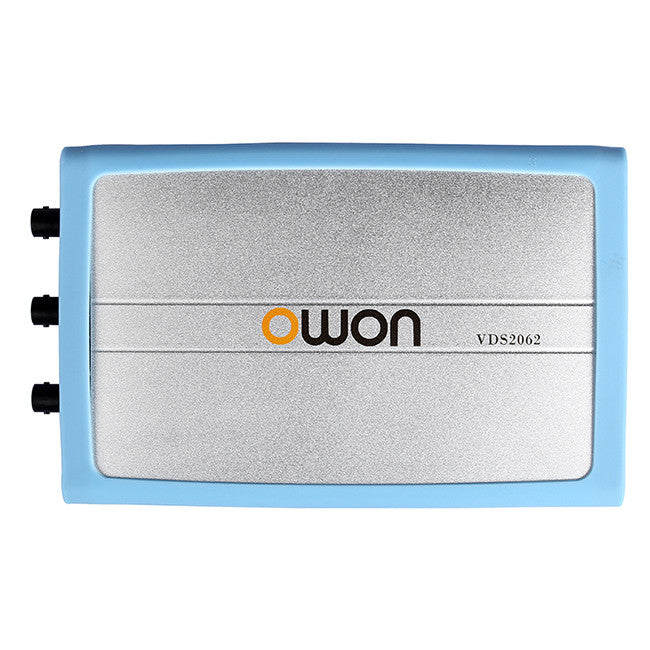

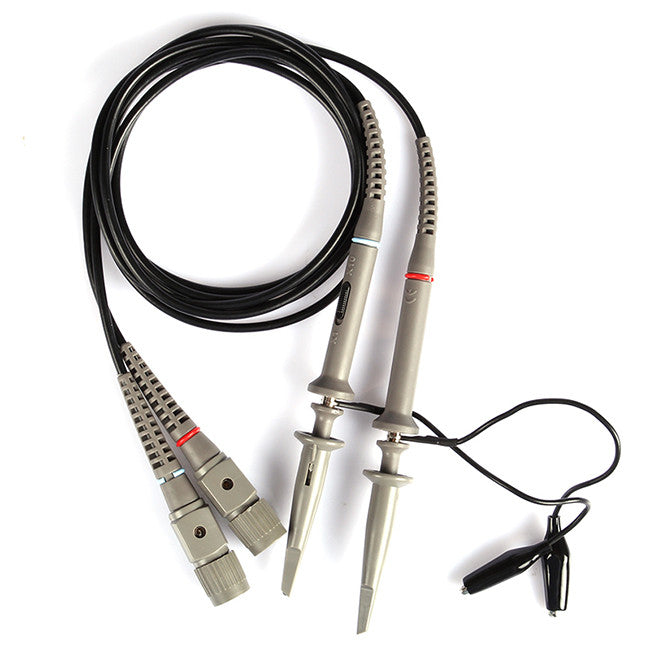

  • 2xProbe
  • 1xProbe Adjust
  • 1xUSB
  • 1xAdapter
  • 1xPower Cord
  • 1xSilicon Gel Case
  • 1xUser Manual
  • 1xCD Rom
