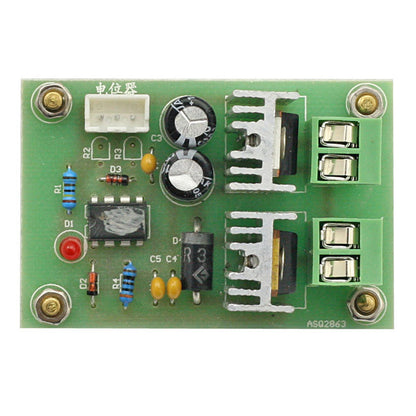

![[Discontinued] SainSmart PWM DC Converter, 12V-36V 5A 10A DC Motor Speed Adjuster Controller Driver](http://www.sainsmart.com/cdn/shop/products/02_1_9.jpg?v=1499266049&width=1445)
![[Discontinued] SainSmart PWM DC Converter, 12V-36V 5A 10A DC Motor Speed Adjuster Controller Driver](http://www.sainsmart.com/cdn/shop/products/11_1.jpg?v=1499266049&width=1445)
![[Discontinued] SainSmart PWM DC Converter, 12V-36V 5A 10A DC Motor Speed Adjuster Controller Driver](http://www.sainsmart.com/cdn/shop/products/03_1_8.jpg?v=1499266049&width=1445)
![[Discontinued] SainSmart PWM DC Converter, 12V-36V 5A 10A DC Motor Speed Adjuster Controller Driver](http://www.sainsmart.com/cdn/shop/products/06_4.jpg?v=1499266049&width=1445)
![[Discontinued] SainSmart PWM DC Converter, 12V-36V 5A 10A DC Motor Speed Adjuster Controller Driver](http://www.sainsmart.com/cdn/shop/products/2_8.jpg?v=1499266049&width=1445)
![[Discontinued] SainSmart PWM DC Converter, 12V-36V 5A 10A DC Motor Speed Adjuster Controller Driver](http://www.sainsmart.com/cdn/shop/products/07_2.jpg?v=1499266049&width=1445)
- Motor Type: DC Motor
- Model Number: 12V-36V 10A
- Working voltage: 12V-36V
- Control Current: 10A MAX
- Working voltage: DC12V-DC36V
- Control Current: 10A
- Control Power: Voltage * Current = Power (12V when the power is 12 * 10 = 120W 36V maximum power of 200W)
- Size: 60mm × 40mm
- Frequency: 25KHZ
NOTE:

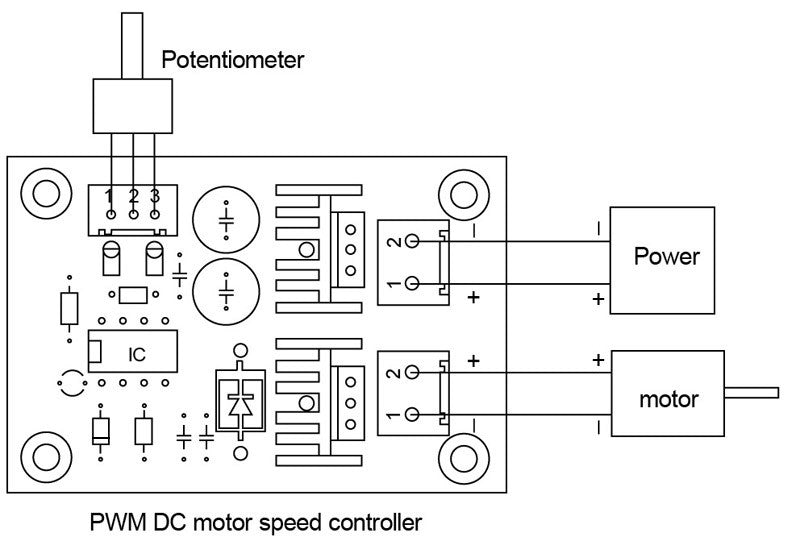

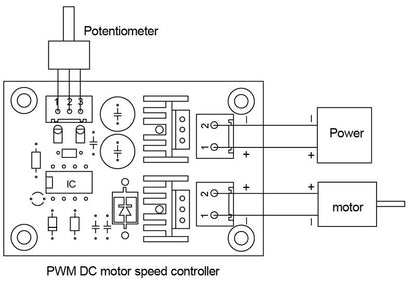

Please connect the power according to the circuit diagram. Otherwise it may burn the board.
