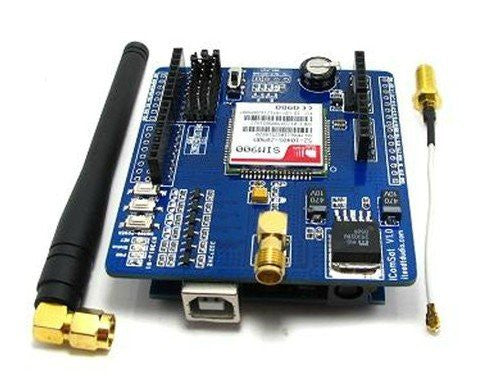

New SIM900 GSM / GPRS Shield Module Development Board for Arduino

brand: SainSmart SKU: 20-011-117
$39.99
Oops, 0 In Stock

Overview:

The GPRS (General Packet Radio Service) Shield is a new nonvoice value added service that delivers GSM/GPRS 850/900/1800/1900MHz performance for voice, SMS, Data, and Fax in a small form factor and with low power consumption. It is controlled via AT commands (GSM 07.07 ,07.05 and SIMCOM enhanced AT Commands), and fully compatible with Iteaduino/Arduino and Mega.



Feature:

    Quad-Band 850/ 900/ 1800/ 1900 MHz
    GPRS multi-slot class 10/8
    GPRS mobile station class B
    Compliant to GSM phase 2/2+Class 4 (2 W @850/ 900 MHz)
    Class 1 (1 W @ 1800/1900MHz)
    Control via AT commands (GSM 07.07 ,07.05 and SIMCOM enhanced AT Commands)
    Low power consumption: 1.5mA(sleep mode)
    Operation temperature: -40°C to +85 °C

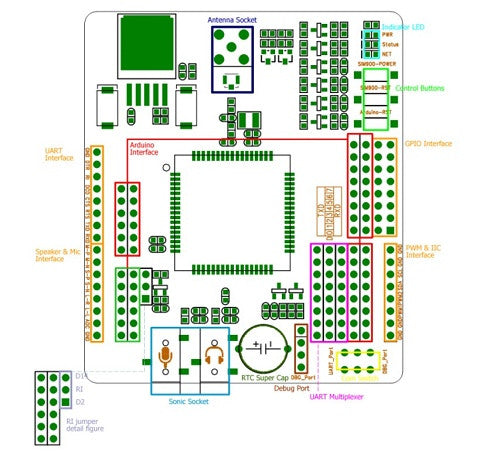

Specification:

Interface

Pin

Description

GPIOs

1

VDD*

2

GND

3

GPIO1

4

GPIO2

5

GPIO3

6

GPIO4

7

GPIO5

8

GPIO6

9

GPIO7

10

GPIO8

11

GPIO9

12

GPIO10

13

GPIO11

14

GPIO12

15

GND

16

VDD*

UART

1

GND

2

DTR

3

RI

4

DCD

5

CTS

6

RTS

7

TXD

8

RXD

IIC&PWM

1

GND

2

GND

3

IIC_SCL

4

IIC_SDA

5

PWM2

6

PWM1

7

GND

8

GND

Debug_Port

1

GND

2

PERKEY

3

DBG_RXD

4

DBG_TXD



Package:

    1x GSM900 GSM development board  for Arduino

    1x GSM antenna

    1x GSM antenna adapter cable

    1x Datasheet (manual and example)

?
