New Workflow for Print Farms & Prop Makers

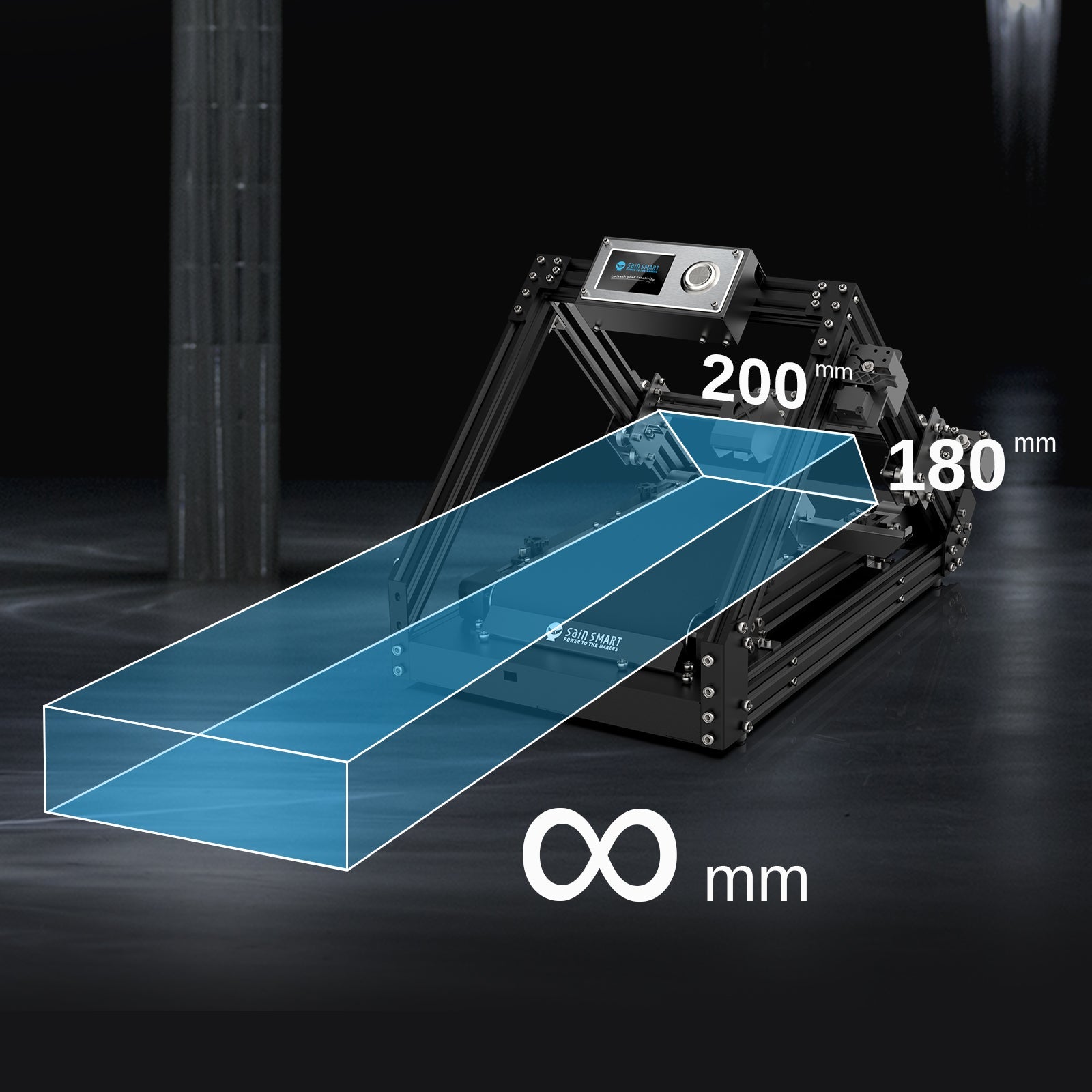

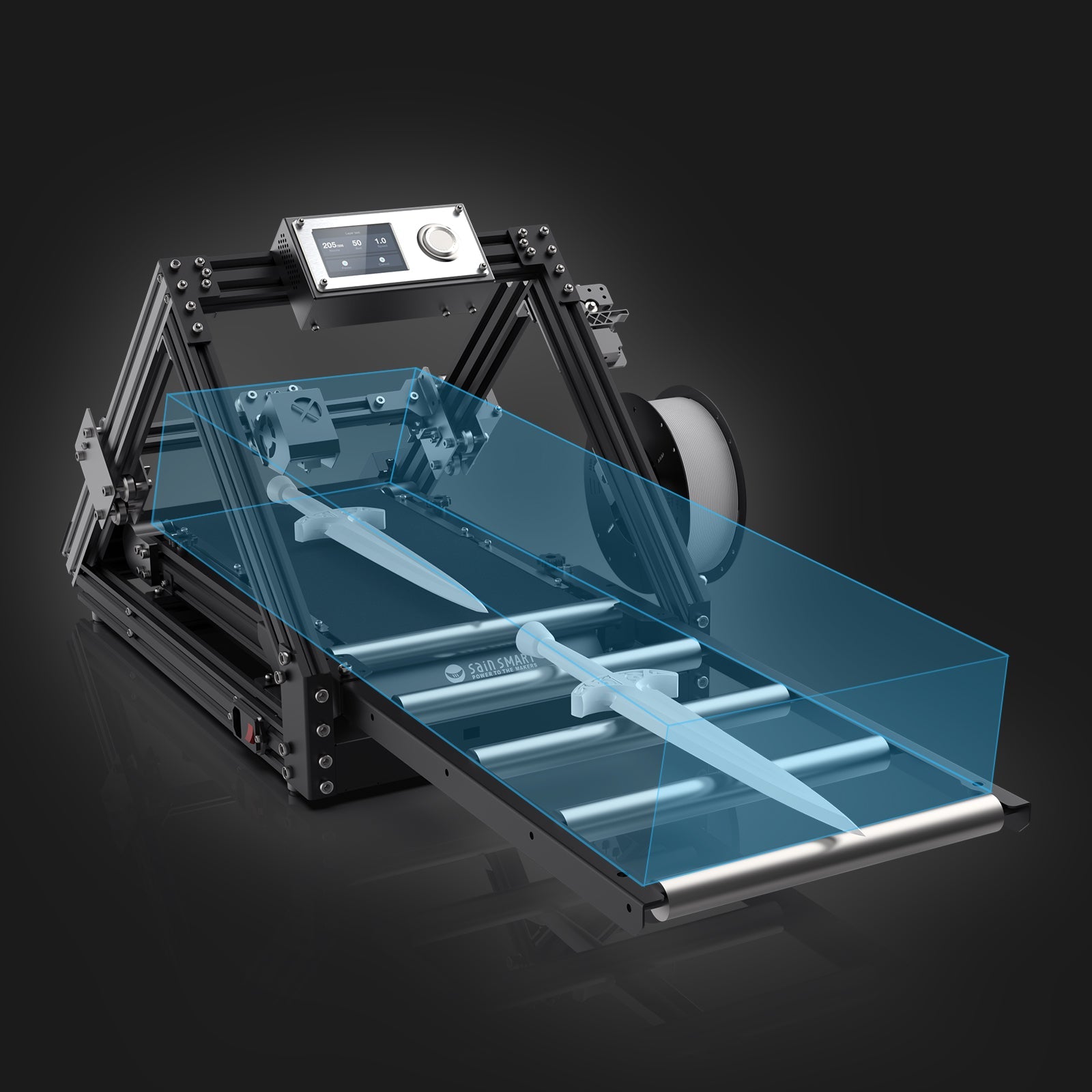

With a print head tilted at 45 degrees and conveyor belt design, the 200mm×180mm×∞mm build volume INFI-20 is perfect for limitless long prints and non-stop batch printing, creating a smooth workflow for print farm and prop makers.
Easy Setup & Improved Belt Design
The new batch of INFI-20 Belt 3D Printer is not fully assembled. But with an easy-assembly design and the built-in layer test feature, this belt printer will still get you off to an easy start.
The nylon conveyor belt has a specially roughened texture that strengthens the adhesion of the 3D print to its surface; Fixture on both sides of the belt to keep it flat and leveled, reducing the chance of belt slipping or misalignment.
The nylon conveyor belt has a specially roughened texture that strengthens the adhesion of the 3D print to its surface; Fixture on both sides of the belt to keep it flat and leveled, reducing the chance of belt slipping or misalignment.
Filament Break Sensor
Print non-stop without it driving you crazy. Equipped with TMC2208 silent drivers ensures the INFI-20 will print in silence, filament run-out sensor and resume printing support make filament running out and power outrage no longer an issue, and a powerful yet stable 350W also adds up to the confidence in long-time printing. Don't let a filament break or filament runout ruin your project. INFI-20 will pause and allow you to resume after a break in filament or power outage.
Leveling Quality of Life Features
- Layer Test feature allows you to run quick tests of the first layer and tweak the belt and nozzle distance accordingly, getting your printer dialed in with ease whether you print in wood composites, PLA, TPU, or more.
- Fixture on both sides of the belt to keep it flat and level, reducing the chance of the belt slipping or misalignment.
- Added scale marks to improve belt leveling precision.
Single Axis Motion
Driven by single-axis independent motion system, the INFI-20 can print with accurate and reliable results.
Modern UI & SainSmart Slicer
The INFI-20 comes with a straightforward user interface that allows you to keep track of the printer status with ease. The rotary dial makes numerical changes and axis movement easier. Specially designed SainSmart Slicer gives you a boost in your infinite 3D Printing Journey.
Wi-Fi Printing
With built-in ESP3D Web UI and OctoPrint API, you can control your printer and print your models via web browser or mobile phone application. ("Polymer for OctoPrint" for iOS users and "OctoRemote" for Android users.)
Quality of Life Features
Print non-stop without it driving you crazy. Equipped with TMC2208 silent drivers ensures the INFI-20 will print in silence, filament run-out sensor and resume printing support makes filament running out and power outrage worry-free, and a powerful yet stable 350W also adds up to the confidence in long-time printing.
Specifications
| Assembly Guide | Bed Leveling |
| Firmware Update | Product Review |
| Product Review | Product Review |
| Filament diameter | 1.75 mm |
| 3rd party filaments | Yes |
| Compatible materials | PLA, PETG |
| Print Size | 200 x 180 x ∞ mm |
| Molding Technology | FDM |
| Number of nozzles | 1 |
| Layer Height | 0.1-0.4mm |
| Nozzle Diameter | 0.4mm |
| Printing Accuracy | 土0.1mm |
| Material | PLA, PETG |
| CuraProfile | 🔗 PLA 🔗 PETG |
| Recommended slicer | SainSmart Slicer (Click to download) |
| User Manual | Click Here to download |
| Operating system | Windows/Linux/MacOS |
| File types | STL/OBG/AMF |
| Max. extruder temperature | 240 ℃ |
| Max. heated bed temperature | 100 ℃ |
| Max. print speed | < 180mm/s, normally 30-60mm/s |
| Connectivity | SD, OctoPrint |
| Resume print | Yes |
| Filament sensor | Yes |
