[Discontinued] [Open Box] ToolPAC PRO32 Smart Soldering Tool Set with Power Supply

External Power Supply

The Pro32 features an integrated DC5525 12-24V connection, the DC5525 power port is compatible with DC 12–24 V laptop AC adapter/power bank/car power.

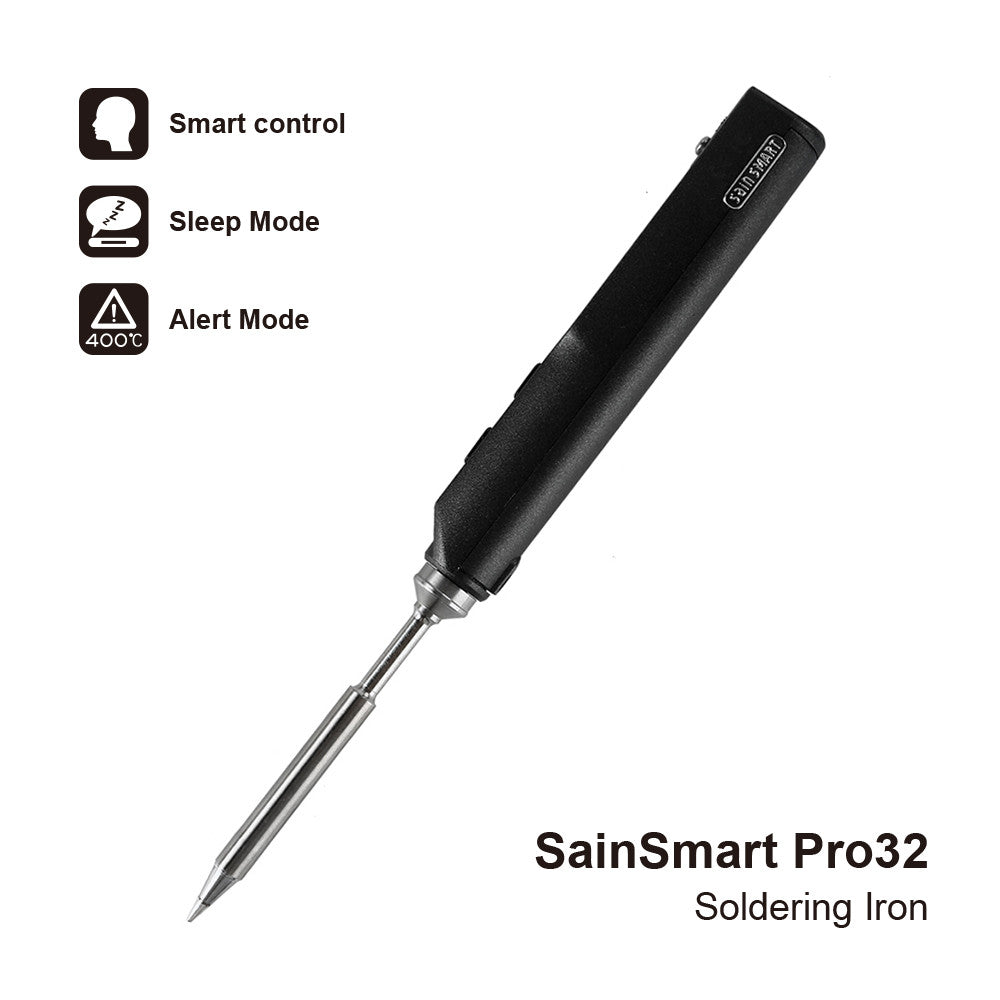

Various Modes

The integrated STM32 processor chip automatically regulates the Pro32’s “sleep mode”, “standby”, and “operating mode”, ensuring the safety of the user.

Easy-to-read OLED Display

The kit comes with better heat dissipation efficiency with the high-quality SAE 304 stainless steel core, also, the features of this product are simply remarkable as it comes with LED digital display.

Heat Up Quicklye

The Pro32 has adjustable temperature control soldering irons from 100° C to 400° C, if you are in soldering various objects, it is a mandatory toolkit for you.

DESCRIPTION

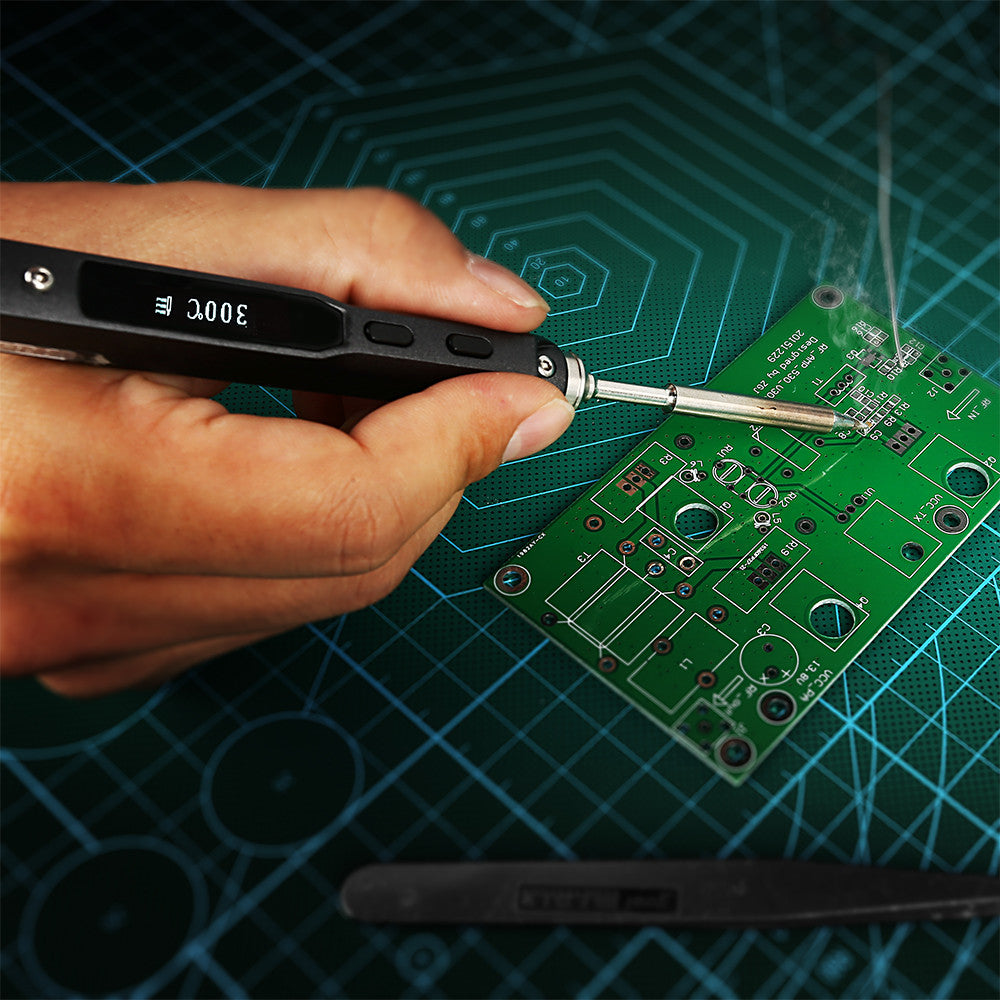

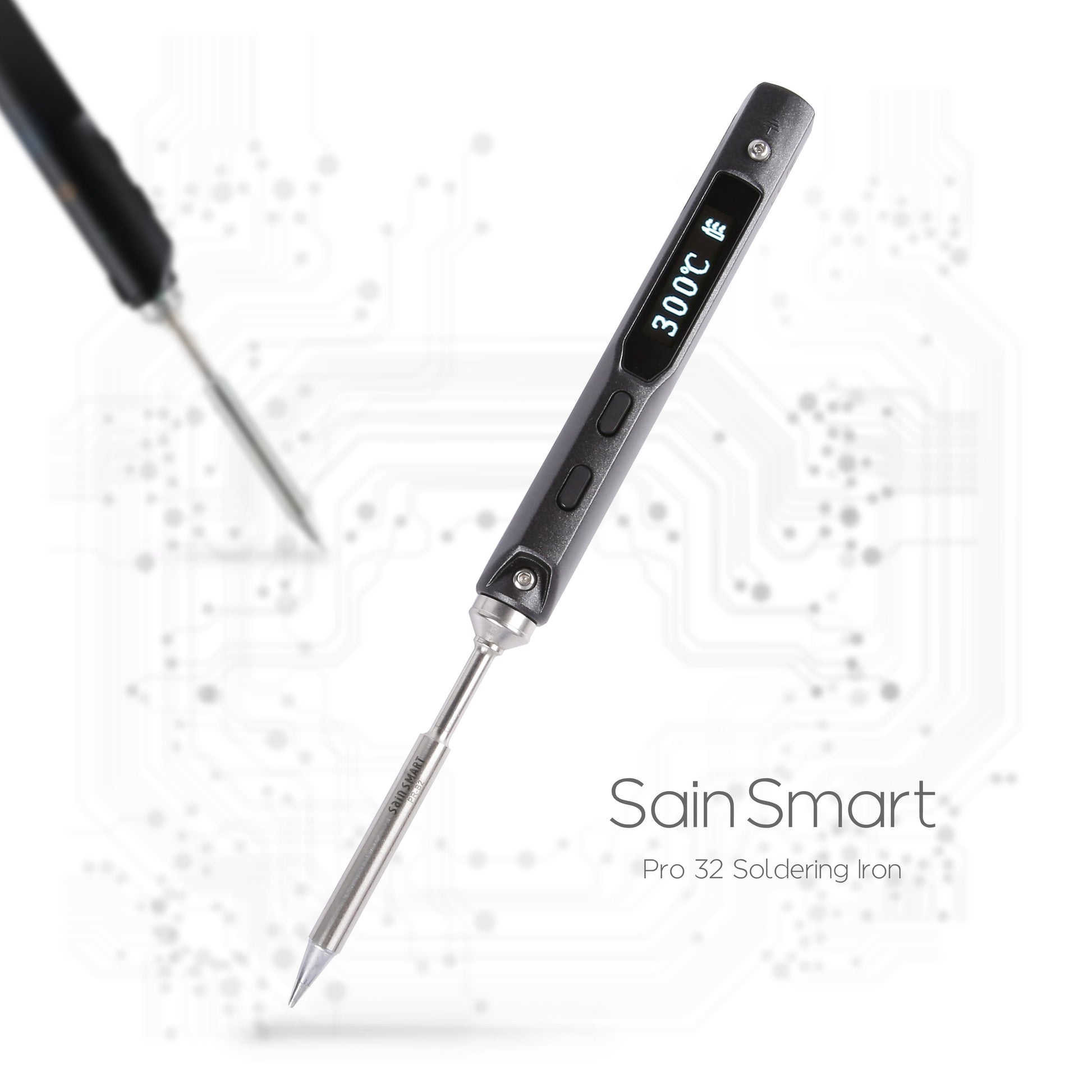

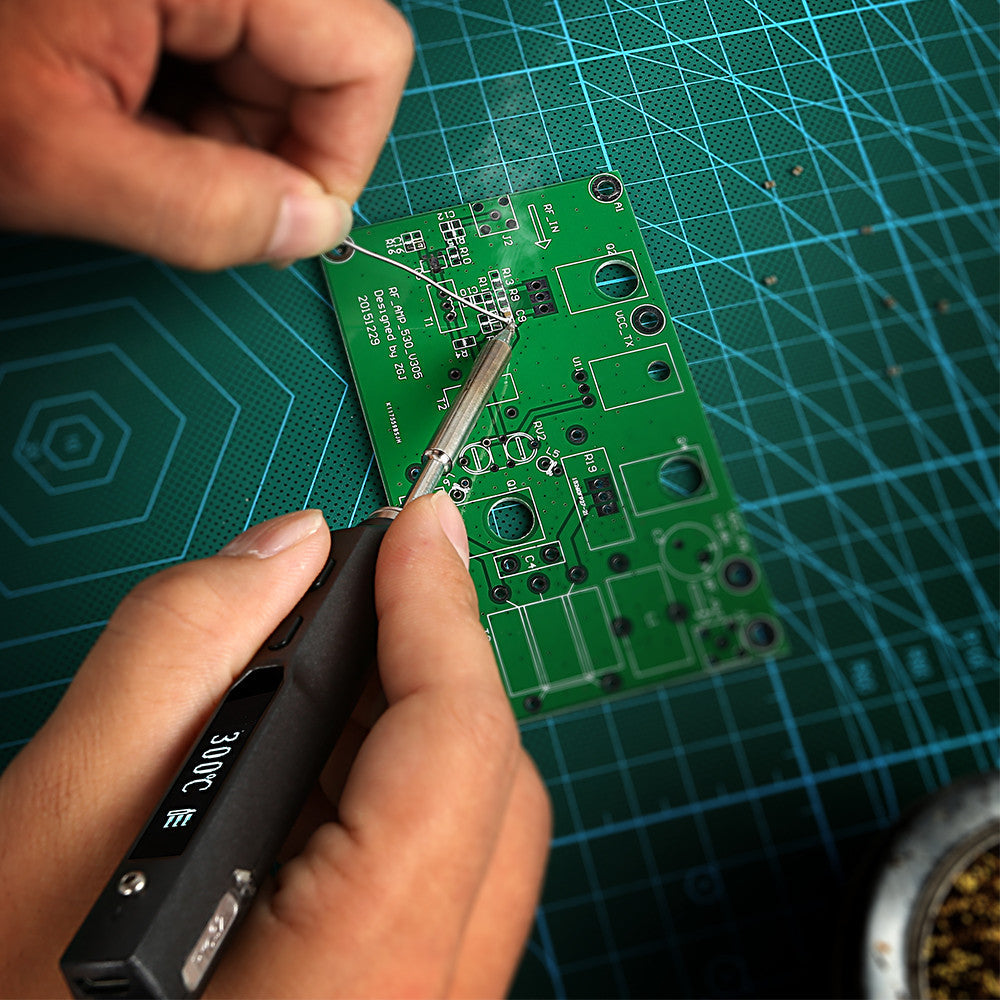

The Pro32 is a staple tool for the hobbyist, tinkerer, or electrical engineer. Featuring a sleek body, complete with temperature adjustment buttons and an OLED display, the Pro32 feels good in the hand and offers a wide temperature range for operation. Its internal heating element warms up to operating temperature in just 12 seconds!

As an industry leader since 2010, SainSmart offers a 1 year manufacturer’s warranty on all parts, so you can rest assured that your purchase is protected.

SPECIFICATION

• Operating Voltage: 12V to 24V
• Power: 17W to 65W
• Screen: OLED
• USB Port: Micro USB
• Power Port: DC5525
• Temperature stability: ±2%.
• Soldering tip resistance to ground: < 2Ω.
• Temperature range: 212°F to 752°F (100°C to 400°C)
• Control part: length: 96mm, diameter: 16.5mm.
• Heating part: length: 72+33mm, diameter: 5.5mm.

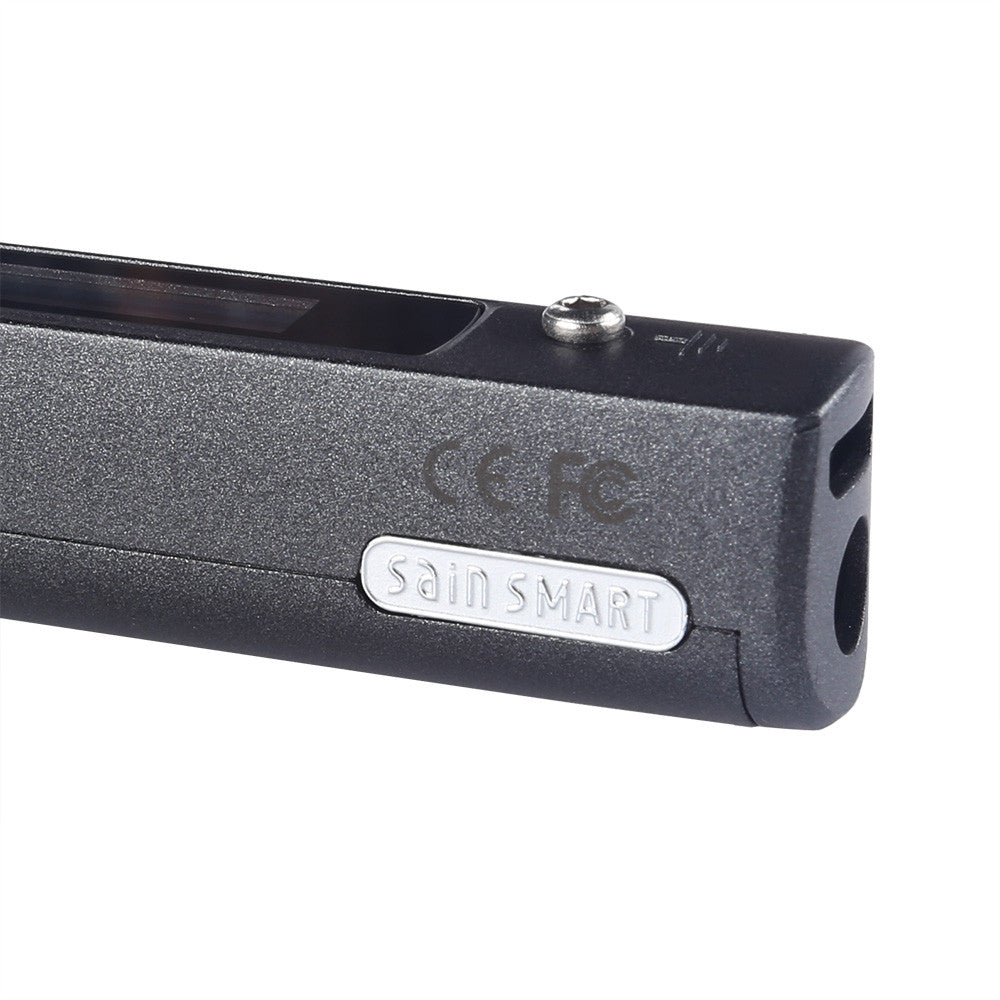

• Compliant with EU certification: CE FCC.

Original Replacement Solder Tip for Pro 32 Digital LCD Soldering Iron:

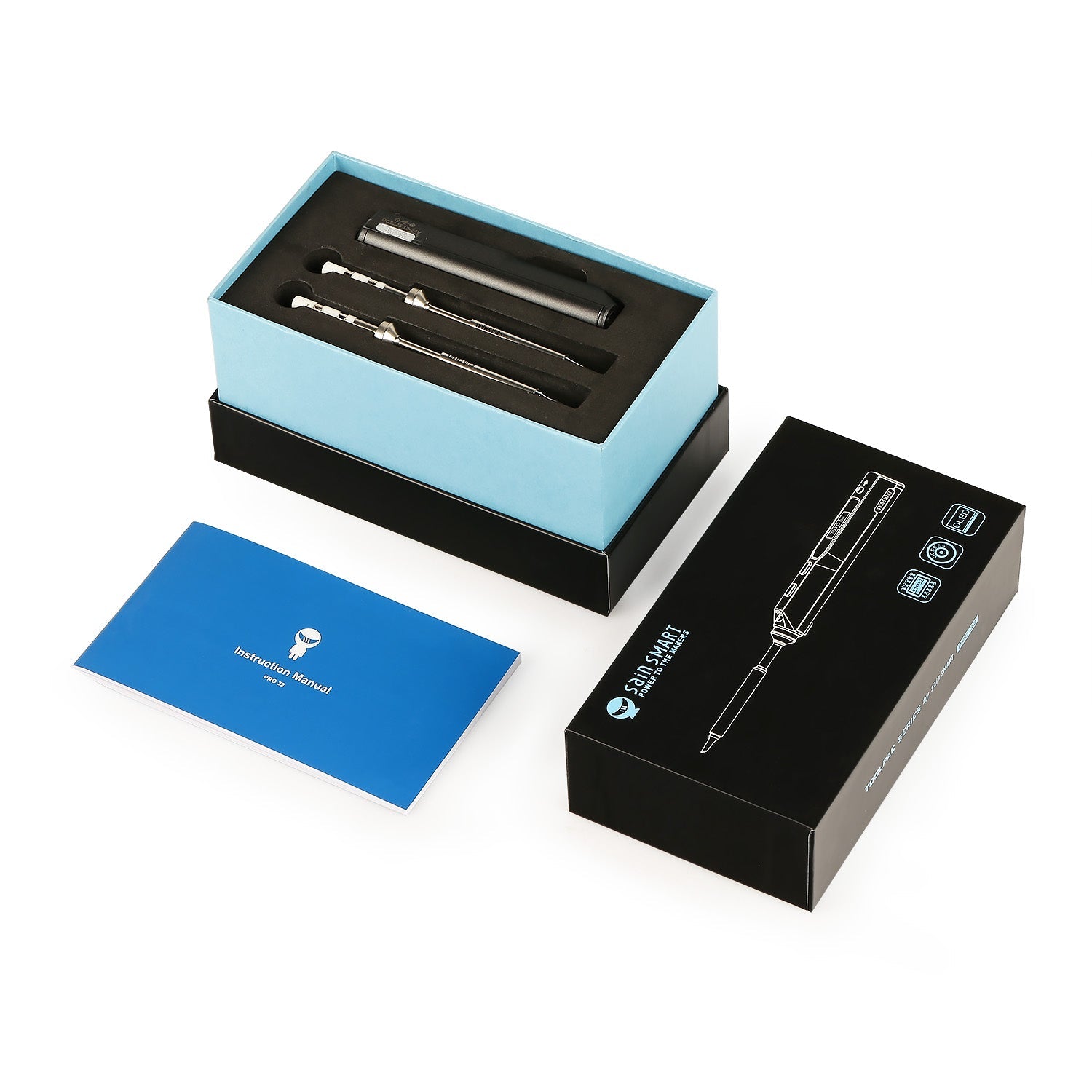

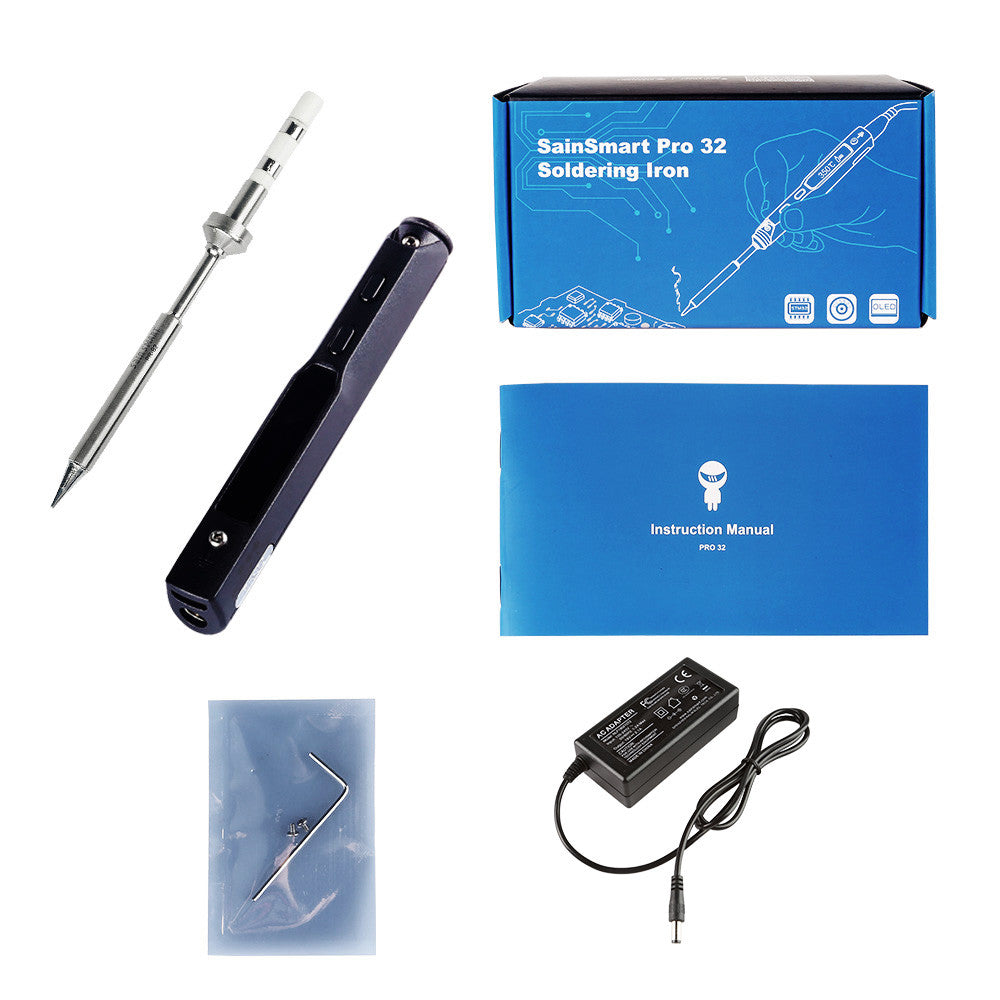

WHAT'S IN THE PACKAGE

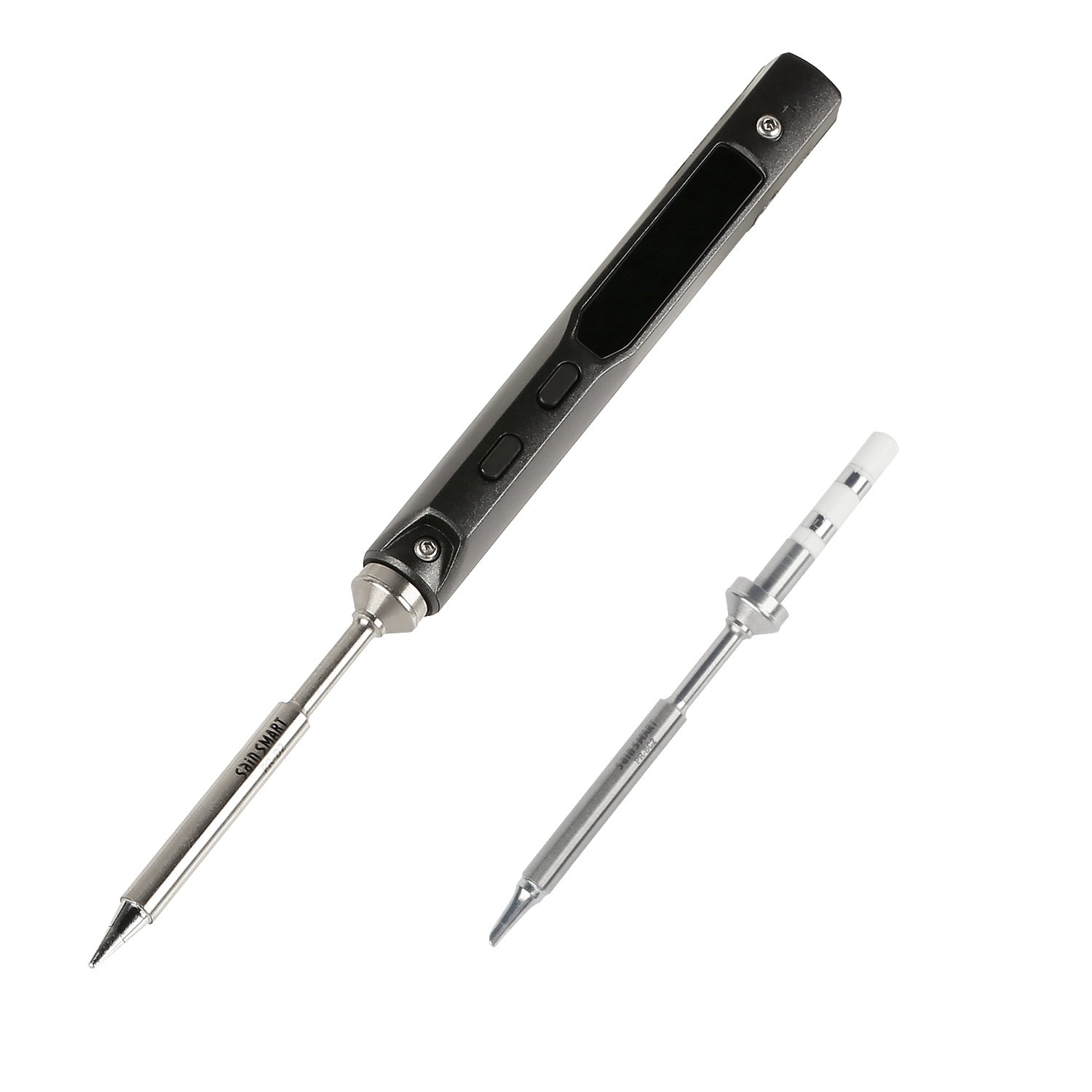

• 1 x Pro32 Digital LCD Soldering Iron

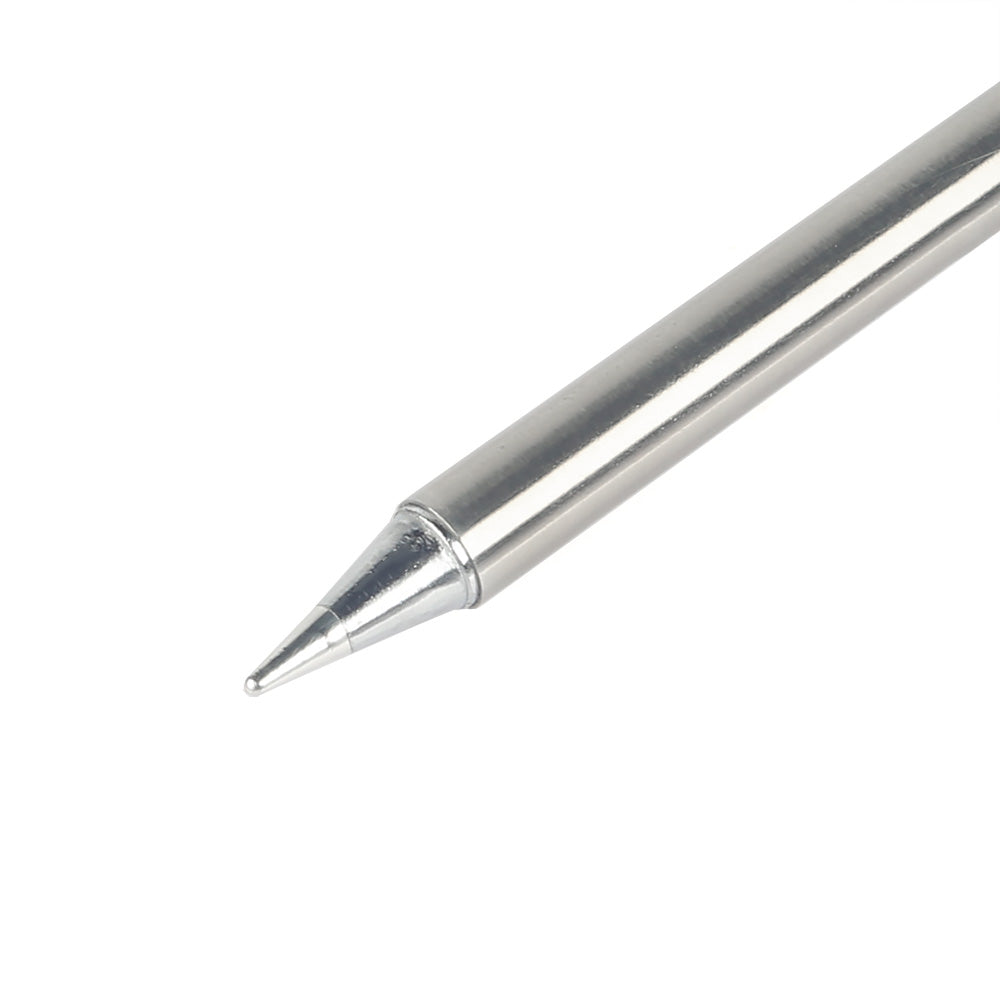

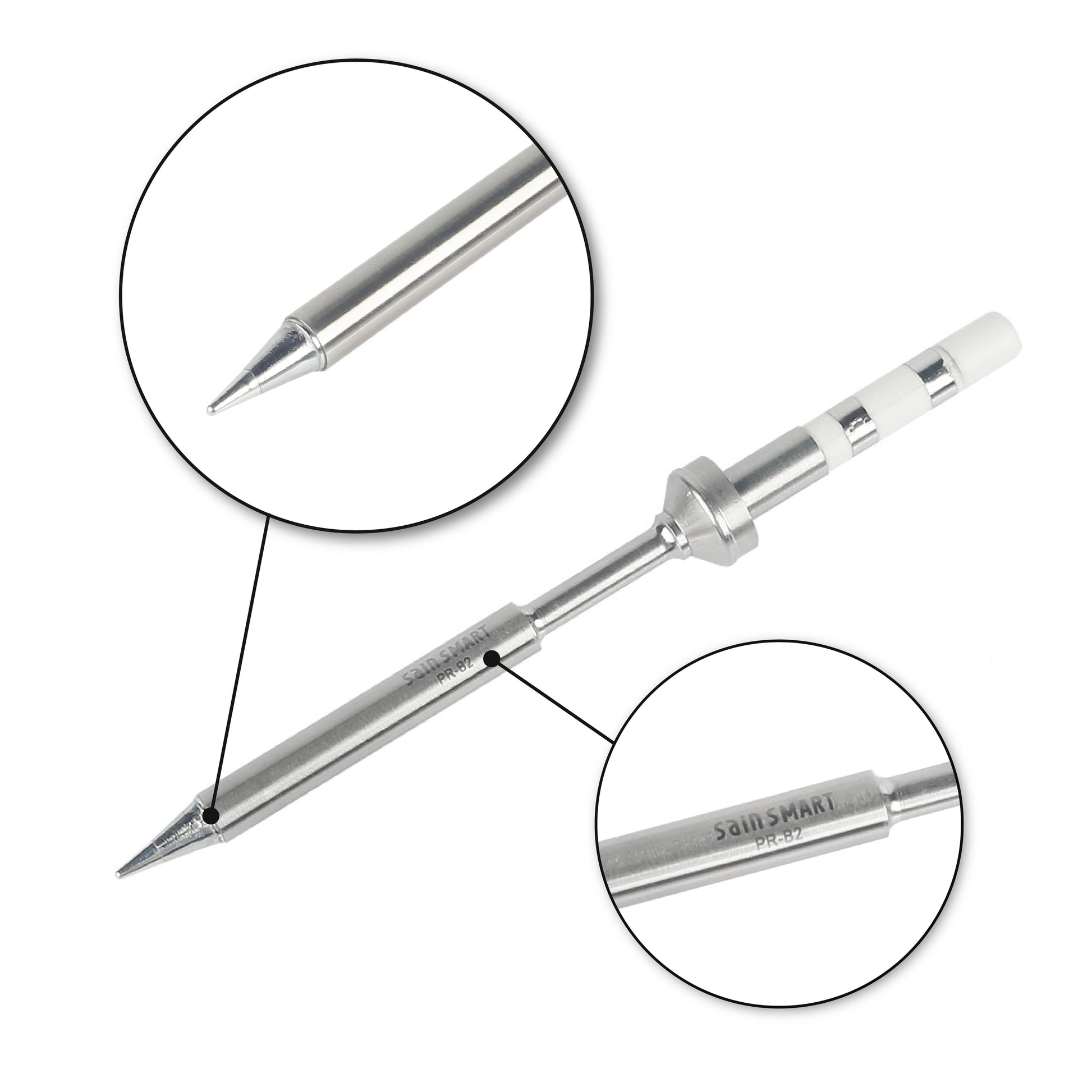

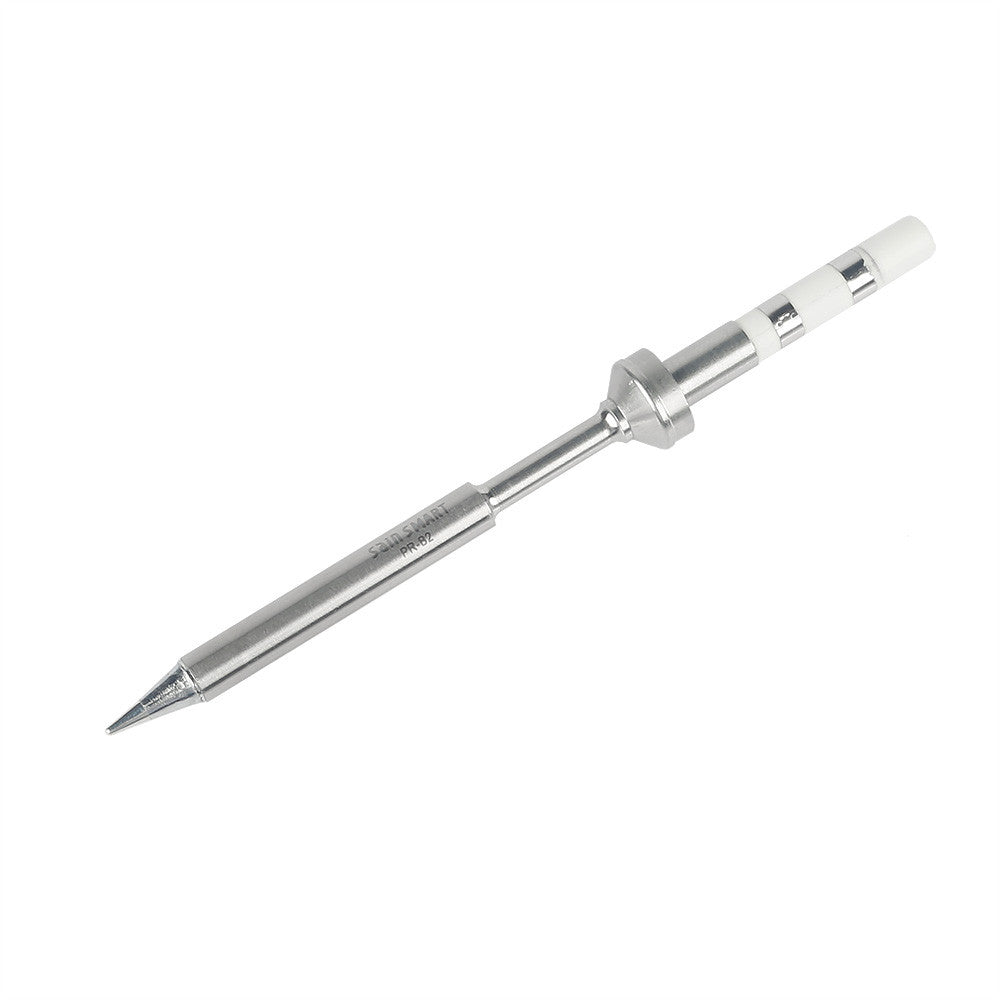

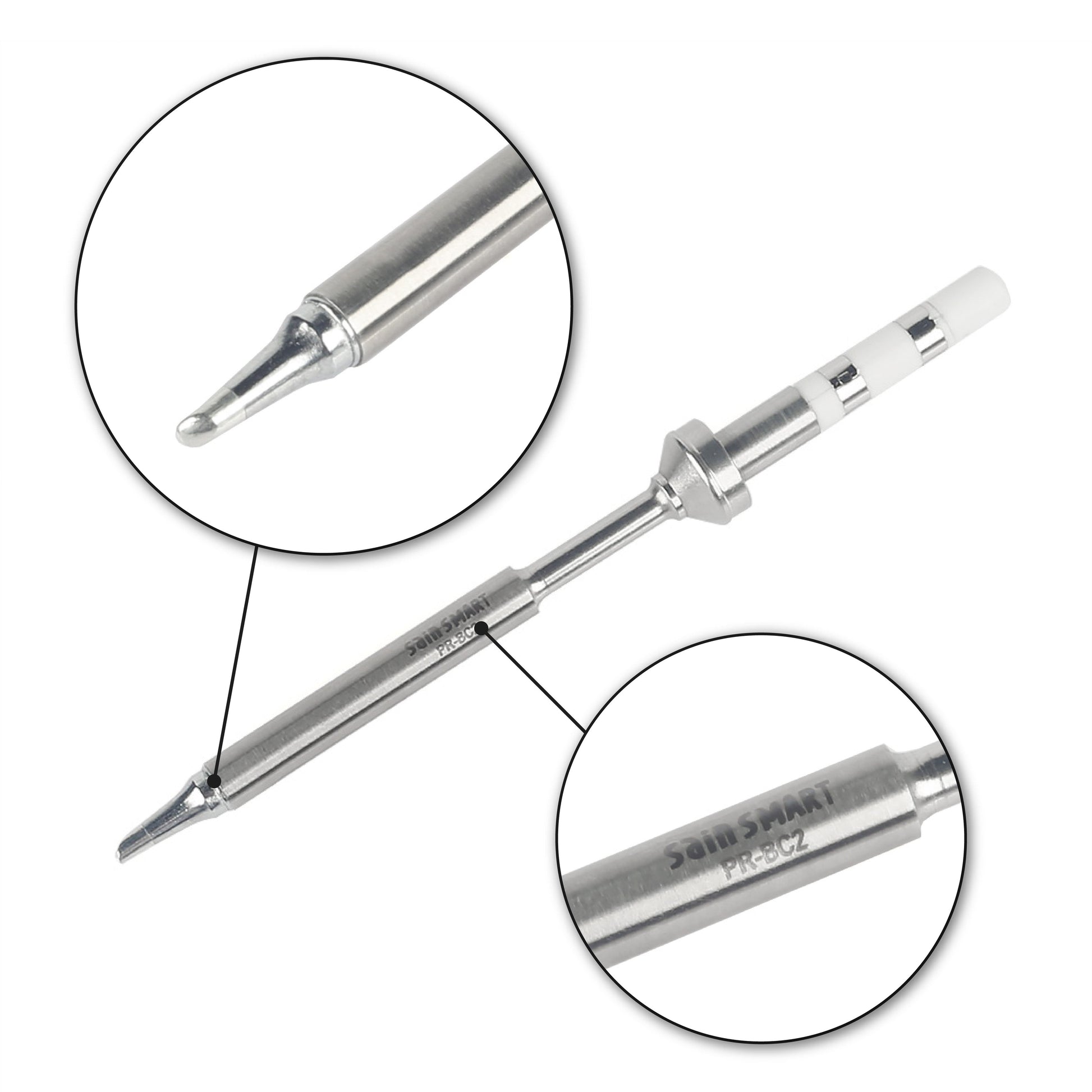

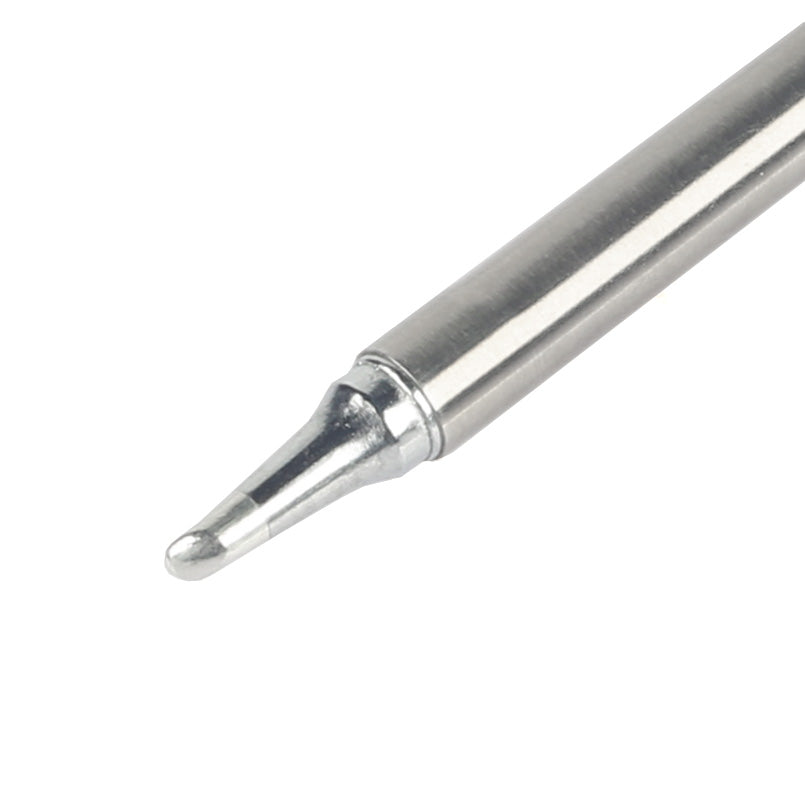

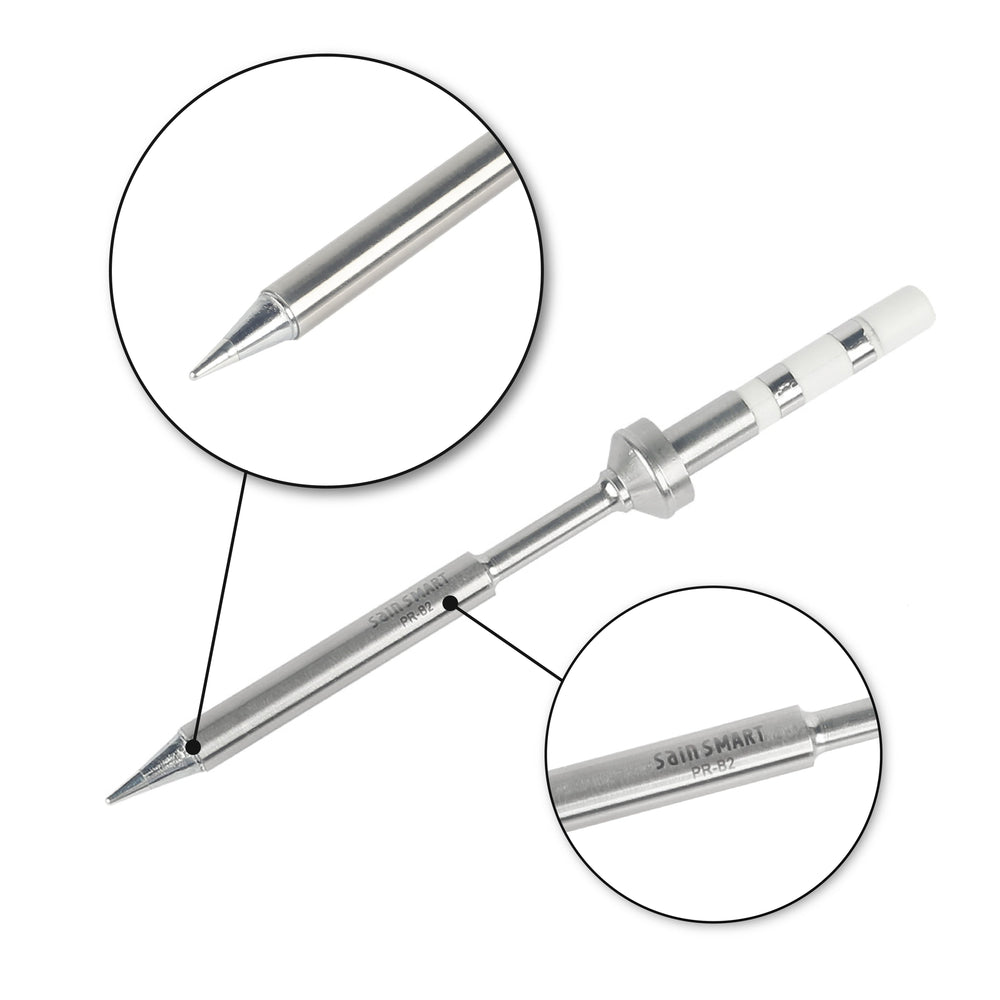

• 1 x PR-B2 & PR-BC2 Solder Tip
• 1 x Allen Key (for replace the tips and heating element)

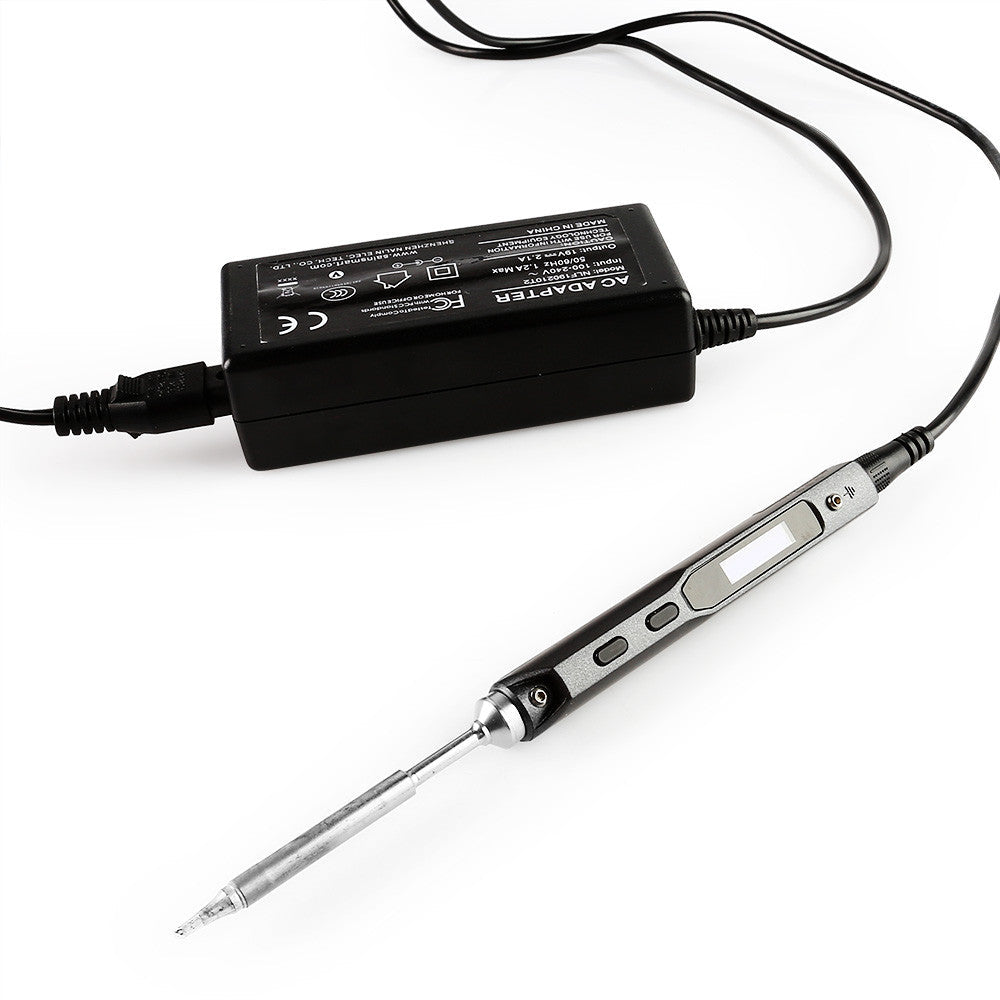

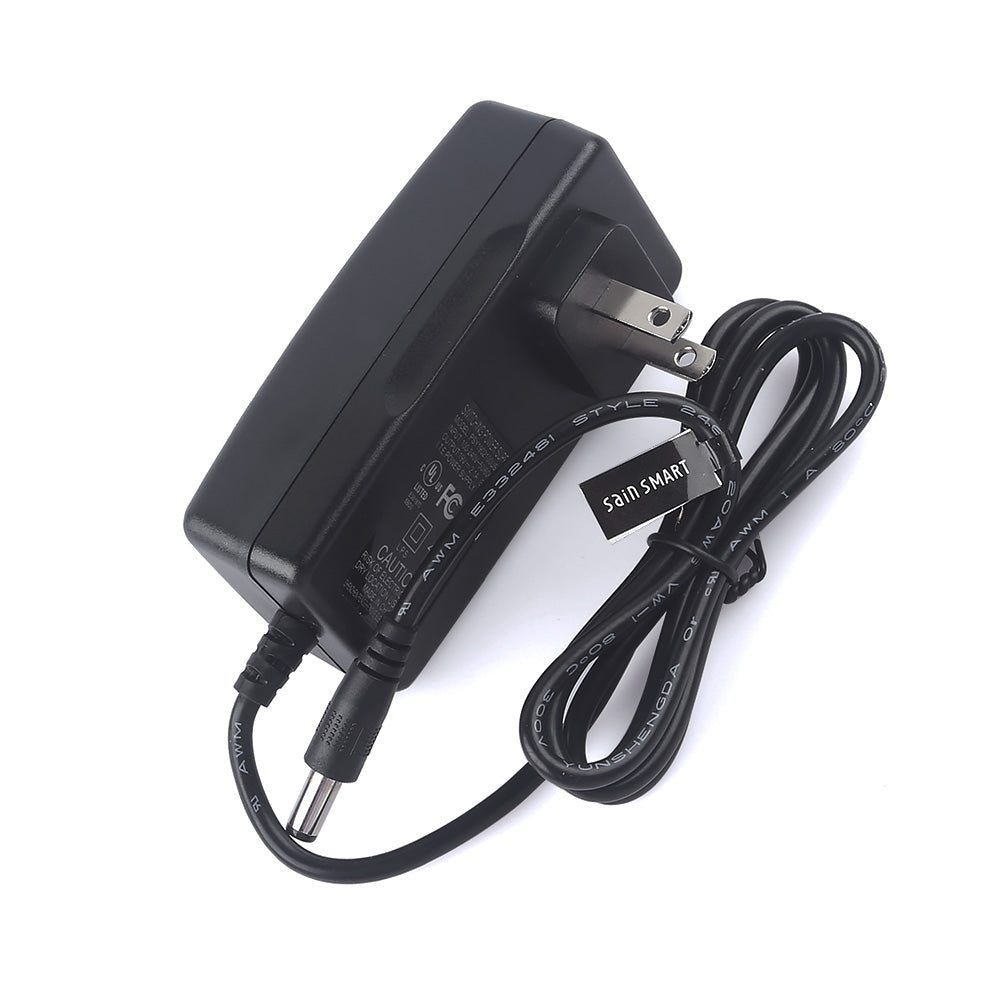

• 1 x 19V/2.1A 100-240V Power Supply (AC/DC Power adaptor)

DOCUMENT

Pro32 Resources

Manual

APP

Source code
