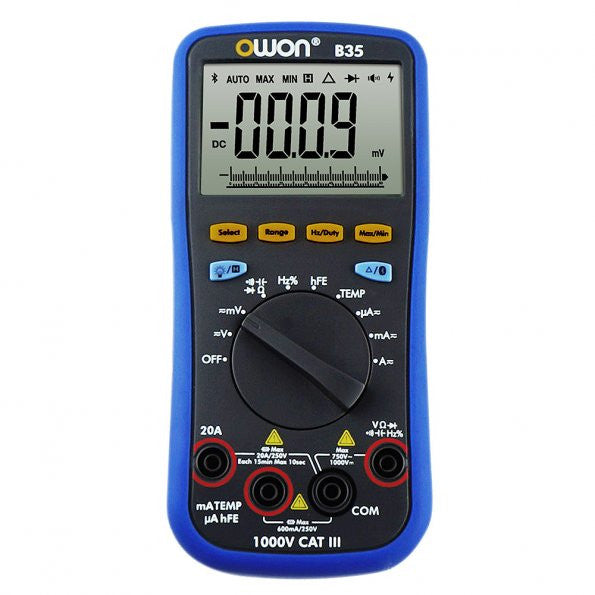

[Discontinued] OWON Bluetooth Digital Multimeter B35 Datalogger+Multimeter+Temperature Meter
Description:
- Function as 3 in 1 : datalogger + multimeter + temperature meter
- Multi-connection (more than one device) supported via mobile app
- The change trend analysis accessible via special chart mode
- Voice warning supported, which assures measurement safety
- Smart voice-reading accessible
- 3(5/6) digit full scale reading, achieving higher measurement accuracy
- than 3(3/4) digit counterparts
- Larger display, easier data-reading; simulated bar chart comes as an added option
- Backlit-powered screen, more suitable for dark measurement environment
- Smart power-off option extending battery life
- True RMS value available (only in B35T, and D35T)
Performance Specifications:
|
Specifications |
Range |
Best Accruacy |
|
DC Voltage(V) |
60.00mV/600.0mV/6.000V/60.00V/600.0V/1000V |
±(0.6%+1dig) |
|
AC Voltage(V) |
60.00mV/600.0mV/6.000V/60.00V/600.0V/750V |
±(0.6%+3dig) |
|
DC Current (A) |
600.0uA/6.000mA/60.00mA/600.0mA/6.000A/20.00A |
±(0.8%+1dig) |
|
AC Current (A) |
600.0uA/6.000mA/60.00mA/600.0mA6.000A/20.00A |
±(0.8%+1dig) |
|
Resistance (Ω) |
600.0Ω/6.000kΩ/60.00kΩ/600.0kΩ/6.000MΩ/60.00MΩ |
±(0.6%+1dig) |
|
Capacitance (CAP) |
40.00nF/400.0nF/4.000uF/40.00uF/400.0uF/4000uF |
±(1.5%+3dig) |
|
Frequency(Hz) |
9.999Hz/99,99Hz/999.9Hz/9.999kHz/99.99kHz/99.9kHz/ 9.999MHz |
±(0.6%+2dig) |
|
Temperature (°C) |
-100~+400 |
±(2%+2dig) |
|
Model |
B35 |
|
Specifications model |
Bluetooth Communicator |
|
Display Count |
5999 |
|
Auto Range |
�/p> |
|
Bandwidth(Hz) |
(40-400)Hz |
|
Duty Cycle |
0.1%~99.9% ±2% |
|
Diode Test |
�/p> |
|
Audion Test |
�/p> |
|
Auto Power Off |
�/p> |
|
Continuity Buzzer |
�/p> |
|
Low Battery Indication |
�/p> |
|
Data Hold |
�/p> |
|
Relative Mode |
�/p> |
|
MAX/MIN |
�/p> |
|
LCD Backlight |
�/p> |
|
Analogue Bar Graph |
�/p> |
|
Input Impedance for DCV |
10MΩ |
|
Battery |
3V (1.5V×2) |
|
LCD Size |
Screen size: 69mmx52mm; Display area: 67mmx46mm; The effective: display area66x45 |
|
Dimension (W x H x D) |
85mm x 185mm x 30mm |
|
Weight (without package) |
0.32kg |
Package List:
- 1 x OWON Bluetooth Digital Multimeter B35 Datalogger+ Multimeter + Temperature Meter
NOTE: Battery is NOT included
