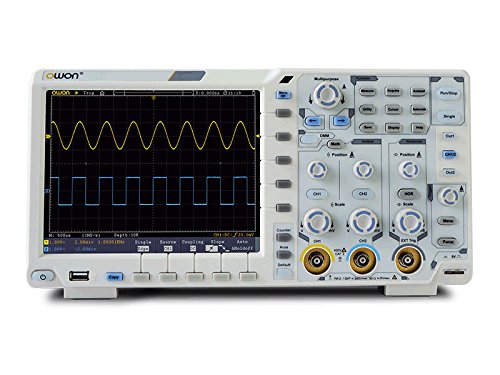

OWON XDS Series N-In-1 Digital Oscilloscope

brand: SainSmart.com SKU: 101-10-410 Variants ID: 51312476436

Super Performance

  • 8bit 12bit or 14bit high resolution ADC, restoring the waveform detail fully
  • 40M record length, and 75,000 wfms/s waveform refresh rate
  • Low background noise, vertical sensitivity in 1 mV/div - 10 V/div
  • Multi- trigger, and bus decoding function
  • SCPI, and LabVIEW supported

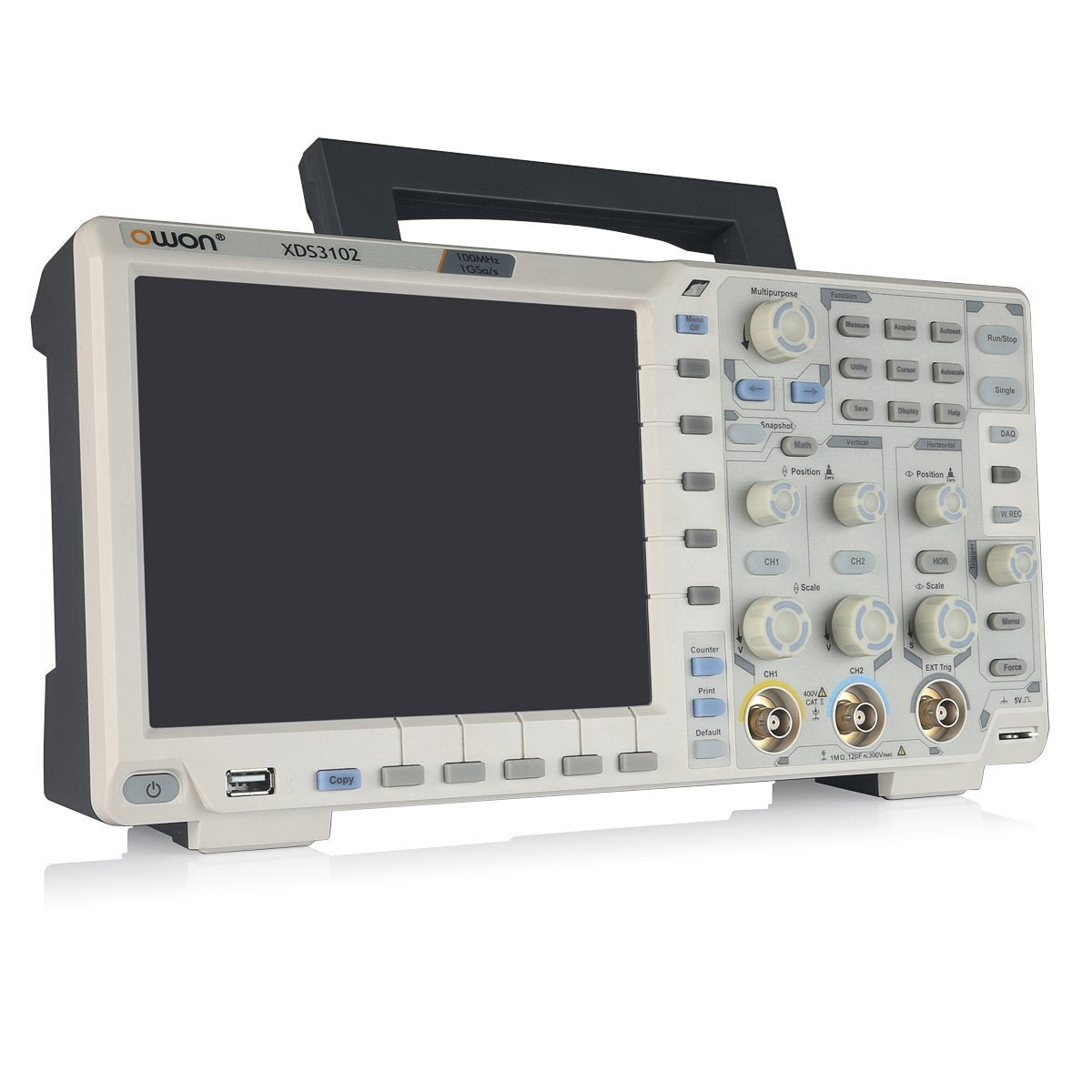

Creative New Look
  • Ultra-thin body-design, less space accommodation
  • Multi-interface integration - USB host, USB device, USB port for PictBridge, LAN, AUX, and more
  • VGA port - better solution for video expansion, and teaching demonstration
  • 8 inch 800 x 600 high resolution LCD
n-in-1
  • Functions as data logger, and multimeter with data logging function,
  • Dual-channel 25MHz / 50MHz arbitrary waveform generator
  • Portable design, supports Battery pack, and WiFi module
$479.00 $498.00 Save $180.00 FREE EXPRESS SHIPPING
Oops, 0 In Stock
DESCRIPTION



1. 12 / 14-bits ADC and original magnifier function



XDS series introduce 12 / 14 bits hardware ADC, the precision is 16/64 times against other oscilloscope on market. Equipping with OWON’s original magnifier function, it can observe the signal low down to 31.25μV/div.



12 / 14-bits ADC and original magnifier function

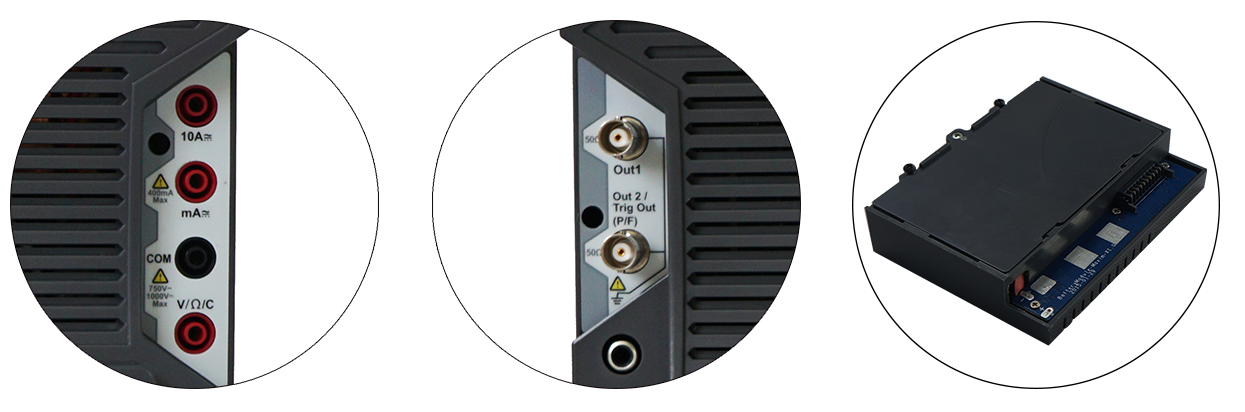

2. Multi-function mobile tester



Oscilloscope + signal generator + multimeter +data logger +frequency counter + decoder. Support Li-on battery to implement floating test.





Multi-function mobile tester

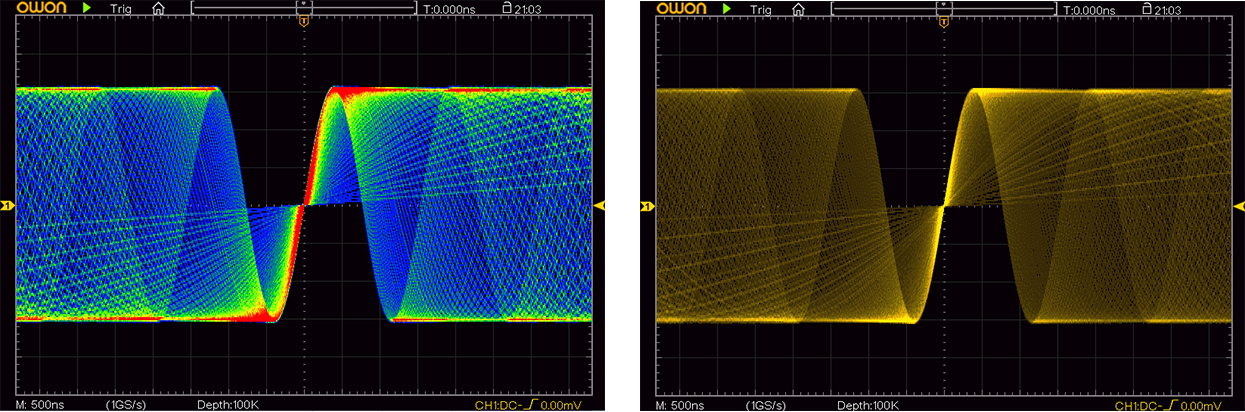

3. Leading 75,000 frame/sec waveform refresh rate, muti-level gray scale and color temperature display.



waveform refresh rate

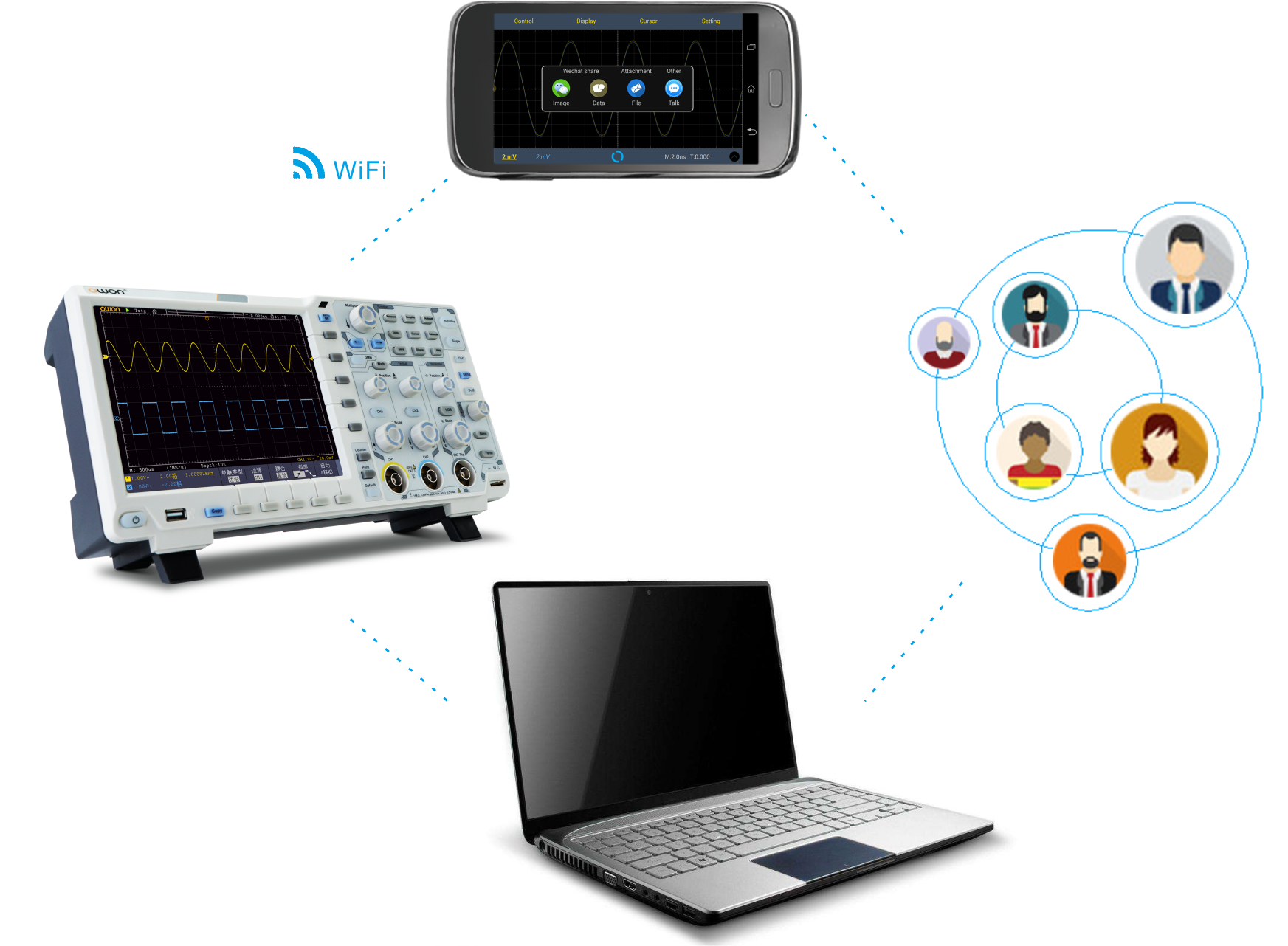

4. WiFi function



WiFi function





5. Multi-touch screen, easy to operate



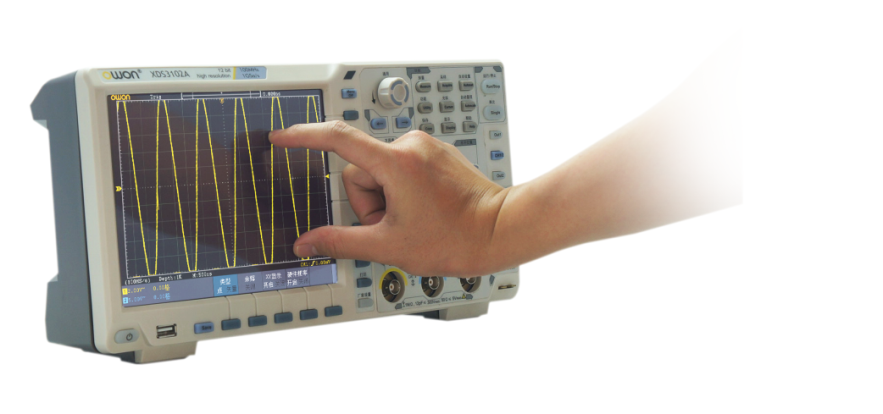

Touch screen





SPECIFICATION

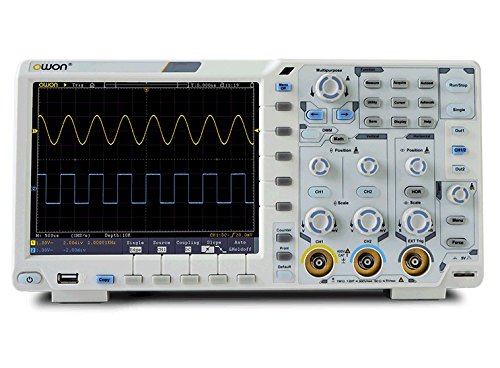

Model XDS3062A XDS3102A XDS3202A** XDS3102 XDS3202E* XDS3202* XDS3302*
Bandwidth 60MHz 100MHz 200MHz 100MHz 200MHz 300MHz
Sample Rate 1GS/s (8 bits) , 500MS/s (12 bits) ,
100MS/s (14 bits)
1GS/s 2GS/s 2.5GS/s
Vertical Resolution (A/D) 12 bits 14 bits 8bits
Record length 40M
Horizontal Scale (s/div) 2ns/div - 1000s/div, step by 1 - 2 - 5 1ns/div - 1000s/div, step by 1 - 2 - 5 2ns/div - 1000s/div, step by 1 - 2 - 5 1ns/div - 1000 s/div, step by 1 - 2 - 5
Channel 2 + 1 (external)
Display 8" color LCD, 800 x 600 pixels (optional 1024 x 768 pixels IPS display)
Trigger Type Edge, Video, Pulse, Slope, Runt, Windows, Timeout, Nth Edge, Logic, I2C, SPI, RS232,
and CAN (optional)
Bus Decoding I2C, SPI, RS232, and CAN (optional)
Communication Interface USB host, USB device, USB port for PictBridge, Trig Out (P/F), LAN, and VGA (optional)
Power Supply 100V - 240V AC, 50/60Hz, CAT II
Power Consumption ï¼?5W
Fuse 2A, T class, 250V
Battery (optional) 3.7V, 13200mAh
Dimension (W x H x D) 340 x 177 x 90 mm
Weight 2.60 kg



Optional Module / Function
VGA VGA+AV
WIF WiFi
AWG arb waveform generator
DMM digital multimeter
TOU Touch screen(capacitor-type)





DOWNLOAD

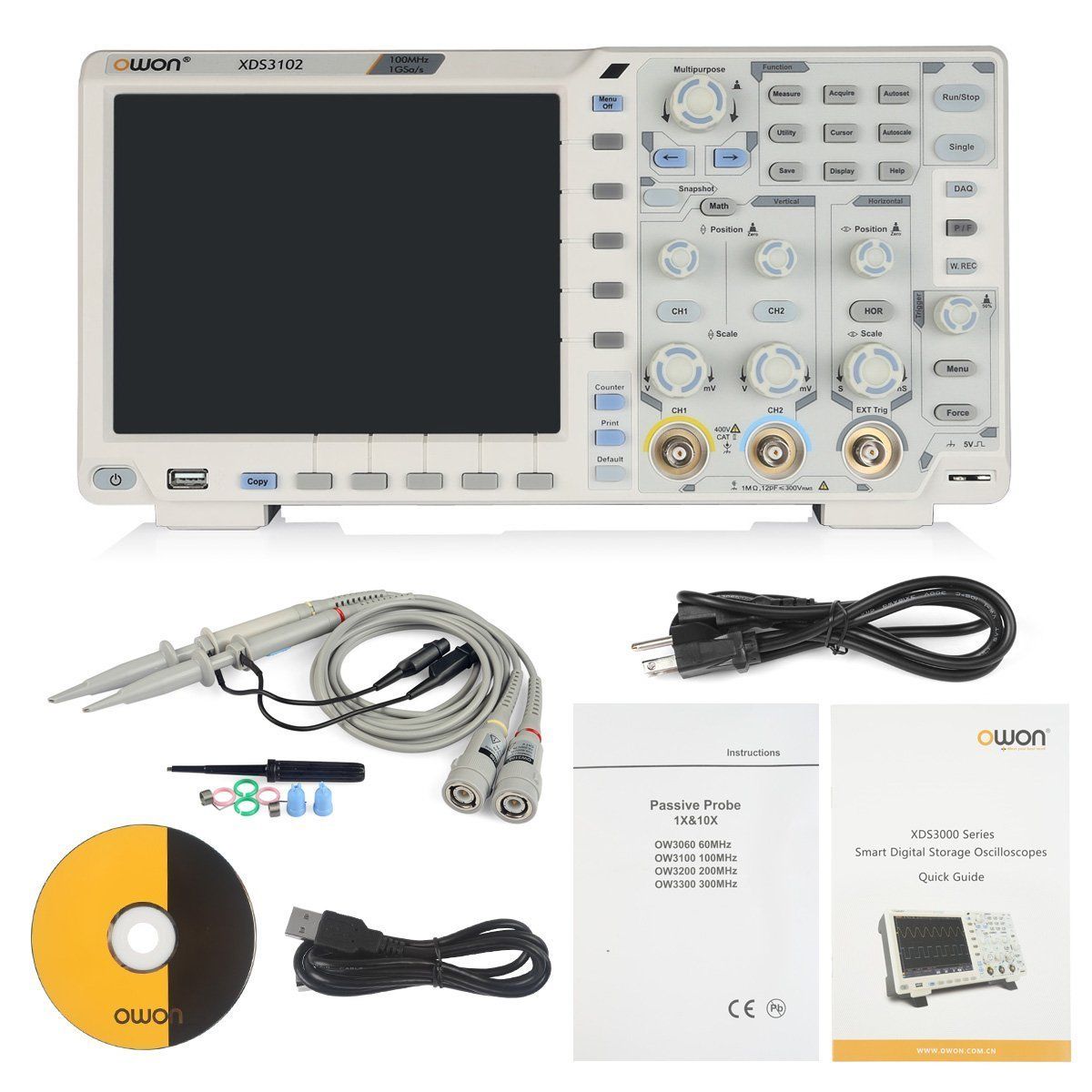

WHAT'S IN THE PACKAGE
