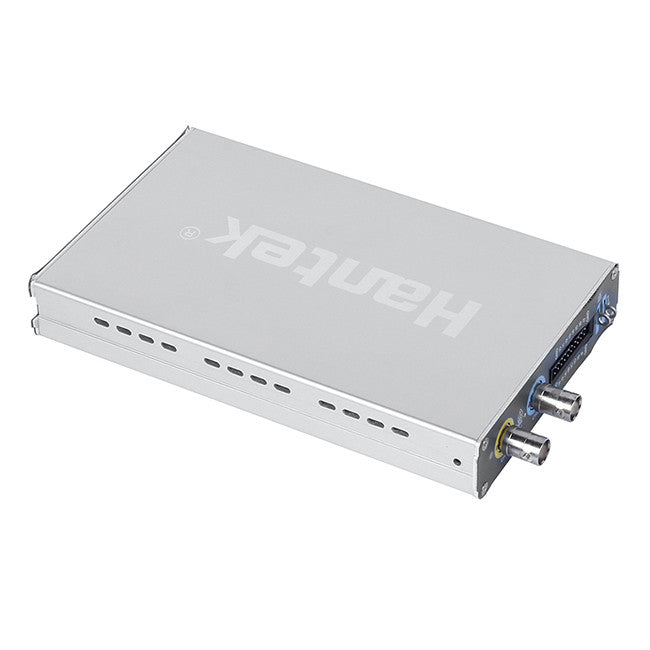

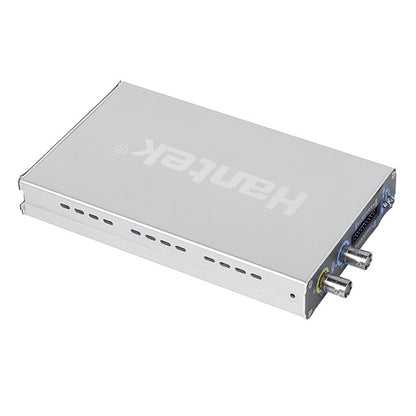

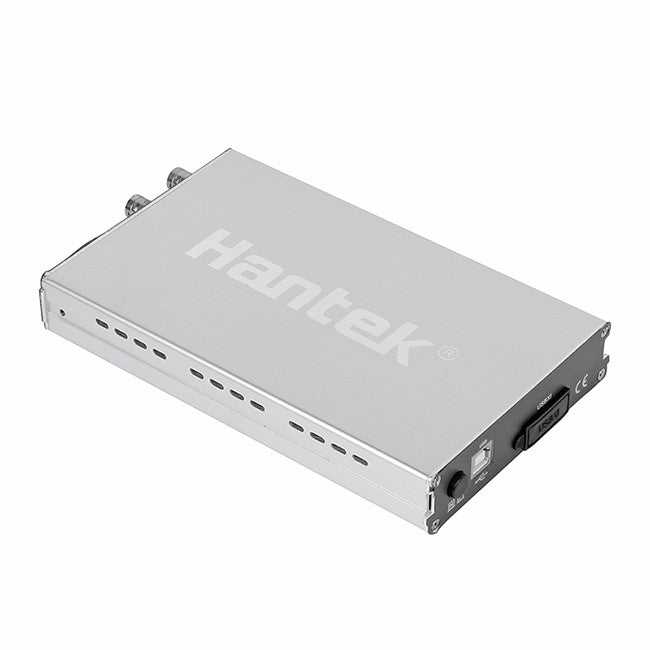

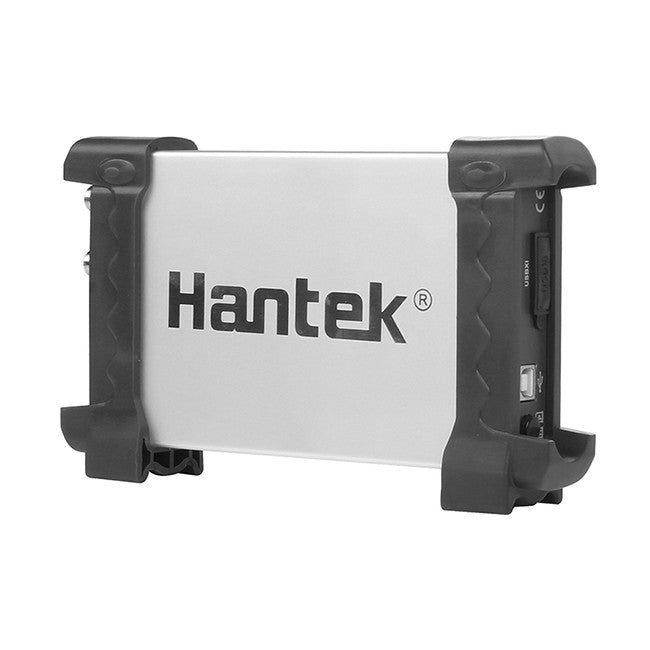

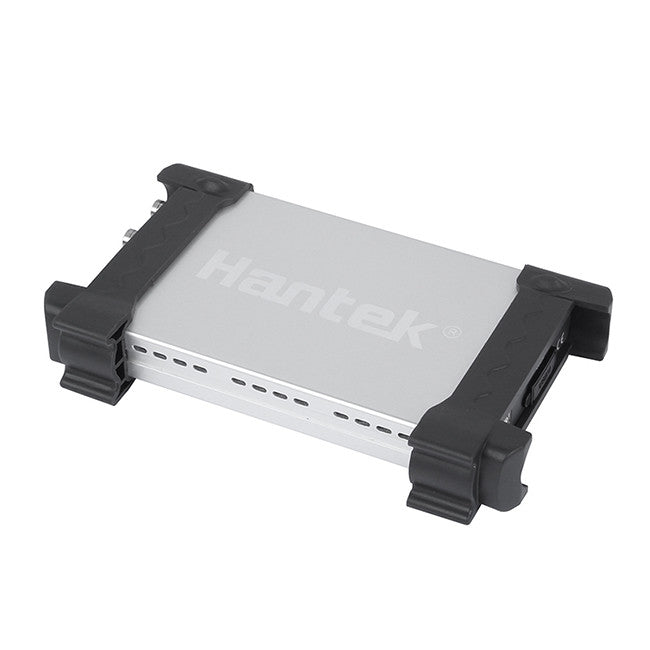

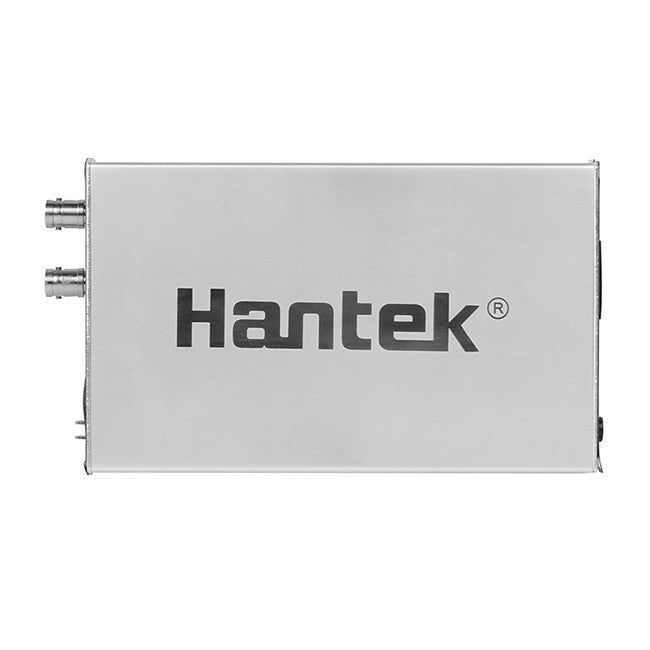

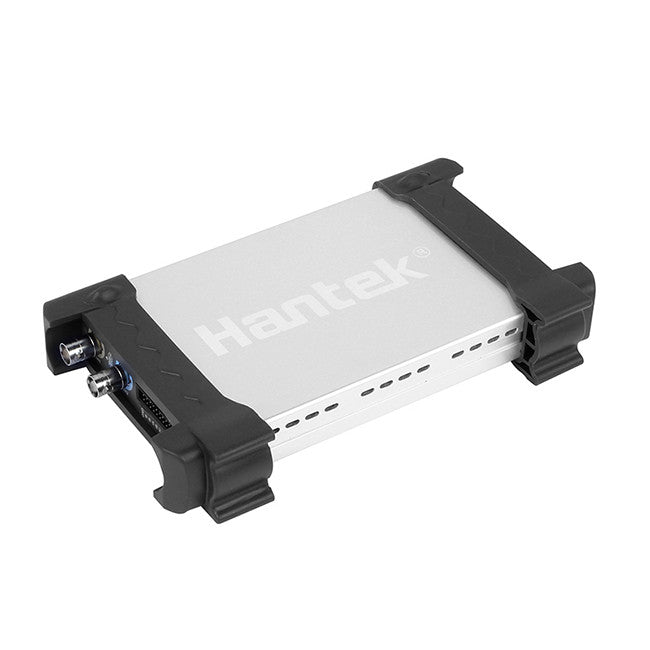

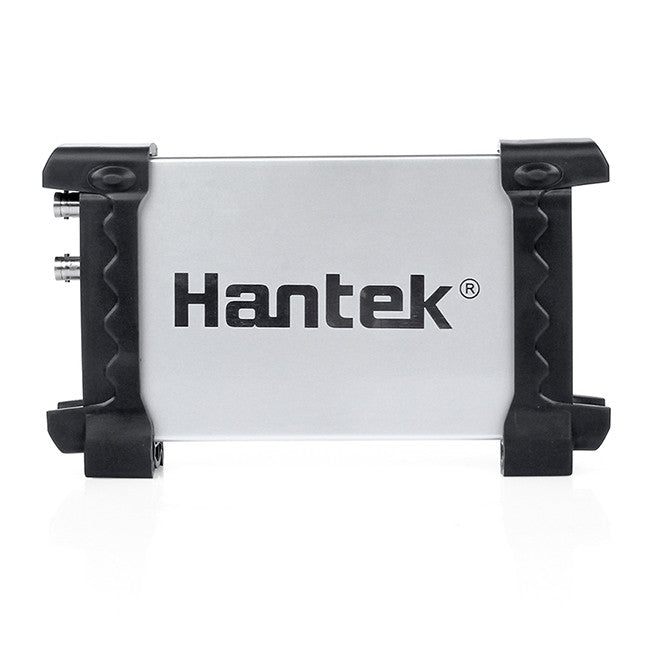

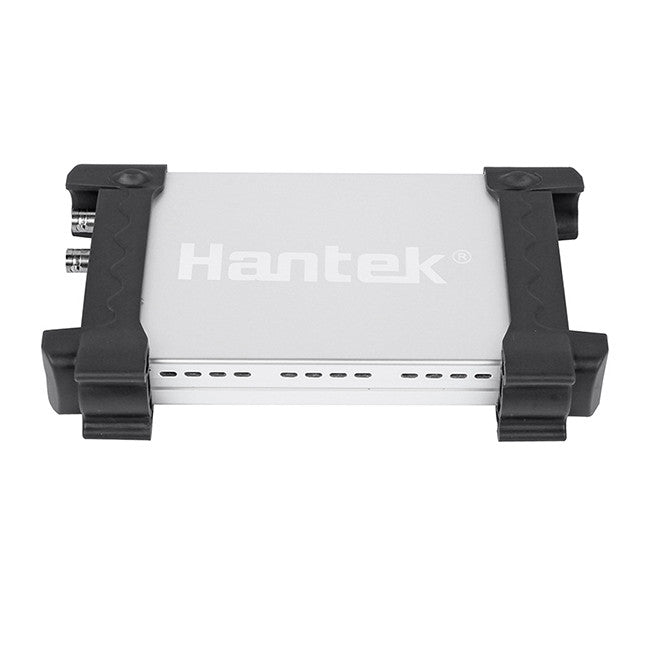

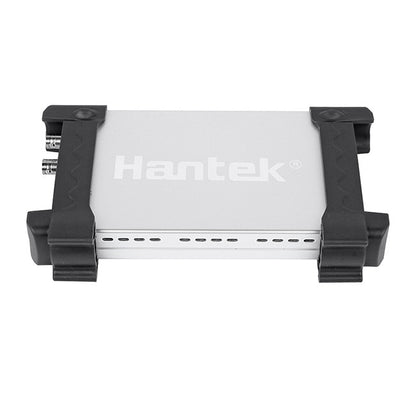

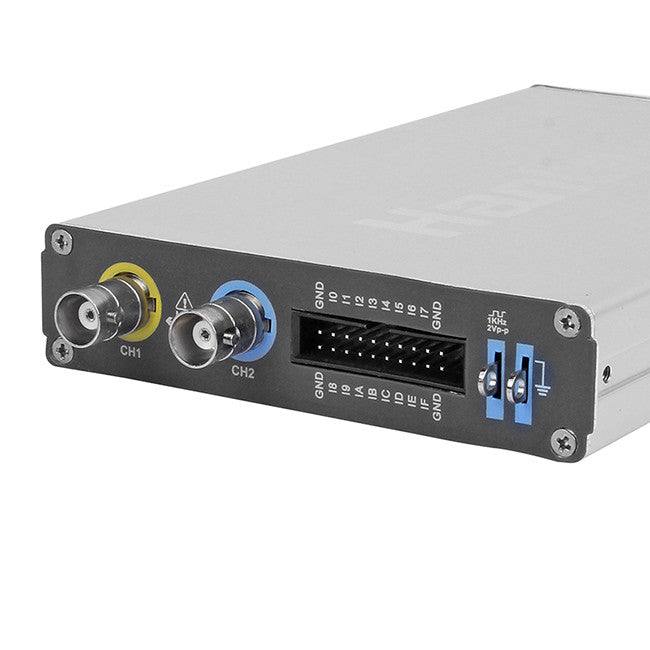

Hantek 6022BL PC Based USB Digital Portable Oscilloscope + 16 CHs Logic Analyzer

brand: Hantek SKU: 20-010-703
$88.20 FREE SHIPPING

Description:
Bandwidth: 20MHz; Sample Rate:48MSa/s ;16 Channels Logic Analyzer
Excellent industrial design-the same anodised aluminium casing as iPad, which is not only beautiful and tasteful but also greatly enhanced the hardness of aluminum alloy surface, and has good heat resistance and strong wearability. Standard USBXI (TM) interface, easyly inserts into USBXI (TM) housing to make up a combination instrument.

Features:

  • Excellent industrial design-the same anodised aluminium casing as iPad, which is not only beautiful and tasteful but also greatly enhanced the hardness of aluminum alloy surface, and has good heat resistance and strong wearability.

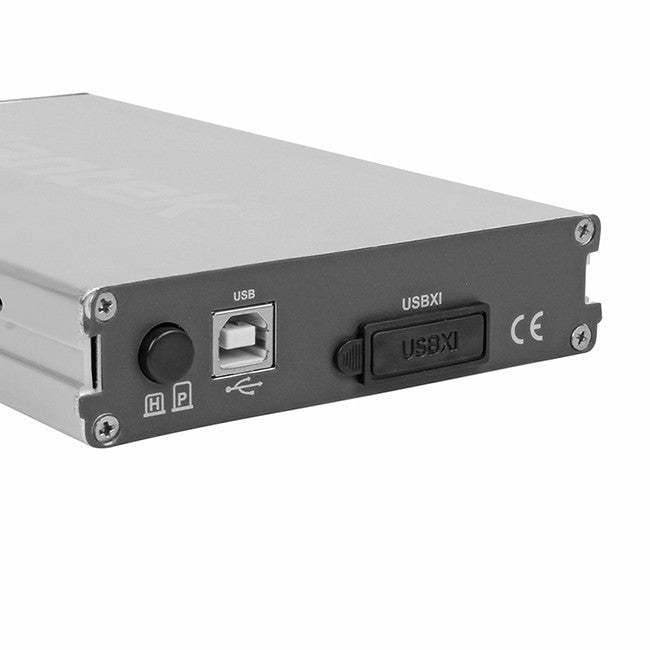

  • Standard USBXITM interface, easily inserts into USBXITM housing to make up a combination instrument.
  • USB2.0 interface, no external power source required, easy to use.
  • Be suitable for notebook computer, product line maintenance, be used easily on business.
  • Dimensions (mm):205(L) x120(W) x35(H), be carried easily.
  • High performance, 48MS/s real-time sampling, 20MHz bandwidth.
  • 16Channels Logic Analyzer, 20MHz Bandwidth;
  • Operating System: Windows 7, Windows NT, Windows 2000, Windows XP, VISTA.
  • 23 measurement functions, PASS/FAIL Check, be suitable for technical application.
  • Waveform average, persistence, intensity, invert, addition, subtraction, multiplication, division, X-Y plot.
  • Save waveform in the following: text file, jpg/bmp graphic file, MS excel/word file.
  • FFT
  • One computer can connect many DSO, extend channel easily.
  • PID/VID Second Design instance.


Function Pictures:















Specification:

Model

Hantek6022BL

Oscilloscope Features

Bandwidth

20MHz

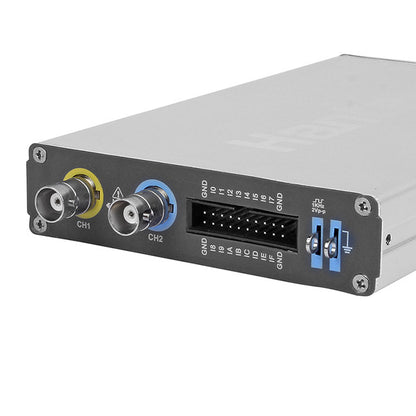

Channel

2(Digital)+16(Logic)

Sample Rate

48MSa/s

Memory Depth

1M

Rise Time

17.5ns

Time Base Precision

±50ppm

Time Base Range

4ns/div-1h/div (Step by1-2-4)

Input Impendence

1MΩ 25pF

Input Sensitivity

10mV/div~5V/div

Vertical Resolution

8Bit

Vertical Position Range

10mV ~ 5V/div @ x1 probe; 100mV ~ 50V/div @ x10 probe;
1V ~ 500V/div @ x100 probe; 10V ~ 5KV/div @ x1000 probe

DC Accuracy

±3%

Bandwidth Limited

20MHz

Trigger Type

Edge, Alternative

Trigger Source

CH1, CH2, EXT, EXT/10

Math

+,-,x,÷,FFT, Invert

Cursor Measurement

Cross, Trace, Horizontal, Vertical

Auto Measurement

Vpp, Vamp, Vmax, Vmin, Vtop, Vmid, Vbase, Vavg, Vrms, Vcrms, Preshoot, Overshoot, Frequency, Period, Rise Time, Fall Time, Positive Width, Negative Width, Duty Cycle

Logic Analyzer Features

Channel

16

Max. Impendance

1MΩ(C=7.5pF)

Max. Voltage

0V~5.5V

Max. Sample

48M

Bandwidth

10MHz

Compatible Input

TTL, LVTTL, CMOS

Memory Depth

1M/CH

General Features

Power

USB Port

Demensions

200mm x100mm x 35mm

Weight

0.3KG

Standard Probe

2 x PP80

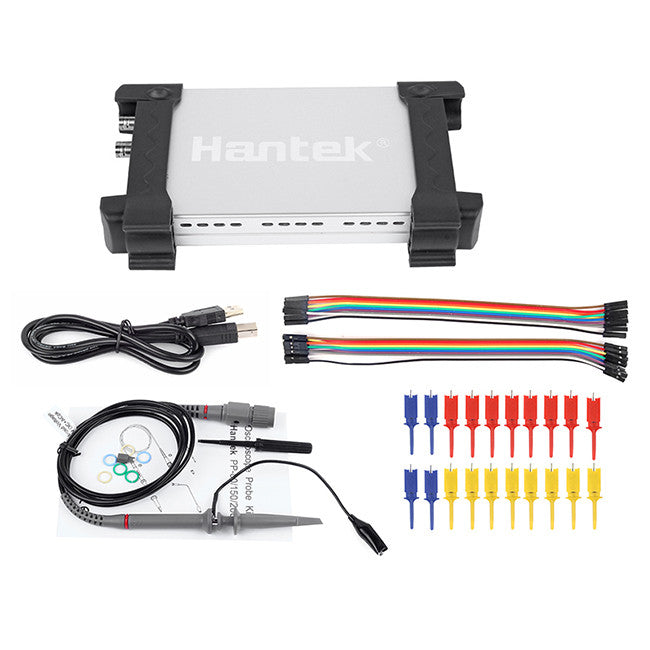

Package List:
