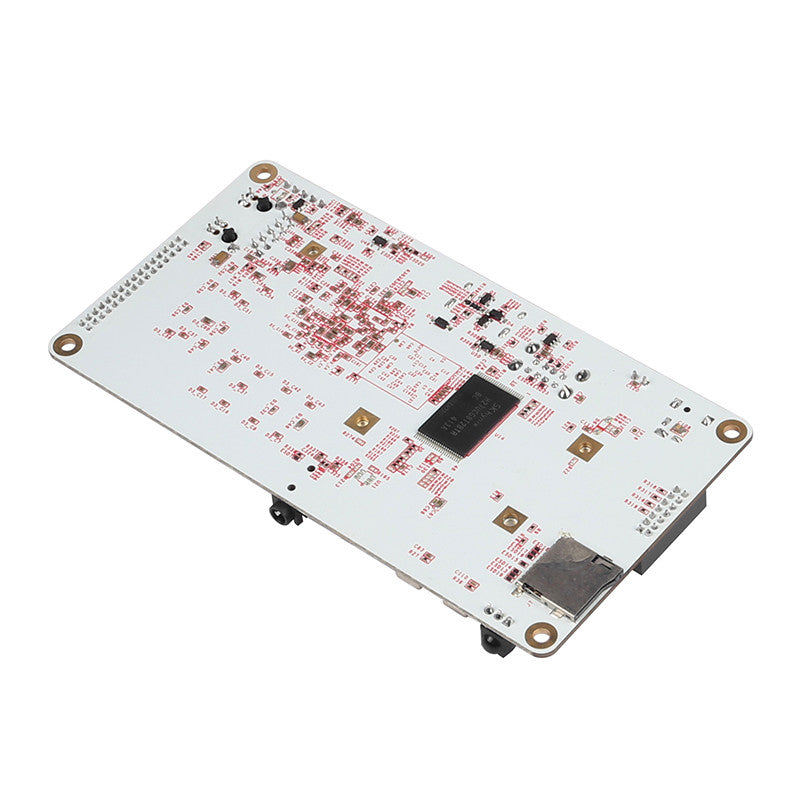

![[Discontinued] pcDuino8 Uno Arches Single Board Computer Allwinner A80 Default with Ubuntu, Arches Single Board](http://www.sainsmart.com/cdn/shop/products/5_20_9.jpg?v=1499266887&width=1445)
![[Discontinued] pcDuino8 Uno Arches Single Board Computer Allwinner A80 Default with Ubuntu, Arches Single Board](http://www.sainsmart.com/cdn/shop/products/6_17_9.jpg?v=1499266887&width=1445)
![[Discontinued] pcDuino8 Uno Arches Single Board Computer Allwinner A80 Default with Ubuntu, Arches Single Board](http://www.sainsmart.com/cdn/shop/products/4_37_8.jpg?v=1499266887&width=1445)
![[Discontinued] pcDuino8 Uno Arches Single Board Computer Allwinner A80 Default with Ubuntu, Arches Single Board](http://www.sainsmart.com/cdn/shop/products/8_8_6.jpg?v=1499266887&width=1445)
Description:

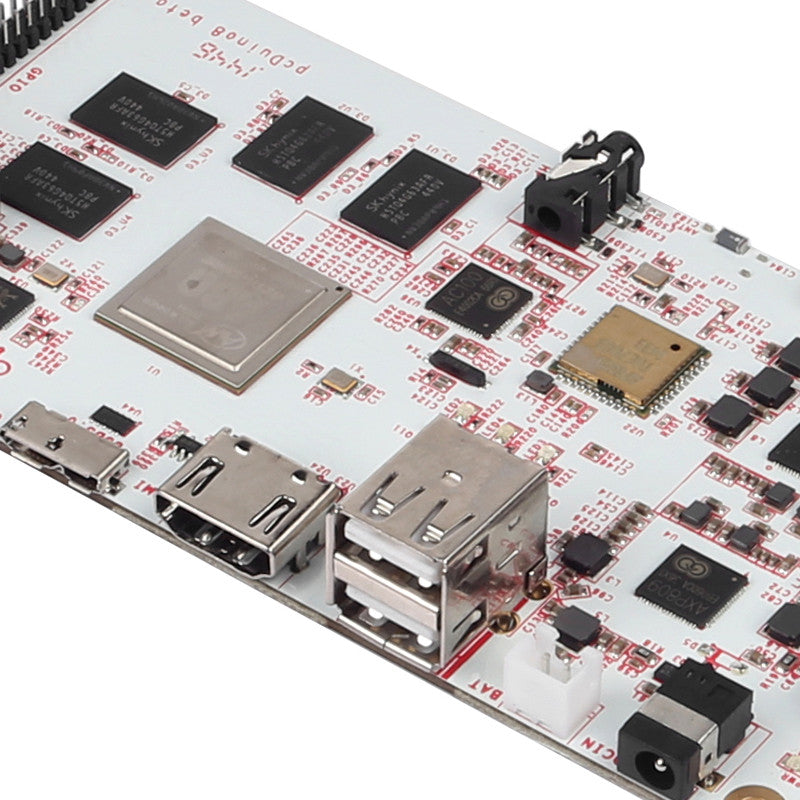

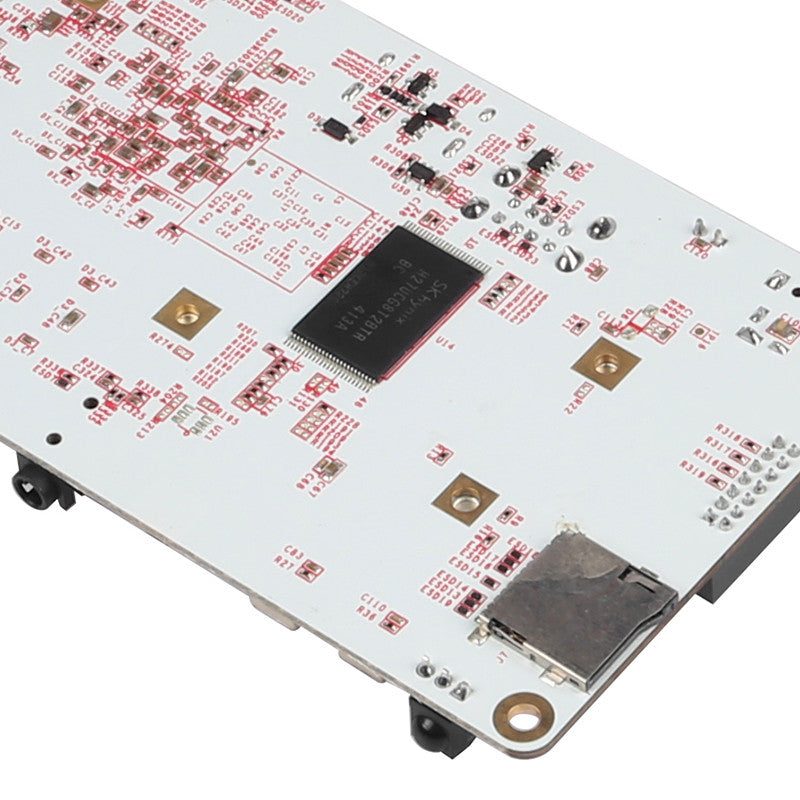

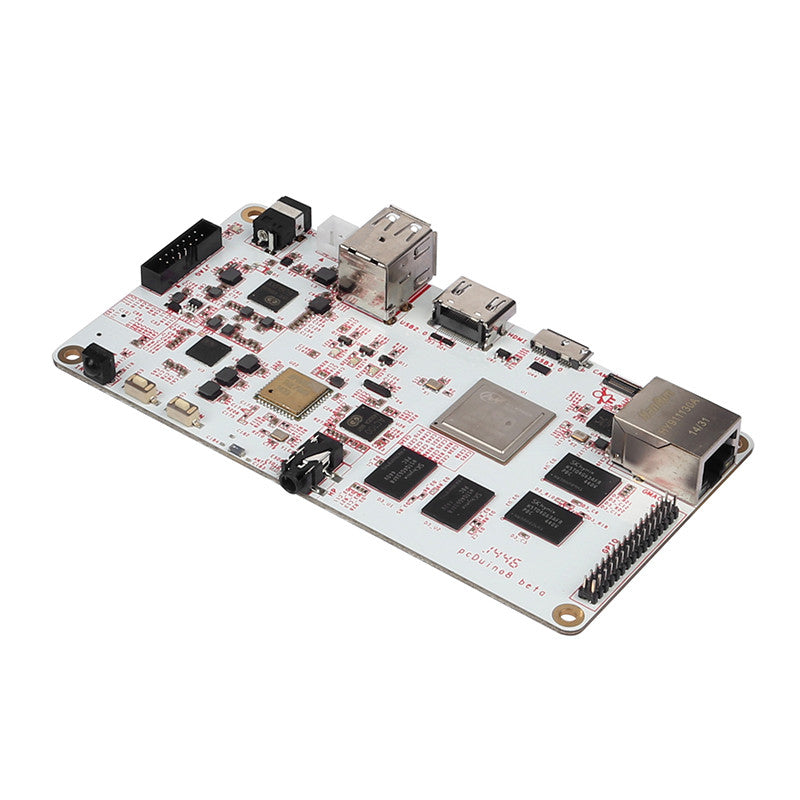

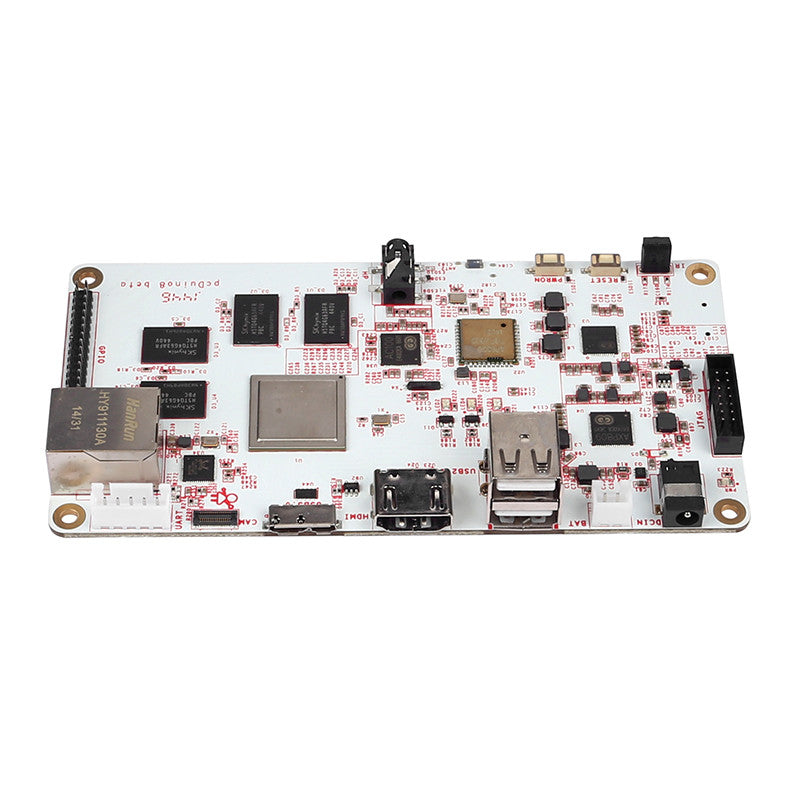

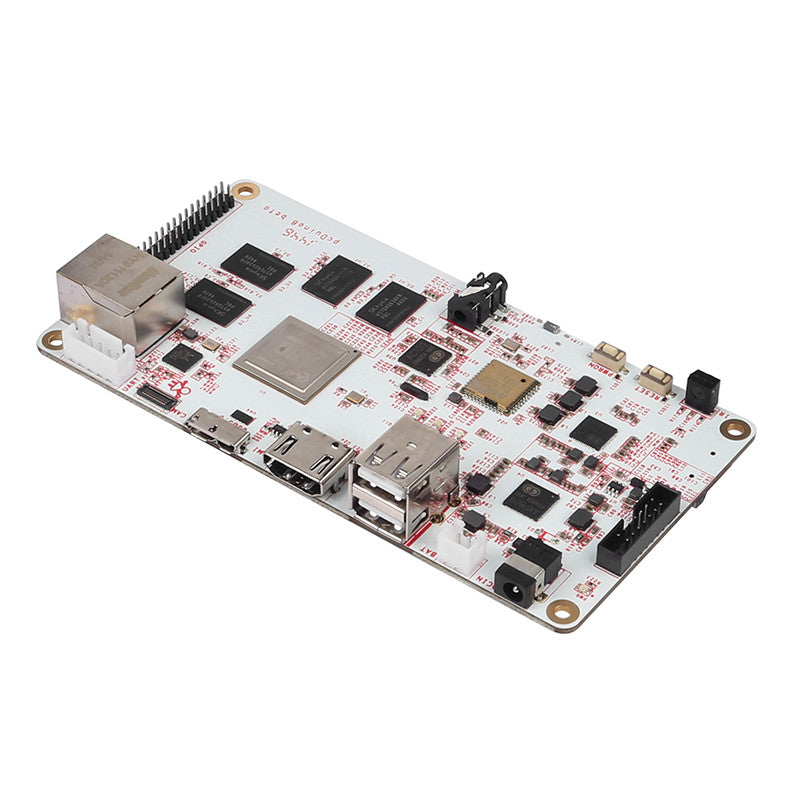

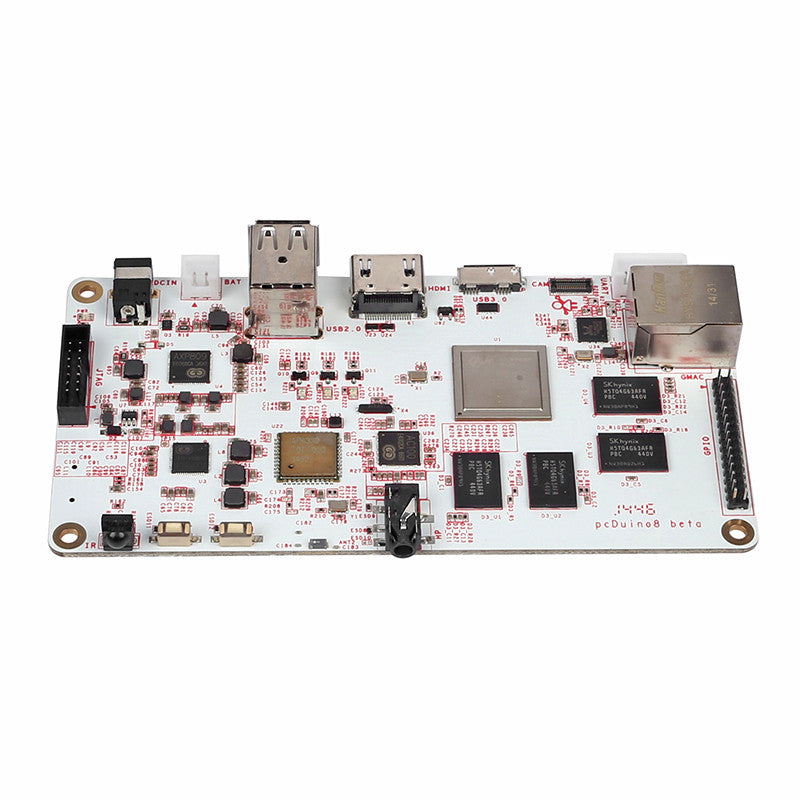

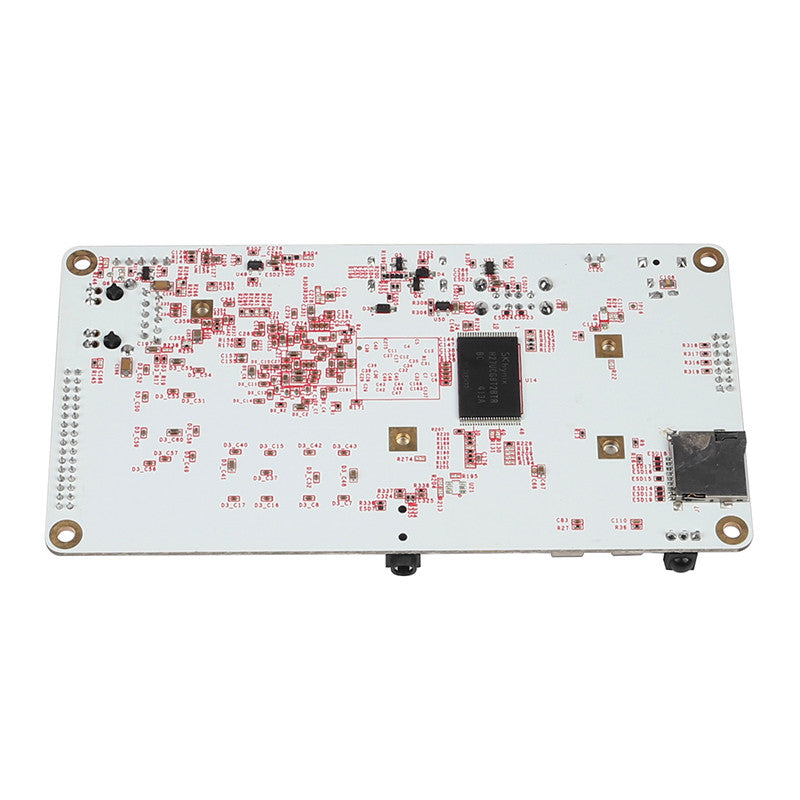

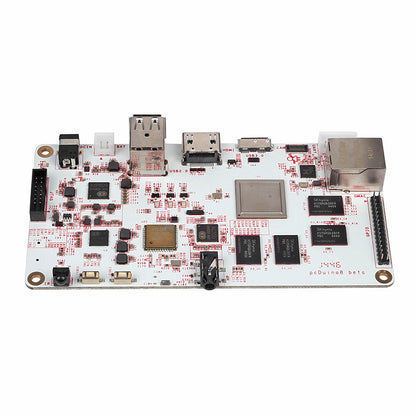

pcDuino8 Uno is a high performance, cost effective single board computer. It runs operation systems such as Ubuntu Linux and Android. pcDuino8 Uno has HDMI interface to output its graphic desktop screen. It could support multi-format 1080p 60fps video decoder and 1080p 30fps H.265/HEVC video encoder with its built-in hardware video processing engine. It targets specially the fast growing demands from the open source community. pcDuino8 Uno provides easy-to-use tool chains and is compatible with the popular Arduino ecosystem such as Arduino Shields.
A80 Block Diagram:
Hardware Specifications:
|
Details |
|
|
CPU |
AllWinner H8 8-Core Cortex-A7 @ 2.0GHz |
|
GPU |
Power VR SG544 @720MHz |
|
DRAM |
DDR3 1GB |
|
Onboard Storage |
microSD card slot for up to 32GB |
|
Network Interface |
Gbps RJ45 |
|
OS |
|
|
Video Output |
HDMI 1.4 with HDCP support |
|
Arduino extension interface |
Arduino sockets, same as Arduino Uno 14x GPIO, 2xPWM, 1x UART, 1x SPI 1x I2C 6xADC (extra module needed to provide ADC) |
|
HDMI |
1 x HDMI 1.4 |
|
Audio Output |
1 x 3.5mm analog audio interface |
|
IR |
1 x Infrared Receiver (Not populated, user can post-install) |
|
Camera |
MIPI |
|
USB |
1 x USB Host, 1 x USB OTG |
|
Power |
5V, 2000mA Micro USB |
|
Overall Size |
3 5/8�x 2 1/8�/span> |
Hardware Headers:
