Pi 3 7" Touch Screen LCD Kit

brand: SainSmart SKU: 101-40-C71
$119.99 FREE SHIPPING
Oops, 0 In Stock



Description:

NOTE: It can only be shipped to the United States.

The SainSmart Raspberry Pi 3 Kit is covered by SainSmart's 1-Year Manufacturer Warranty offering hassle-free replacements.

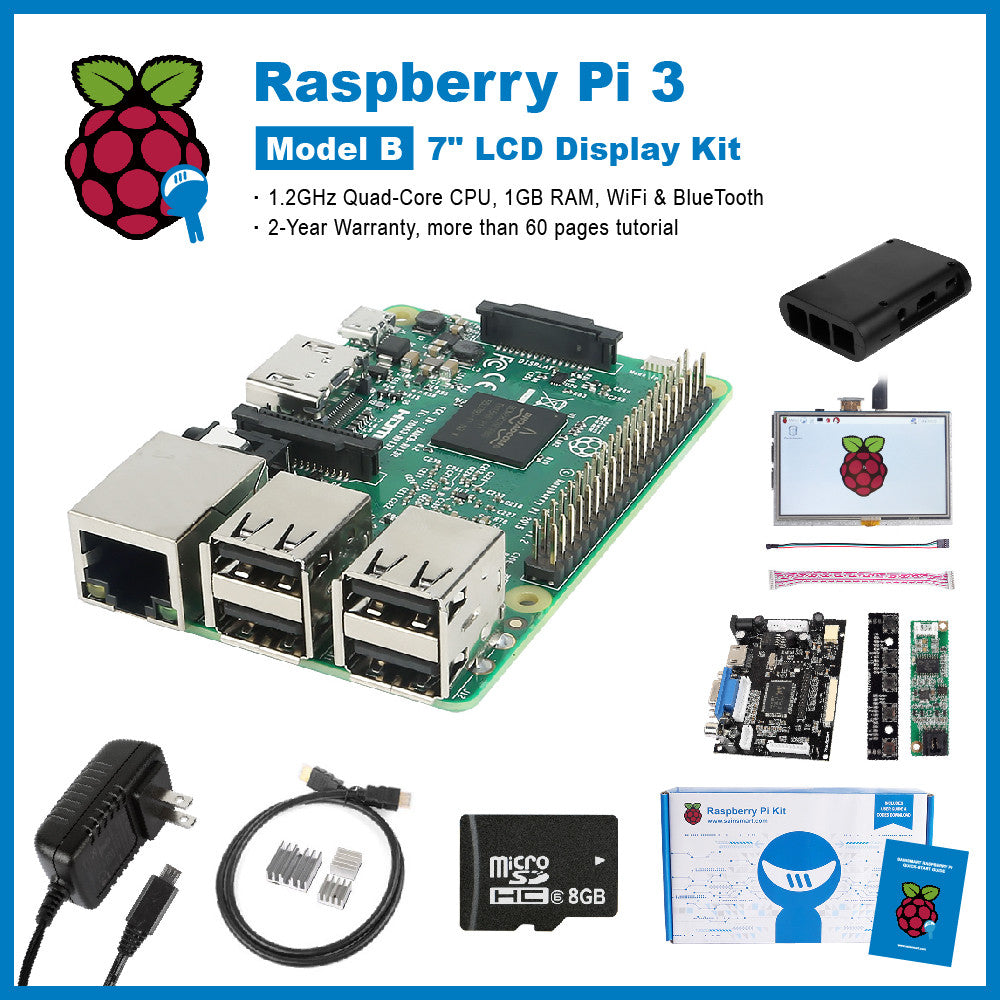

An exclusive Complete Kit from SainSmart that includes the latest edition of the Raspberry Pi family - The Raspberry Pi 3 Model B and everything you need to get up and running within minutes in the exciting world of Raspberry Pi!


    • Raspberry Pi 3 Model B 1GB RAM 1.2GHz Quad Core CPU *Latest Version 2016*


    Features:
    The Raspberry Pi 3 Model B is the third generation Raspberry Pi. This powerful credit-card sized single board computer can be used for many applications and supersedes the original Raspberry Pi Model B+ and Raspberry Pi 2 Model B.
    Whilst maintaining the popular board format the Raspberry Pi 3 Model B brings you a more powerful processor, 10x faster than the first generation Raspberry Pi.
    Additionally it adds wireless LAN & Bluetooth connectivity making it the ideal solution for powerful connected designs.



    Raspberry Pi 3 - Model B Technical Specification:

    • Broadcom BCM2387 chipset
    • 1.2GHz Quad-Core ARM Cortex-A53
    • 802.11 bgn Wireless LAN and Bluetooth 4.1 (Bluetooth Classic and LE)
    • 1GB RAM
    • 64 Bit CPU
    • 4 x USB ports
    • 4 pole Stereo output and Composite video port
    • Full size HDMI
    • 10/100 BaseT Ethernet socketbr
    • CSI camera port for connecting the Raspberry Pi camera
    • DSI display port for connecting the Raspberry Pi touch screen display
    • Micro SD port for loading your operating system and storing data
    • Micro USB power source

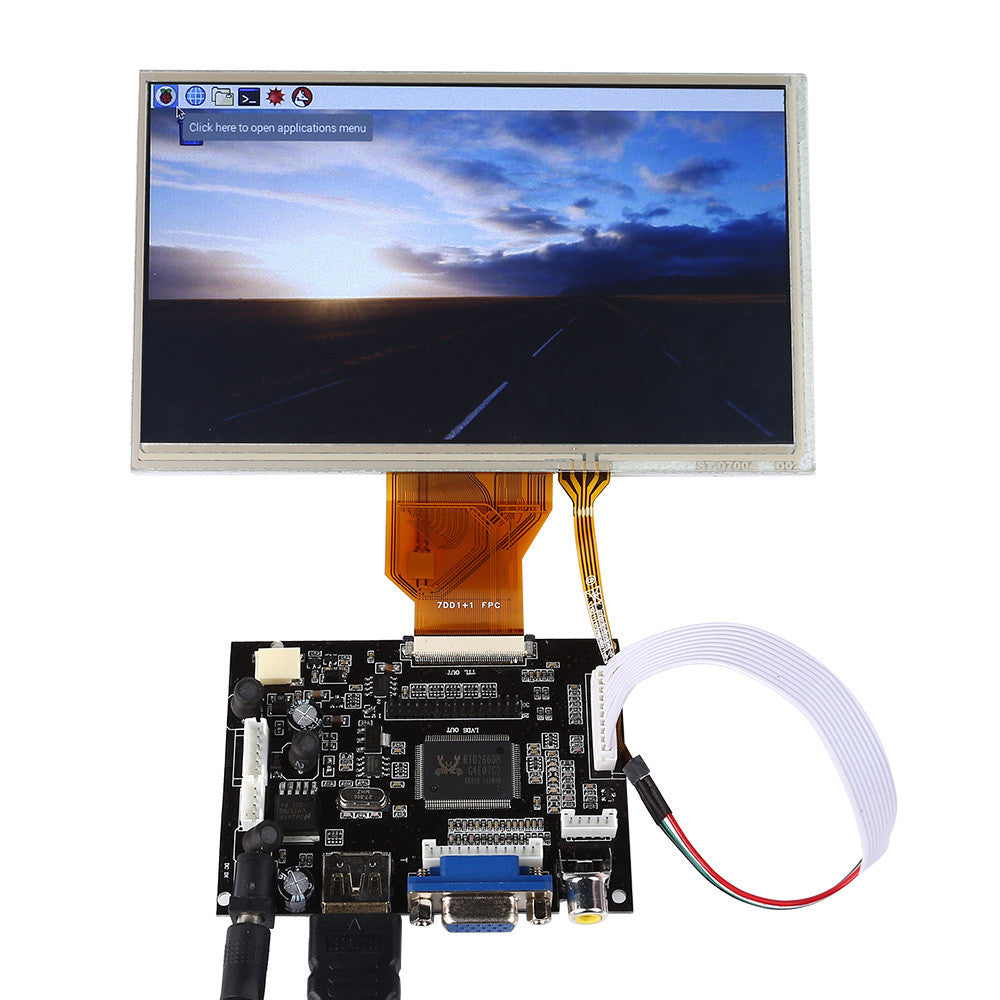

    • SainSmart 7" LCD Display Touch Screen TFT Monitor AT070TN90 with HDMI VGA Input Driver Board Controller for Raspberry Pi 2/Pi3

    Small kit, easy to use .
    The LCD driver board is  HDMI/VGA/2AV+Reversing Driver board

    http://www.selloutsoon.com/albums/SKU/BBU/SainSmart/10/101-40-107/101-40-107/30.jpg





    • High Quality ABS Black Case Anti-shock Pressure-resisting Case

    The enclosure is made out of a tough ROHS certified material providing easy access to power, audio/video, USB, LAN, microSD, DSI display adaptor and camera connector. It features feet and vents to ensure the board gets proper cooling, and plus-shaped wall mounting slots. This is a really slick case and once you've gotten your hands on a Raspberry Pi B+ , you'll want to snag one of these to put it in!



    • Adhesive Aluminium Heatsink

    The Heatsink have a layer of adhesive on the back of them. Simply peel the adhesive off and stick onto your board.
    This heatsink set is specially designed for Raspberry Pi, it's function is to cool down the board and make your Raspberry operate safely.
    Reduce the risk of hardware failure because of overheating.

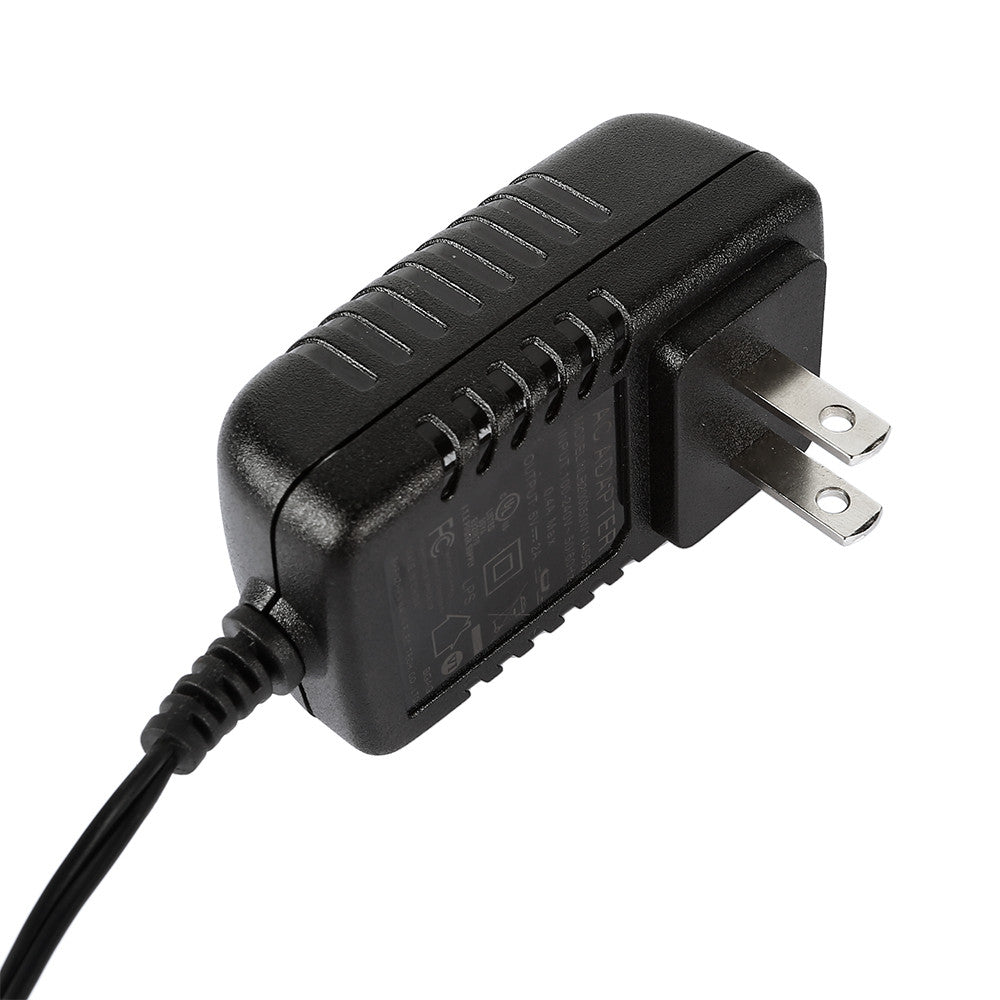

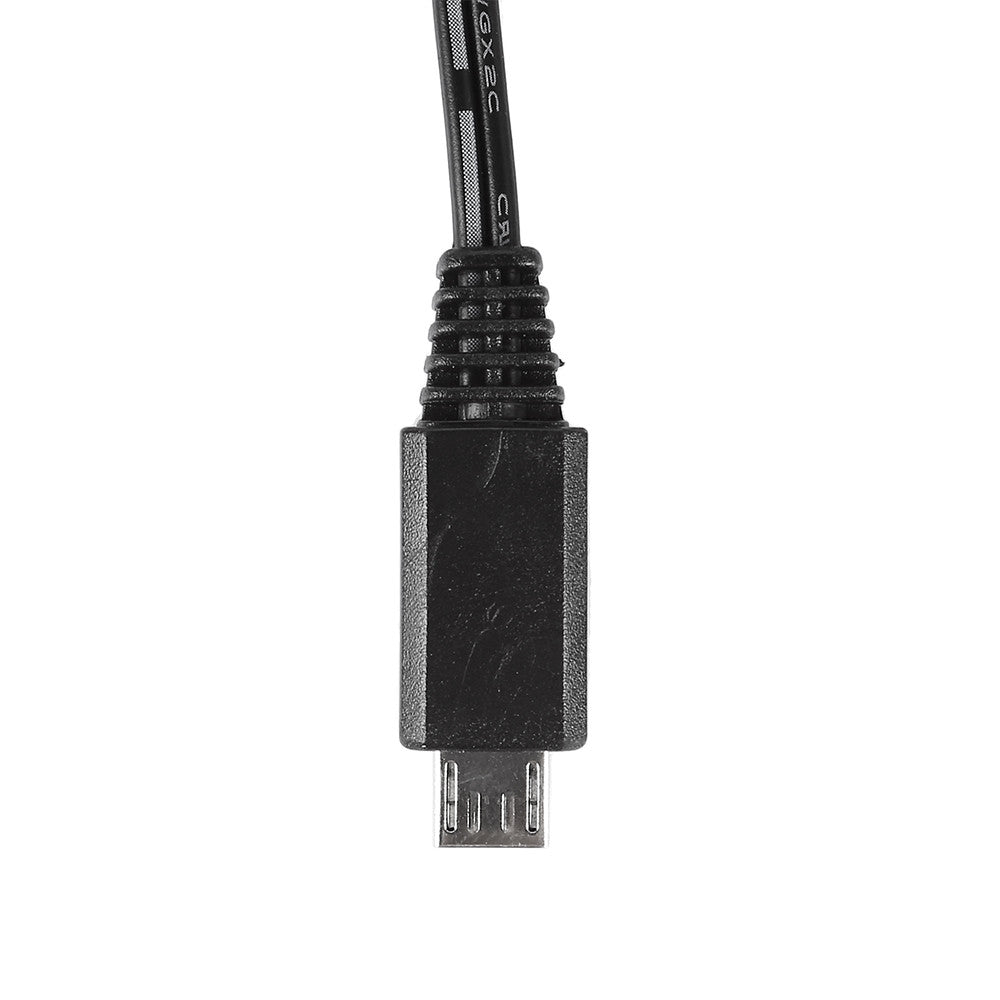

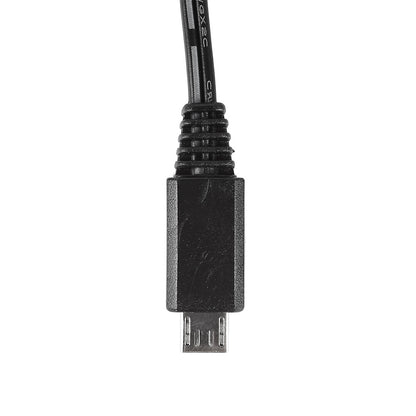

    • SainSmart 5V 2A USB Power Supply Charger for Raspberry Pi UL Listed

    5V 2A Universal Wall Charger adapter for Raspberry Pi.
    INPUT: AC:100V-240V 50/60HZ
    OUTPUT: DC:5V 2A

    http://www.selloutsoon.com/albums/SKU/BBU/SainSmart/10/101-40-C60/101-40-C60/34.jpg

    http://www.selloutsoon.com/albums/SKU/BBU/SainSmart/10/101-40-C60/101-40-C60/30.jpg






    Package List:

    • 1x New Raspberry Pi 3 Model B On-board WiFi and Bluetooth Connectivity
    • 1x SainSmart ABS Black Case
    • 3x Aluminum Heatsinks
    • 1x 8GB MicroSD card
    • 1x HDMI Cable
    • 1x SainSmart 5V Micro USB Charger UL Listed

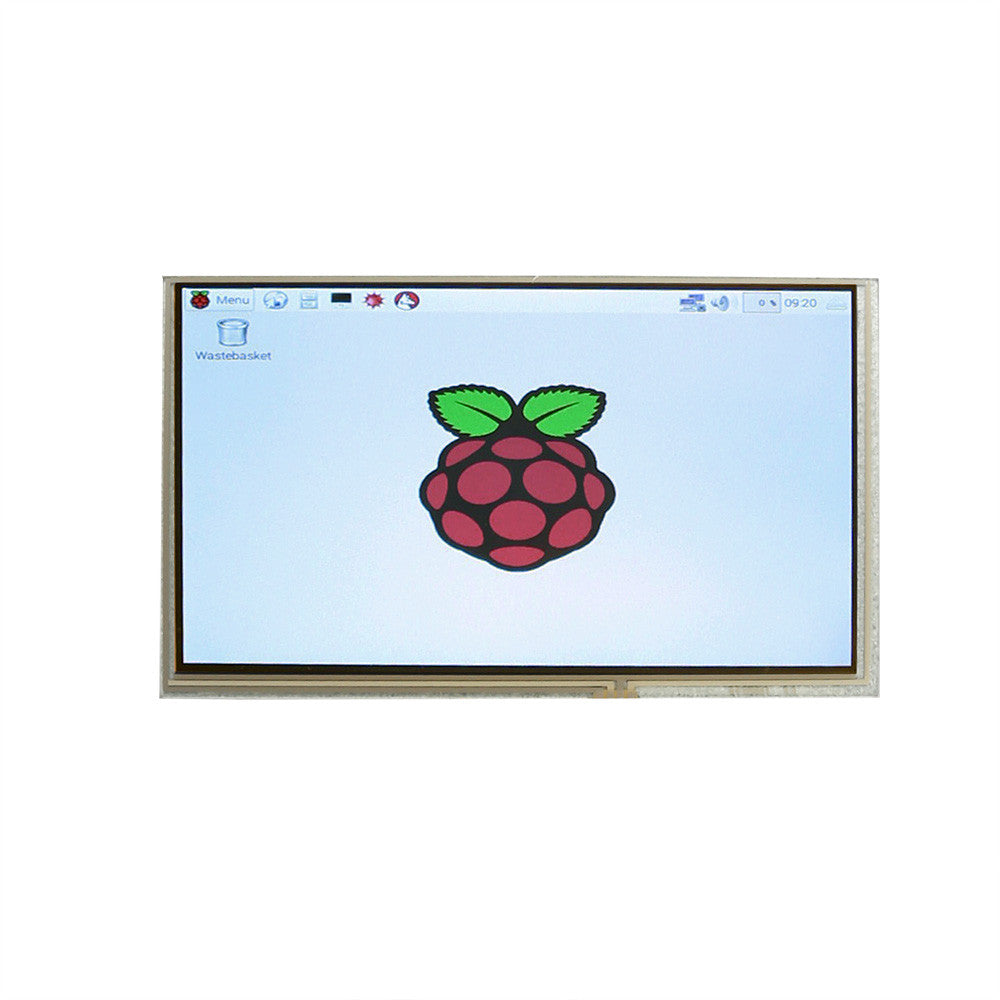

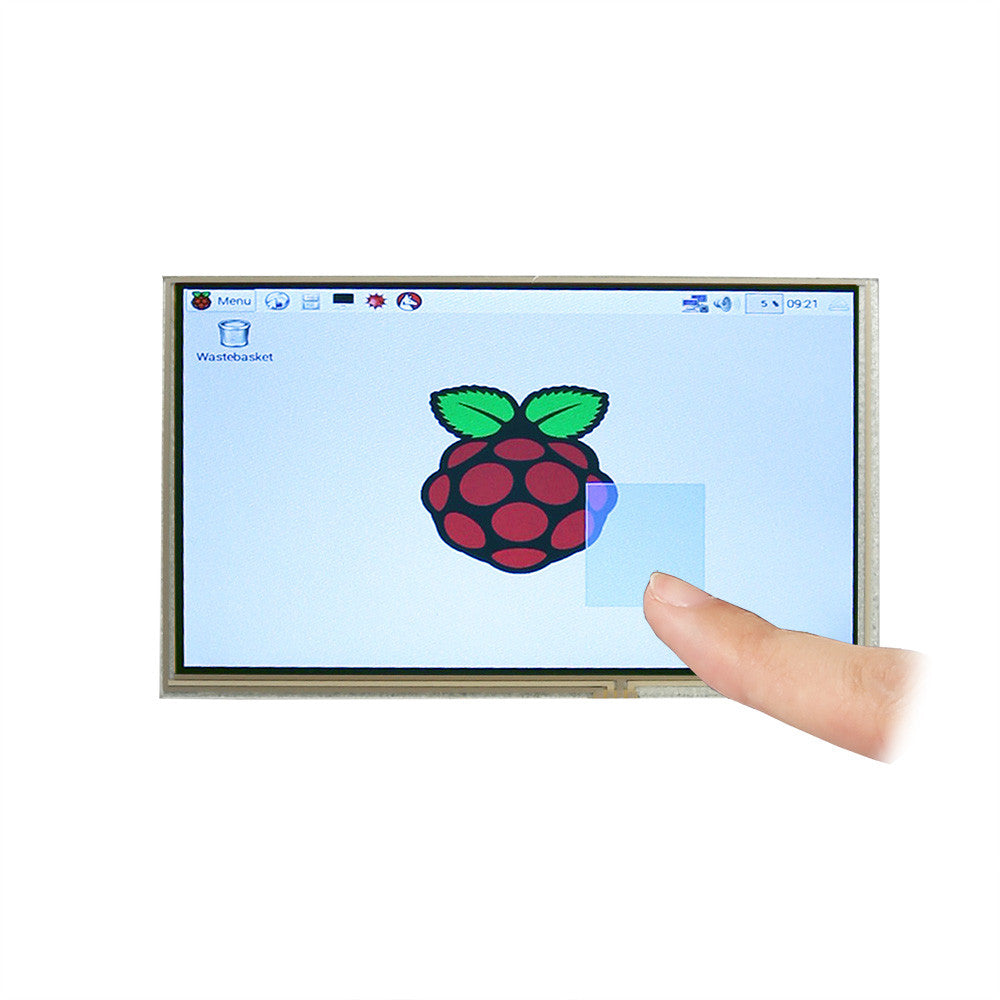

    • 1x 7 inch 800* 480  Lcd Panel AT070TN92 with Touch Screen
      1x HDMI+VGA+2AV Controller Board
      1x USB Controller Card
      1x USB Cable

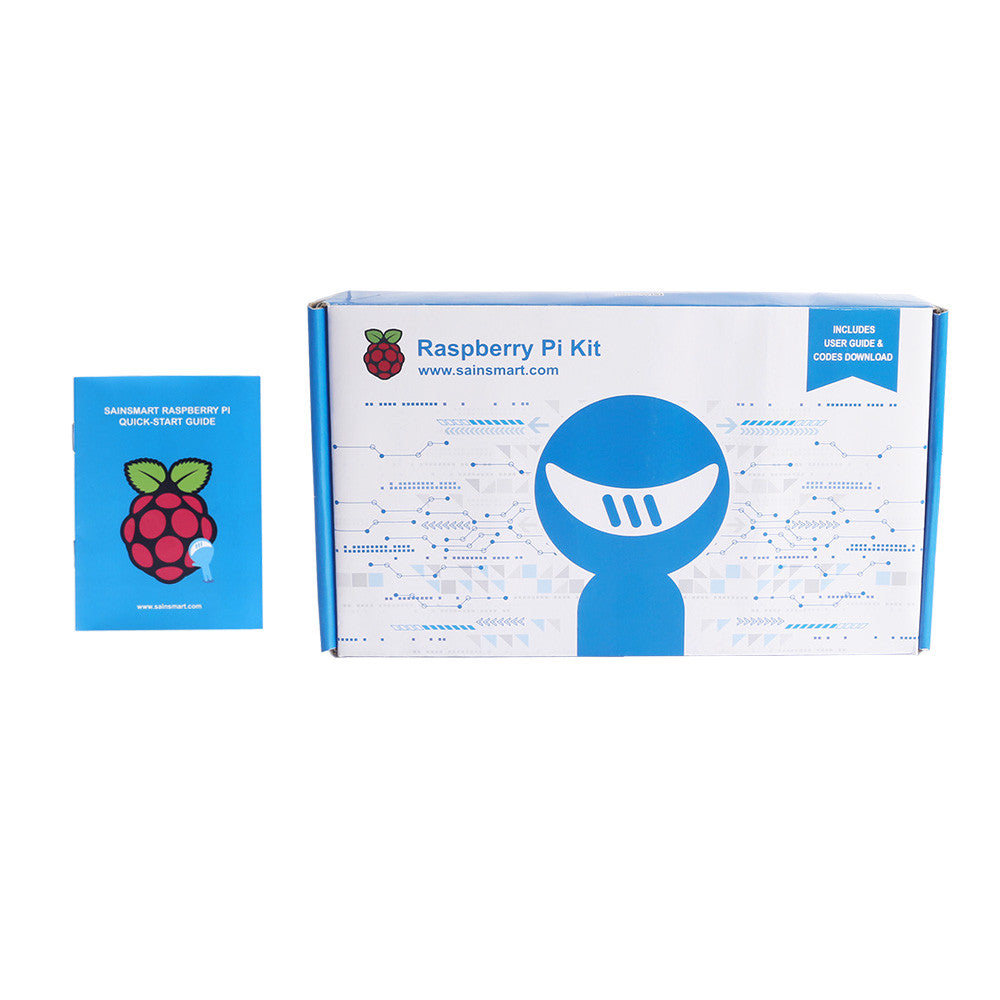

    • 1x SainSmart Quick-Start Guide (including Codes & tutorials download link)
    • 1x SainSmart Gift Box


    The Raspberry Pi 3 has an identical form factor to the previous Pi 2 (and Pi 1 Model B+) and has complete compatibility with Raspberry Pi 1 and 2.
    Note: All the existing Raspberry Pi 2 accessories and kits are fully compatible with the Raspberry Pi 3.



    Documents:

    Download Link
