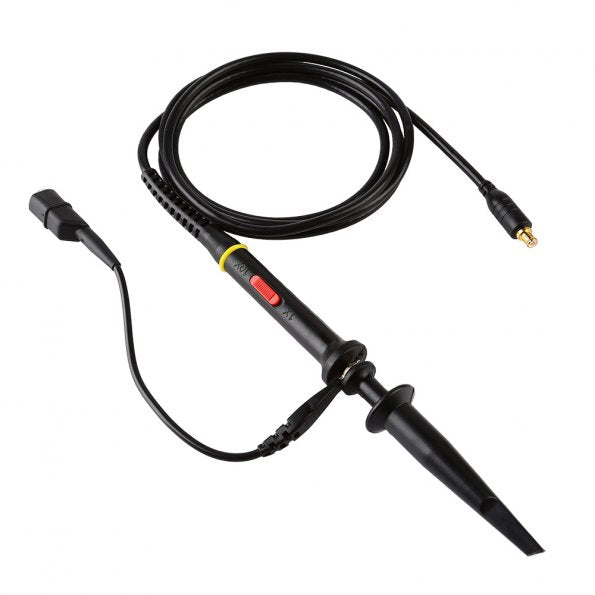

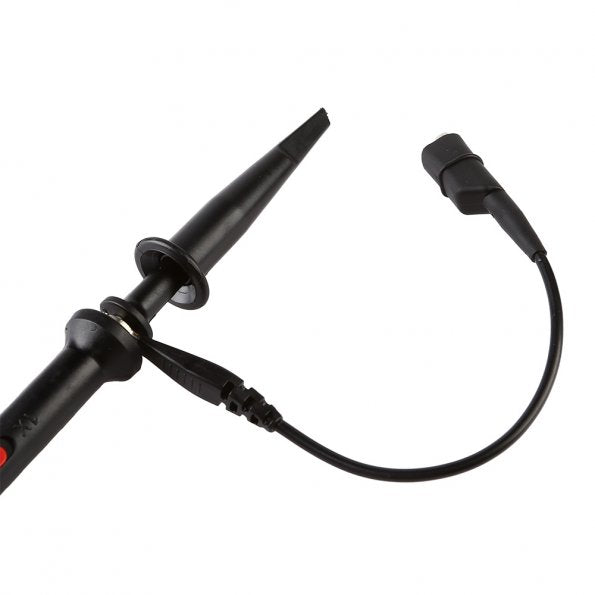

Probe for Digital Oscilloscope Clip Probes with Accessory Kit ARM DSO 203 201 Nano x1 & x10 60MHz

brand: SainSmart SKU: 101-10-159-01
$14.99

Micsig high voltage differential probes DP series are designed for the measurement for high voltage differential signal, to meet the demand for floating measurement. It has 50MHz and 100MHz two models, and has two kinds of different attenuation ranges: 500X, indicate the maximum test voltage is 1300V; 50X presents maximum test voltage is 130V.

Ship to
SPECIFICATION

Model :MCX-G
Bandwidth: 60MHz
Rise time: 5.8ns
Attenuation Ratio :1X&10X
Input Resistance: 1X:1MΩ±2% 10X:10MΩ±2%
Input Capacitance :1X:70pF~120pF 10X:14pF~18pF
Maximum Input: 1X:200 Working Voltage(Vp-p)
10X:600 Working Voltage(Vp-p)
Compensation Range: 15~45pF
Operation Environment :0~50℃ , 0~80%RH
Storage Environment :-20~60℃ , 0~90%RH
Length :120±2cm
Weight: About 40g

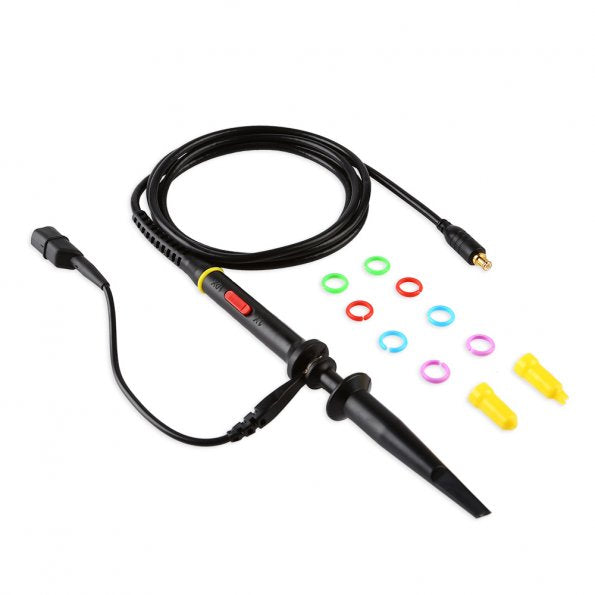

WHAT'S IN THE PACKAGE
  • 1x  Probe for Oscilloscope
