DESCRIPTION

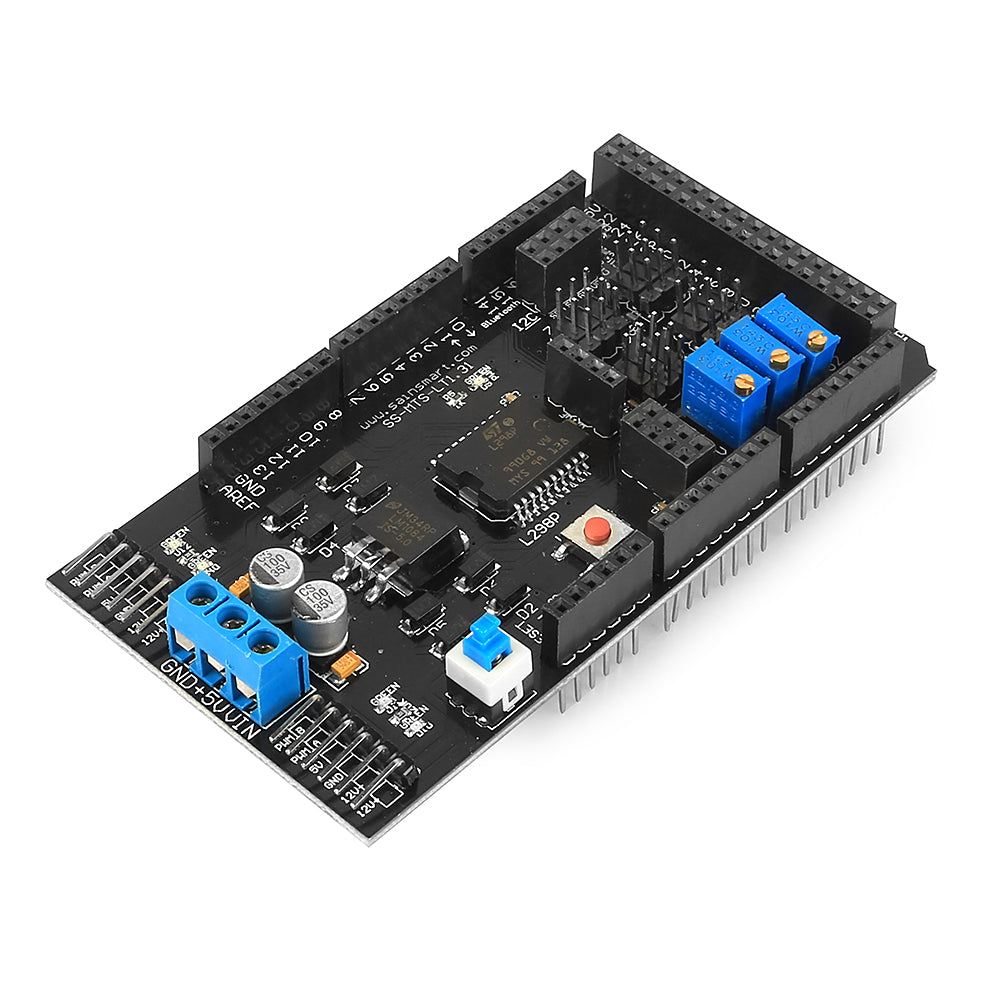

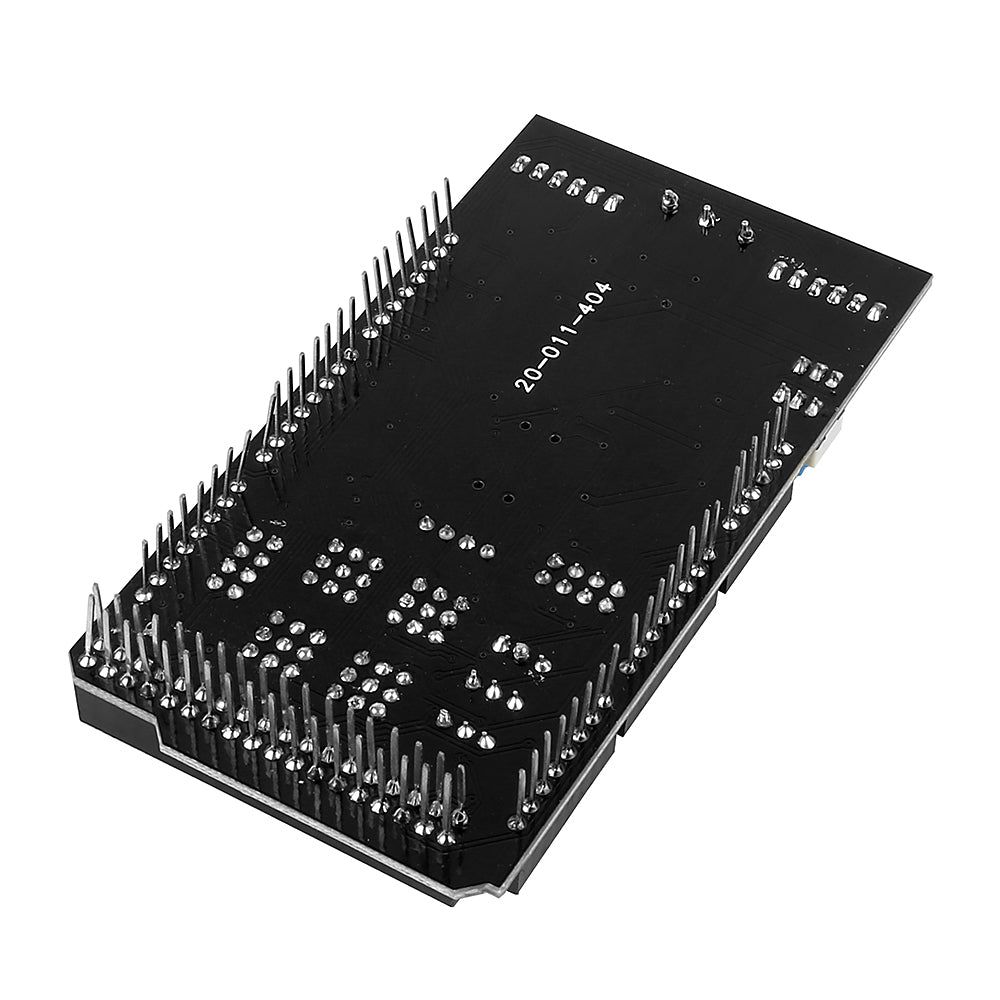

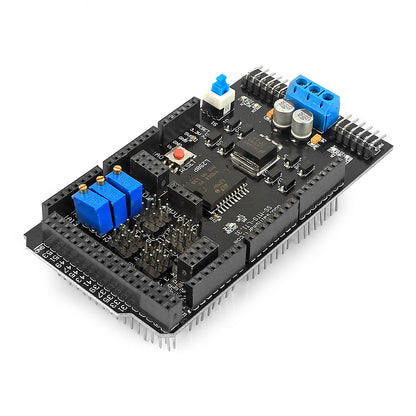

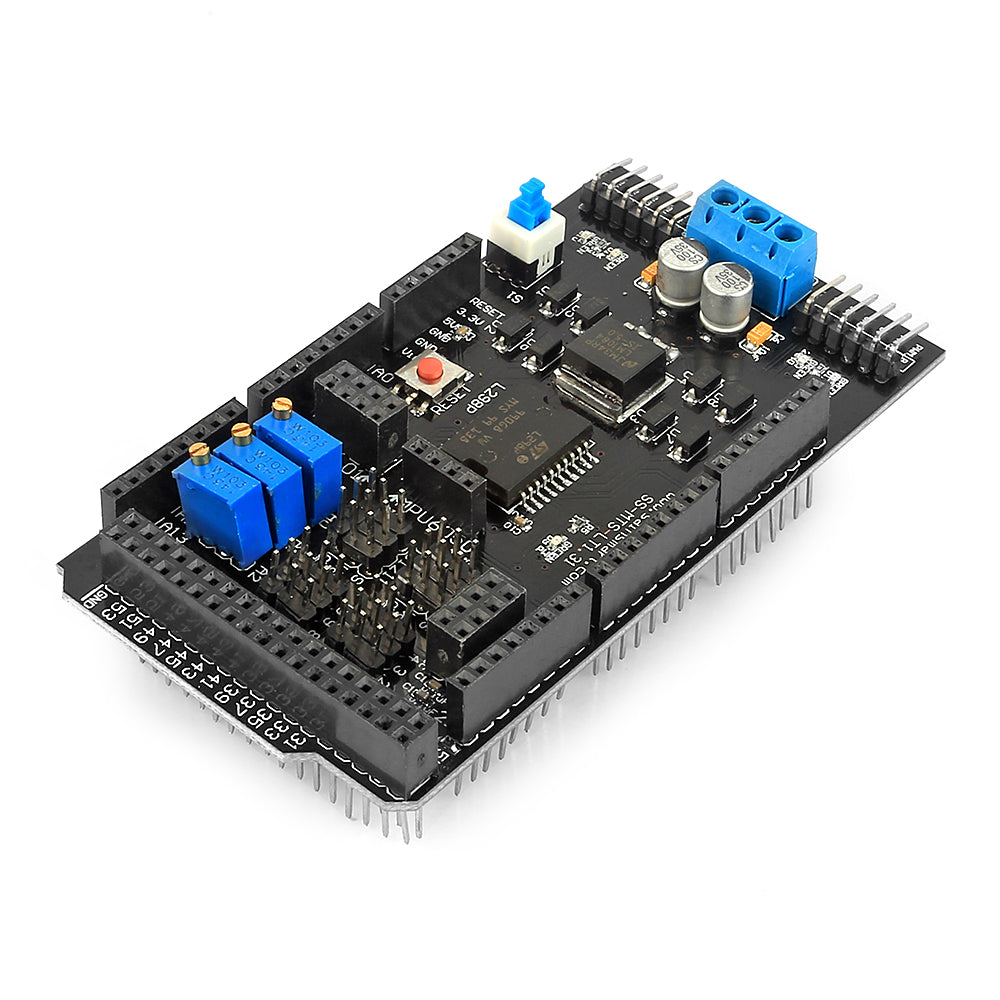

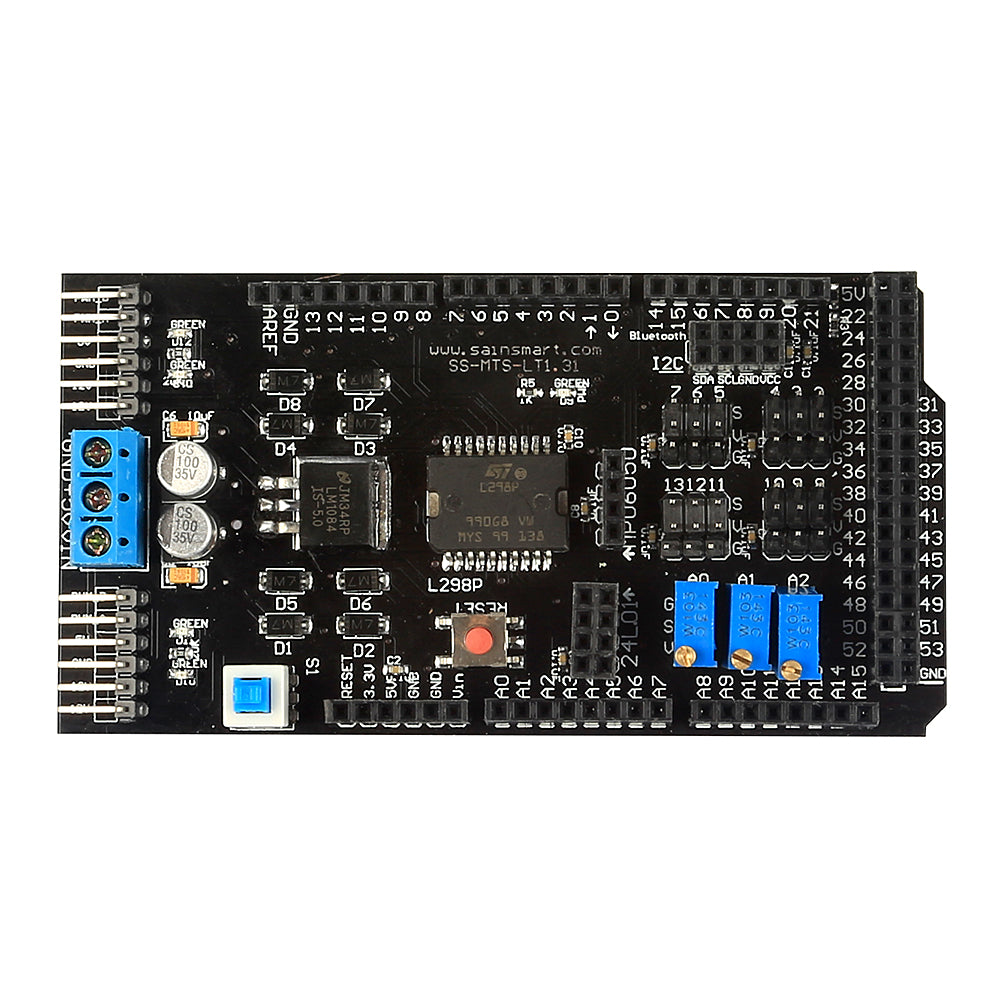

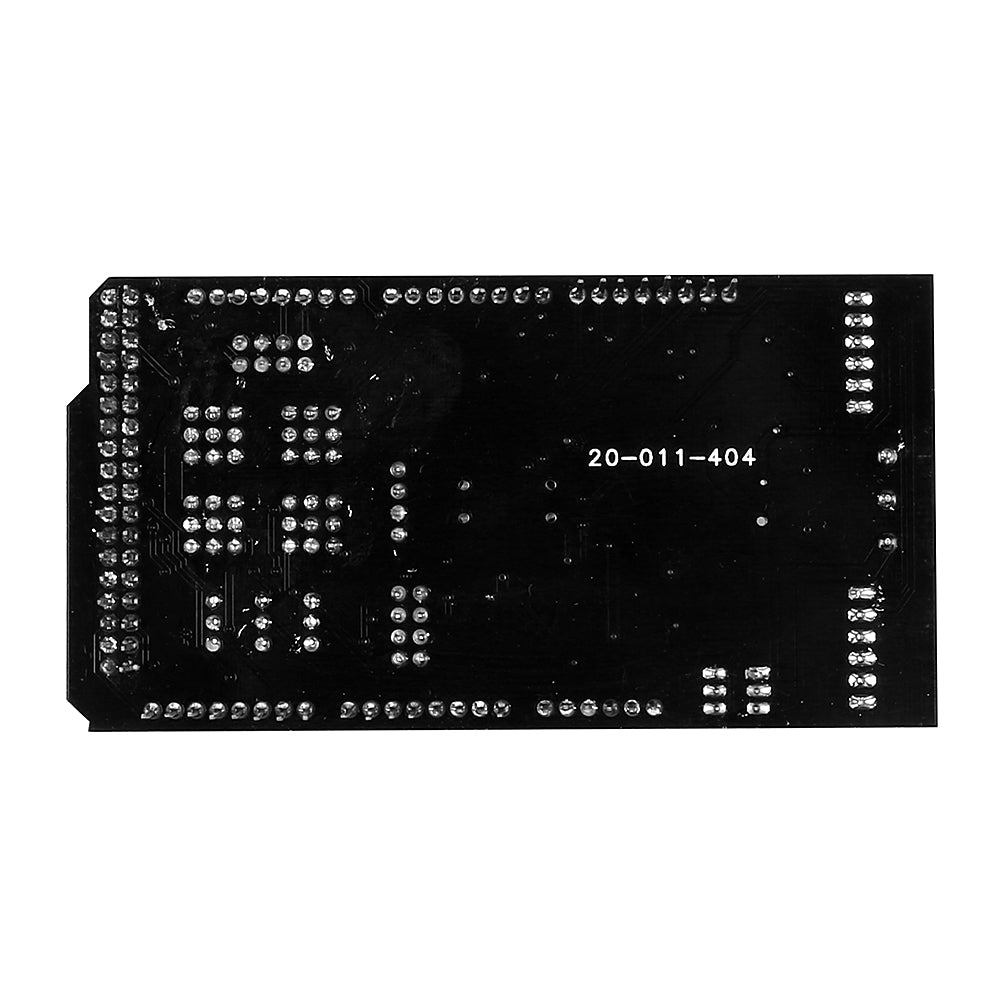

SS-MTS-LT1.3 is a motor drive expansion board which is compatible with Arduino Mega2560. It has L298P module which can be used to actuate 2 DC motors. LM1084 is its 5V voltage regulator module; provide max 4A 5V output. For your secondary development, this expansion board has 24L01 and MPU6050 direct plug interfaces and integrate 3 potentiometers. In order to connect the servos and other sensors easily, it extended 12 ports for servos.
SPECIFICATION
- Support 2 channels DC motor with encoder
- L298P chip provides 2A for each channel
- 12 ports for servos
- LM1084 provide 4A output
- Integrate 3 potentiometers
- reset button
- Three I2C ports (include MPU6050 direct plug interface)
FEATURE
- Input voltage: 10V-14V
- Compatible with Arduino Mega2560
Attention:
Please don’t connect the power supply inversely/wrong; otherwise, the board will burn up.
WHAT'S IN THE PACKAGE
- 1x SainSmart Protoshield Shield V3.0 For Arduino 2 Wheels Self-Balancing Instabot
