QL2006 USB & RS232 PIC ICSP Programmer Emulator for Microchip MCU Programming

brand: SainSmart SKU: 20-021-103
$56.93 FREE SHIPPING
Oops, 0 In Stock

QL-2006 programmer is the high-speed programmer designed specially for development and production programming of PIC single chip microcomputer (SCM) by QLS Electronic Technology Co., Ltd. The product is featured with small volume, low power consumption, high reliability as well as easy and convenient operation.
QL-2006 is applicable for almost all PIC10/12/16/18 series SCMs except 16C5X. It also supports memories in 24XX series and 93XX series.



Features:

  •  High performance-price ratio, designed with the updated PIC programming algorithm, higher speed than other similar products, stable performance, support more devices. Support online upgrade of programmer hardware, easy and convenient upgrade. Two communication modes of USB and serial port, convenient for application on lap-top computer which doesn’t have serial port (convenient connection of one USB cable with computer). Automatic programming function and automatic programming process enable mass production for customer’s great convenience (programming available on chip installation without pressing any other key).
  • Overall message indication, audio plus word will enable customer well informed about operating status.
  • Through built-in ICSP interface (completely compatible with ICD interface of MICROCHIP), support ICSP (in-circuit serial programming) directly without any additional device. User may program after circuit board is welded. For FLASH SCM, online upgrade is available.

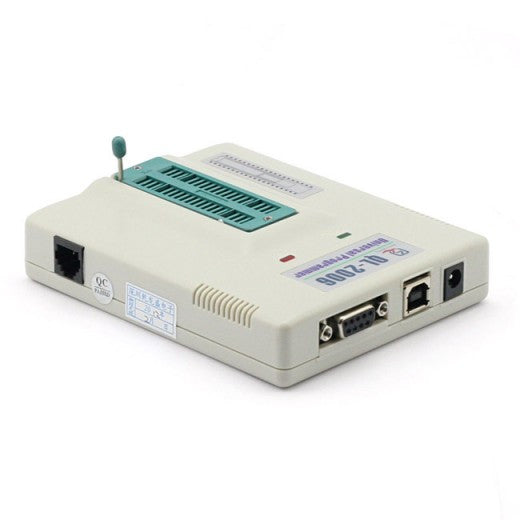

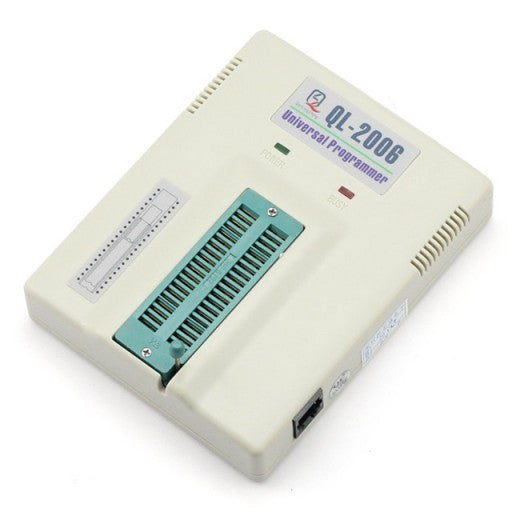

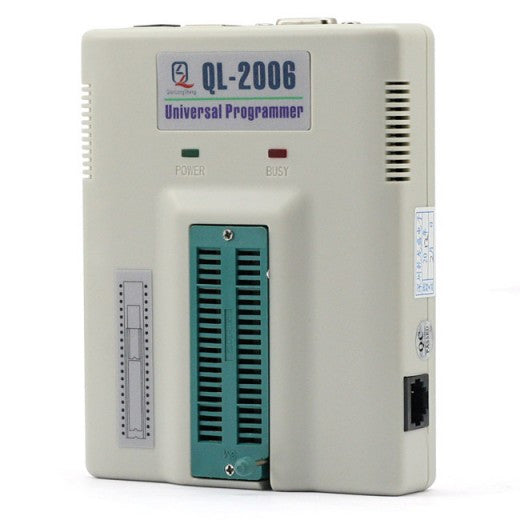

  • Equipped with 40pin DIP socket, available for direct programming of 8pin-40pin DIP chip. Programming of other surface mount device (SMD) is available based on universal adaptor.
  • Compatible with operating systems (OS) including Windows98, Windows2000/NT and Windows XP.
  • Function of programming counting, can preset and count the programming number.
  • Function of serial number auto-increment, available to set auto-increment area as program area or EEPROM data area, set auto-increment system, set auto-increment start address/end address and auto-increment step, set to ignore high byte in auto-increment to avoid effect to RETLW instruction in auto-increment part of program.
  • Program supports load of *.HEX or *.BIN files, available to converse *.BIN files to *.HEX format.
  • With programming data monitoring. Through check summing, available to find immediately if programming data is changed or not. Verification and formula are subject to definition of Microchip.
  • Programmer hardware auto-search when start of software, no need for software setup before use, easier and more convenient operation.
  • High programming success rate, enough programming depth. Programmable voltage, electrical parameter of programming and programming algorithm satisfy the technical specifications of manufacturers.


Hardware:
There is no special requirement for installation of this programmer.
Connect programmer to PC through serial port cable or USB cable and power up, then the programmer works. (This programmer supports direct USB power supply. If USB cable is connected, you may not connect external power. However, if current through USB interface is very low �less than 200MA and insufficient to drive programmer, connection to external power is required to enable the programmer to work regularly.)

10 series:

PIC10F200

PIC10F202

PIC10F204

PIC10F206

PIC10F220

PIC10F222

12C series:

PIC12C508

PIC12C508A

PIC12C509

PIC12C509A

PIC12C671

PIC12C672

PIC12CE518

PIC12CE519

PIC12CE673

PIC12CE674

12F series:

PIC12F508

PIC12F509

PIC12F629

PIC12F635

PIC12F675

PIC12F683

PIC12F615

PIC12HV615

PIC12F510







MCV series:

MCV08A

MCV14A

MCV18A

MCV28A





HA series:

HA2089

HA2099

HA3089

HA3099





16C series:

PIC16C505

PIC16C554

PIC16C558

PIC16C61

PIC16C62

PIC16C62A

PIC16C62B

PIC16C63

PIC16C63A

PIC16C64

PIC16C64A

PIC16C65

PIC16C65A

PIC16C65B

PIC16C66

PIC16C66A

PIC16C67

PIC16C620

PIC16C620A

PIC16C621

PIC16C621A

PIC16C622

PIC16C622A

PIC16C71

PIC16C71A

PIC16C72

PIC16C72A

PIC16C73

PIC16C73A

PIC16C73B

PIC16C74

PIC16C74A

PIC16C74B

PIC16C76

PIC16C77

PIC16C710

PIC16C711

PIC16C712

PIC16C716

PIC16C745

PIC16C765

PIC16C773

PIC16C774

PIC16C83

PIC16C84

16F series:

PIC16F505

PIC16F506

PIC16F54

PIC16F57*

PIC16F59*

PIC16F627

PIC16F616

PIC16HV616

PIC16LF627A

PIC16F627A

PIC16F628

PIC16LF628A

PIC16F628A

PIC16F630

PIC16F631

PIC16F636

PIC16F639

PIC16F648A

PIC16F677

PIC16F676

PIC16F683

PIC16F684

PIC16F685

PIC16F687

PIC16F688

PIC16F689

PIC16F690

PIC16F716

PIC16F72

PIC16F73

PIC16F74

PIC16F76

PIC16F77

PIC16F737

PIC16F747

PIC16F767

PIC16F777

PIC16F785

PIC16F83

PIC16F84

PIC16F84A

PIC16F87

PIC16F88

PIC16F818

PIC16F819

PIC16F870

PIC16F871

PIC16F872

PIC16F873

PIC16F873A

PIC16F874

PIC16F874A

PIC16F876

PIC16F876A

PIC16F877

PIC16F877A

PIC16F913

PIC16F914

PIC16F916

PIC16F917

PIC16F882

PIC16F883

PIC16F884

PIC16F886

PIC16F887



18 series:

PIC18F242

PIC18F248

PIC18F252

PIC18F258

PIC18F442

PIC18F448

PIC18F452

PIC18F458

PIC18F1220

PIC18F1320

PIC18F2220

PIC18F2221

PIC18F2320

PIC18F2321

PIC18F2331

PIC18F2410

PIC18F2420

PIC18F2431

PIC18F2450

PIC18F2455

PIC18F2480

PIC18F2510

PIC18F2515

PIC18F2520

PIC18F2525

PIC18F2550

PIC18F2580

PIC18F2585

PIC18F2610

PIC18F2620

PIC18F2680

PIC18F4220

PIC18F4221

PIC18F4320

PIC18F4321

PIC18F4331

PIC18F4410

PIC18F4420

PIC18F4431

PIC18F4450

PIC18F4455

PIC18F4480

PIC18F4510

PIC18F4515

PIC18F4520

PIC18F4525

PIC18F4550

PIC18F4580

PIC18F4585

PIC18F4610

PIC18F4620

PIC18F4680

PIC18F6520

PIC18F6525

PIC18F6585

PIC18F6620

PIC18F6621

PIC18F6680

PIC18F6720

PIC18F8520

PIC18F8525

PIC18F8585

PIC18F8620

PIC18F8621

PIC18F8680

PIC18F8720

ATMEL serial EEPROM series:

24C01

24C01A

24C01B

24C02

24C02A

24C02B

24C02C

24C04

24C04A

24C04B

24C08

24C08B

24C16

24C16B

24C32

24C32A

24C64

24C128

24C256

24C512

93C46

93C56

93C66

93C76

93C86











MICROCHIP serial EEPROM series:

24C01A

24LC01

24C02A

24LC02

24C04A

24LC04

24C16

24LC16

24C32

24C64

24C128

24C256

24C512

93LC46A/B

93LC56A/B

93LC66A/B

93LC76A/B

93LC86A/B

NS serial EEPROM series:

NM24C01

NM24C02

NM24C03

NM24C04

NM24C08

NM24C16

NM24C32

NM24C64

NM24C128







EXEL serial EEPROM series:

24C01

24C02

24C04

24C08

24C16

24C64 24C128

THOMSON serial EEPROM series:

ST24C01

ST24C02

ST24C04

ST24C08

ST24C16

ST24C64 ST24C128

XICON serial EEPROM series:

X24C01

X24C01A

X24C02

X24C02A

X24C04

X24C04A

X24C08 X24C08A

X24C16

X93C46A/8bit/16bit

X93C56A/8bit/16bit

X93C66A/8bit/16bit

X93C86A/8bit/16bit

ST serial EEPROM series:

24C01/A

24C02/A

24C04

24C08

24C16

24C32

24C64

24C128

93C46A/8bit/16bit

93C56A/8bit/16bit

93C66A/8bit/16bit



Holtek serial EEPROM series:

HT24C01

HT24C02/A

HT24C04

HT24C08

HT24C16

HT24C32

HT24C64

HT24C128

93C46A/8bit/16bit

93C56A/8bit/16bit

93C66A/8bit/16bit



Tip: 16F57,16F59 Only use icsp mode



Programmer device timer

Device

timer

Device

timer

PIC16F72

3S

PIC16F628A

8S

PIC12F629

4S

PIC16F716

7S

PIC16F630

5S

PIC16F84A

8S

PIC16F54

2S

PIC18F877A

12S

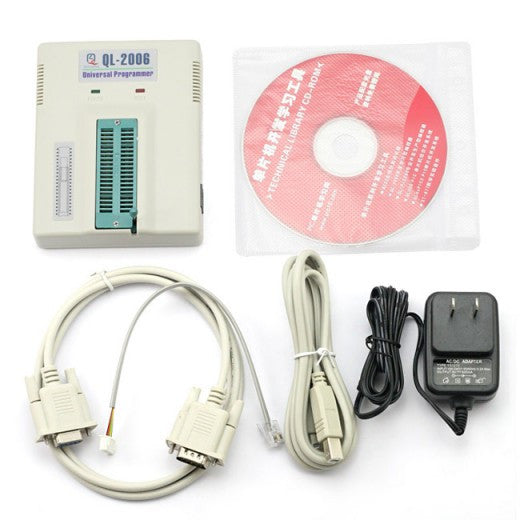

Package includes the following item:
QL-2006 programmer

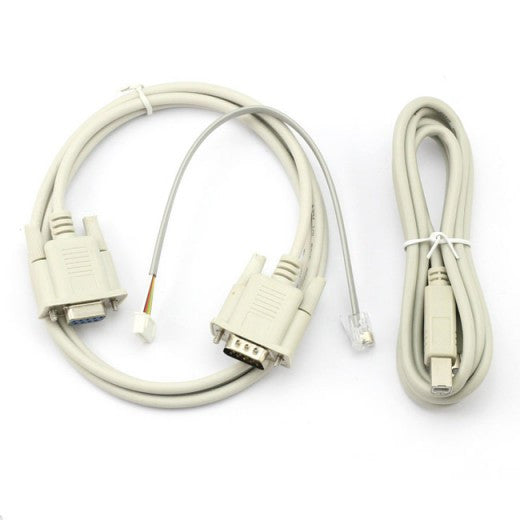

USB Cable
ICSP Cable
CD ROM(QL-PROG soft; USB Driver; MPLAB IDE; English versions of user manuals..)
