Raspberry Pi 3 5"LCD Kit

brand: SainSmart SKU: 101-40-C35
$72.99 FREE SHIPPING
Only 1 in stock. Order now!

Description:

An exclusive Ultimate Kit from SainSmart that includes the latest edition of the Raspberry Pi family - The Raspberry Pi 3 Model B and everything you need to get up and running within minutes in the exciting world of Raspberry Pi!


  • Raspberry Pi 3 Model B 1GB RAM 1.2GHz Quad Core CPU

Features:

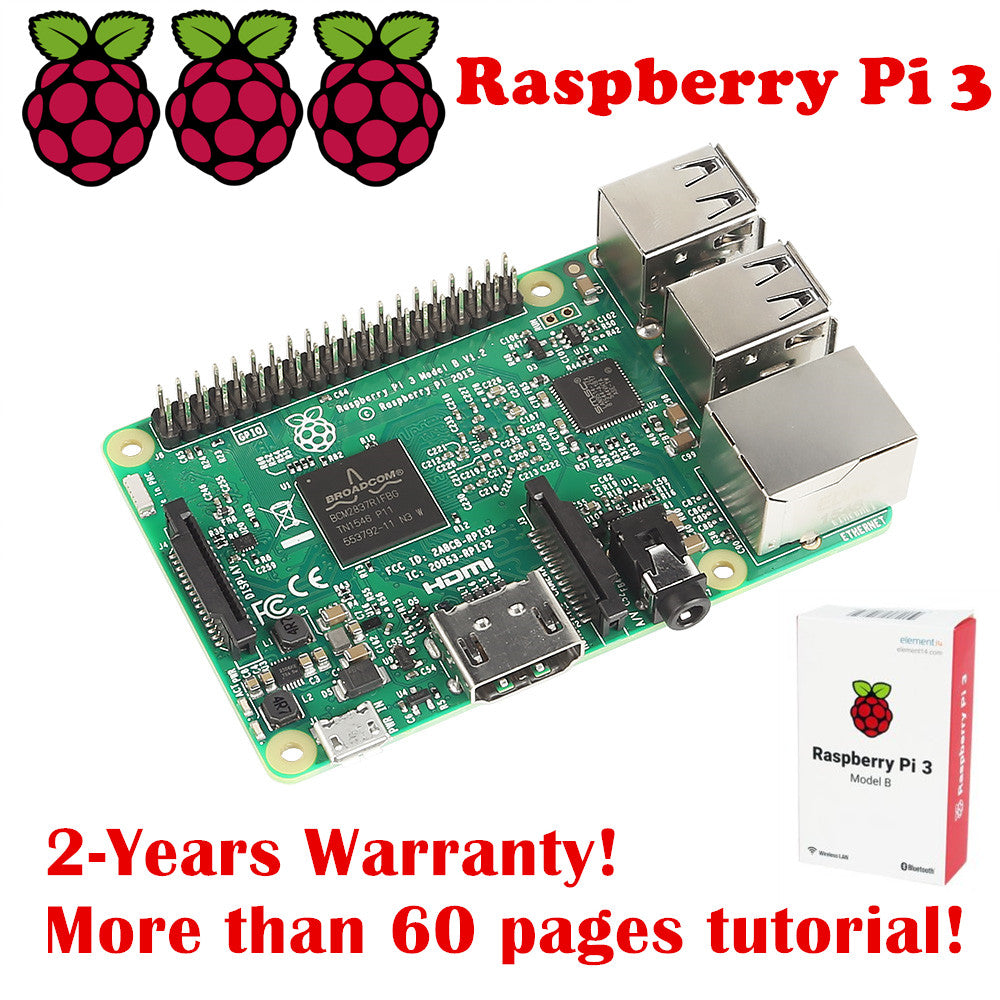

The Raspberry Pi 3 Model B is the third generation Raspberry Pi. This powerful credit-card sized single board computer can be used for many applications and supersedes the original Raspberry Pi Model B+ and Raspberry Pi 2 Model B.
Whilst maintaining the popular board format the Raspberry Pi 3 Model B brings you a more powerful processor, 10x faster than the first generation Raspberry Pi.
Additionally it adds wireless LAN & Bluetooth connectivity making it the ideal solution for powerful connected designs.

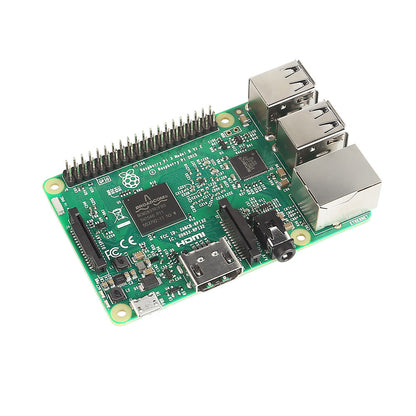

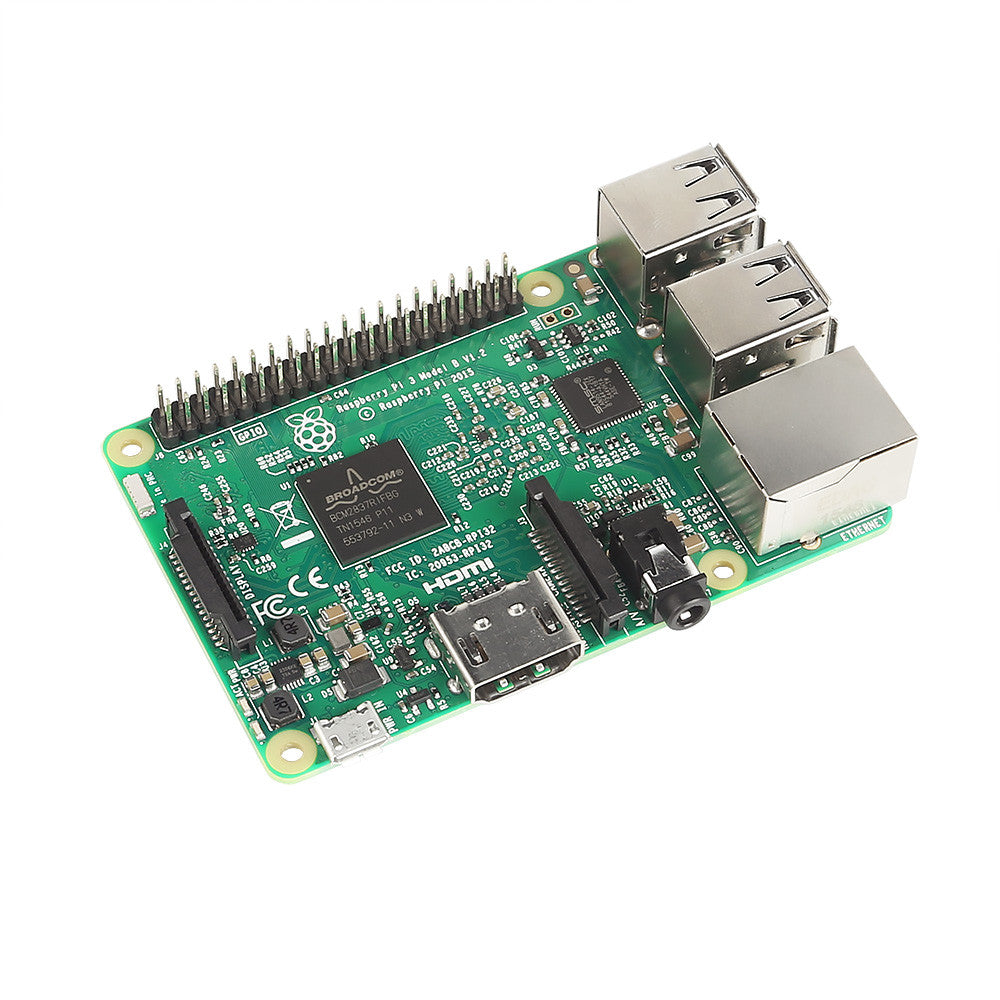

Raspberry Pi 3 - Model B Technical Specification:

  • Broadcom BCM2387 chipset
  • 1.2GHz Quad-Core ARM Cortex-A53
  • 802.11 bgn Wireless LAN and Bluetooth 4.1 (Bluetooth Classic and LE)
  • 1GB RAM
  • 64 Bit CPU
  • 4 x USB ports
  • 4 pole Stereo output and Composite video port
  • Full size HDMI
  • 10/100 BaseT Ethernet socketbr
  • CSI camera port for connecting the Raspberry Pi camera
  • DSI display port for connecting the Raspberry Pi touch screen display
  • Micro SD port for loading your operating system and storing data
  • Micro USB power source

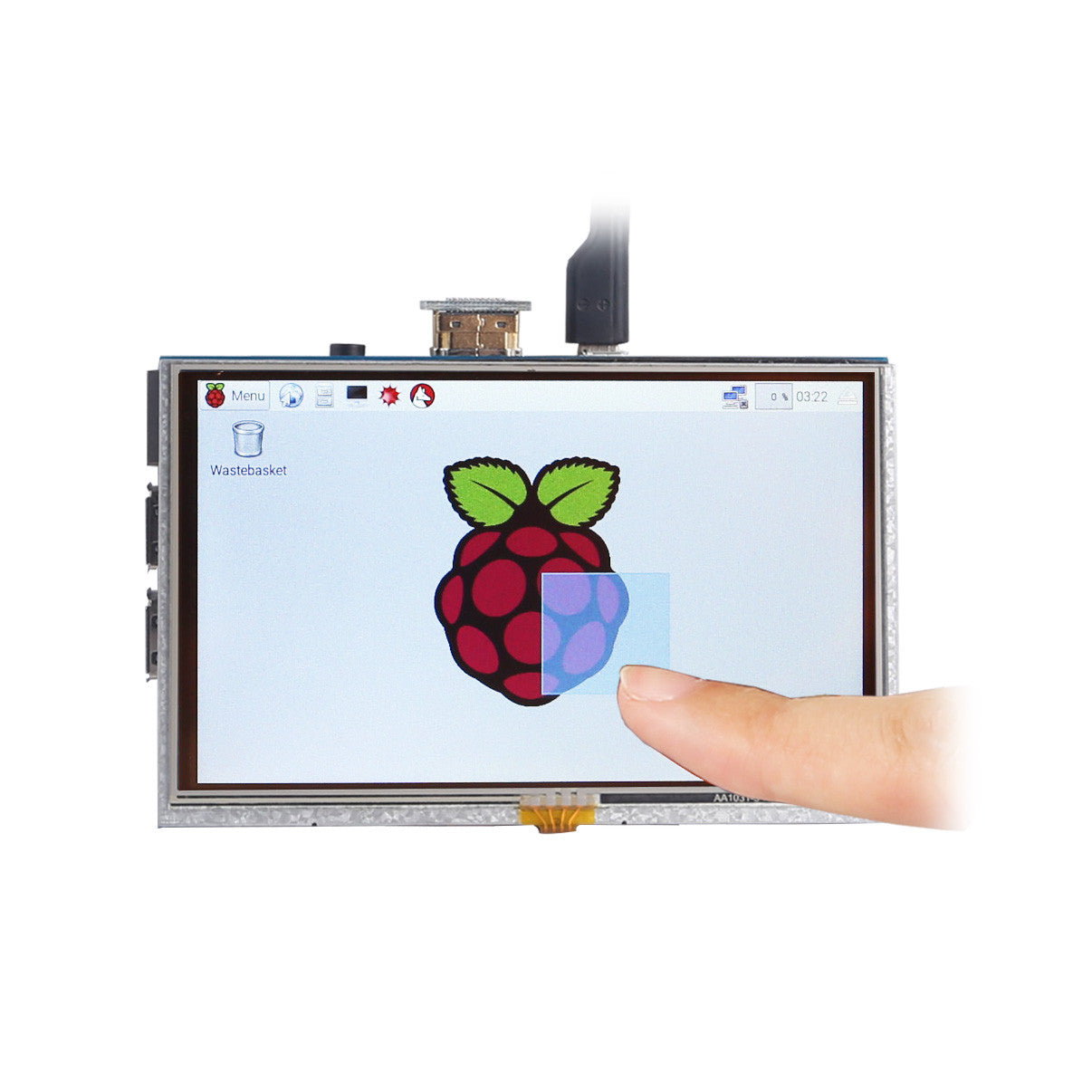

 SainSmart 5" Inch 800x480 HDMI Touch LCD Screen Display for Raspberry Pi 3 Pi2 Model B+ A+

Features:

  • 100% Brand new and high quality!
  • 800x480 high resolution
  • Directly-pluggable into any revision of Raspberry Pi
  • (only except the first generation Pi model B which requires an HDMI cable)
  • Driver provided (works with custom Raspbian directly)
  • HDMI interface for displaying, no I/Os required (however, the touch panel still needs I/Os)
  • Back light control to lower power consumption
  • High quality immers gold surface plating
  • Not only the Pi, you can also use it with any other Mini-PCs like Cubieboard,
  • Marsboard if the touch function is not required


Specifications:

  • Size: approx. 120 x 78mm
  • Net Weight: 178g

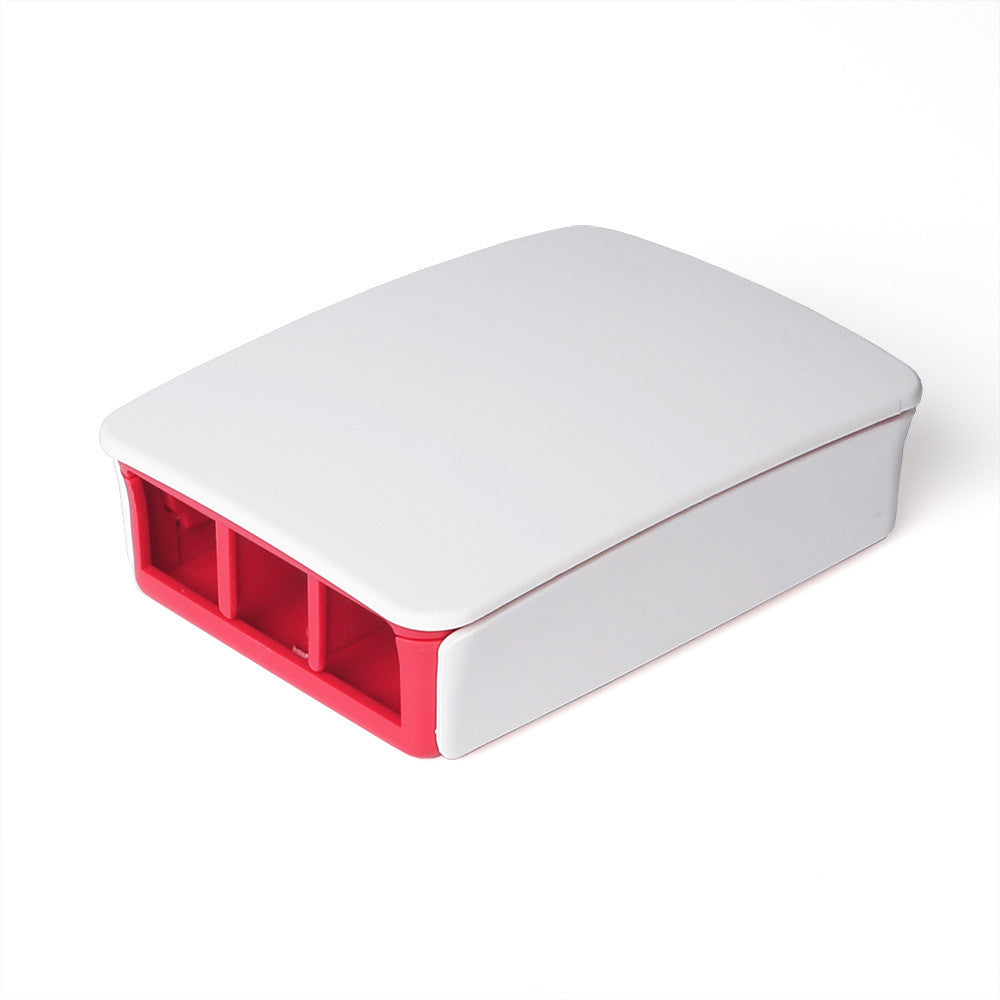

  • High Quality SainSmart Enclosure Case Shell for the Raspberry Pi 3/2/Model B+



Technical Specification:
1.Official enclosure from the Raspberry Pi Foundation
2.5 part enclosure
3.Raspberry coloured enclosure with White removable lid and sides (GPIO side and HDMI side)
4.Compatible with the Raspberry Pi Model B+ and Raspberry Pi 2 Model B
5.Product is supplied assembled, shrink-wrapped with 4 rubber feet loose inside
6.Dimensions: 96mm x 26mm x 71mm

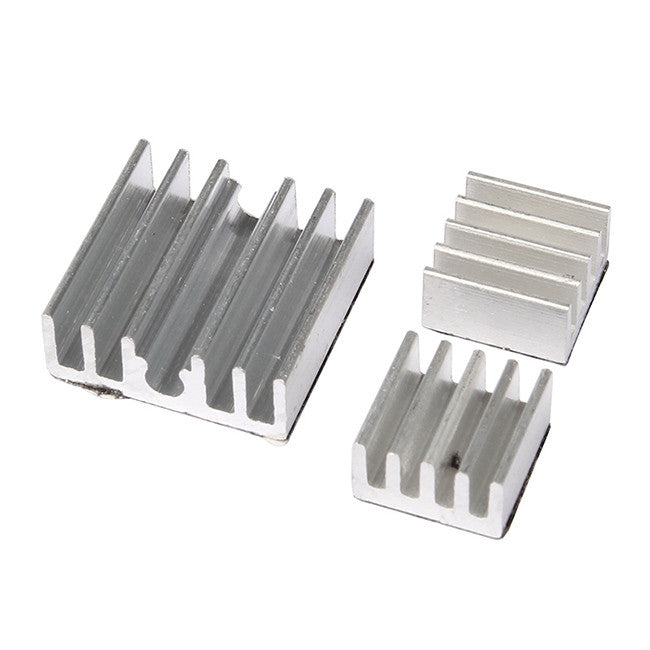

  • Adhesive Aluminium Heatsink

The Heatsink have a layer of adhesive on the back of them. Simply peel the adhesive off and stick onto your board.
This heatsink set is specially designed for Raspberry Pi, it's function is to cool down the board and make your Raspberry operate safely.
Reduce the risk of hardware failure because of overheating.

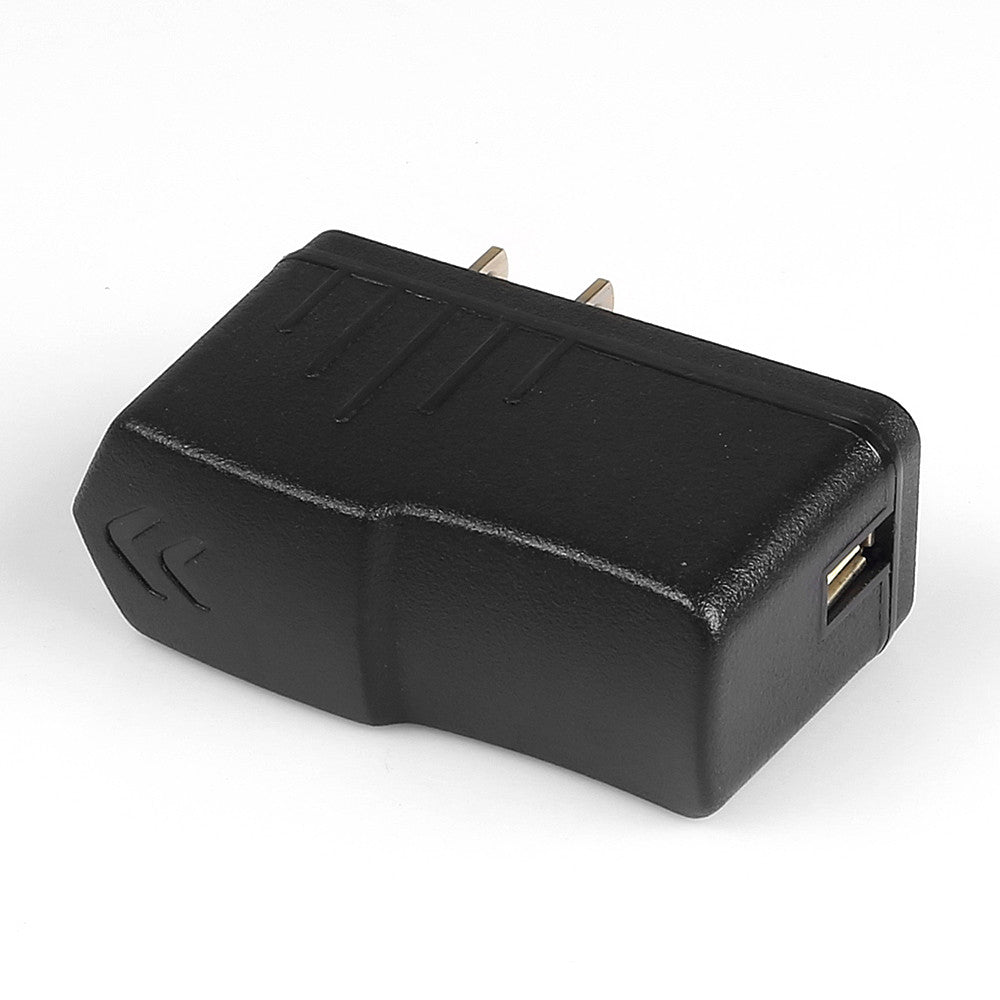

  • 5V 2A USB Power Supply Charger for Raspberry Pi + USB Cable

5V 2A Universal Wall Charger adapter for Raspberry Pi.
INPUT: AC:100V-240V 50/60HZ
OUTPUT: DC:5V 2A

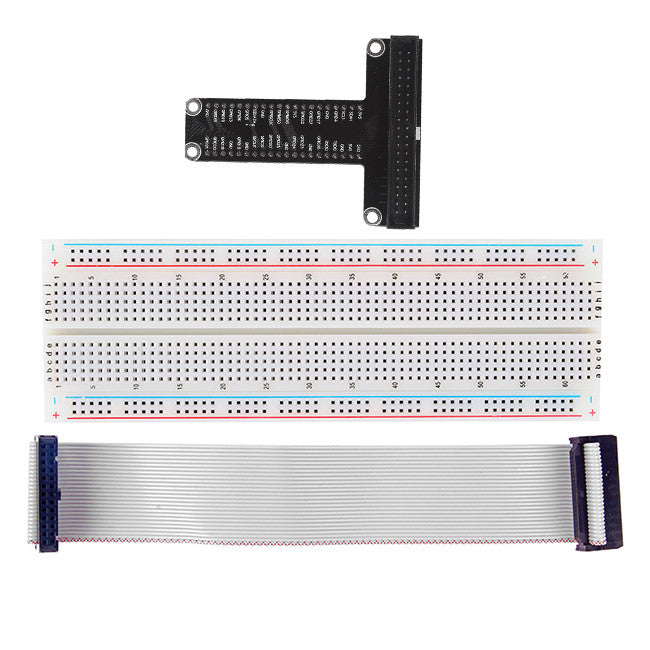

  •  SainSmart Black GPIO adapter board + Breadboard + Terminated ribbon cable

SainSmart Black GPIO expansion kits, contains three items: a 40-pin GPIO adapter board, a breadboard and a terminated ribbon cable.

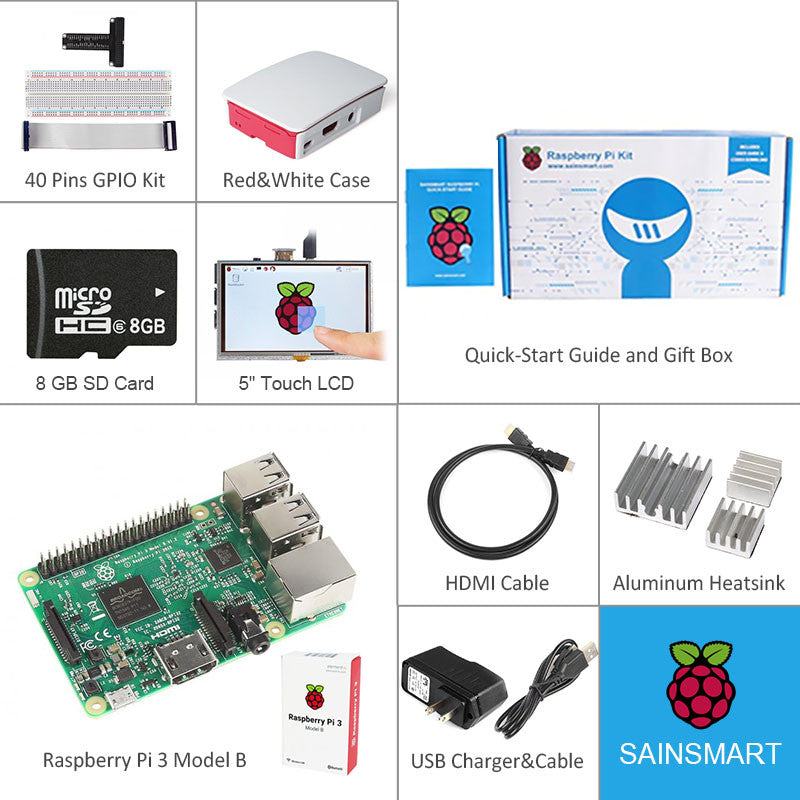

Package List:

  • 1x New 2016 Raspberry Pi 3
  • 1x SainSmart Enclosure Case Shell for the Raspberry Pi 3/2/Model B+
  • 3x Aluminum Heatsink
  • 1x 40 pins GPIO Kit with Breadboard&Cables

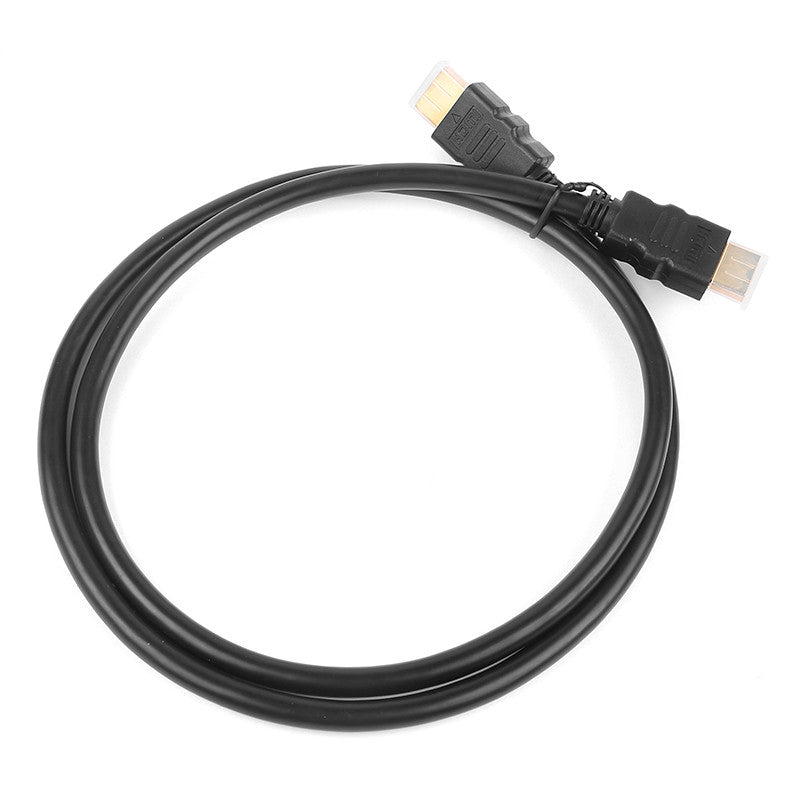

  • 1x HDMI Cable

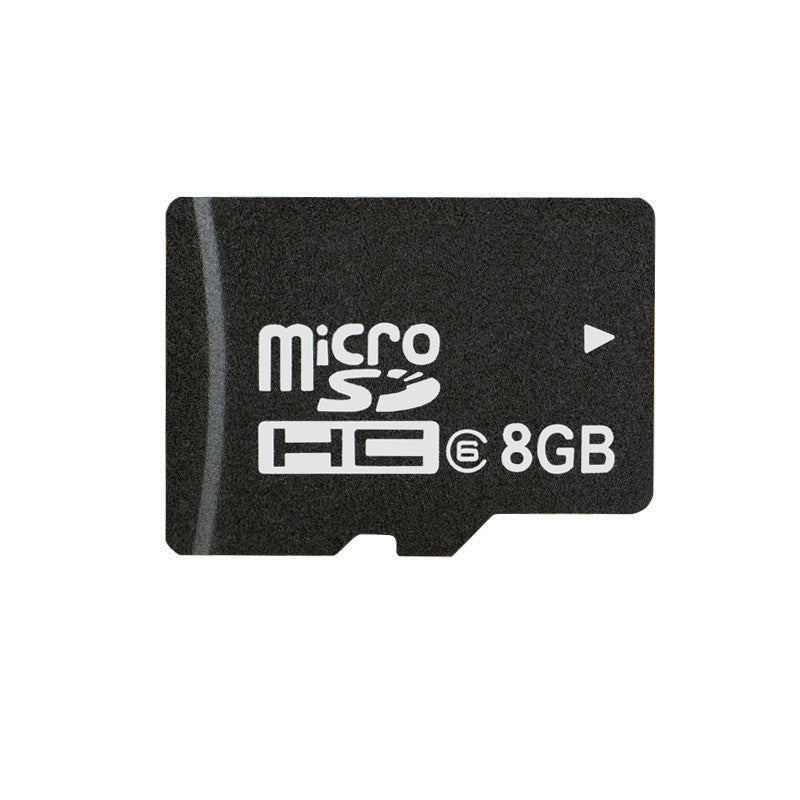

  • 1x 8GB Class 6 Micro SD card
  • 1x 5V Micro USB Charger
  • 1x USB Cable
  • 1 x 5 inch HDMI LCD
  • 1 x HDMI connector
  • 1 x Touch pen
  • Screws Pack (4pcs)


The Raspberry Pi 3 has an identical form factor to the previous Pi 2 (and Pi 1 Model B+) and has complete compatibility with Raspberry Pi 1 and 2.

Note: All the existing Raspberry Pi 2 accessories and kits are fully compatible with the Raspberry Pi 3.
