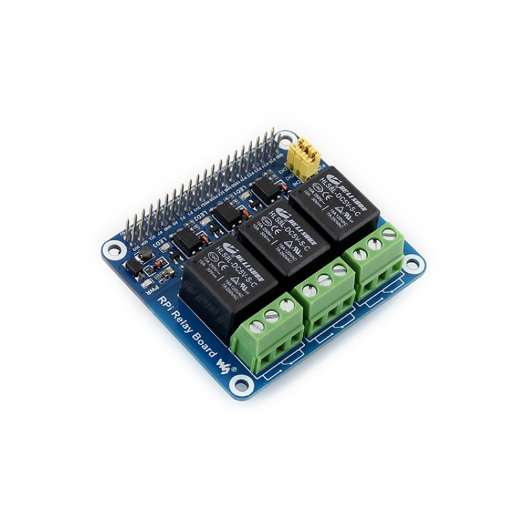

[Discontinued] Raspberry Pi Power Relay Board

[Discontinued] Raspberry Pi Power Relay Board

SKU:  101-40-223
$16.99
-Liquid error (snippets/price line 160): divided by 0 $16.99
Shipping calculated at checkout.
  • 101-40-223

The RPi Relay Board gives your Pi the ability to control high voltage/high current devices, easily makes normal home appliances become intelligent.

  • Supports Raspberry Pi A+/B+/2B/3B
  • High quality relays, loads up to 250VAC/5A, 30VDC/5A
  • Photo coupling isolation, prevent interference from high voltage circuit
  • Onboard LEDs for indicating relays status
  • Relay control jumper, allows to control the relays by custom pins other than the default pins
View full details

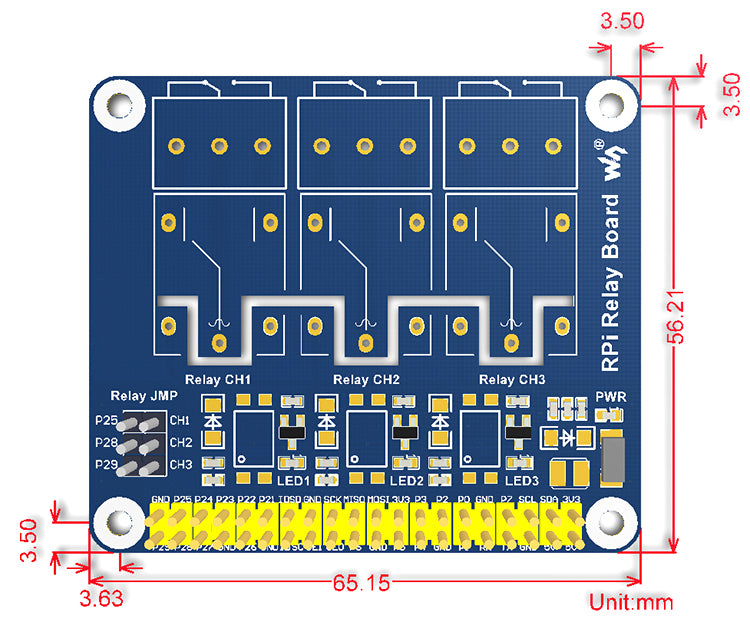

CONNECTORS
  1. Raspberry Pi GPIO interface: for connecting Raspberry Pi
  2. Relay screw terminal: for connecting target devices
  3. Relays
  4. Photocoupler: PC817
  5. Relay indicator
  • LED on: relay NC is opened, NO is closed
  • LED off: relay NC is closed, NO is opened
  • Power indicator
  • Relay control jumper
  • short the jumper: control the relays by default I/Os used in the example code
  • open the jumper: control the relays by custom I/Os through jumper wires



WHAT'S IN THE PACKAGE
  • 1 x Raspberry Pi power relay board
