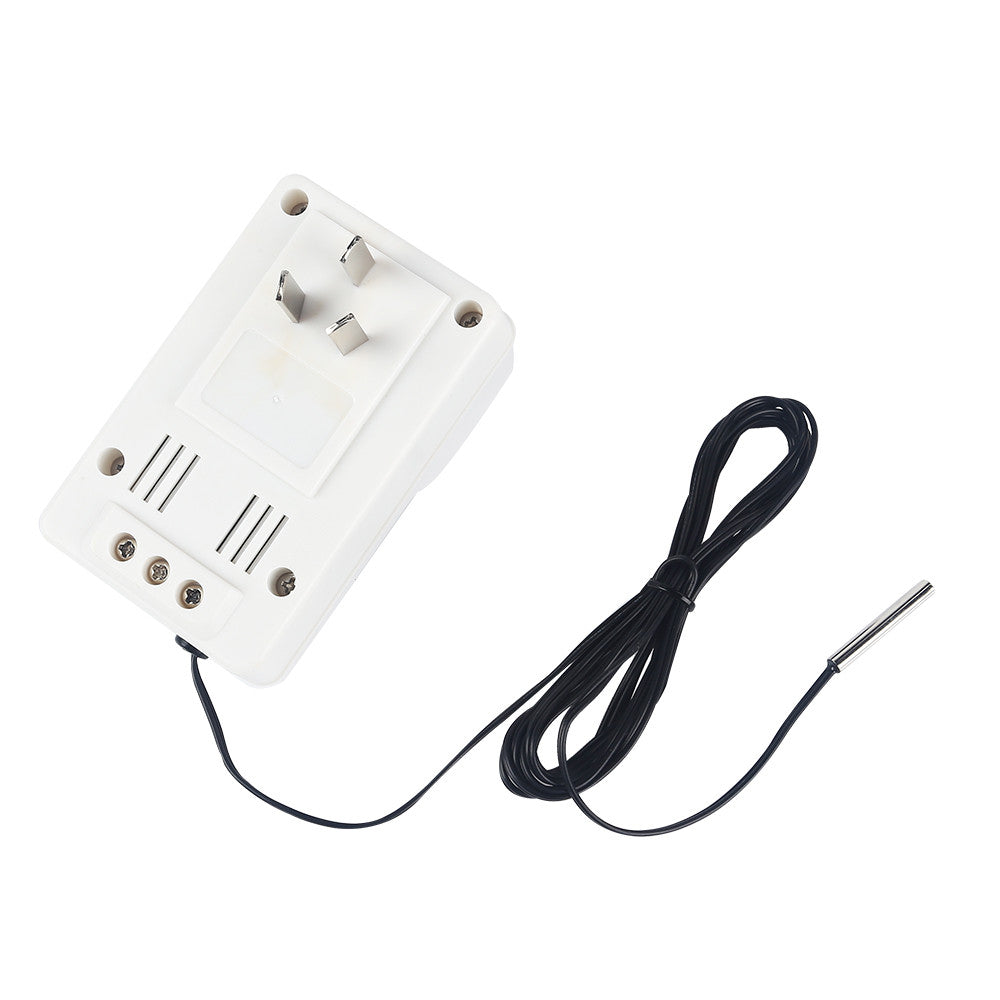

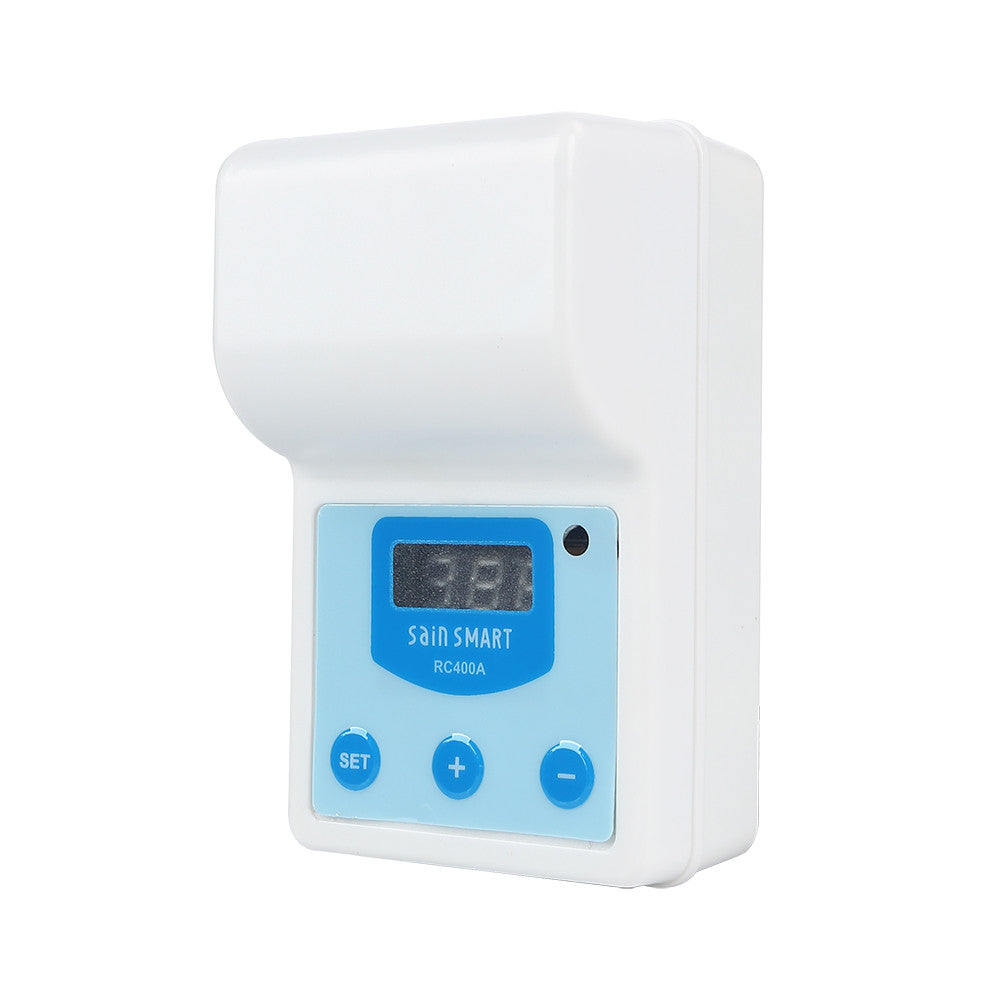

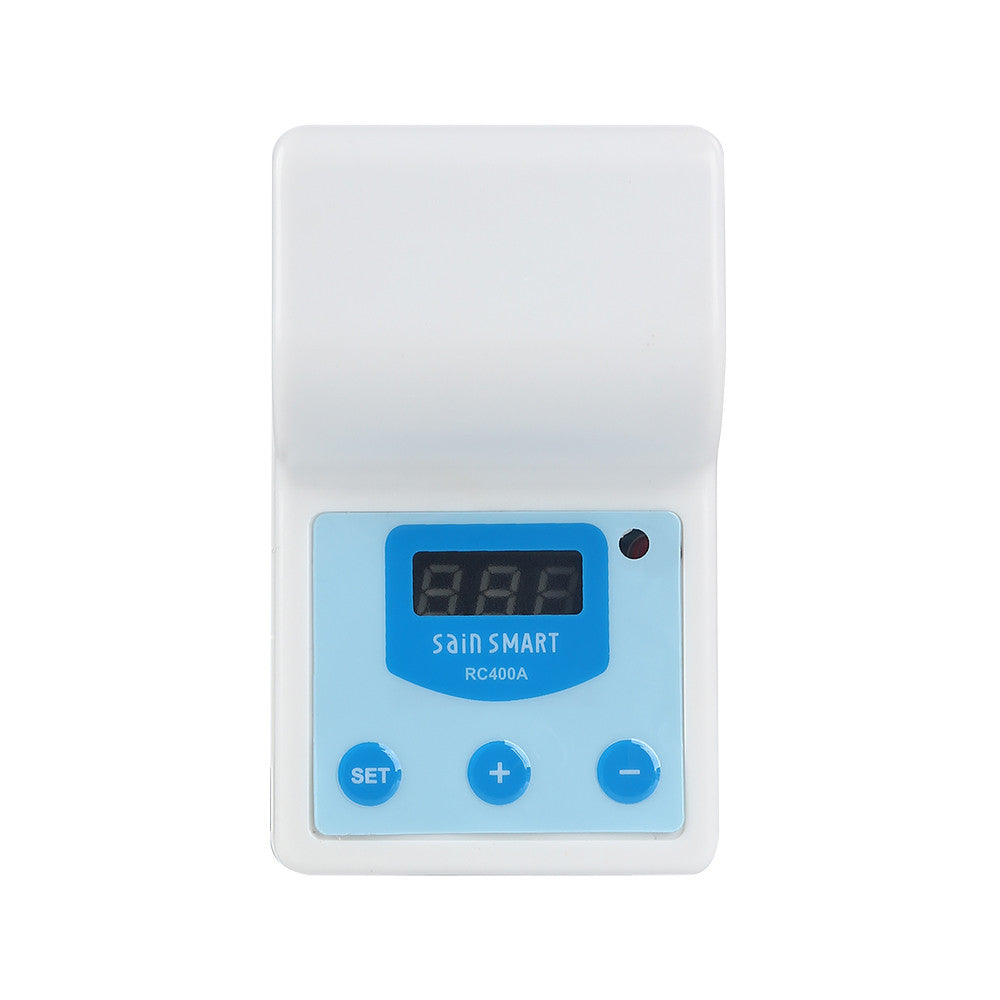

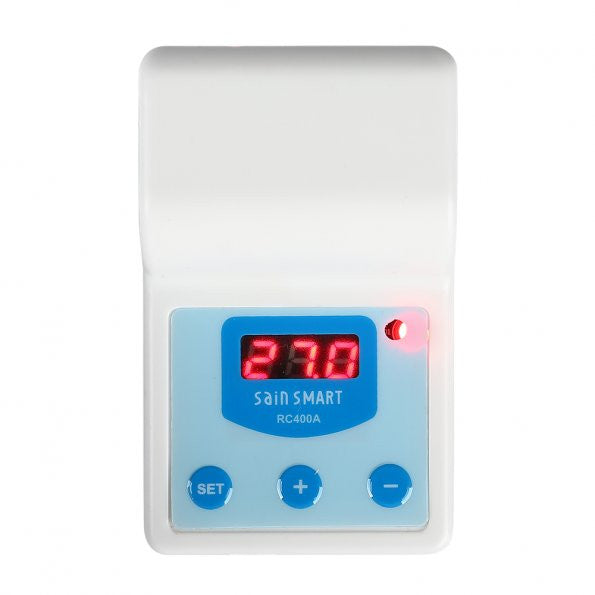

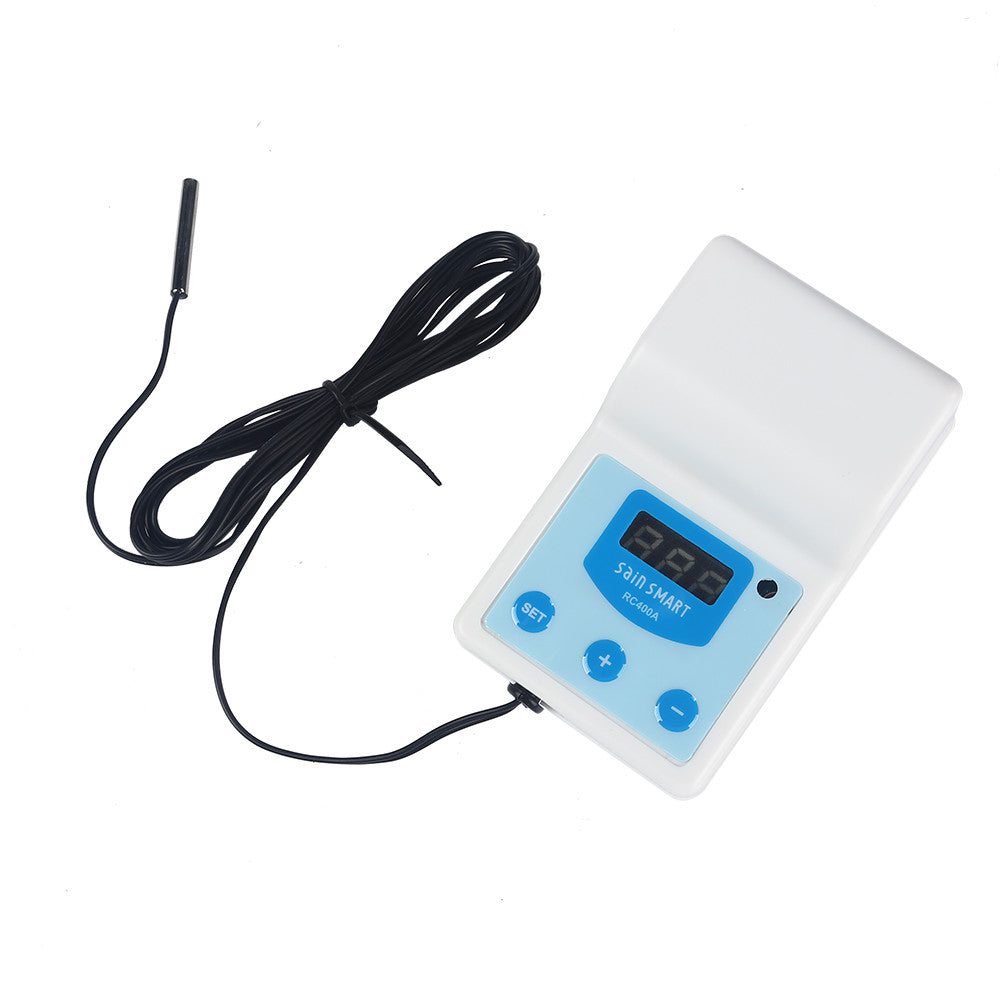

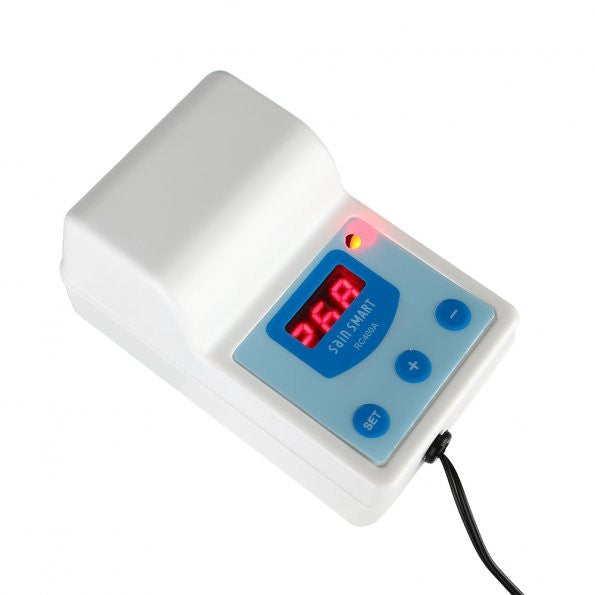

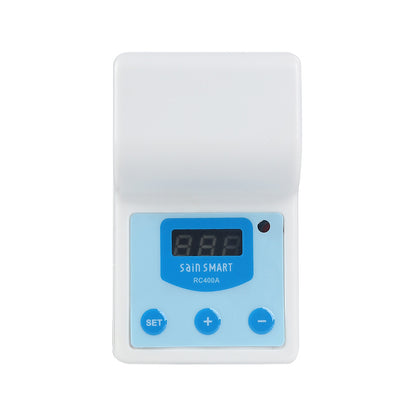

RC400A Digital Temperature Controller

brand: SainSmart SKU: 101-70-176
$19.00

Short press SET to view the current status, specifically for the working mode (H or C) 2S, set the temperature for 2 seconds, set temperature+ return difference temperature (H mode) or set temperature- return difference temperature (C mode) 2 seconds. Digital tube has been flashing in the display process. Display automatically returned to normal after display is completed.
Long press SET 5 seconds to enter the main menu settings, press the + - switch to P0...P7, controller automatically confirmed to return with long press SET or 10 seconds without button action.

  • P0 refrigeration and heating mode
  • P1 return difference setting
  • P2 maximum temperature setting limit
  • P3 low temperature setting lower limit
  • P4 temperature correction
  • P5 time delay start time (unit: Min)
  • P6 temperature setting
  • P7 degrees Fahrenheit and Celsius choice
  • Restore factory settings
Oops, 0 In Stock
DESCRIPTION

Short press SET to view the current status, specifically for the working mode (H or C) 2S, set the temperature for 2 seconds, set temperature+ return difference temperature (H mode) or set temperature- return difference temperature (C mode) 2 seconds. Digital tube has been flashing in the display process. Display automatically returned to normal after display is completed.
Long press SET 5 seconds to enter the main menu settings, press the + - switch to P0...P7, controller automatically confirmed to return with long press SET or 10 seconds without button action.

  • P0 refrigeration and heating mode
  • P1 return difference setting
  • P2 maximum temperature setting limit
  • P3 low temperature setting lower limit
  • P4 temperature correction
  • P5 time delay start time (unit: Min)
  • P6 temperature setting
  • P7 degrees Fahrenheit and Celsius choice
  • Restore factory settings



Attached: digital tube display code control table

code

significance

Degrees Celsius

Degrees Fahrenheit

Restore factory settings

P0

Heating (cooling mode)

C/H

C/H

C

P1

Return temperature

0.1-15℃

0.1-27℃

2℃

P2

Upper temperature limit

P3~110℃

P3~230℃

110℃

P3

Lower temperature

-50℃~P2

-58℃~P2

-50℃

P4

Temperature correction value

-7℃ ~ 7℃

-13℃ ~ 13℃

0℃

P5

Delay start time

0-10min

0-10min

0

P6

Set target temperature

P2 ~ P3

P2 ~ P3

25℃

P7

Set temperature mode

CCC/FFF

CCC/FFF

CCC




WHAT'S IN THE PACKAGE
  • 1 x digital temperature thermostat
  • 1 x English Manual
