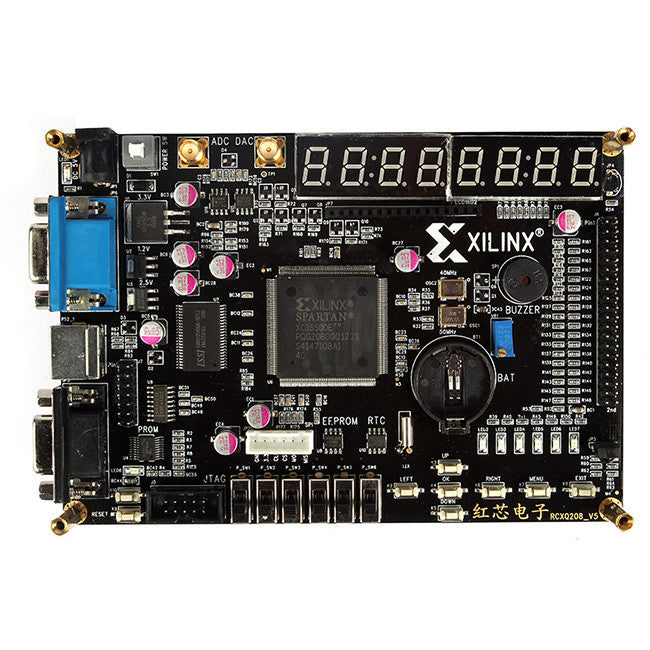

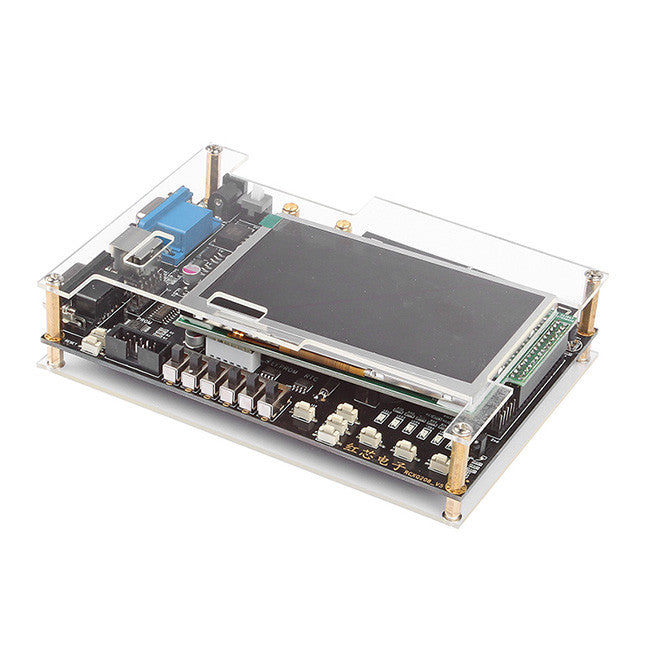

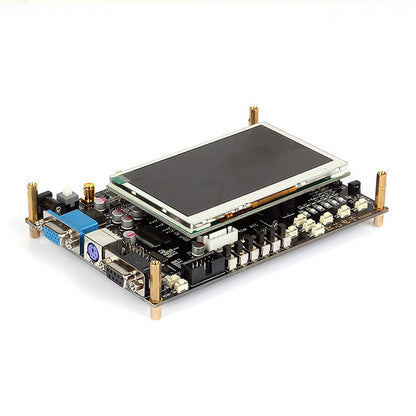

RCXQ208_V5 XILINX FPGA Development Board XC3S500E-PQG208 XCF04S

brand: SainSmart SKU: 20-016-108
$187.81 FREE EXPRESS SHIPPING
Oops, 0 In Stock

Sorry, the product is out of stock now. You may need http://www.sainsmart.com/xilinx-fpga-development-spartan-3e-xc3s500e-pqg208-board-2-4-tft-lcd.html.

Feature:

  • Xilinx Spartan-3 FPGA, 200K gates

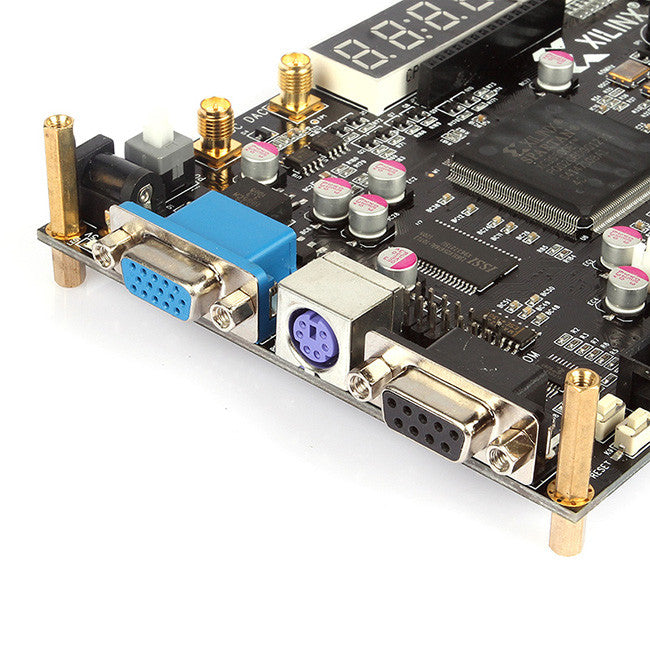

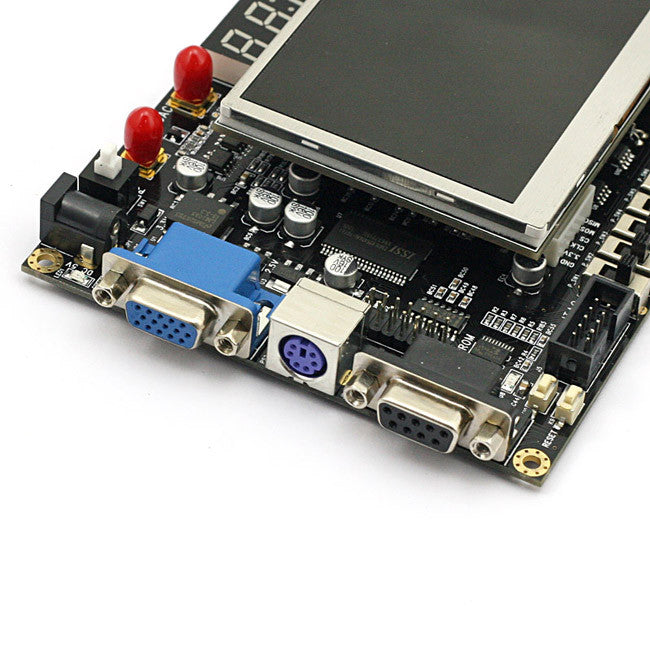

  • Three 40-pin expansion connectors, VGA, RS-232, PS/2
  • JTAG programmable with parallel or USB cables; on-board Platform Flash
  • On-board 2Mbit Platform Flash (XCF02S), 1Mbyte on-board 10ns SRAM (256Kb x 32)
  • Works with JTAG3 programming cable, and P4 & MultiPRO cables from



XilinxMainboard resources List:

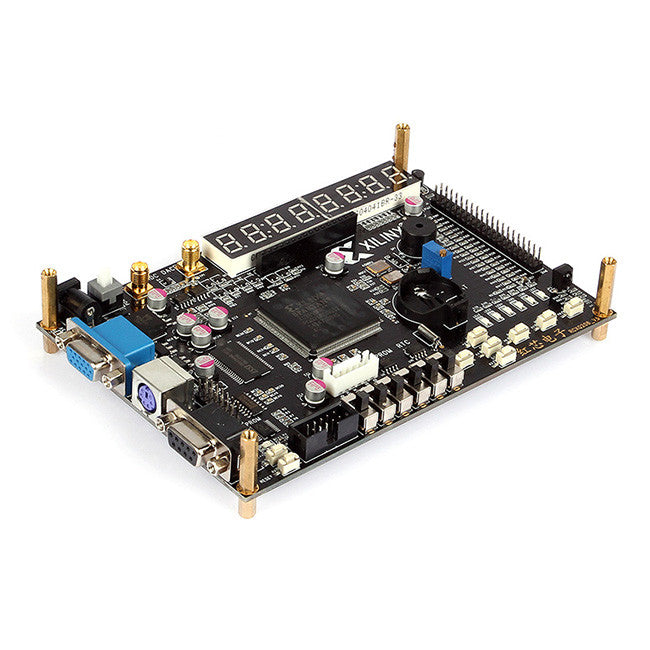

  • FPGA core chip XC3S500E-PQG208

  • FPGA Configure chip XCF04S

  • SRAM IS61LV25616AL-10T

  • Temperature sensor DS18B20

  • ADC TLC549

  • DAC TLC5615C

  • EEPROM 24C08

  • RTC DS1302

  • IR recerver 38KHz carrier

  • Dual-active crystal 50MHz/40MHz

  • Dual nixie tube CPS04041BR

  • BUZZER 1 (passive buzzer)

  • Tact key 8(programable)

  • LED 6

  • VGA 1

  • UART 1

  • PS2 1

  • JTAG 1

  • DIP switch 6

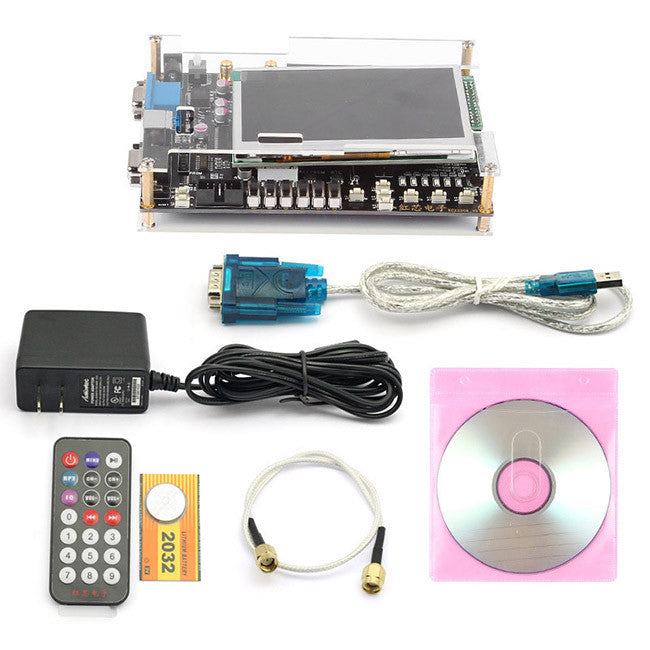

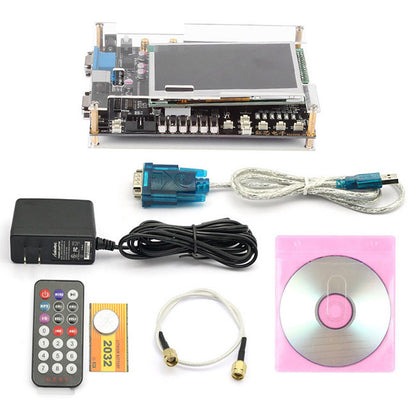

Development board components List:

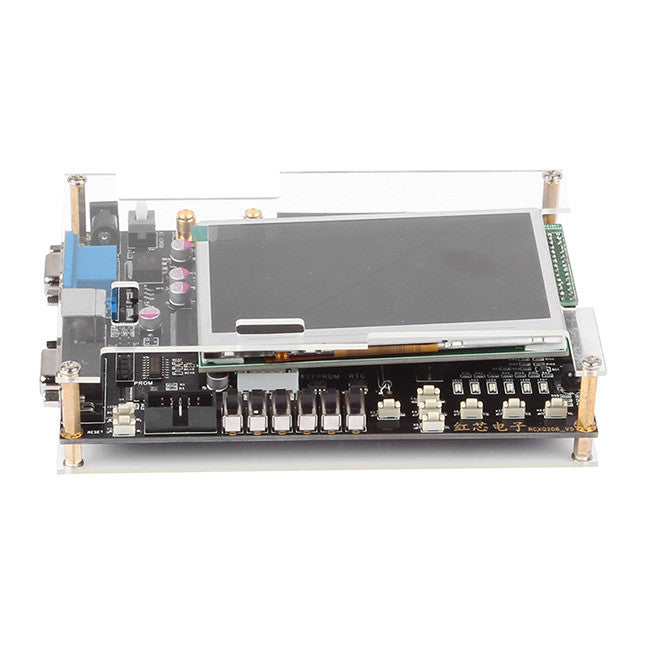

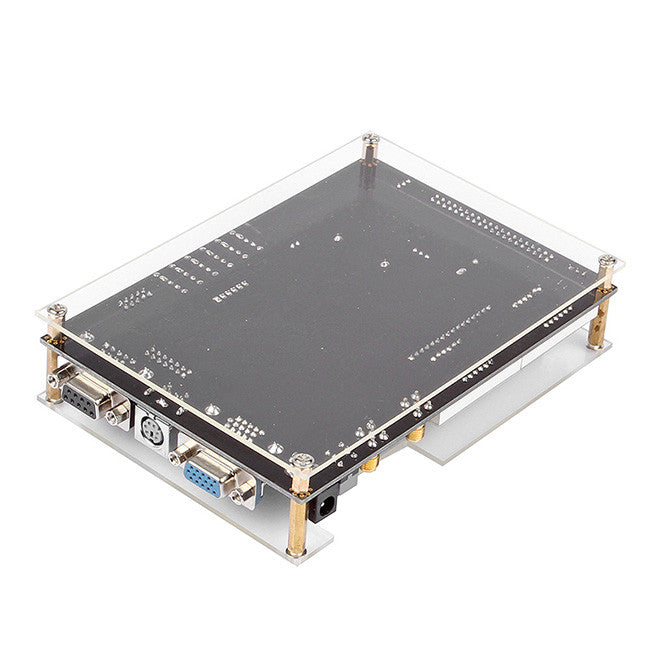

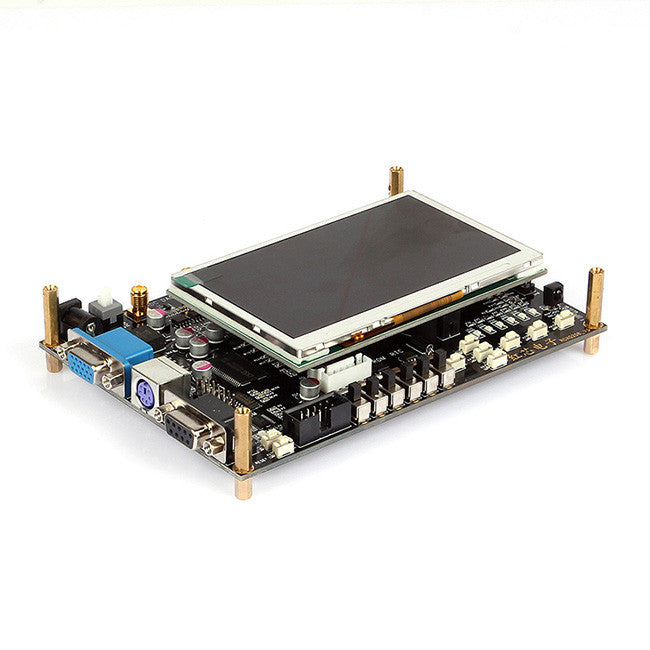

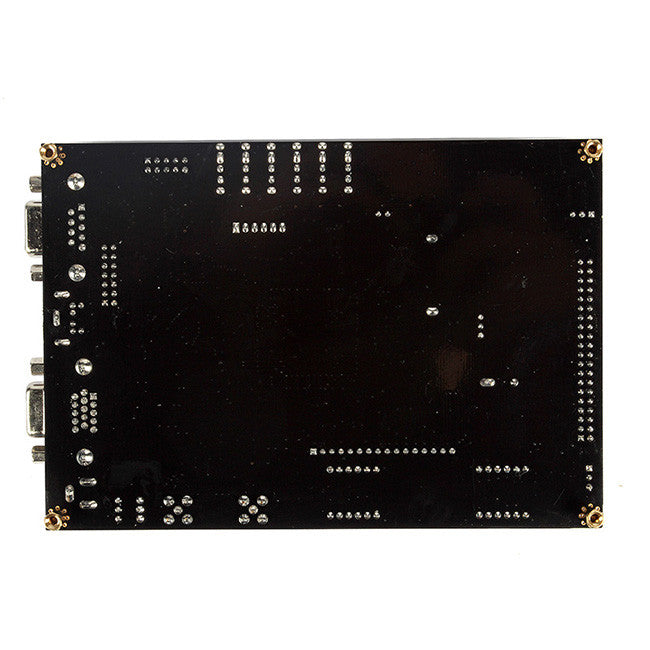

  • RCXQ208_V5 XILINX BOARD 1pcs

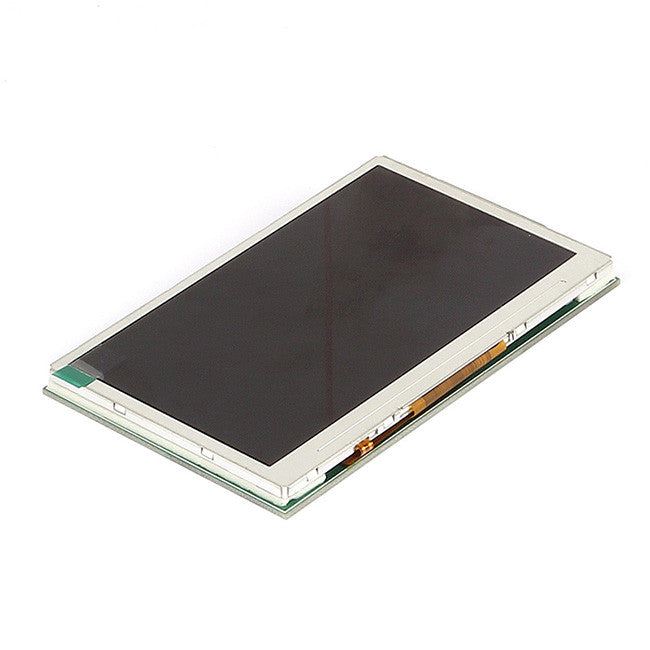

  • 4.3 RGB Panel board 1pcs

  • Remote control 1pcs

  • USB 2 serial cable 1pcs

  • CR2032 Lithium battery 1pcs

  • 5V / 3A Power adapter 1pcs

  • SMA shielding line 1pcs

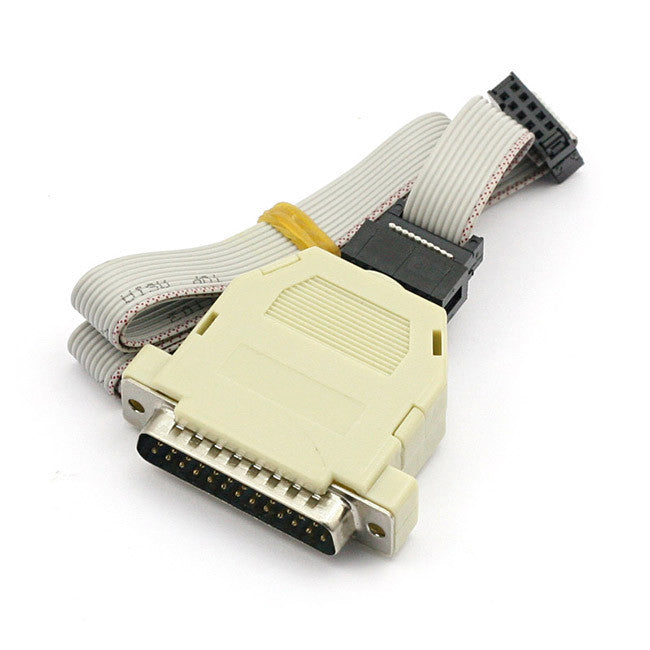

  • Parallel download cable 1pcs

  • DVD DISC 2pcs
