Description:

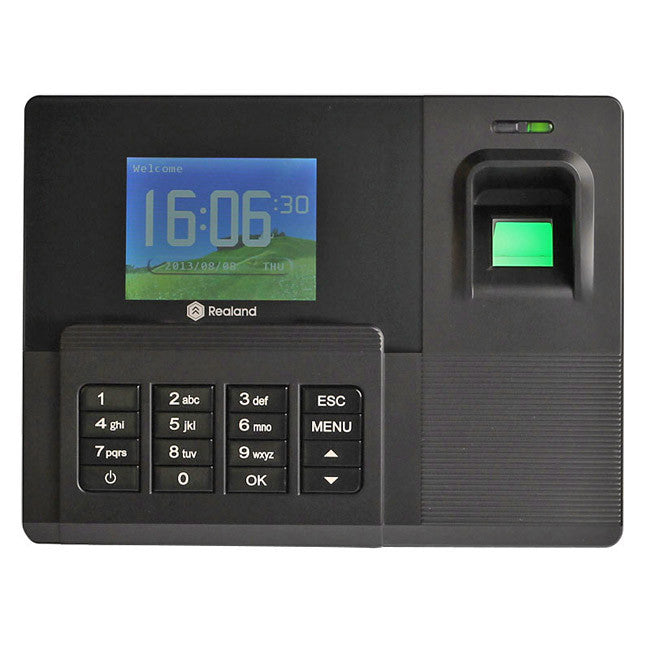

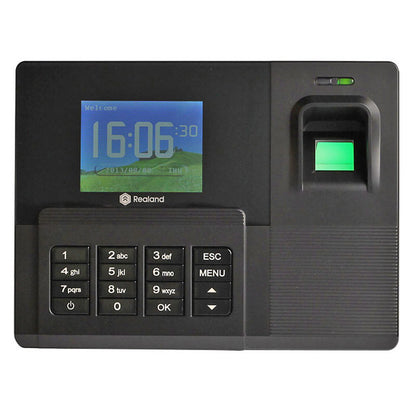

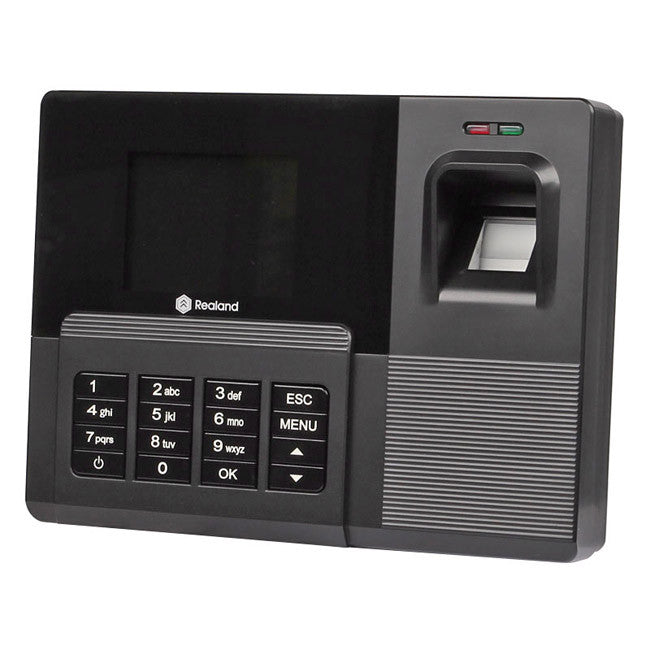

ZDC30(Beautiful COLOR TFT Display) is an innovative fingerprint recorder that can be used in Time Attendance Check applications, it adopts the latest and accurate industrialized algorithm. It has refined fashion, integrates attendance management software,Very competitive price with good performance, designed specially in the purpose of popularizing the fingerprint products. It could store 1,000 fingerprint templates and 100,000 transaction records. It will bring you much boon because of its excellent function and competitive price.
Features:
- New version algorithms with dependability and accuracy,identification speed obviously improved
- process 1,000 fingerprints, no matter good or poor, within 0. 8 second.
- Strictly follow the national security product standard. Suitable for the entrances and exits of office, factory, hotel, school, etc.
- Adopting the CMOS color sensor chip, makes the fingerprint sensor perfect.
- Adopting the USB Up/Download function, makes the attendance data collection convenient
- Powerful management software, detailed instruction for you.
- Big capacity FLASH and CMOS chips, Open SDK, professional technical support, easy to integrate with various systems.
- Sensor with quality image, accepts dry, wet fingers. Adjust image distortion, assure fingerprint matching consistency.
- Support 360-degree rotation identification, easy to use.
- Schedule employee hours
- Monitor employee attendance
- Calculate and maintain overtime
- Track vacation and sick time
- Quickly retrieve historical data
- Flexible holiday/shift rule and shift pattern setting
Specifications:
Model |
ZDC30 |
TFT |
2.8 inch TFT 320*240 |

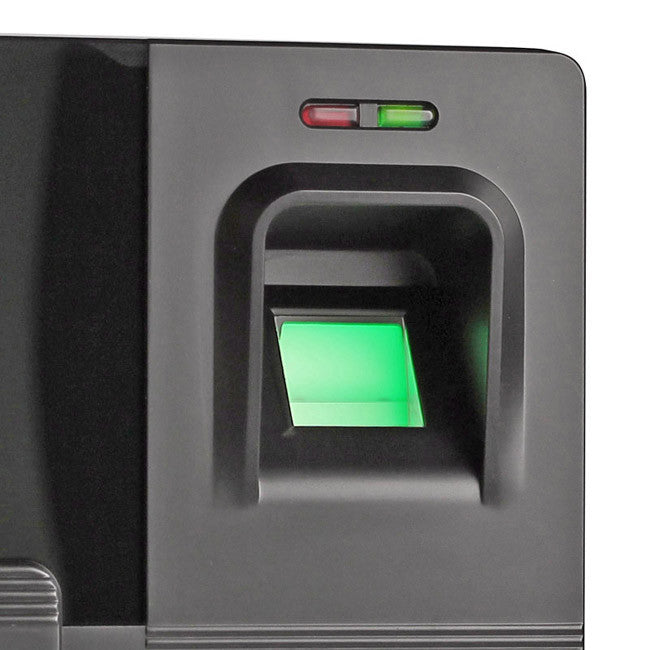

Fingerprint Sensor |
(Energy-saving)Optical Fingerprint Sensor (Resolution:500DPI) |
CPU |
32bit CPU |
Fingerprint Capacity |
1,000 |
Log Capacity |
100,000 events |

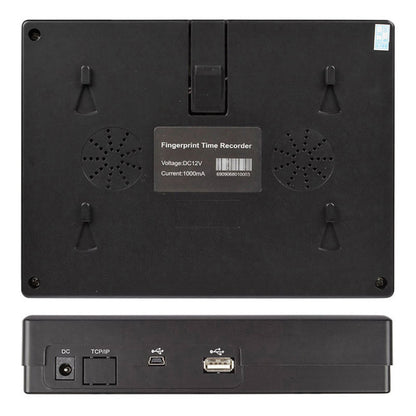

Communication |
USB / TCP/IP(Optional) |
Identification Mode |
Fingerprint, Password, Proximity Card |
Proximity Card |
125Khz, EM4100 or other Compatible Contactless ID Card |
USB Flash Drive Up/Download |
Available |
Record Query |
Available people can query their own attendance record after authentication) |
Rotational Angle |
Total Rotational Angle |
Identification Time |
<1s |
FRR |
<0.1% |
FAR |
<0.0001% |
Operating Mode |
Off-line / Online |
Authentication Mode |
1:1, 1:N |
Language |
Chinese,English,Korean |
Voice Prompt |
Available |
Bell |
Built-in Timing Bell |
Self Test |
Available |
Power Management |
Auto Sleep Time, Auto Power Off Time |

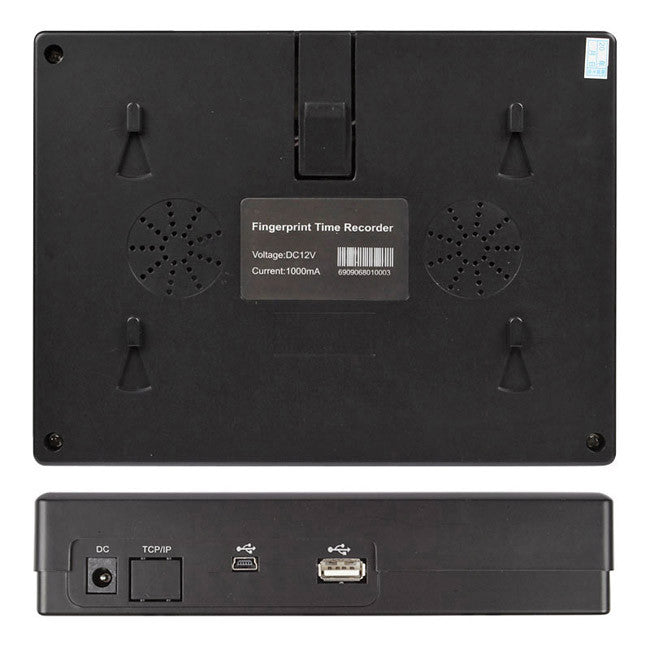

Power Adapter |
DC 12V/1A |
Operating Environment |
Operating Temp:-10C ~ +60C, Humidity(RH):20%~80% |
Size of the Terminal |
180(L) �34(W) �6(H) mm |

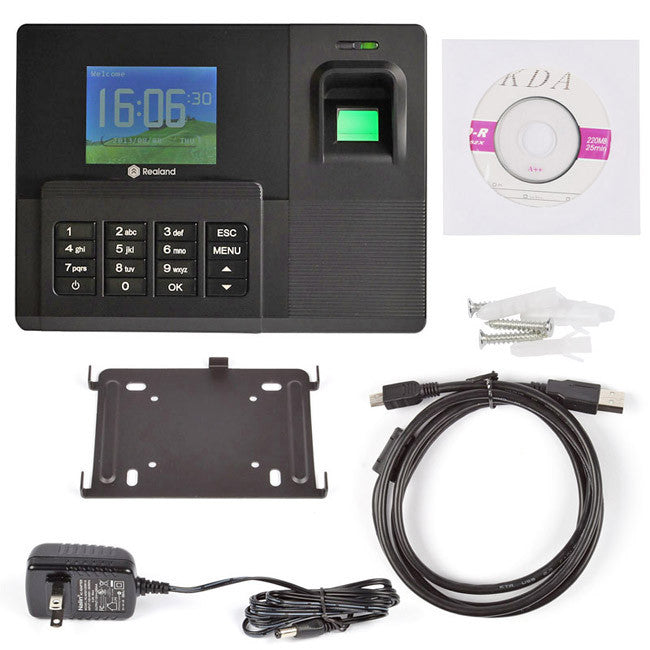

Package List
- 1x Fingerprint Attendance Device
- 1x Power Adapter
- 1x USB Cable

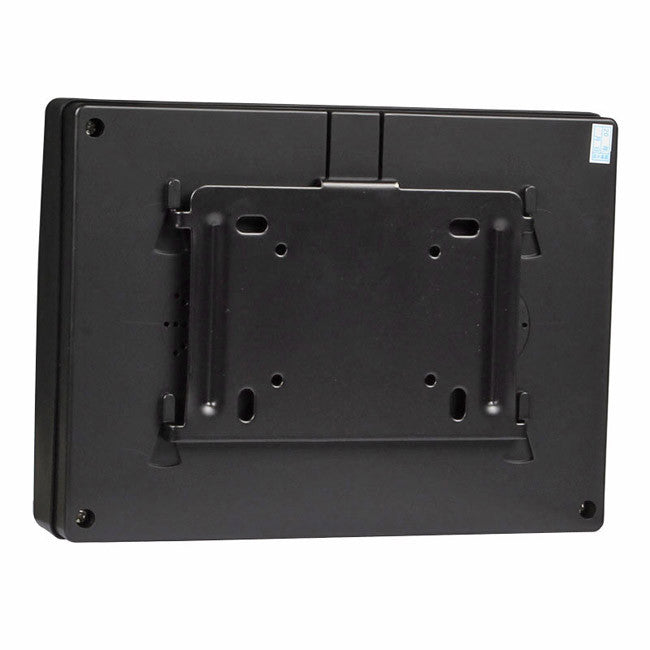

- 1x Wall mount bracket
- 1x software CD (including User Manuall)
- 1x Pack of screws for installation
