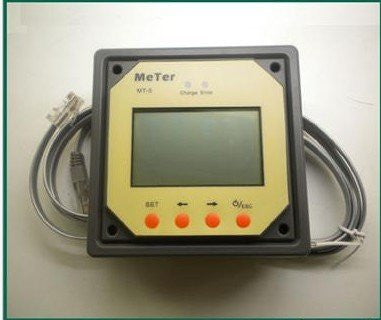

[Discontinued] Remote Meter LCD Display (MT5) For Solar Regulator with 2 Meters Cable

Overview:

The digital Remote Meter displays system operating information, error indications, and self-diagnostics read-out. Information is displayed on a backlit LCD display. The large numerical display and icons are easy to read and large buttons make navigating the meter menus easy. The meter can be flush mounted in a wall or surface mounted using the mounting frame (included). The MT-5 is supplied with 2m of cable and a mounting frame. The MT-5 connects to the RJ45 port on the Tracer.


Display:

The two LED indicators above the LCD show that battery is charging, and a red indicates error conditions.

The LCD has two different brightness levels. After any button is pressed the display will be in high brightness and backlight. To save power, the backlight automatically turns off after 30 seconds.

Parameters:

* Model: MT-5
* Working Current: Backlight and LED indicator off < 15mA
* Work temperature: -10 Centigrade to +40 Centigrade
* Communication port: RJ45(8PIN)
* Communication cable: 2 meters with supplied cable
