Brand: SainSmart

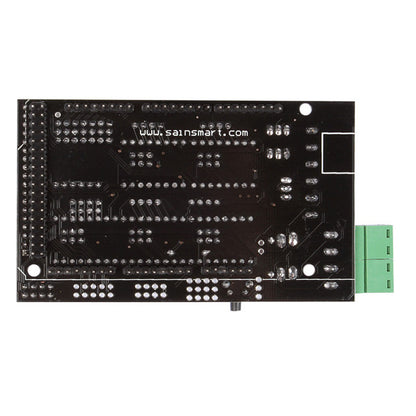

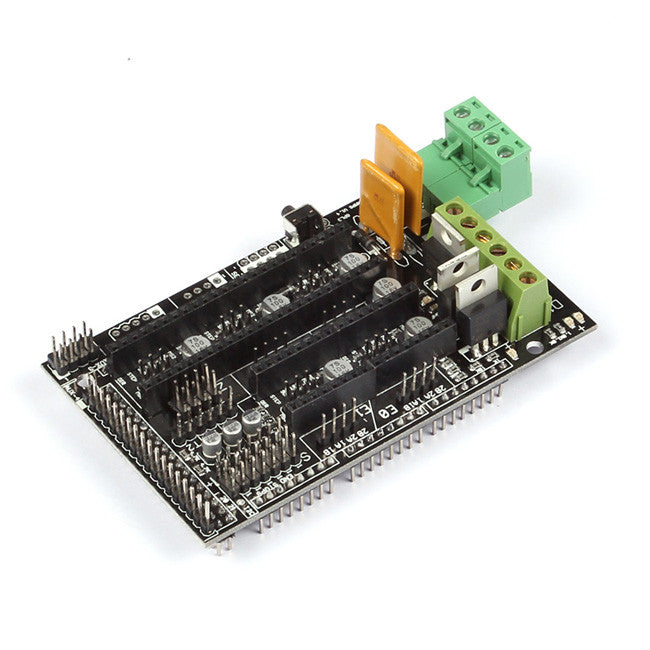

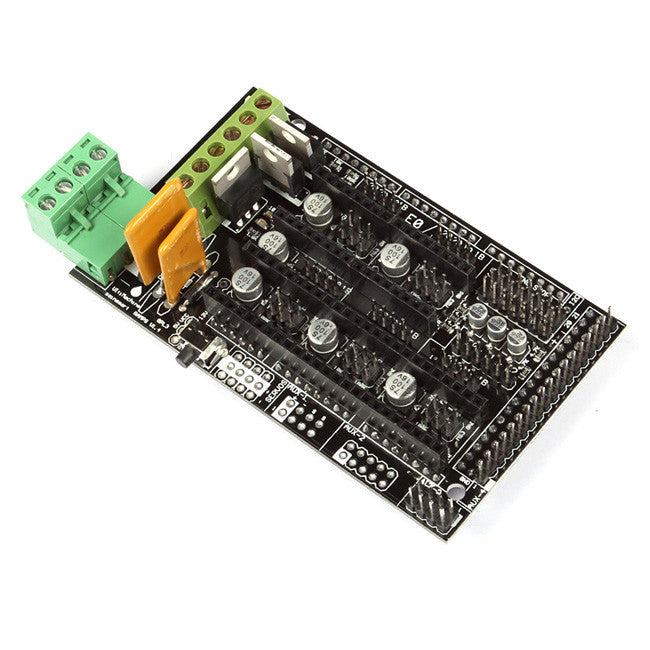

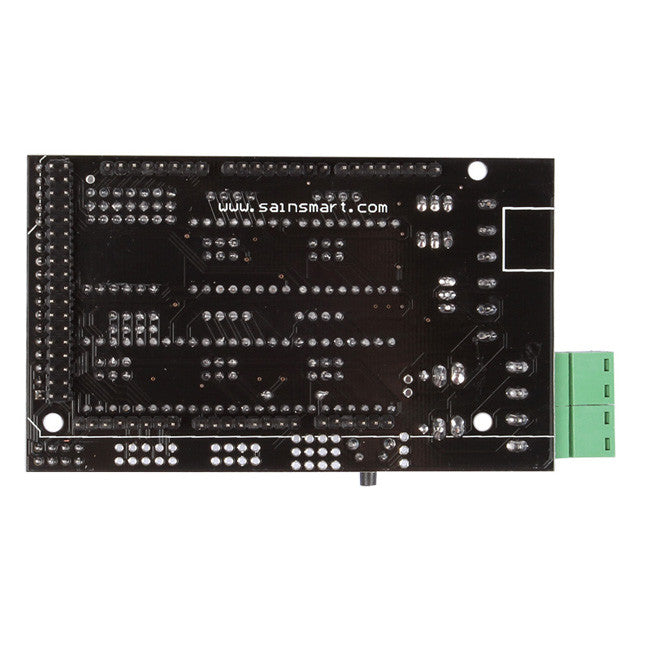

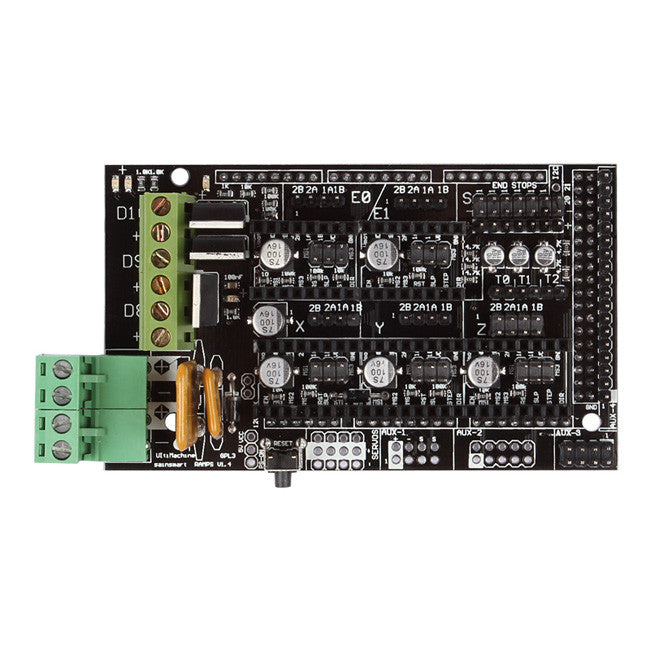

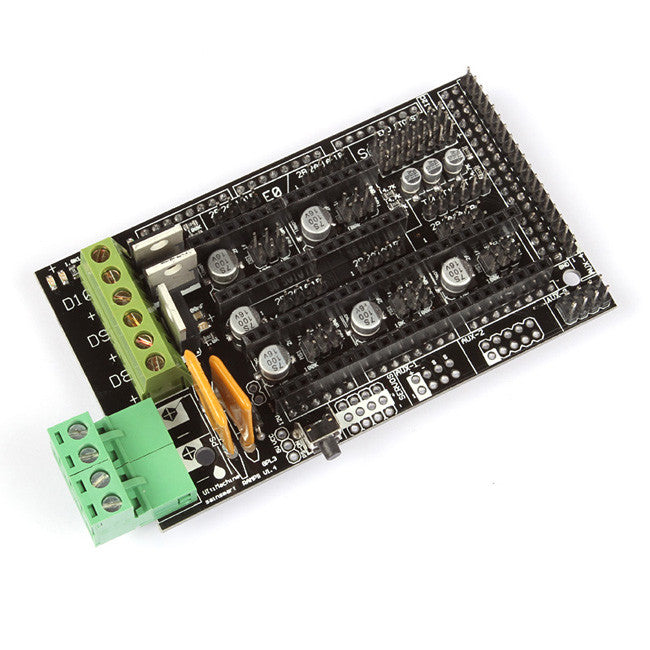

[Discontinued] RepRap RAMPs 1.4 Mega Pololu Shield Compatible with Arduino for 3D printers

SKU: 101-91-100 12 reviews Variants ID: 45100550932
$10.99

This board is mostly based on Adrian's Pololu_Electronics and work by Tonok. It is compatible with A4988 and 8825 driver.

  • Supports 12V-24V power input
  • Compatible with Marlin software
Oops, 0 In Stock

This board is mostly based on Adrian's Pololu_Electronics and work by Tonok. It is compatible with A4988 and 8825 driver.

  • Supports 12V-24V power input
  • Compatible with Marlin software

SPECIFICATION
  • Accept 12V power supply input
  • Use Marlin software
  • Connect Ramps 1.4 LCD2004 and LCD12864 directly
  • Reserve pulse motor and direction output ports to make it convenient to connect heavy current motor driver (eg. 2A/5A)

WHAT'S IN THE PACKAGE
  • 1x SainSmart RAMPs 1.4 Controller Board

EAN: 6955170832255

UPC: 811820021195

Customer Reviews
4.8 Based on 12 Reviews
5 ★
92%
11
4 ★
0%
0
3 ★
8%
1
2 ★
0%
0
1 ★
0%
0
Write a Review Ask a Question

Thank you for submitting a review!

Your input is very much appreciated. Share it with your friends so they can enjoy it too!

Filter Reviews:
N
12/31/2015
Nicolas

EXCELLENT!!! needs jumpers for microstepping

I Was a little nervous as buying some electronic parts can be hit or miss. This so far has been a HOME RUN!! I have not had any issues with my prusa recognizing this board. All functions work as they should! I might add that there are no jumpers included for the ramp controllers so you will need to buy some if you expect to micro step the RAMPS boards!

C
09/13/2014
Chuck.L

This card works for my 3D printer project.

I had to replace an existing controller card in my 3D printer. This one worked out of the box, and was programmed and running in minutes.

B
07/23/2014
Brenton

Built incorrectly

First off, I purchased the kit with the arduino mega and 5 stepper motor controllers. The rest of the kit was excellent, but the ramps board was a complete piece of garbage. Everything on the board worked fine except for the heater/fan controller FET's. It took me almost a day to work through all the things I thought it could be. Until I finally considered it could be a huge manufacturing defect, one so ****** I almost don't trust sainsmart anymore. The FET's that should have been on the board were for some reason 12V linear regulators (It took me a while to realize this because I am not an EE). I will not send the board back for replacement because I need it to work now, I don't trust these boards from you guys anymore, and the board is fairly inexpensive. I am building the circuits myself on a separate board, and having the design checked by an actual EE. I understand this was probably a manufacturing issue, but it should have been caught in quality control. In short, I would not purchase a ramps board from sainsmart. I would purchase other things though, the arduino and motor controllers I have from them are excellent.

W
12/30/2013
Wesley

Good product and manufactored well

I was a little skeptical at first of the product but I purchased it anyway along with the 5 drivers. The products I received were built well, the soldering joints were solid and the board turns on when power is applied. I haven’t gotten around to driving any motors yet but since nothing blew up when I applied power, I am sure they will work just fine and I can’t wait to try the boards out. I am very happy with my purchase and will definitely buy something again! I have also had to send a few emails with questions to Sainsmart about the product and was pleasantly surprised at how fast the reply was. The only downfall is that the datasheet on the boards are a little vague but, with a little research and thinking, you can figure out where and how everything should be plugged in. But, just in case you can’t, you can always ask!

C
08/15/2013
Castle

Need more product

If sainsmart have more items about 3D printer that will be good. This board is good and cheap. Im looking for the other to assemble a complete marchine.

I
08/14/2013
Ivan

five star

Cheapest price i could find for 3D printer board. Seller responded to my emails quickly. Order came within a week. Definatley will buy again from sainsmart.

T
08/13/2013
Tom

low price

I was a little skeptical that this was a illegitimate business because the sale price was lower than everyone else. But after i made my purchase, they kept me informed from the sale transaction to the delivery of the product. I would buy from them again.

M
08/13/2013
Matrix

Great

The price was good, the shipping time was acceptable, and the product was exactly what I needed.

GM
08/12/2013
GOOD M.

GOOD GOOD GOOD

GOOD COULOUTR GOOD SOLDERING GOOD SHIPPING GOOD USING GOOD PRODUCT GOOD WBESITE. EVERY THING JUST BE GOOD.

S
08/12/2013
SKY

i love it

This is my second time shop in SainSmart. It's really nice store. Now they have RAMPS 1.4 and its pirce is good. Run to order one.
