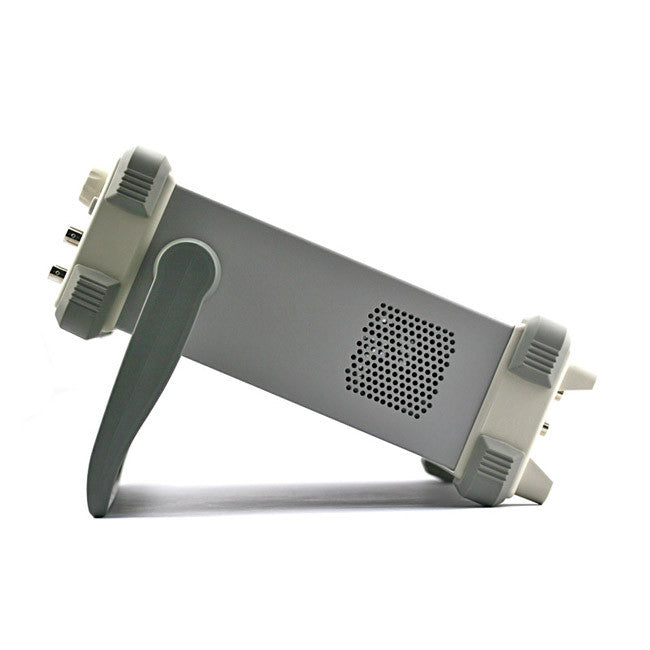

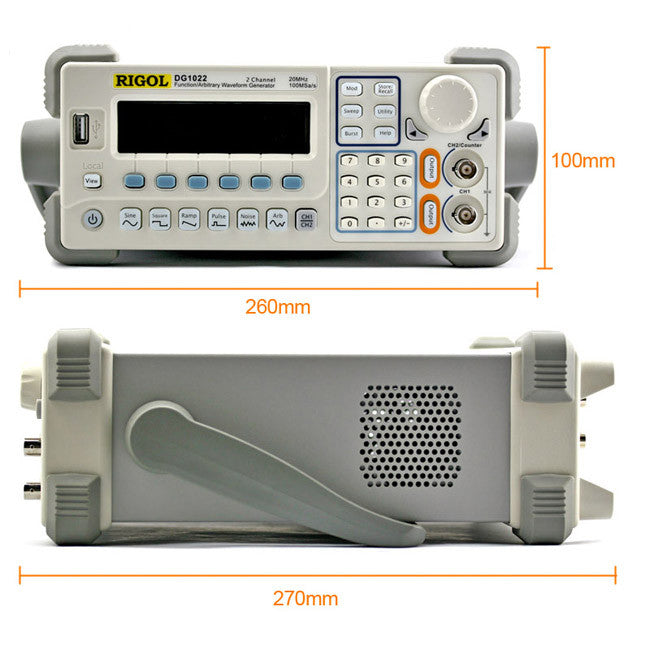

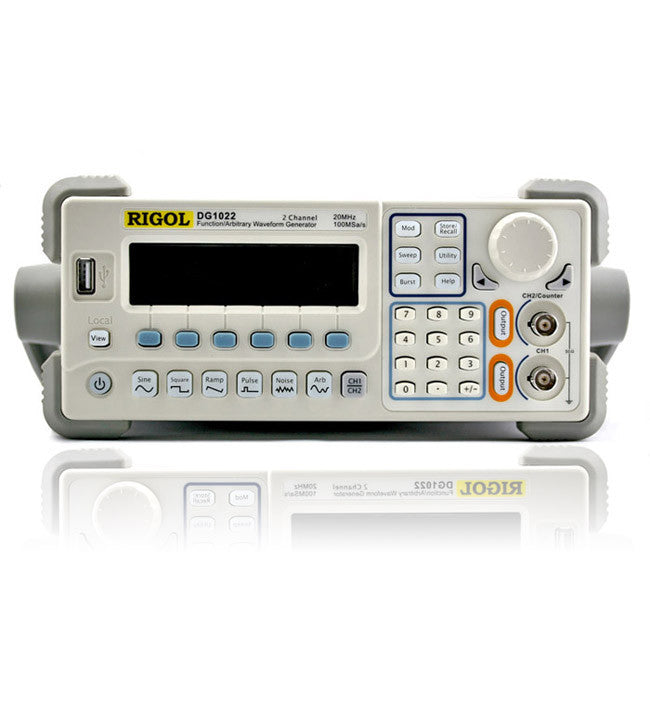

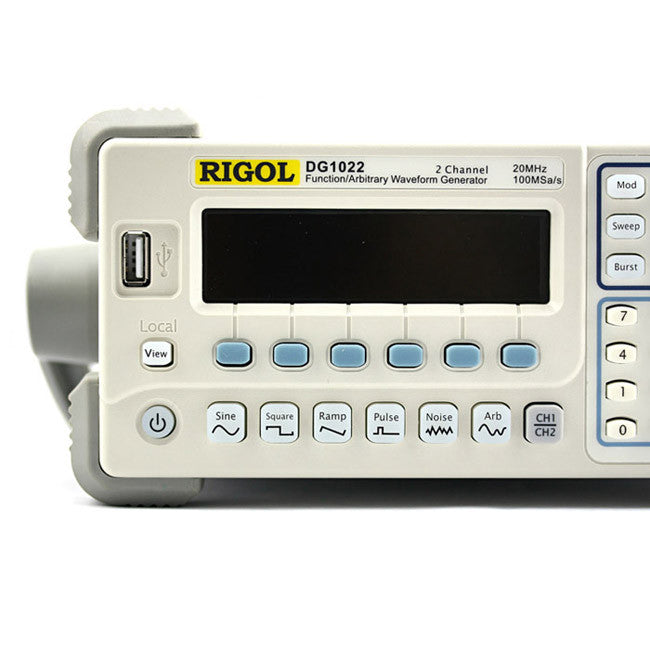

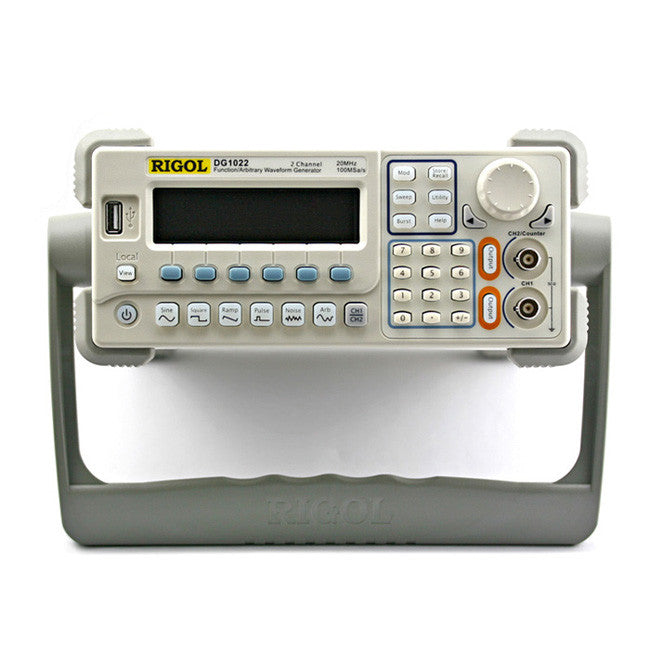

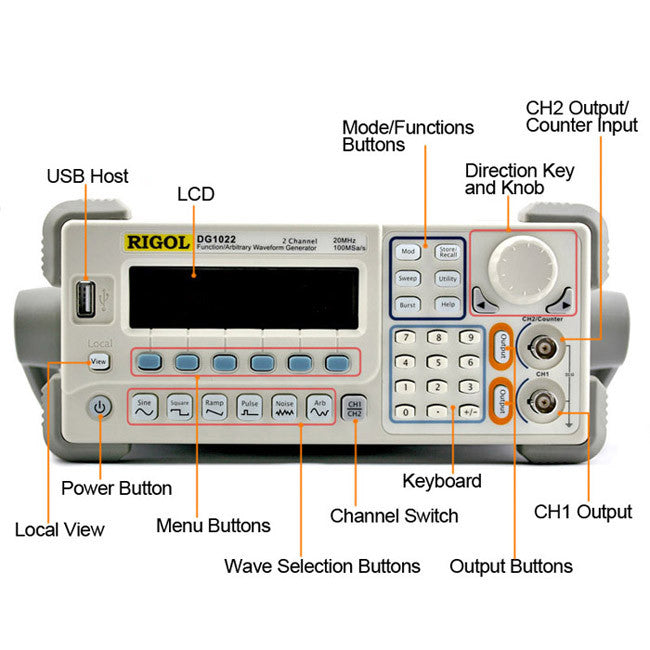

Rigol DG1022U 20MHz Function Arbitrary Waveform Generator

brand: SainSmart SKU: 20-010-101
$323.69 FREE EXPRESS SHIPPING
Oops, 0 In Stock

Description:

DG1022U function/arbitrary waveform generators use Direct Digital Synthesis (DDS) technology. They could generate accurate, stable, clean, low distortion signals.

http://www.selloutsoon.com/albums/SKU/20/20-010/20-010-101/20-010-101/02.JPG

http://www.selloutsoon.com/albums/SKU/20/20-010/20-010-101/20-010-101/03.JPG

Feature:

  • Adopt advanced DDS technology; dual channel output; 100 MSa/s maximum sampling rate; 14 bits vertical accuracy
  • Output 5 standard waveforms; built-in 48 arbitrary waveforms
  • Abundant modulation functions: AM, FM, PM, FSK, linear/logarithm sweep and burst

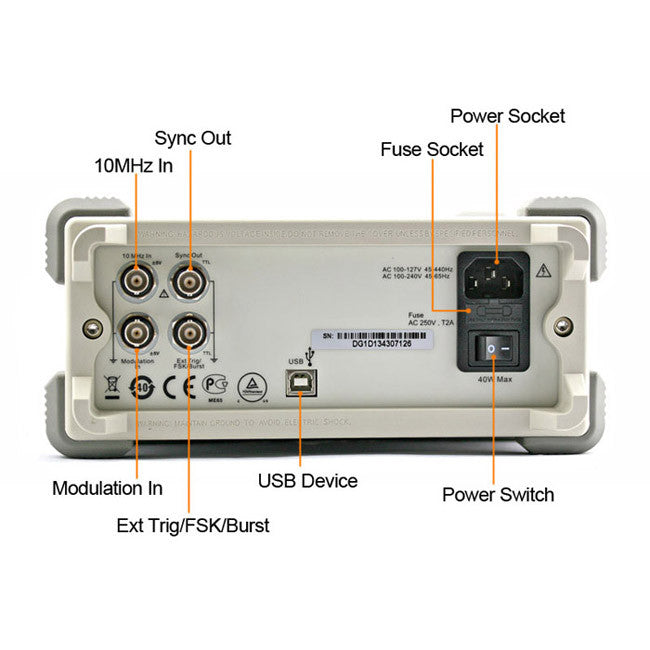

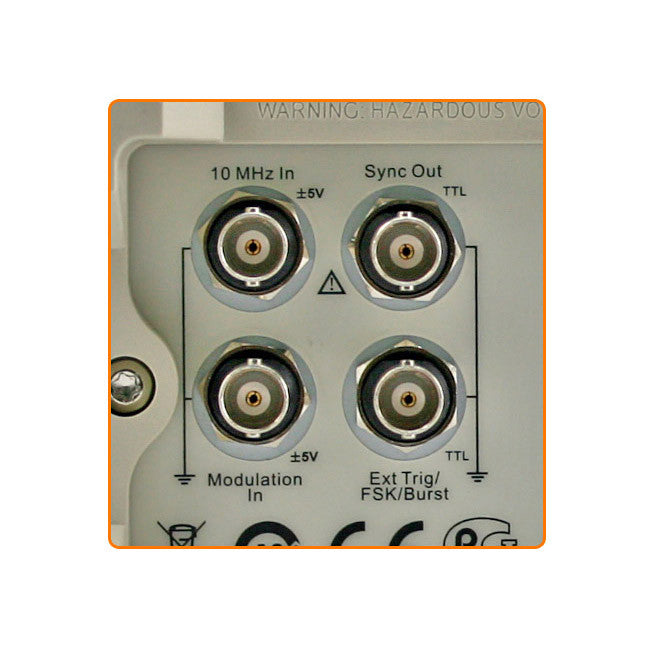

  • Abundant output and input: waveform output;synchronous signal output; external modulation source, external 10 MHz reference clock input,external trigger input
  • Unique channel coupling and channel copy
  • Built-in high precision and wide band counter, the measurement range: 100 mHz ~ 200 MHz (single channel)
  • Standard configuration interfaces: USB Device & USB Host, and support U-disc storage
  • Seamlessly interconnect with DS1000 series digital oscilloscope
  • Powerful arbitrary waveform editing software“UltraWaveâ€?/li>
  • Support remote control by commands
  • A variety of display modes
  • Clear graphical interface
  • Support Chinese and English menu and input
  • Button-help makes information getting easier
  • File management (support for USB flash device and local storage)

    Specification:

    Model DG1022
    Waveform Sine wave, square wave, sawtooth wave, pulse wave, white noise etc
    Sine wave 1 μHz ~ 20 MHz
    Square wave 1 μHz ~ 5 MHz
    pulse 500 μHz ~ 3 MHz
    Sawtooth wave 1 μHz ~ 150 kHz
    White noise 5 MHz bandwidth (-3 dB)
    Arbitrary wave 1 μHz ~ 5 MHz
    resolution 1 μHz
    accuracy 90 days ± 50 PPM 1 years + 100ppm 18°C - 28°C
    Temperature coefficient <5 ppm/°C
    Sine purity frequency spectrum
    Harmonic distortion < 1 VPP > 1 VPP
    DC ~ 20 kHz-70 dBc-70 dBc
    20 kHz ~ 100 kHz-70 dBc-60 dBc
    100 kHz ~ 1 MHz-55 dBc-50 dBc
    1 MHz ~ 10 MHz-45 dBc-40 dBc
    Total harmonic distortion DC ~ 20 kHz0.06%
    Square wave signal characteristics
    Increase/decrease time < 20 ns (10% ~ 90%)
    overshoot < 5%
    Occupies emptiescompared 1 μHz ~ 3 MHz 20% ~ 80%
    3 MHz(Do not contain)~ 4 MHz 40% ~ 60%
    4 MHz(Do not contain)~ 5 MHz 50%
    Asymmetry (in 50% of empty than) Cycle of 1% + 20 ns
    jitter 6 ns + Cycle of 0.1%
    Pulse signal characteristics
    Pulse width The biggest 2000 s: minimum 20 ns, minimum resolution 1 ns
    overshoot < 2%
    jitter 6 + cycle of ns 100 PPM
    Any potter sex channel1 channel2
    range 4 kpts 1 kpts
    Vertical resolution 14 bits (including sign) 10 bits (including sign)
    Sampling rate 100 MSa/s 100 MSa/s
    Minimum increase/decrease time 35 ns 35 ns
    jitter (RMS) 6 ns + 30 ppm 6 ns + 30 ppm
    Non-volatile storage (10) 10 waveform 10 waveform
    Output characteristics channel1 channel2
    range 2 mVPP ~ 10 VPP(50 Ω)
    4 mVPP ~ 20 VPP(High resistance)
    2 mVPP ~ 3 VPP(50 Ω)
    4 mVPP ~ 6 VPP(High resistance)
    Vertical resolution(100 kHz) Setting of± 1% ± 1 mVPP Setting of± 1% ± 1 mVPP
    Amplitude flatness (relative to 100 kHz sine wave) <100 KHz
    0.1 dB (± 1%)
    <100 KHz
    0.1 dB (± 1%)
    100 KHz ~ 5 MHz 0.15 dB (± 1.5%) 100 KHz ~ 5 MHz 0.15 dB (± 1.5%)
    5 MHz ~ 20 MHz 0.3 dB (± 3.5%) 5 MHz ~ 20 MHz 0.3 dB (± 3.5%)
    Dc offset channel1 channel2
    DC offset range (peak AC and DC)) ±5 V (50 Ω)
    ±10 V (High resistance)
    ±1.5 V (50 Ω)
    ±3 V (High resistance)
    Migration precision Migration Settings of plus or minus 2%
    The amplitude of the plus or minus 0.5% ± 2 mV
    Migration Settings of plus or minus 2%
    The amplitude of the plus or minus 0.5% ± 2 mV
    AM modulation (CH1)
    carrier Sine, square wave, sawtooth wave, arbitrary wave (DC except)
    source Internal/external
    Modulation wave Sine, square wave, sawtooth wave, triangle wave, noise, arbitrary wave (2 mHz ~ 20 kHz)
    Modulation depth 0% ~ 120%
    FM modulation (CH1)
    carrier Sine, square wave, sawtooth wave, arbitrary wave (DC except)
    source Internal/external
    Modulation wave Sine, square wave, sawtooth wave, triangle wave, noise, arbitrary wave (2 mHz ~ 20 kHz)
    Doppler frequency shift DC ~ 5 MHz
    PM modulation(CH1)
    carrier Sine, square wave, sawtooth wave, arbitrary wave (DC except)
    source Internal/external
    Modulation wave Sine, square wave, sawtooth wave, triangle wave, noise, arbitrary wave (2 mHz ~ 20 kHz)
    Source in partial 0 ~ 360°
    FSK modulation(CH1)
    carrier Sine, square wave, sawtooth wave, arbitrary wave (DC except)
    source Internal/external
    Modulation wave 50% occupies emptiescompared to square wave (2 mHz ~ 50 kHz)
    Sweep frequency(CH1)
    carrier Sine, square wave, sawtooth wave, arbitrary wave (DC except)
    type Linear or index
    direction Up/down
    Sweep frequency time 1 ms ~ 500 s ± 0.1%
    Trigger source Manual, external or internal
    Pulse sequence(CH1)
    waveform Sine, square wave, sawtooth wave, pulse, noise and arbitrary wave (DC except)
    type Count (1 ~ 50000 cycles), infinite, door control
    Start-stop phase -180° ~ +180°
    Internal cycle 1 μs ~ 500s ± 1%
    Door control source External trigger
    Trigger source Manual, external or internal
    Frequency meter index
    Measurement function Frequency, cycle and positive/negative pulse width, v
    Frequency range Single channel: 100 mHz to 200 mHz
    Frequency resolution 6 bit/SEC
    Trigger way Trigger level can be manually/automatic adjustment
    Trigger level range:±3 V (0.1%~ 100%)
    resolution:6 mV
    shows
    Display type Black and white liquid crystal display
    Display resolution 256 level by 64 vertical
    power
    Power supply voltage 100 ~ 240 VACRMS,45 ~ 440 Hz,CAT II
    Power consumption Less than 40 W
