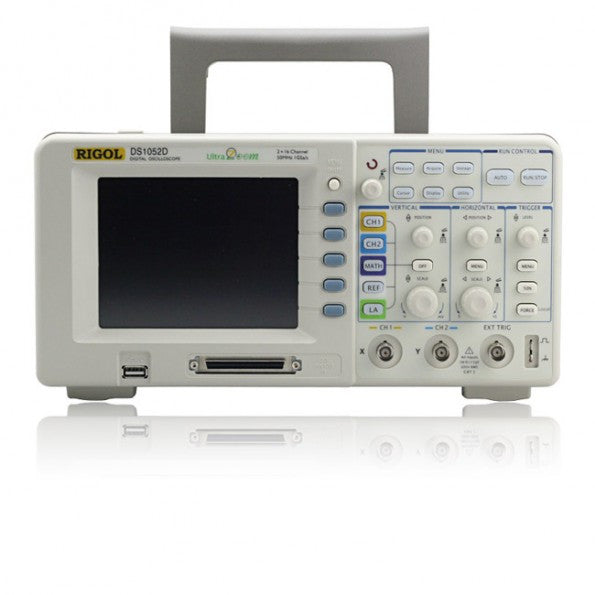

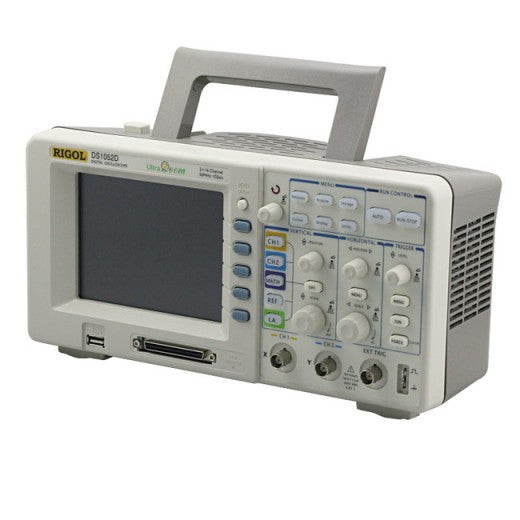

Feature:

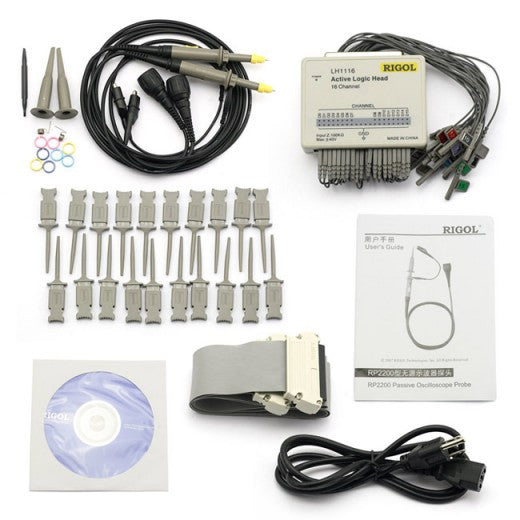

- 16 channels logic analyzer, mixed test, pattern cursor test and data memory.
- 2 Analog channels plus external trigger
- 1 Million point deep memory
- 1 GSa/sec max sample rate
- 5.7�TFT QVGA (320X240) with 64K color LCD backlit display

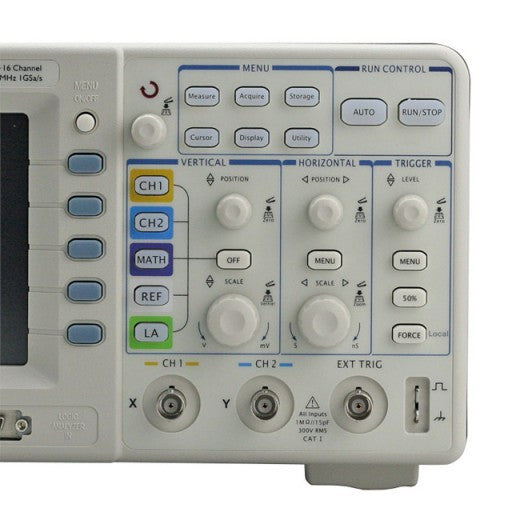

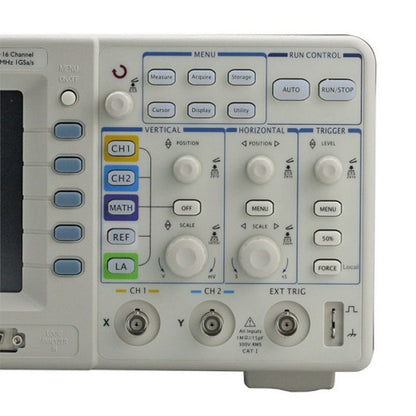

- Trigger modes: edge, pulse width, slope, video, pattern, continuous time, and alternate
Specification:
|
Model |
DS1052D |
|||
|
Bandwidth |
50 MHz |
|||
|
Analog Channels |
2 |
|||
|
Vertical Sensitivity |
2 mV/div - 10V/div |
|||
|
Real-time Sample Rate |
1 GSa/s(each channel),500 MSa/s(dual channels) |
|||
|
Equivalent Sample Rate |
10 GSa/s |
|||
|
Memory Depth |
Mode |
capture rate |
common |
long memory |
|
one channel |
1 GSa/s |
16 kpts |
N/A |
|
|
500 MSa/s |
16 kpts |
1 Mpts |
||
|
dual channels |
500 MSa/s 250 MSa/s |
8 kpts 8 kpts |
N.A. 512 kpts |
|
|

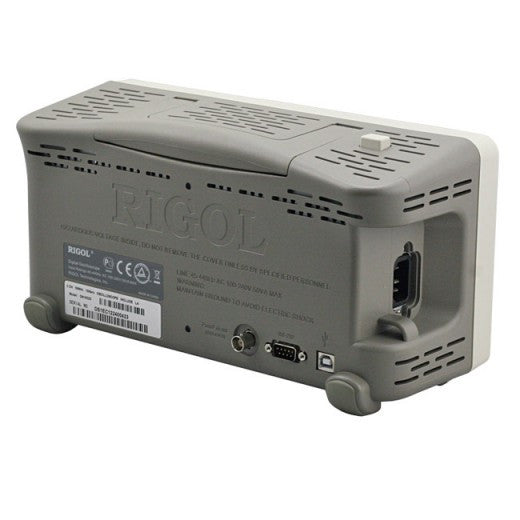

Standard Interface |
USB Host & Device, RS-232, P/F Out |
|||
|
Vertical Resolution |
8 bits |
|||
|
Math |
+, -, ×, FFT |
|||
|
Max Input Voltage |
All inputs 1MΩ?15pF 300 V RMS CAT? |
|||
|
Cursor Measurements |
Manual, Track and Auto Measure modes |
