Description:
The DS1000E Series Digital Oscilloscopes set a new standard for technology and capability. With features including 1 million points of deep memory, FFTs, record and replay, roll mode, alternate trigger mode, and adjustable trigger sensitivity the DS1000E is the new bench standard.

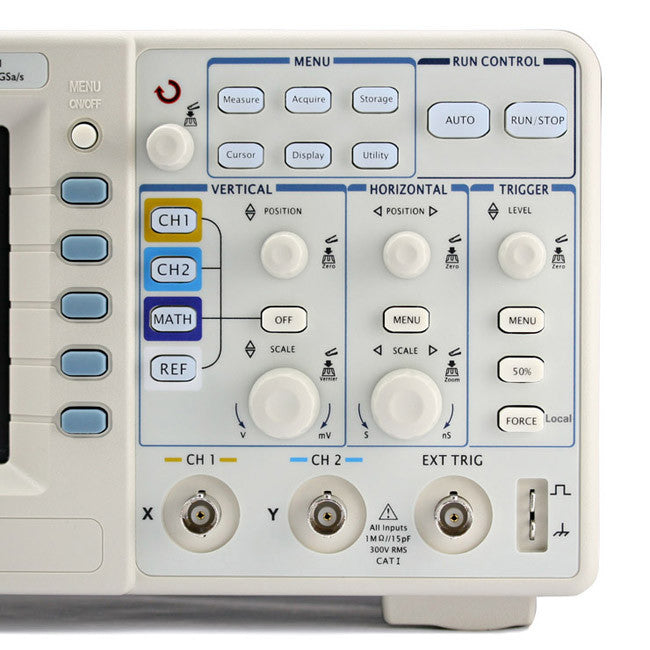

Features:
- 2 analog channels, 100MHz bandwidth, 1GSa/s maximum real-time sample rate and 25GSa/s equivalent time sample rate
- 5.6�TFT QVGA (320X240) with 64K color LCD backlighted display
- Trigger modes: edge, pulse width, slope, video, alternate trigger
- Multiple interface configurations: Standard USB Host and USB device, RS-232 and support U disk storage and PictBridge print standards, optional USB-GPIB adapter
Specification:
|
Model |
DS1052E |
|
|
Bandwidth |
50 MHz |
|
|
Channels |
Dual Channels + External Trigger |
|
|
Real-time Sample Rate |
1 GSa/s(Single Channel), 500 MSa/s(Dual Channels) |
|
|
Equivalent-time Sample Rate |
10GSa/s |
|
|
Rise Time |
7ns |
|
|
Memory Depth |
Normal Memory |
Long Memory |
|
16 kpts |
N.A. |
|
|
16 kpts |
1Mpts |
|
|
8 kpts |
512 kpts |
|
|
Timebase Range |
5 ns/div ~50s/div |
|
|
Trigger Modes |
Edge, Video, Pulse Width, Slope, Alternate |
|
|
Vertical Resolution |
8 bits |
|
|
Vertical Sensitivity |
2 mV/div ~10V/div |
|
|
Maximum Input Voltage |
All inputs 1MΩ?15pF 300V RMS CAT? |
|
|
Input Coupling |
DC,AC,GND |
|
|
Roll Range |
500ms/div ~50s/div |
|
|
Cursor Measurements |
Manual,Track and Auto Measure modes |
|
|
Math |
+, -, ×, FFT |
|
|
Internal Stroge |
10 Waveforms and 10 Setups |
|
|
USB Storage |
BMP, CSV, Waveforms and Setups |
|
|

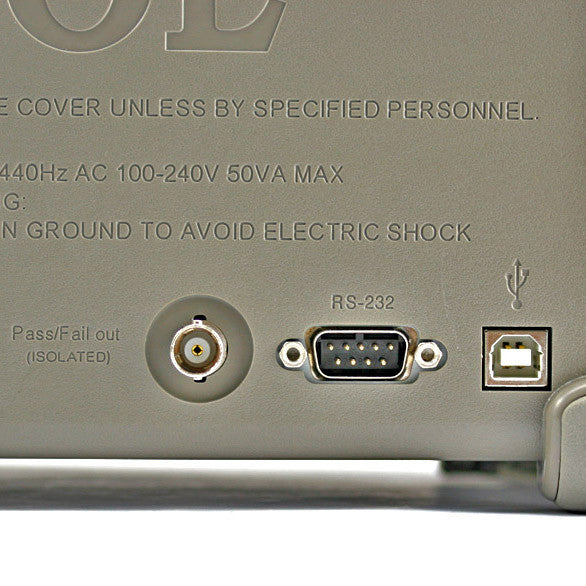

Connectivity |
USB Device, USB Host, RS-232, P/F Out |
|
|
Display |
5.6â€?TFT (64 k, Color LCD ), 320×234 resolution |
|
|

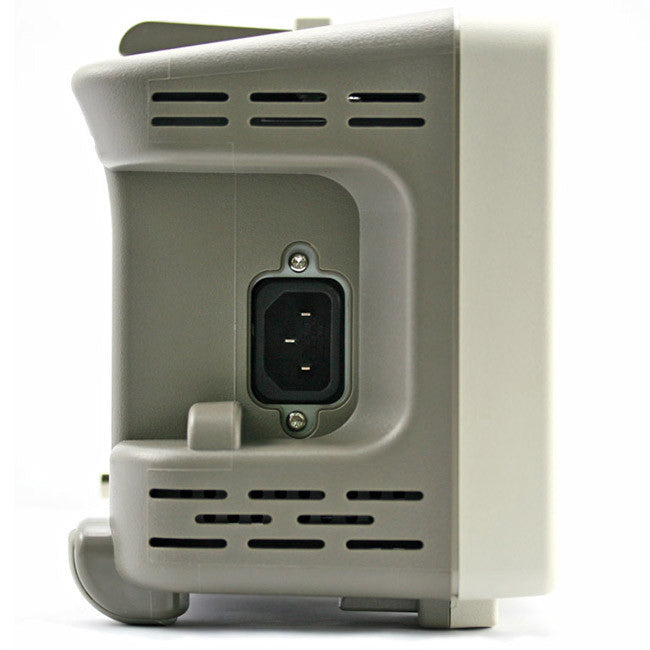

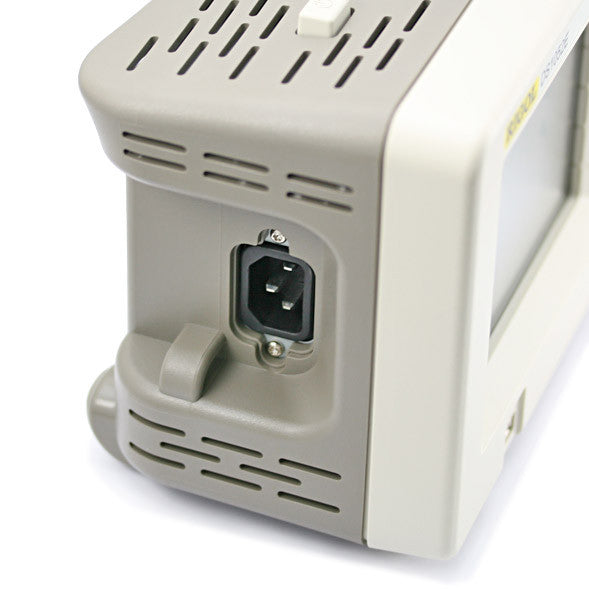

Power Supply |
AC:100 ~ 240 VACRMS, 45 ~ 440 Hz, CAT II, 50 VA Max |
|

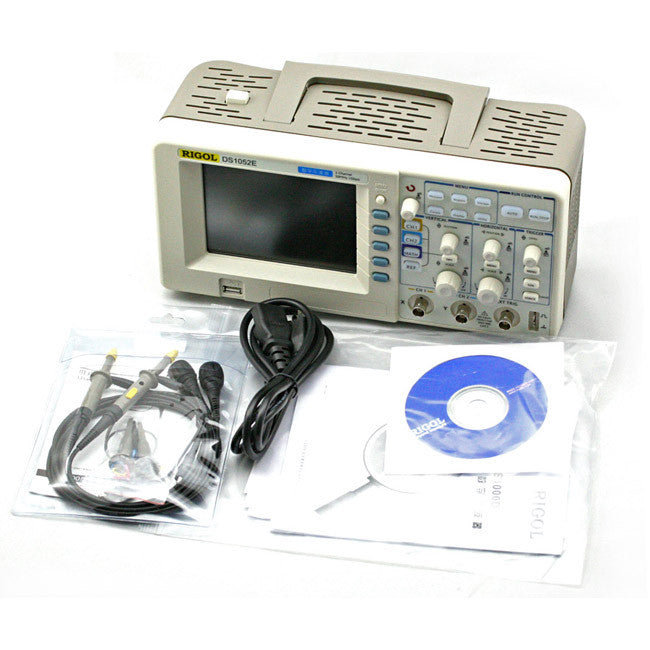

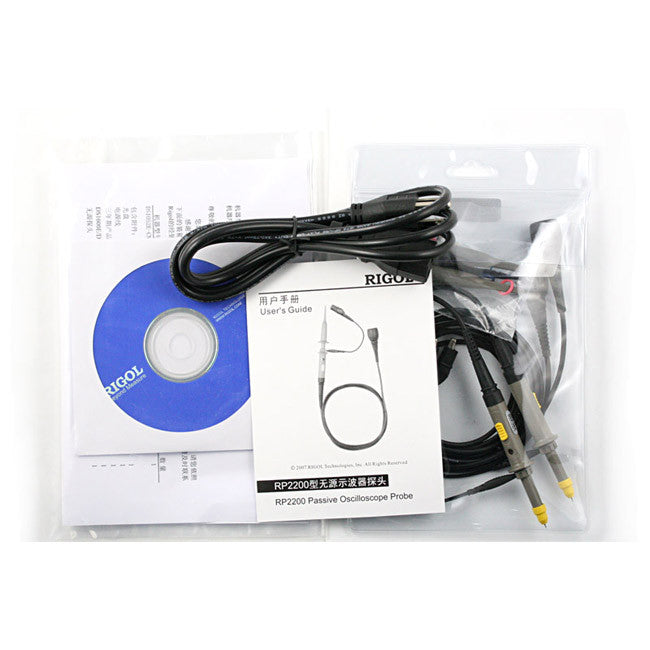

Package list:
- 1x Rigol DS1052E 50MHz Digital Oscope
- 1x Power cord

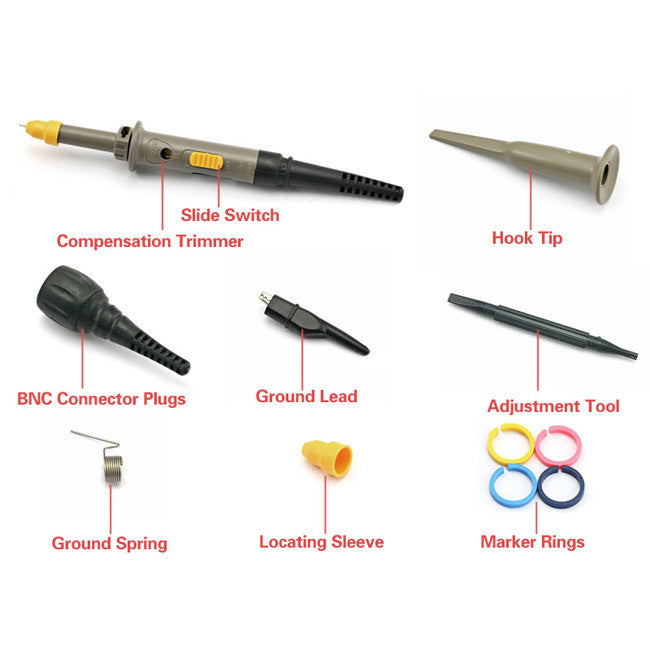

- 2x Probes
- 1x Software CD
