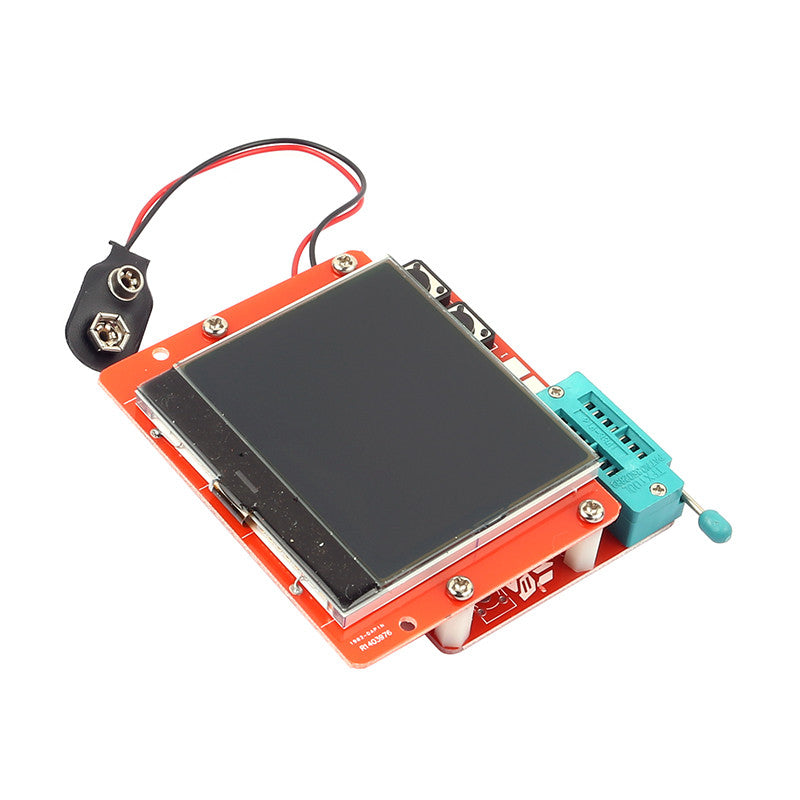

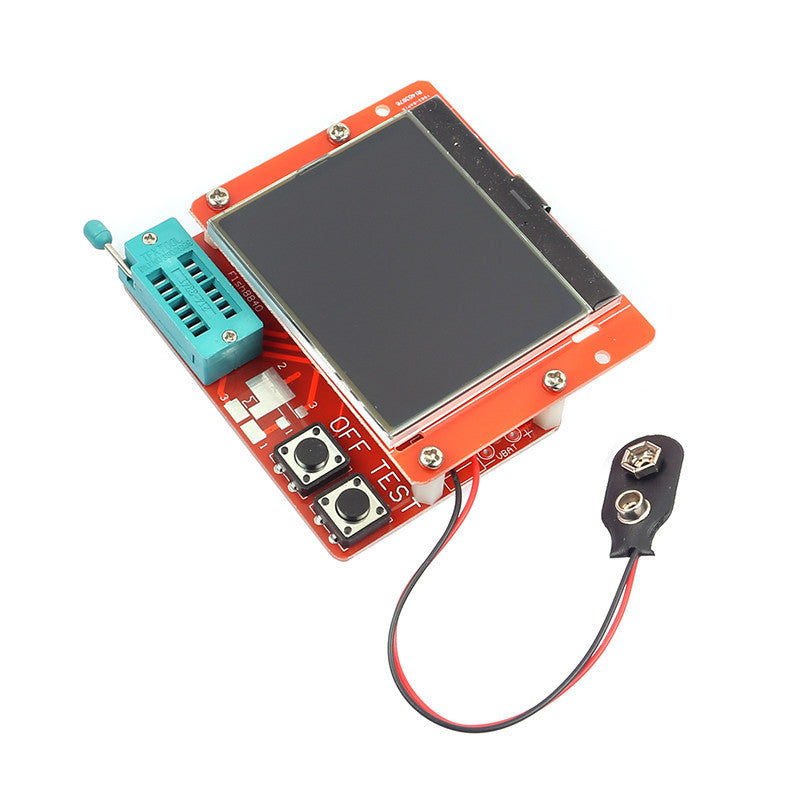

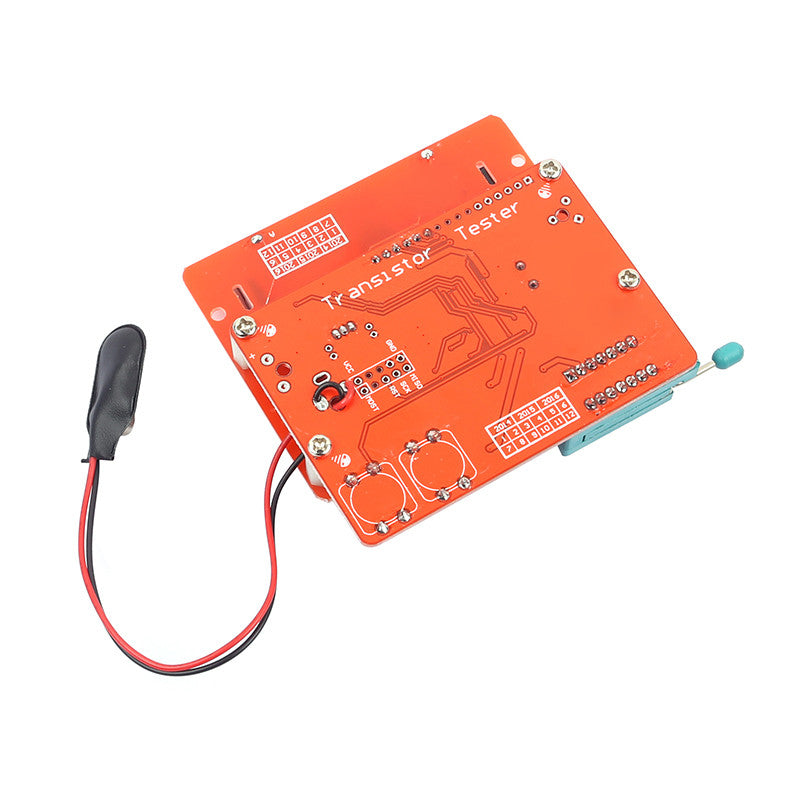

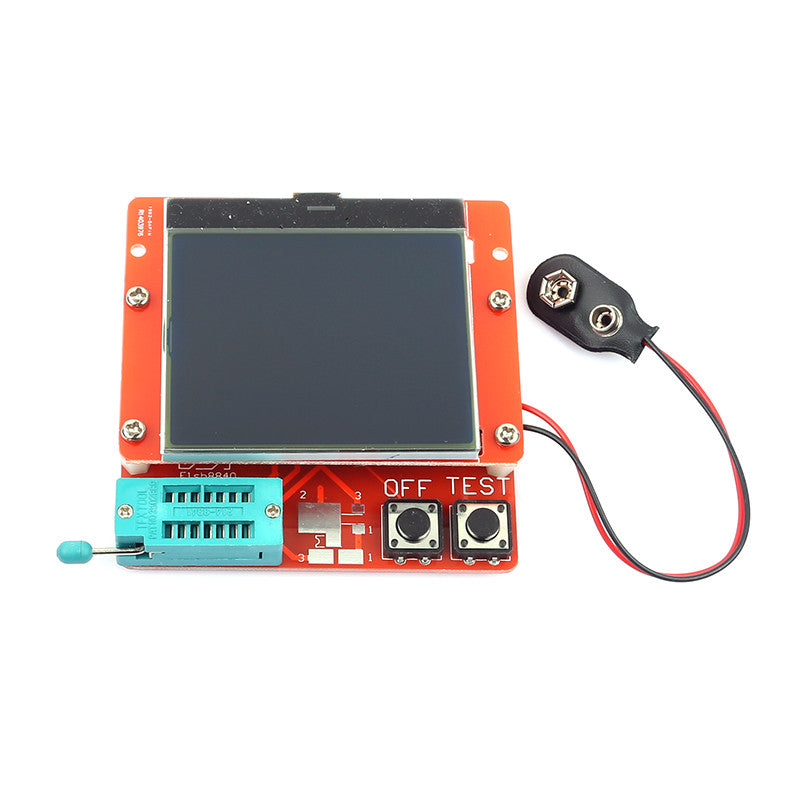

SainSmart 12864 LCD Transistor Tester Capacitance ESR Meter Diode Triode Mos/PNP/NPN LCR

brand: SainSmart SKU: 101-92-124 Variants ID: 45101419284
Oops, 0 In Stock
  • Boot voltage detection function
  • Automatic detection of NPN and PNP transistors, N-channel and P-channel MOSFET, diodes (including dual diode), thyristors, transistors, resistors and capacitors and other components.
  • Automatic test out the pin element and displayed on the LCD
  • Can be detected to determine the transistor emitter forward bias voltage of the transistor, MOSFET protection diode and the amplification factor of the base
  • Measure the gate threshold voltage and gate capacitance of the MOSFET
  • High test speed, valid component test: 2 seconds (except in the larger capacitor of large capacitance measurement also takes a long time, the measured time of one minute is normal)
  • Power consumption off mode: less than 20 nA
  • Auto power off function


  • Working power: DV 9V (9v battery powering stacked . If prolonged power , please use two 8.4v lithium battery pack consisting of .)
  • Standby current: 0.02uA
  • Operating current: 25mA
  • Resistor Range: 0.1Ω-50MΩ
  • Capacitor Range: 25pF-100000uF
  • Inductance Range:: 0.01mH - 20H



  • 1x Multifunction Transistor Tester ( no batteries)
