SainSmart 2.4" TFT LCD Touch Panel SD Card Slot+Shield for Arduino MEGA2560

brand: SainSmart SKU: 20-011-D39
$24.99

Description:

This is Sainsmart 2.4 inch TFT LCD module with the TFT LCD shield kit for arduino enthusiasts.It includes one piece of 2.4 inch TFT LCD display and a TFT LCD shield for Arduino MEGA2560 (R3).We will provided you the whole document including the example project of arduino due with the kit. We will supply you the technical support after your purchase.

Feature:

    • 240374PQ
    • 262K color
    • 240*320
    • 2.4 inch
    • Wide viewing angle
    • ILI9325:240 RGB x 320 TFT Driver
    • Integrated Power, Gate and Source Driver With RAM
    • XPT2046-WIRE TOUCH,WIRE TOUCH, UP TO 125kHz CONVERSION RATE, SERIAL INTERFACE
    • Voltage type: 5v or 3v voltage input voltage,input is selectable. Because TFT can only work under 3.3 V voltage, so when the input voltage VIN is 5V, need through the 3.3 V voltage regulator IC step down to 3.3V , when the input voltage of 3.3 V, you need to use the zero resistance make J2 short , is equivalent to not through the voltage regulator IC for module and power supply directly.(Click here)
    • Note: the factory TFT module, are the 5 v power supply. By default.

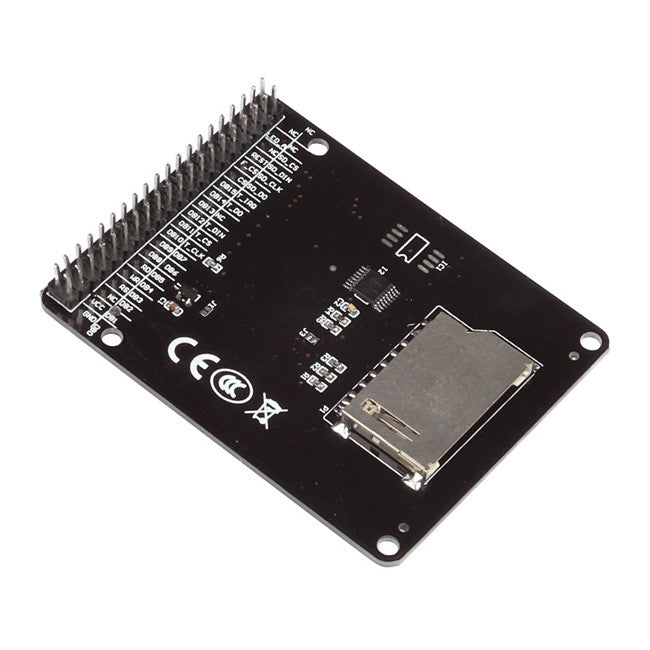

    • Carrying on board SD holder, its work to SPI mode.

      It is 100% compatible with the normal MCU like ARM AVR PIC and 8051,especially on arduino family such as arduino due and arduino mega2560(R3).The module uses the LCD controller Chip SSD1963 with 5 inch LCD including the touchscreen.




      Now, the TFT LCD Shield is 100% compatible with arduino due and fit for tow kind of TFT LCD module

      1. 40pin version LCD which is commonly used in previous version of TFT shield for Arduino MEGA2560 or MEGA2560 R3 ( like 3.2/5 inch LCD Display)
      2. 32pin version LCD which is commonly used in STM32 development board. (unsoldered)

      The shield defines that all the the data transmit ports are PC1-PC8 and PC12-PC19,the controll pins are PD0-PD3.The perfect design could realize that the data transmits in high speed.The SPI interface is designed in the ISP header of arduino due so that the SPI transfer with DMA could be achieved in high speed with no drag.

      Package List:

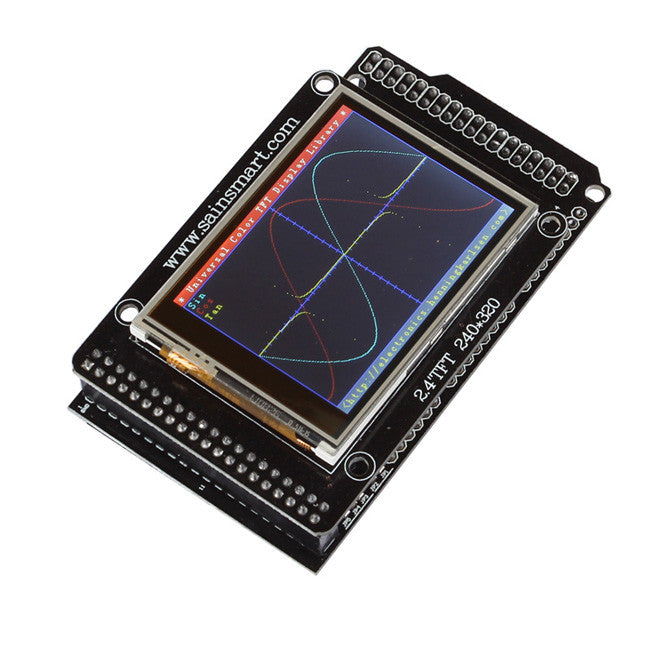

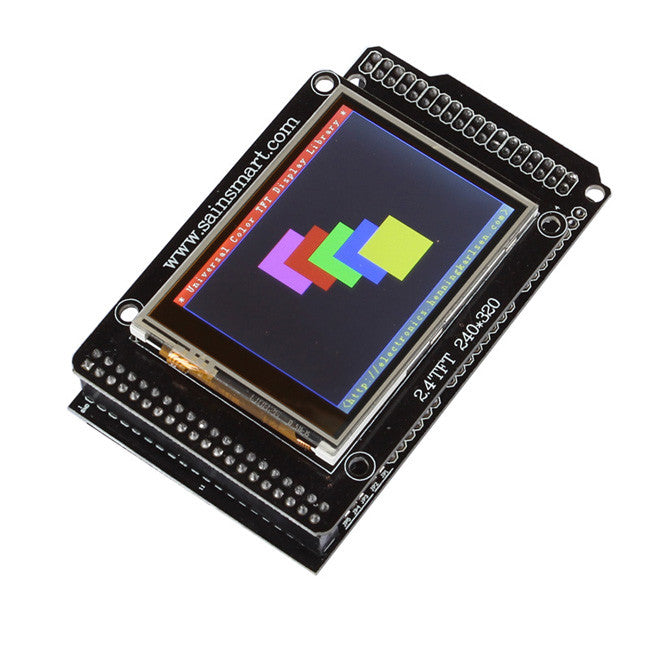

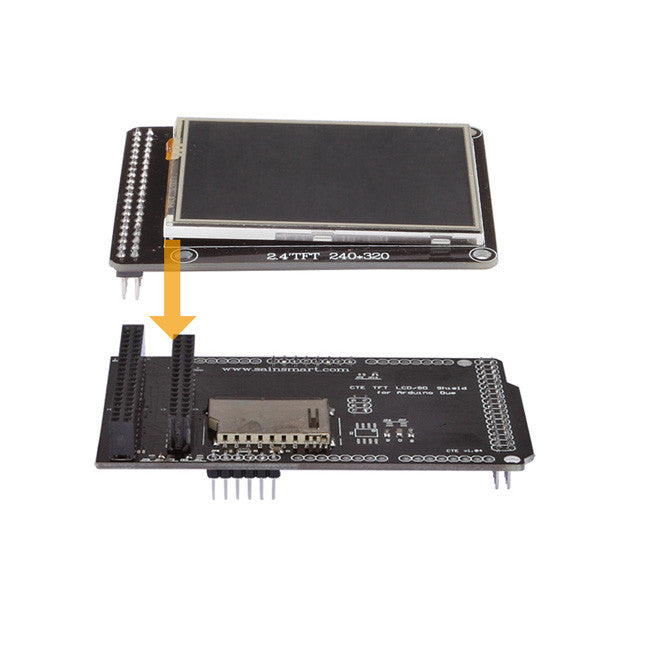

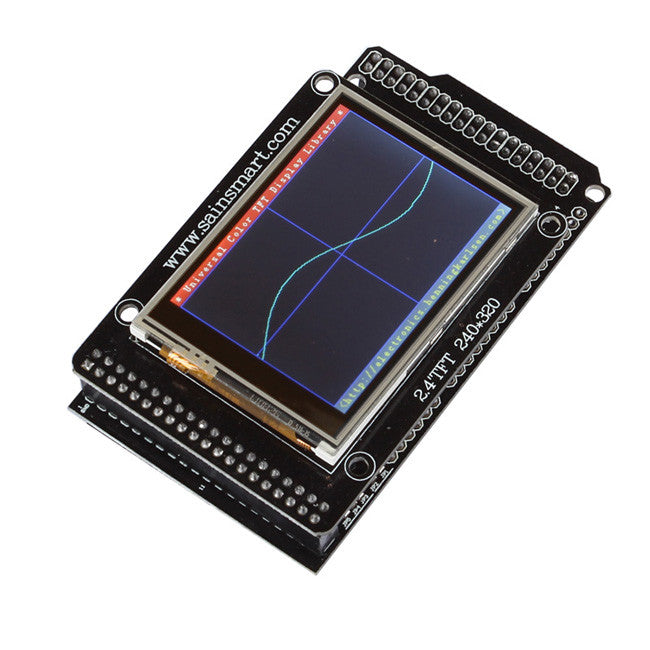

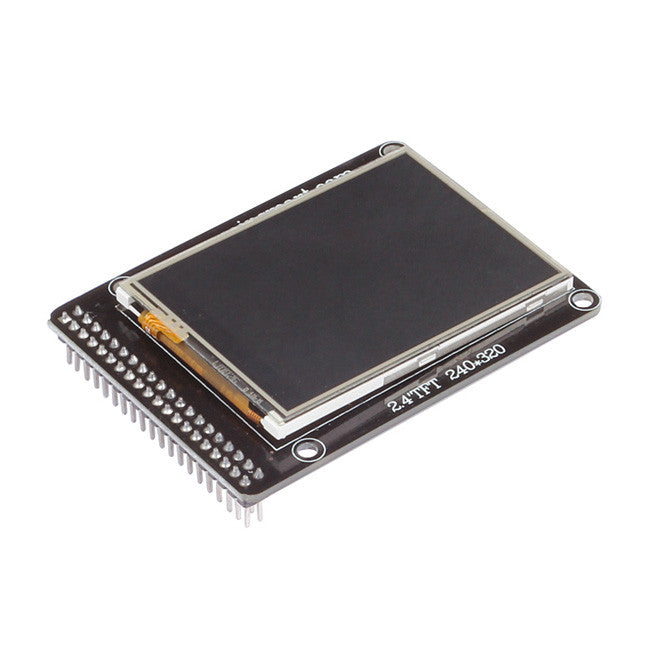

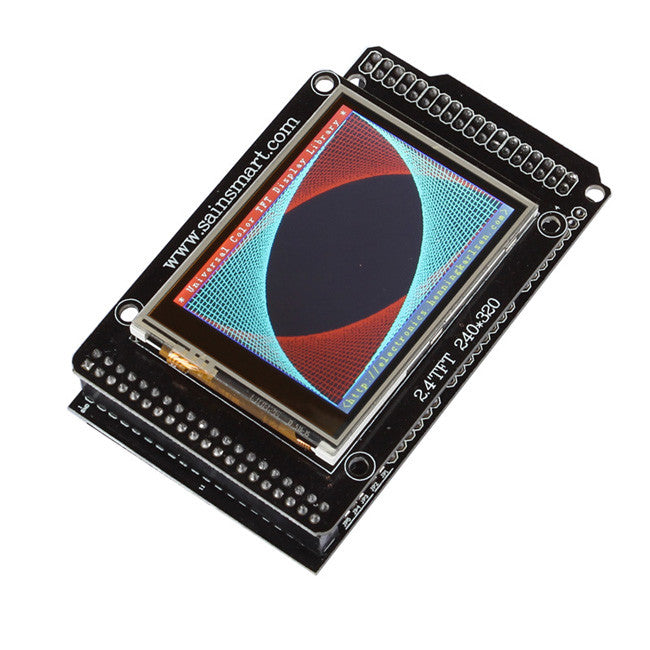

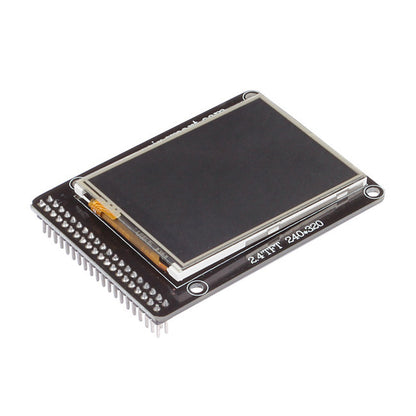

      • 1x Sainsmart 2.4 inch LCD Display with touchscreen for Arduino Due MEGA2560 R3

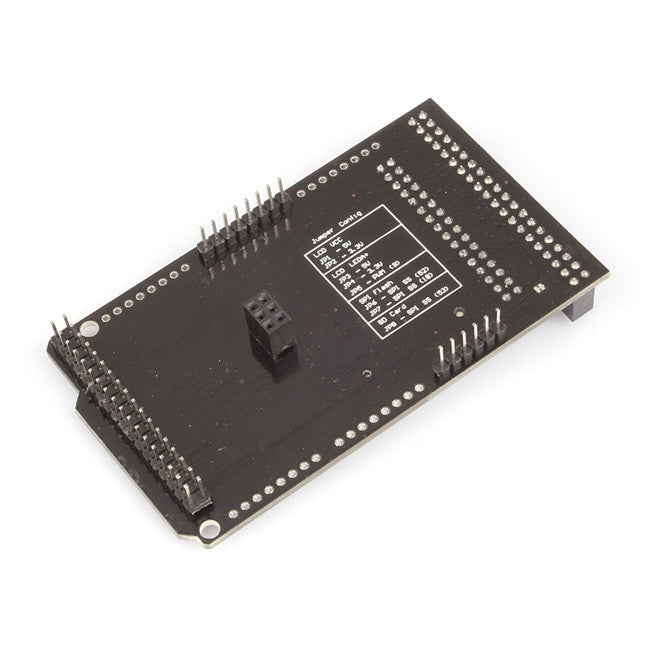

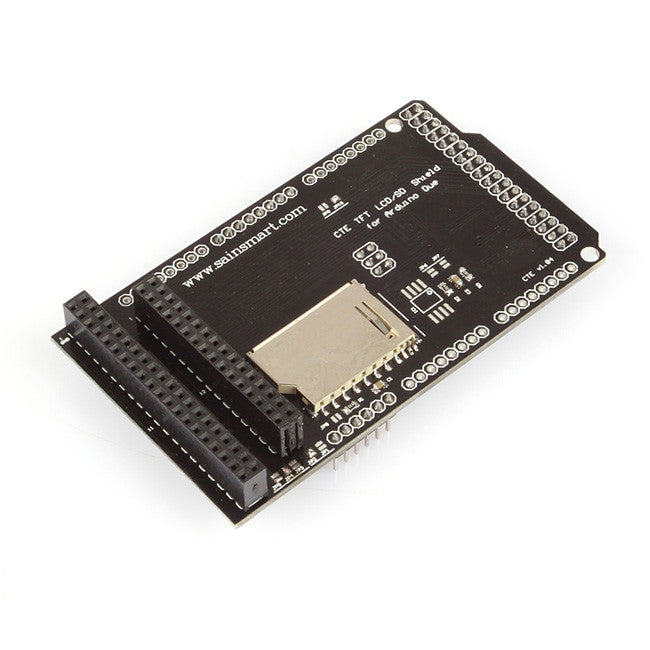

      • 1x Sainsmart TFT LCD Extend Shield for Arduino Due

      Documents:

        • Please contact us via support@sainsmart.com after your purchase.

            Note:

            1. We have confirmed that the LCD is 100% compatible with raspberry pi but we do not have the programmed project.
            2. This shiled is just for Arduno MEGA2560(R3). If you need the LCD Extend shield for Arduino Due. Please click here.
