[Discontinued] SainSmart 2.8" TFT LCD Touch Screen Display + 5" TFT/SD Shield for Arduino Mega2560 R3

Description:
This is Sainsmart 2.8 inch TFT LCD module with the TFT LCD shield kit For arduino enthusiasts.It includes one pcs of 2.8 inch TFT LCD display and a TFT LCD shield for arduino mega2560(R3).We will provided you the whole document including the example project of arduino mega2560(R3) with the kit. We will supply you the technical support after your purchase.

SainSmart 2.8" TFT LCD Screen For Arduino Due UNO R3 Mega2560 R3 Raspberry Pi

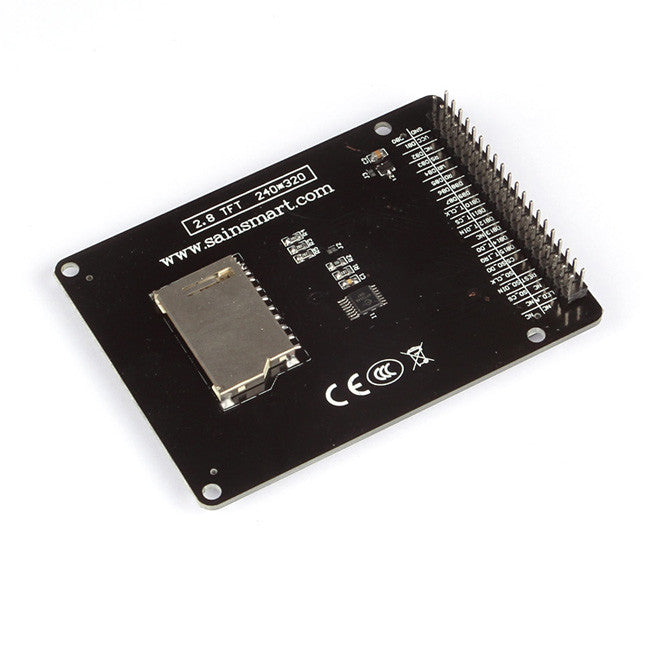

SainSmart 2.8" TFT LCD Display is a LCD touch screen module. It has 40pins interface and SD card and Flash reader design. It is a powerful and mutilfunctional module for your project.The Screen include a controller ILI9325, it's a support 8/16bit data interface , easy to drive by many MCU like arduino families,STM32 ,AVR and 8051. It is designed with a touch controller in it . The touch IC is XPT2046 , and touch interface is included in the 40 pins breakout. It is the version of product only with touch screen and touch controller.

Specification:

• 240374PQ
• 262K color
• 240*320
• 2.8 inch
• Wide viewing angle
• ILI9325:240 RGB x 320 TFT Driver
• Integrated Power, Gate and Source Driver With RAM
• XPT2046-WIRE TOUCH,WIRE TOUCH, UP TO 125kHz CONVERSION RATE, SERIAL INTERFACE
• Voltage type: 5v or 3v voltage input voltage,input is selectable. Because TFT can only work under 3.3 V voltage, so when the input voltage VIN is 5V, need through the 3.3 V voltage regulator IC step down to 3.3V , when the input voltage of 3.3 V, you need to use the zero resistance make J2 short , is equivalent to not through the voltage regulator IC for module and power supply directly.

Note: the factory TFT module, are the 5 v power supply. By default.
      Carrying on board SD holder, its work to SPI mode.

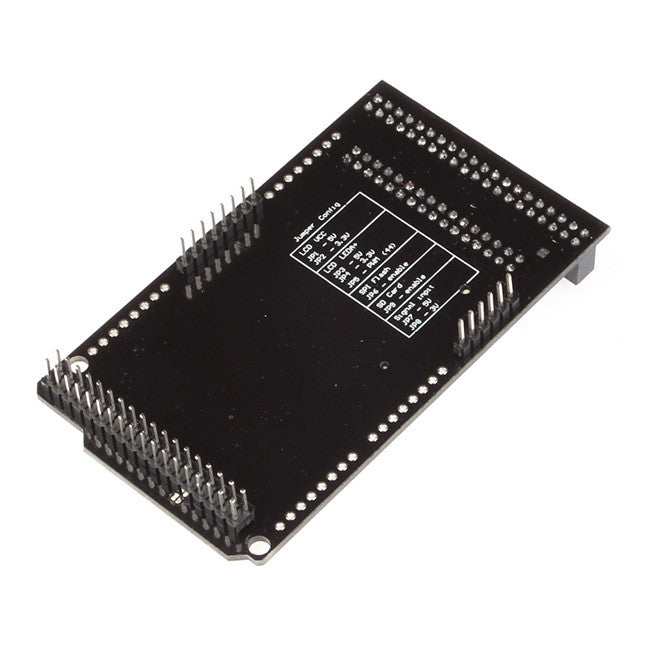

Sainsmart TFT LCD Extend Shield for arduino Mega2560 R3

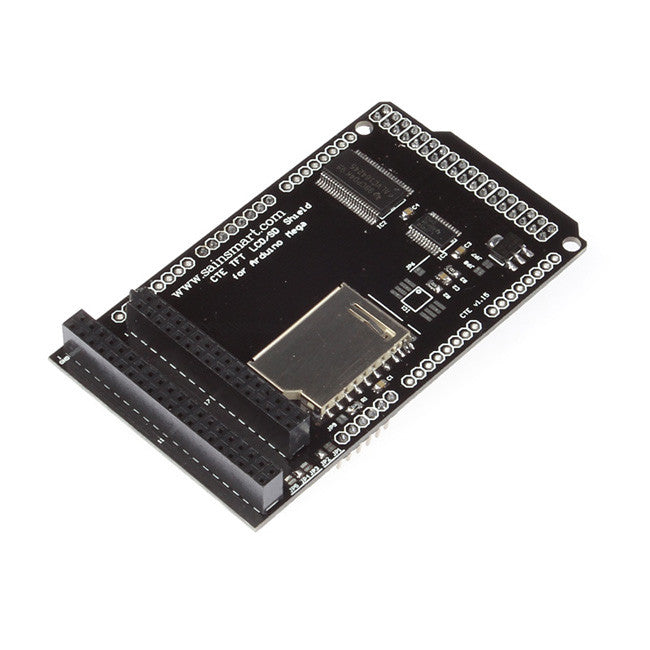

This is Sainsmart TFT LCD Extend shield for arduino mega2560(R3) .Using this shield can help you out of the bothers to use other cables. You just need to plug the module to arduino mega2560(R3)  through this shield.

Now,the TFT LCD Shield is 100% compatible with arduino mega2560(R3)  and fit for tow kind of TFT LCD module

1. 40pin version LCD which is commonly used in previous version of TFT shield for Arduino mega2560(R3) ( like 2.8/3.2/3.5/...inch LCD Display)

2. 32pin version LCD which is commonly used in STM32 development board. (unsoldered)

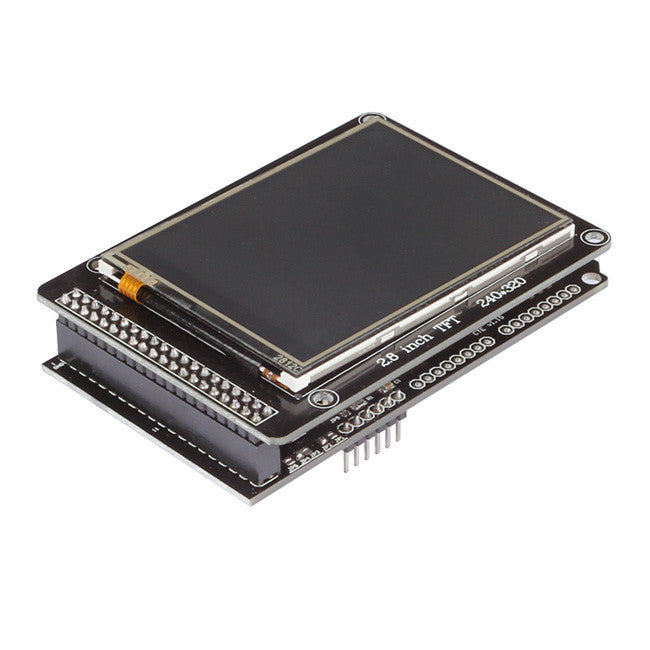

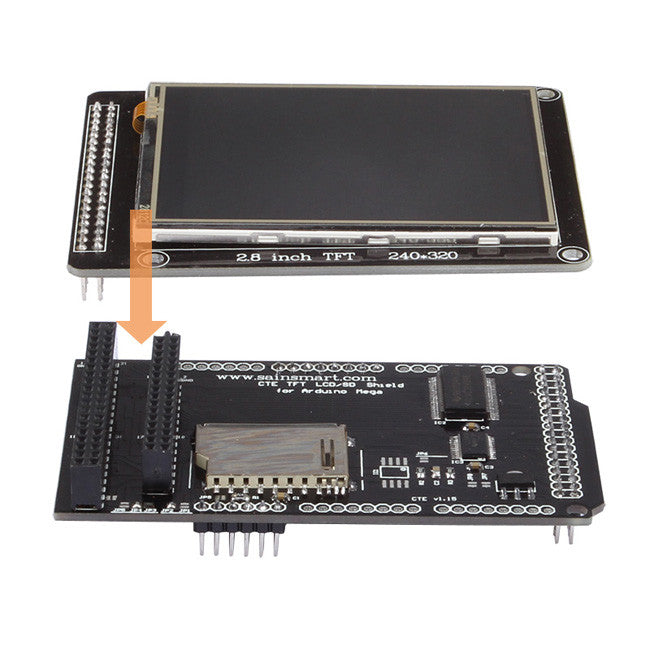

The following just shows how does the TFT LCD shield work with arduino Mega2560 R3 and 2.8 inch LCD display,but the package just includes the TFT LCD Extend shield and 2.8 Inch LCD display.The package does not include the arduino mega2560 R3.

Package List

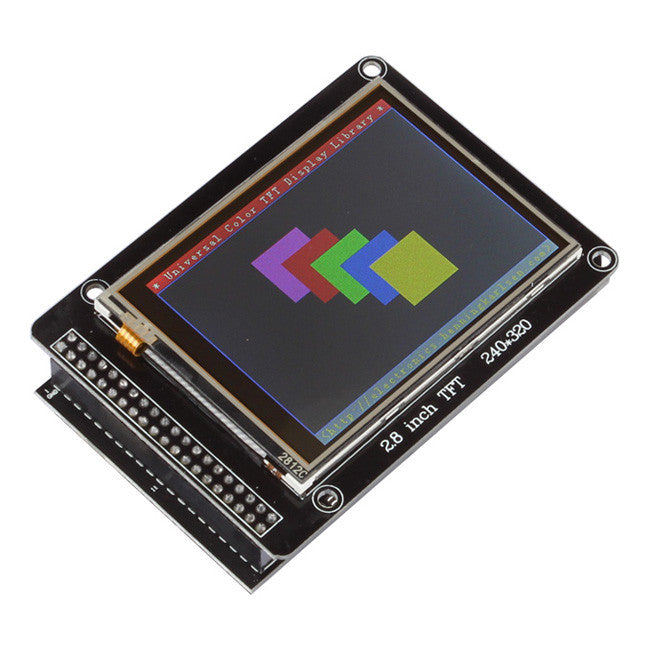

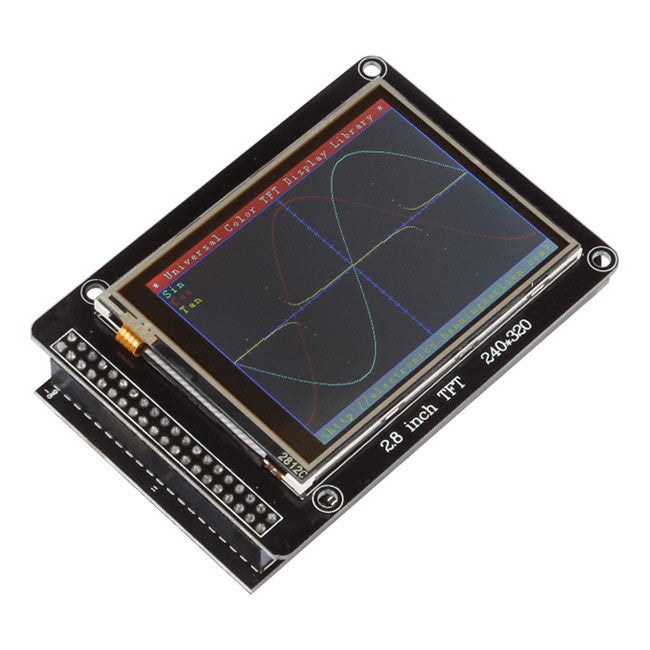

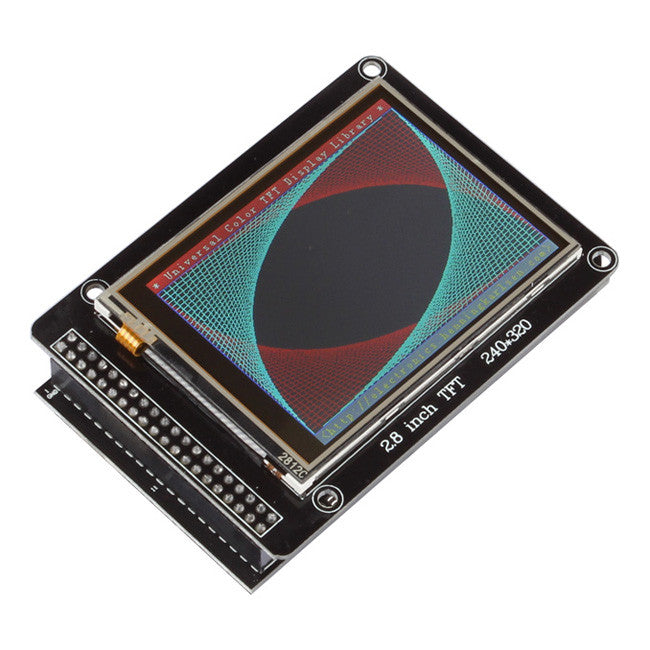

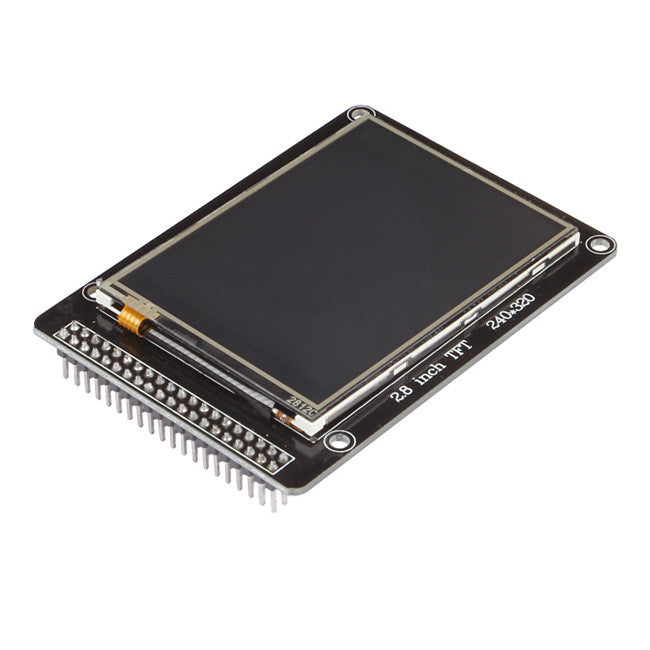

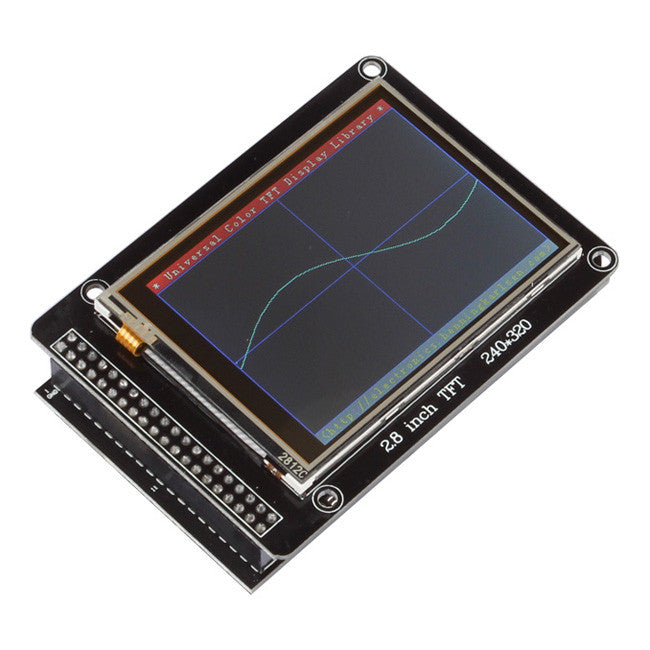

• 1X Sainsmart 2.8 inch LCD Display with touchscreen for arduino
• 1XSainsmart TFT LCD Extend Shield for arduino Mega2560 R3

Note:
1,We have confirmed that the LCD is 100% compatible with raspberry pi but we do not have the programmed project yet.
2,The LCD is compatible for arduino due and mega2560(R3),but the Shield is just for the arduino mega2560(R3).If you need the LCD Extend shield for arduino Due,you need a similar shield which is also provided from our store.
