Brand: SainSmart SKU: 20-011-C92

[Discontinued] SainSmart 2560 R3+ Sensor V5 + LCD2004 Yellow For Arduino UNO MEGA R3 Mega2560 Duemilanove Nano Robot

SKU: 20-011-C92 Variants ID: 45100399252
$45.99


SainSmart Mega2560 R3:

*1.0 pinout: added SDA and SCL pins that are near to the AREF pin and two other new pins placed near to the RESET pin, the IOREF that allow the shields to adapt to the voltage provided from the board. In future, shields will be compatible both with the board that use the AVR, which operate with 5V and with the Arduino Due that operate with 3.3V. The second one is a not connected pin, that is reserved for future purposes.
*Stronger RESET circuit.
*Atmega 16U2 replace the 8U2

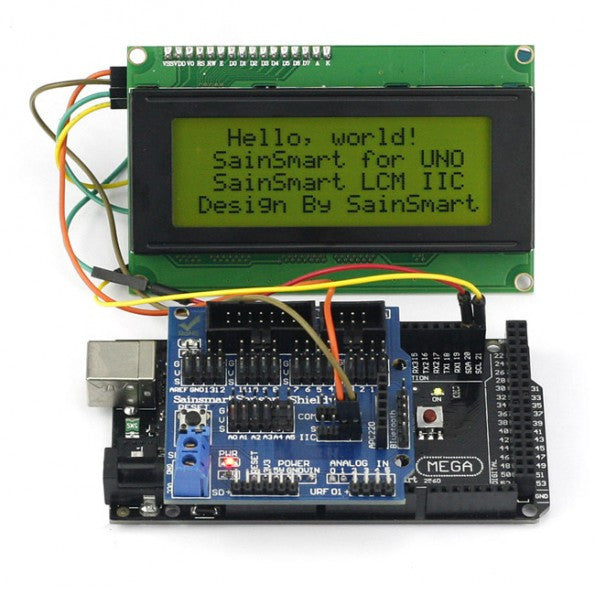

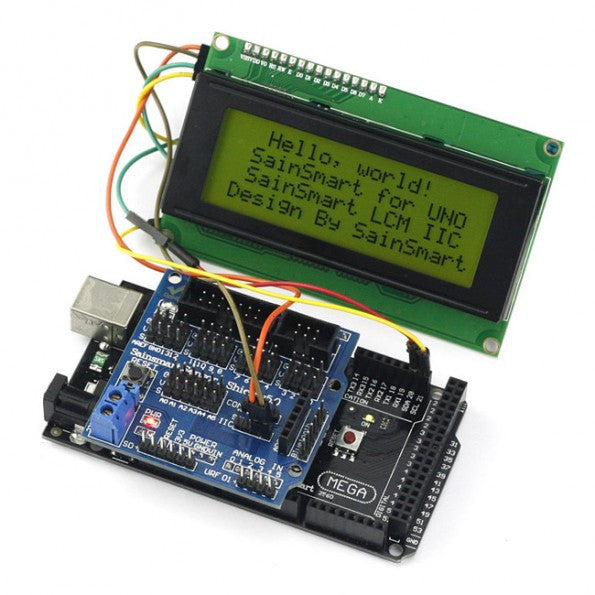

SainSmart Sensor Shield V5 (new version) has the COM and I2C (IIC) ports separated, so that both ports can be utilized at the same time to increase the possibilities of use.

Arduino Sensor Shield allows you to connect to various modules like sensors, servos, relays, buttons, potentiometers and so on.Just plug & play. Each functional module has buckled port with VCC, GND and Output, which has corresponding port on the Sensor Shield, connected with a plain 2.54mm dual-female cable you may start playing already.



SainSmart LCD Module for Arduino 20 x 4 *Black on Yellow:

  • LCD module based on the popular HD44780 controller
  • Works great with Arduino and other micro-controllers
  • Includes tutorial for interfacing LCD with Arduino boards
  • 4 rows, 20 characters per row
  • 20 x 4 LCD, 5 volt
  • Black characters on yellow background, with back light

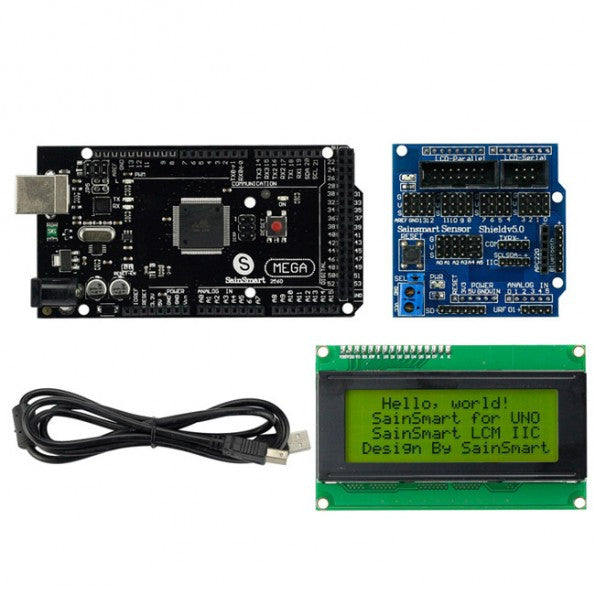

Package Including:
1x SainSmart MEGA 2560 R3
1x SainSmart Sensor Shield Digital Analog Module V5
1x SainSmart LCD Module for Arduino 20 x 4 *Black on Yellow
