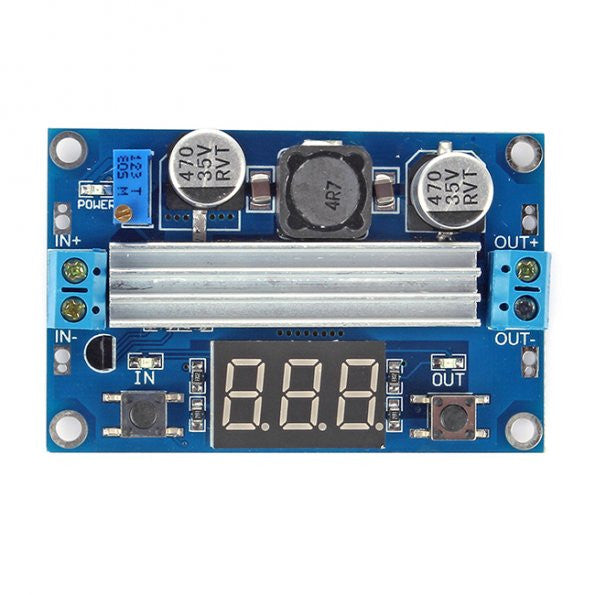

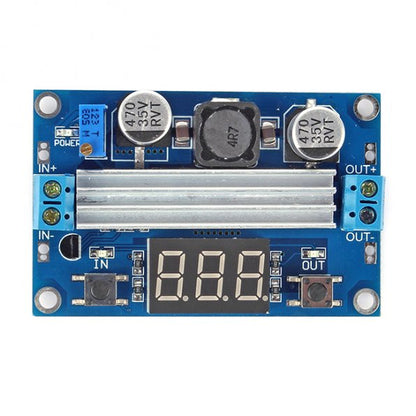

[Discontinued] SainSmart Adjustable Boost 3~35V to 3.5~35V 5/12V DC Regulated Power Supply Voltage Converter Module with Digital Voltmeter

Description:

Features:

• Cutting Size: 67.5mm x 41.5mm
• Input Voltage: DC 3~35V
• Input current: 9A (Max.)
• Output Voltage: 3.5V~35V ( Adjustable,Boost, output voltage>= input voltage)
• Output Current: 6A (Max.)
• Output power: 65W, 100W( input and output voltage >20V)
• Output Ripple: 40mV (TYP)
• Display Color: Red
• Voltage Meter Error: ± 0.1V
• Measure Range:4~40V(for measure accurately, please ensure that the input voltage>4V)
• Conversion efficiency: 96% (Max.)
• Anti-reverse protection:None(please pay attention to the positive and negative)
• A key switch input and output voltage green light: measuring the output voltage
• Red light: measuring the input voltage long press the switch for more than 1 second then release, the voltmeter shutdown.

Conversion Efficiency Measured (Voltmeter off):

• IN 5.0V Out 12V/1A/12W 94.1%
• IN 5.0V Out 12V/2A/24W 93.1%
• IN 7.4V Out 12V/1A/12W 95.4%
• IN 7.4V Out 12V/2A/24W 94.8%
• IN 7.4V Out 18V/1A/18W 94.5%
• IN 7.4V Out 18V/2A/36W 94.2%
• IN 7.4V Out 18V/3A/54W 93.8%
• IN 12V Out 18V/1A/18W 96.1%
• IN 12V Out 18V/2A/36W 95.5%
• IN 12V Out 18V/3A/54W 94.3%
• IN 18V Out 24V/1A/24W 96.5%
• IN 18V Out 24V/2A/48W 96.2%
• IN 18V Out 24V/3A/72W 95.7%
• IN 24V Out 32V/3.5A/112W 96.4%
