[Discontinued] SainSmart UNO + SainSmart Graphic LCD4884 Shield For Arduino
SainSmart Uno for Arduino is a microcontroller board based on the ATmega328. It has 14 digital input/output pins (of which 6 can be used as PWM outputs), 6 analog inputs, a 16 MHz crystal oscillator, a USB connection, a power jack, an ICSP header, and a reset button. It contains everything needed to support the microcontroller; simply connect it to a computer with a USB cable or power it with a AC-to-DC adapter or battery to get started.
The Uno differs from all preceding boards in that it does not use the FTDI USB-to-serial driver chip. Instead, it features the Atmega8U2 programmed as a USB-to-serial converter and has a resistor pulling the 8U2 HWB line to ground, making it easier to put into DFU mode.

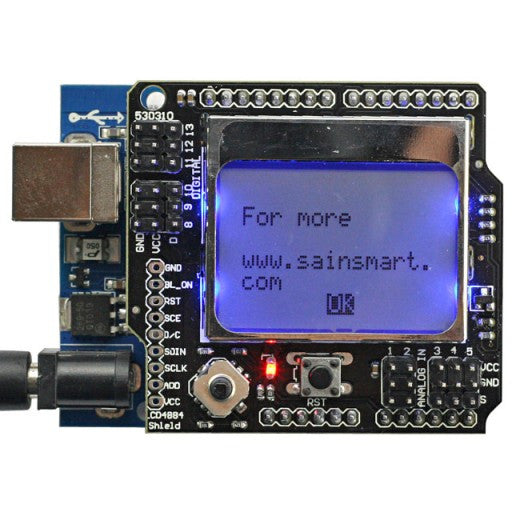

This SainSmart LCD4884 Shield provides 48x48 display. If your project need more information to display, this LCD shield can apparently meet your needs. It is able to display English, Chinese, even images. It also integrates a 5 DOF joystick. The shield has 6 Digital IO and 5 Analog IO.
