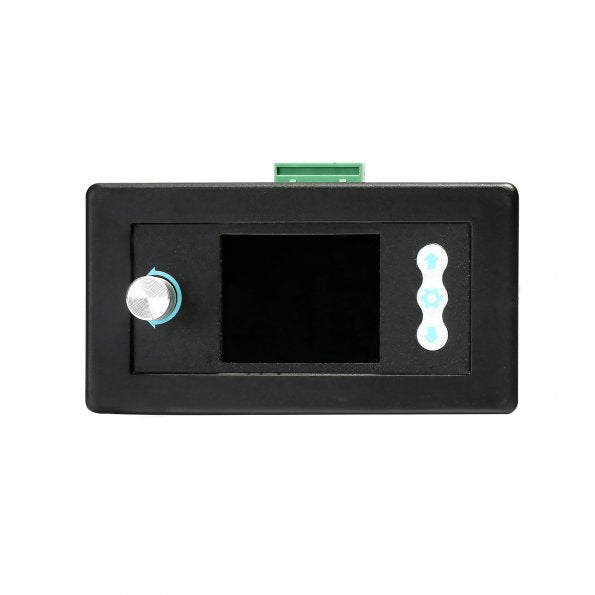

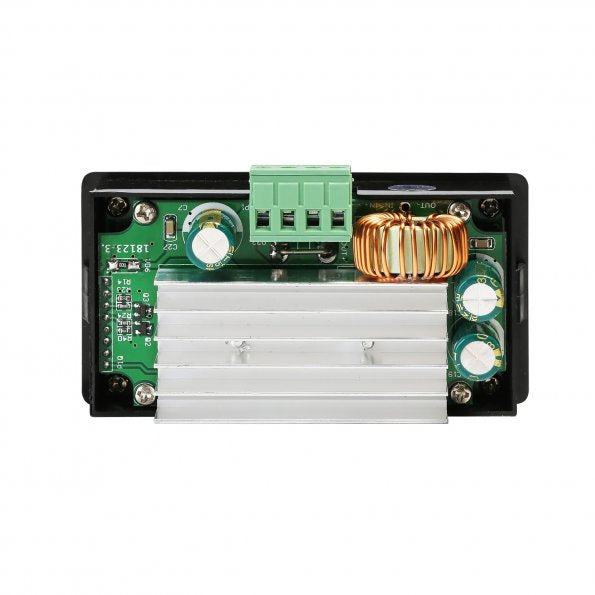

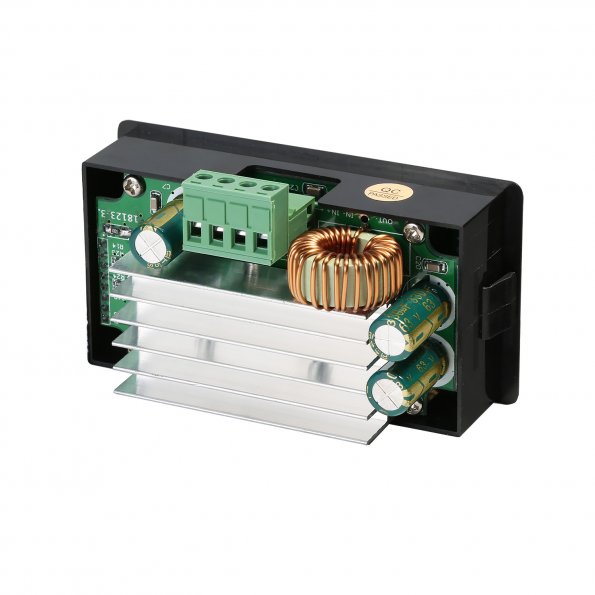

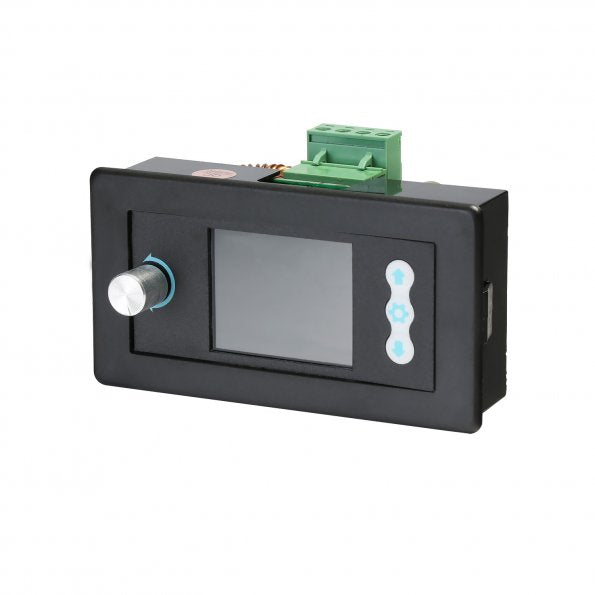

SainSmart Digital Controlled Step-Down Power Supply Buck Module DSP150Wbrand: SainSmart SKU: 101-30-506
- It combines with analog adjustment and digital control.
- The product has the function of default value storage as power-down, which can store 5 sets of default value functions.
- With LCD display, it has the function of voltage and ammeter, and can conveniently check preset voltage, preset current, the output voltage, output current, output power, and others through LCD.
- The display area of output condition can conveniently see whether the output is currently on/off output, constant voltage / constant current output status, whether the output is normal, and the data group currently being used.
- The over-voltage value, over-current value, over-voltage power, data set, LCD brightness and others can be adjusted in the data set interface.
- Setting of output voltage and reading resolution: 0.01V
- Setting of output current and reading resolution: 0.001A
- Setting of output voltage and reading precision: ±(0.5%+1 words)
- Setting of output current and reading precision: ±(0.5%+3 words)
- Outline Dimension:95mm*50mm*54mm
- Installation Dimension: 90mm*47.5mm
- Product Weight:130g
WHAT'S IN THE PACKAGE
- 1x Power Supply Buck Module
- 1x Manual
