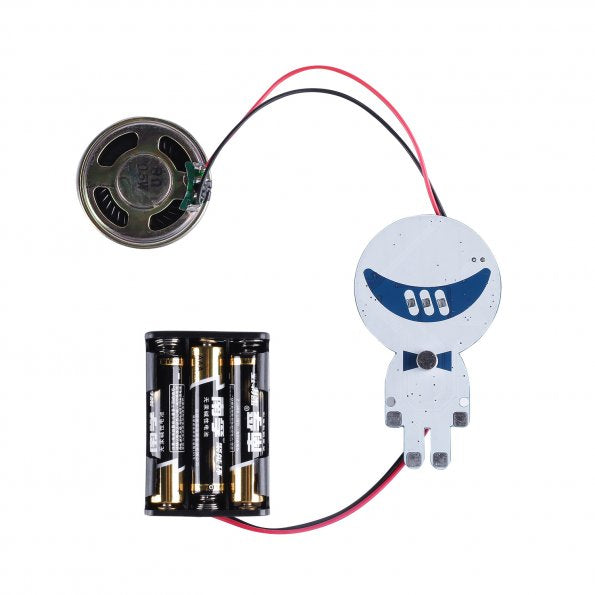

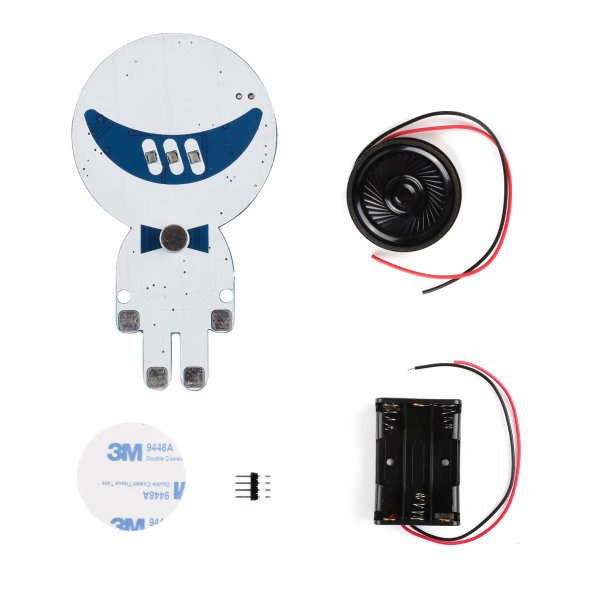

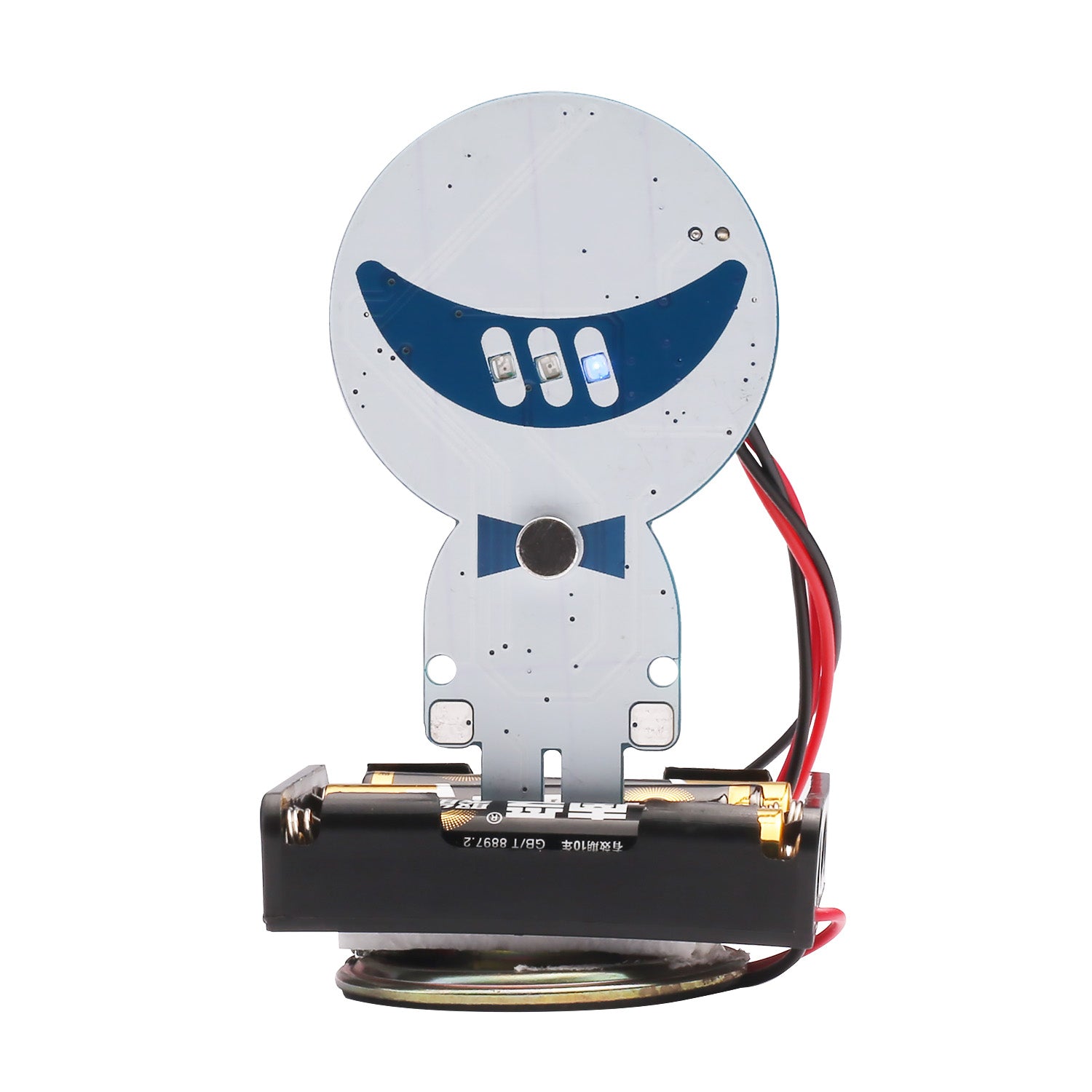

[Discontinued] SainSmart DIY Recording kit

Marquee Function

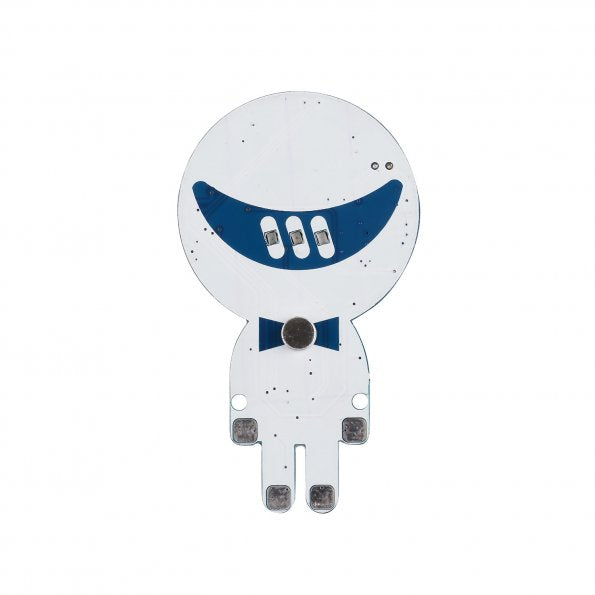

Equipped with red, green and blue three 1206 patch led, built-in 6 different style marquee, slightly tap the “smart guy” right foot to switch the marquee style.

Record Function

Press and hold the “smart guy” right hand then into the record mode (up to 20 seconds for recording). Tap the left hand to cycle the recorded content.

Extension

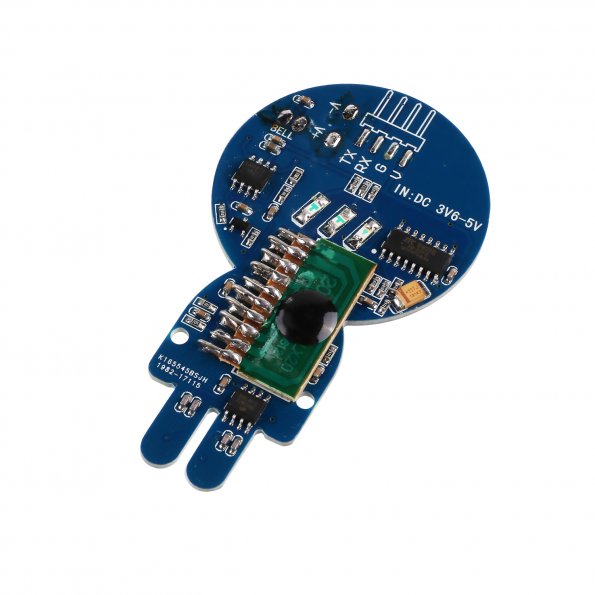

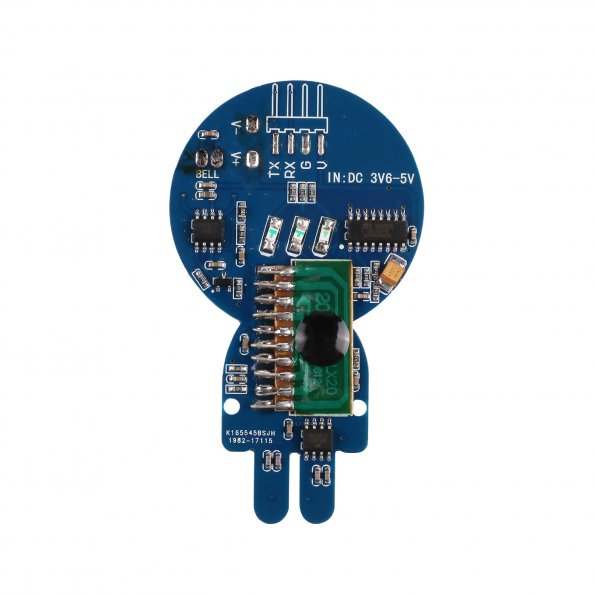

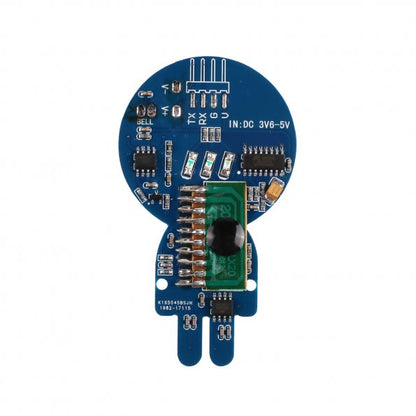

The source code (C Programming) is provided, and the TX, RX, GND, and VCC interfaces are left on the back of the “smart guy”, and the functions of each button can be customized.

Soldering Needed

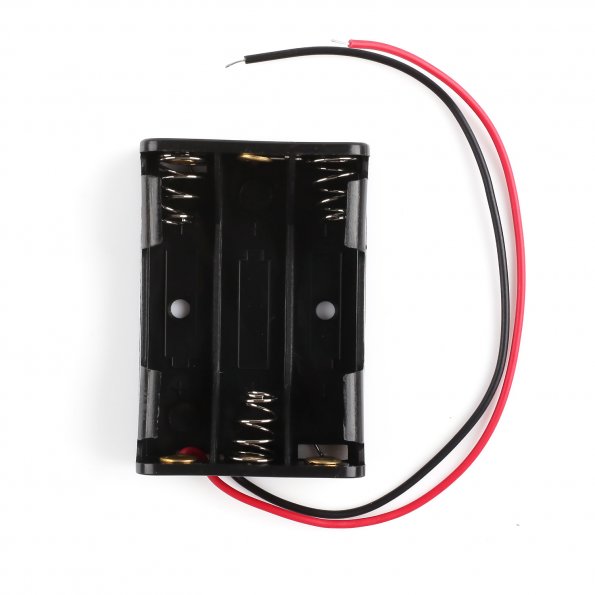

Power supply(3.3-5.5V): red line to V+, black line to V-
