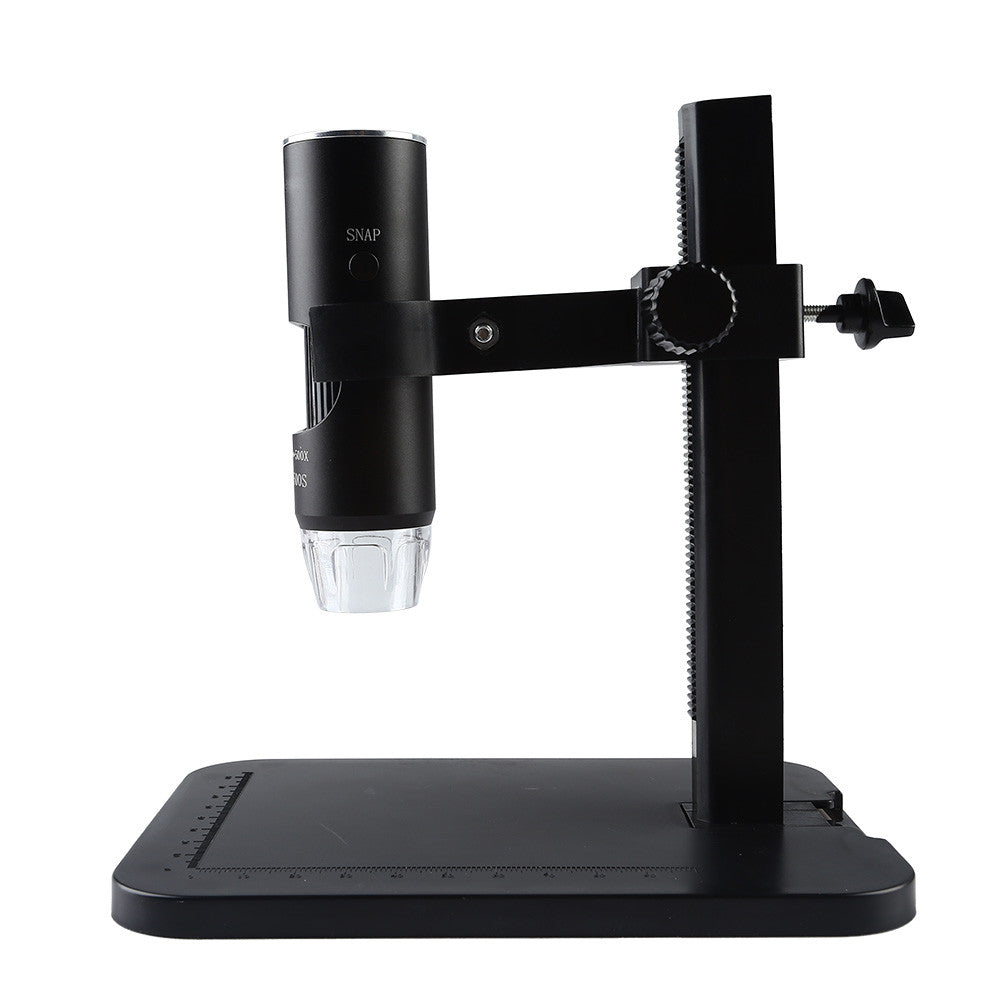

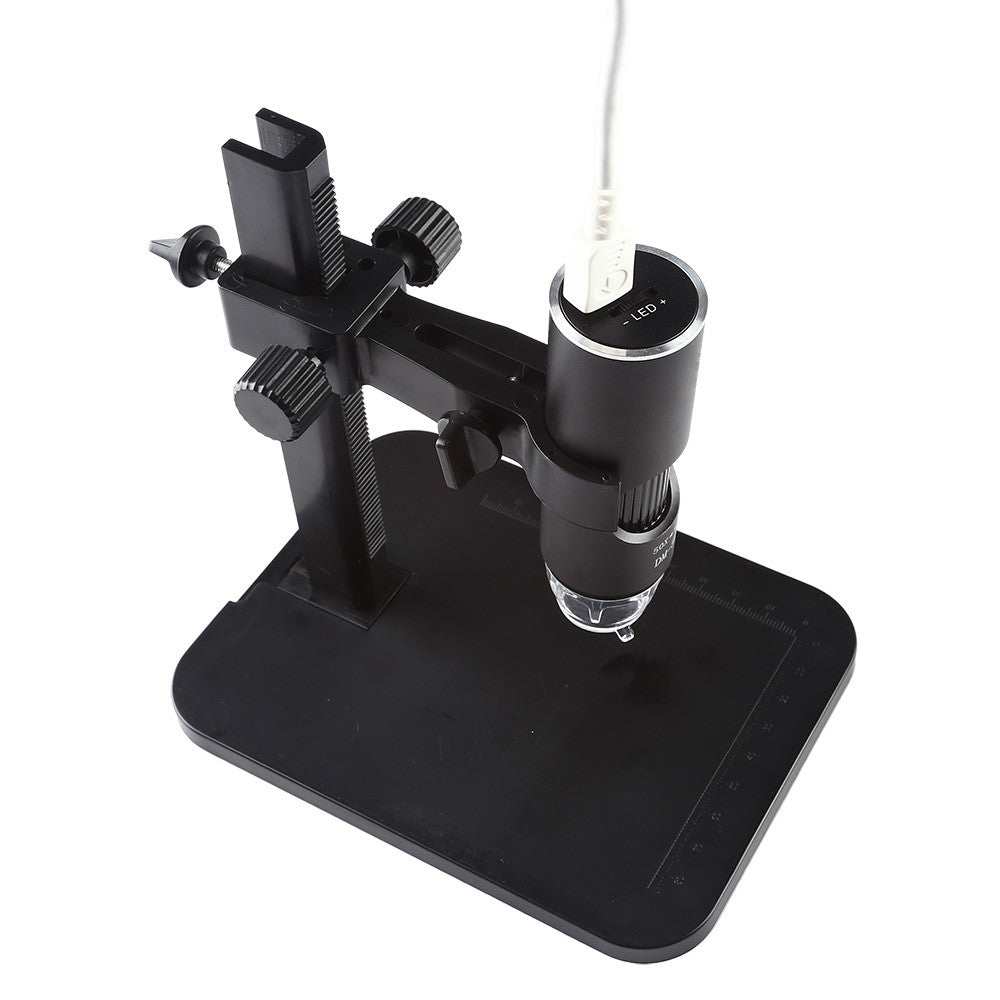

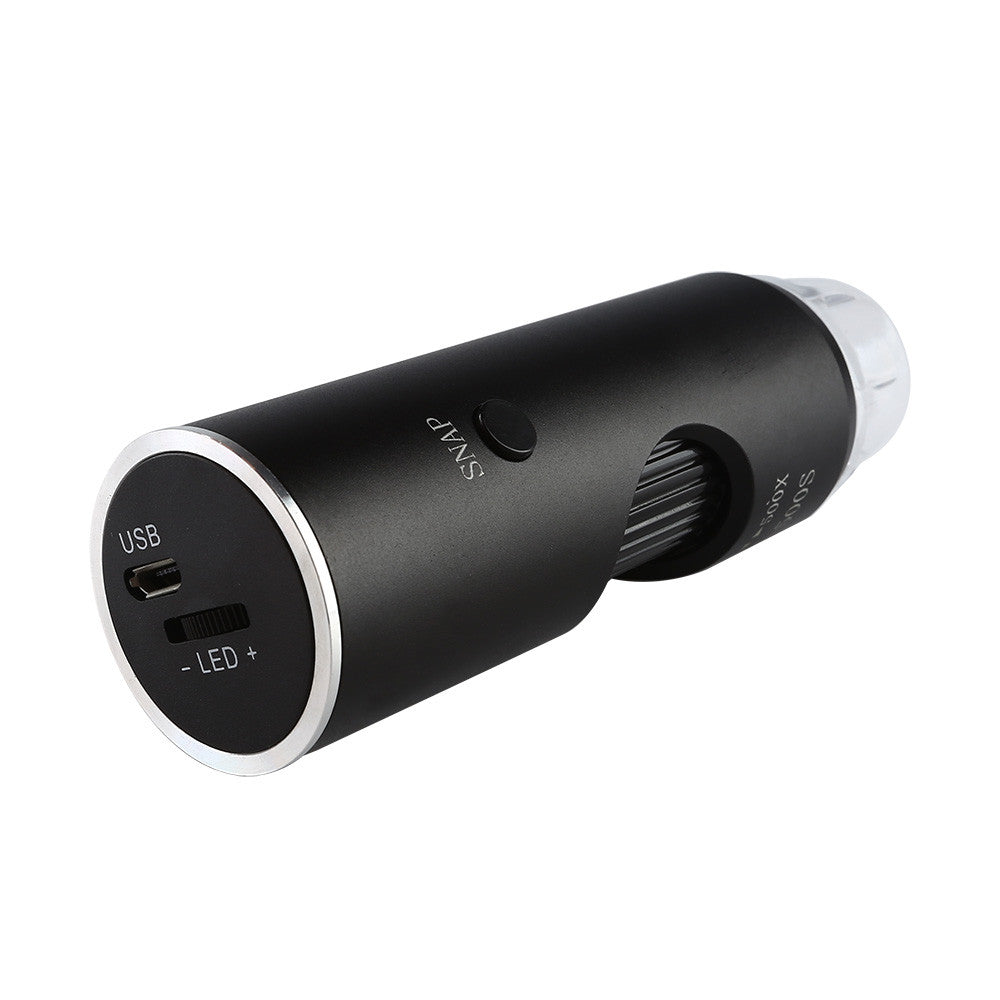

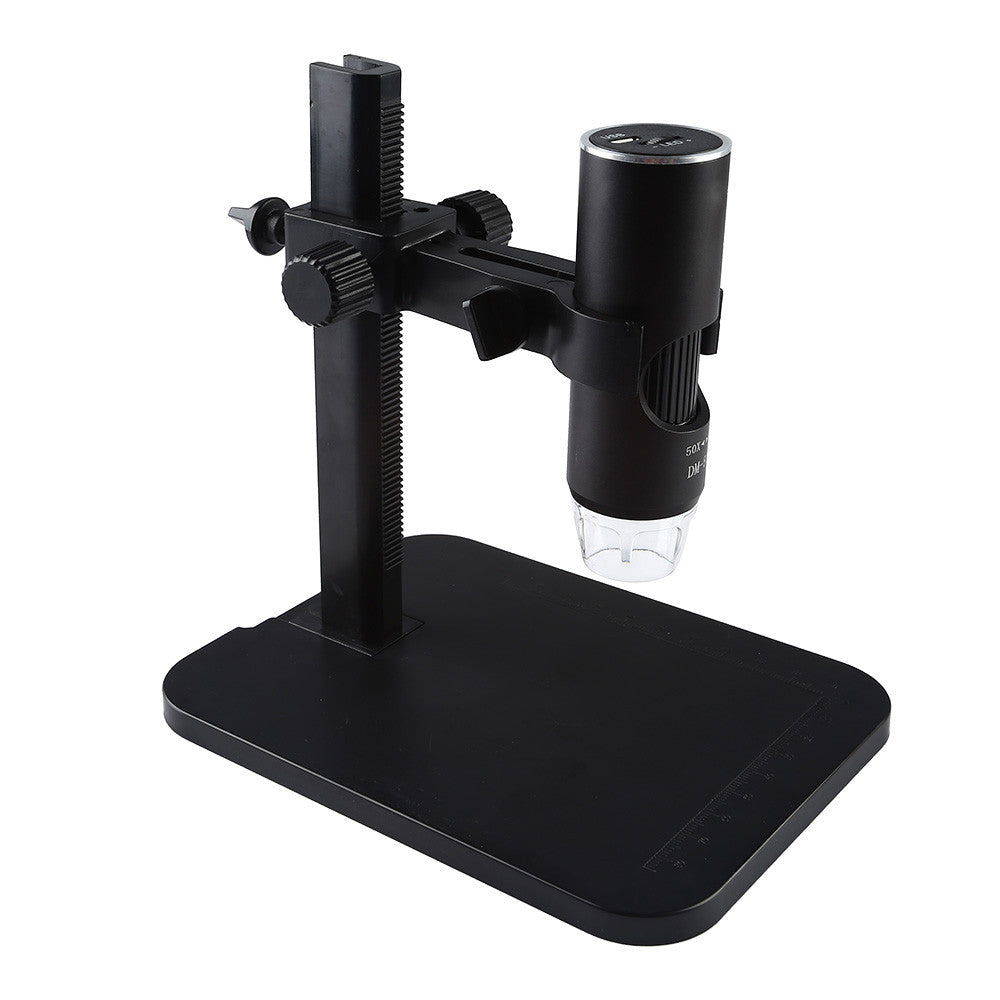

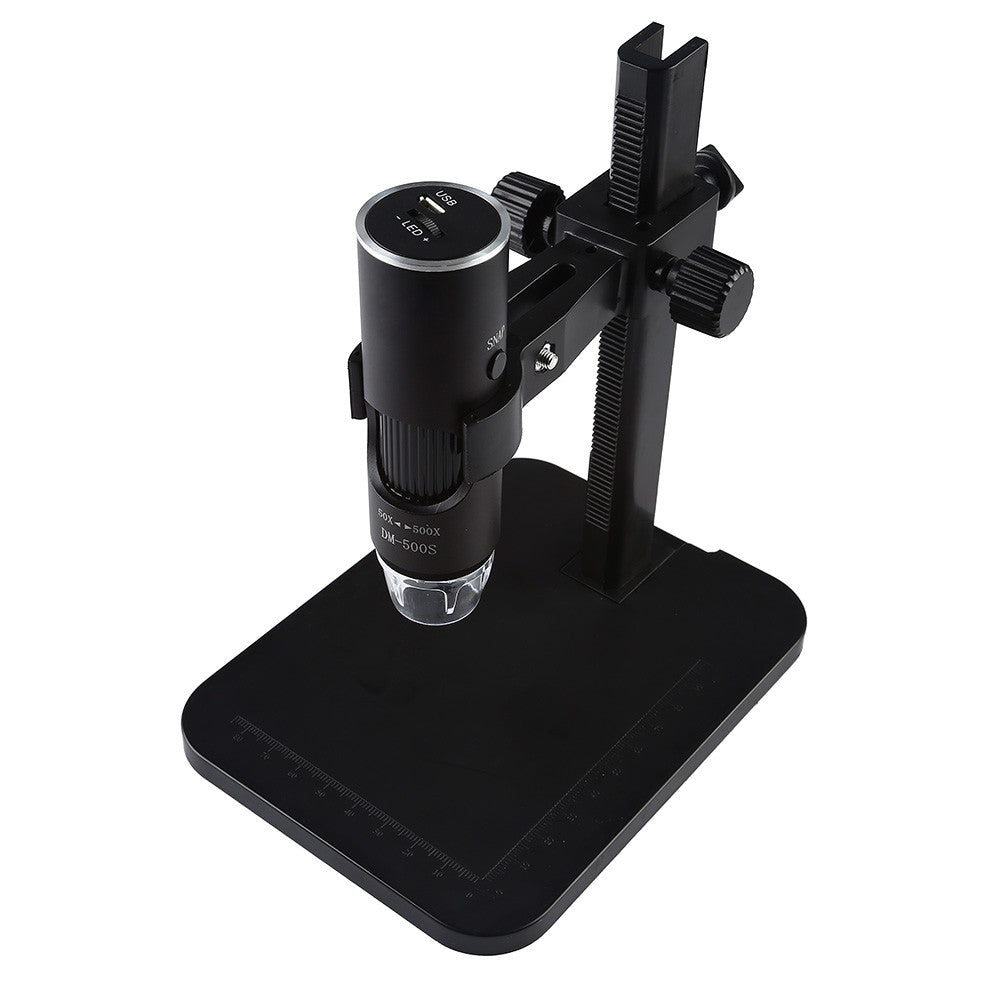

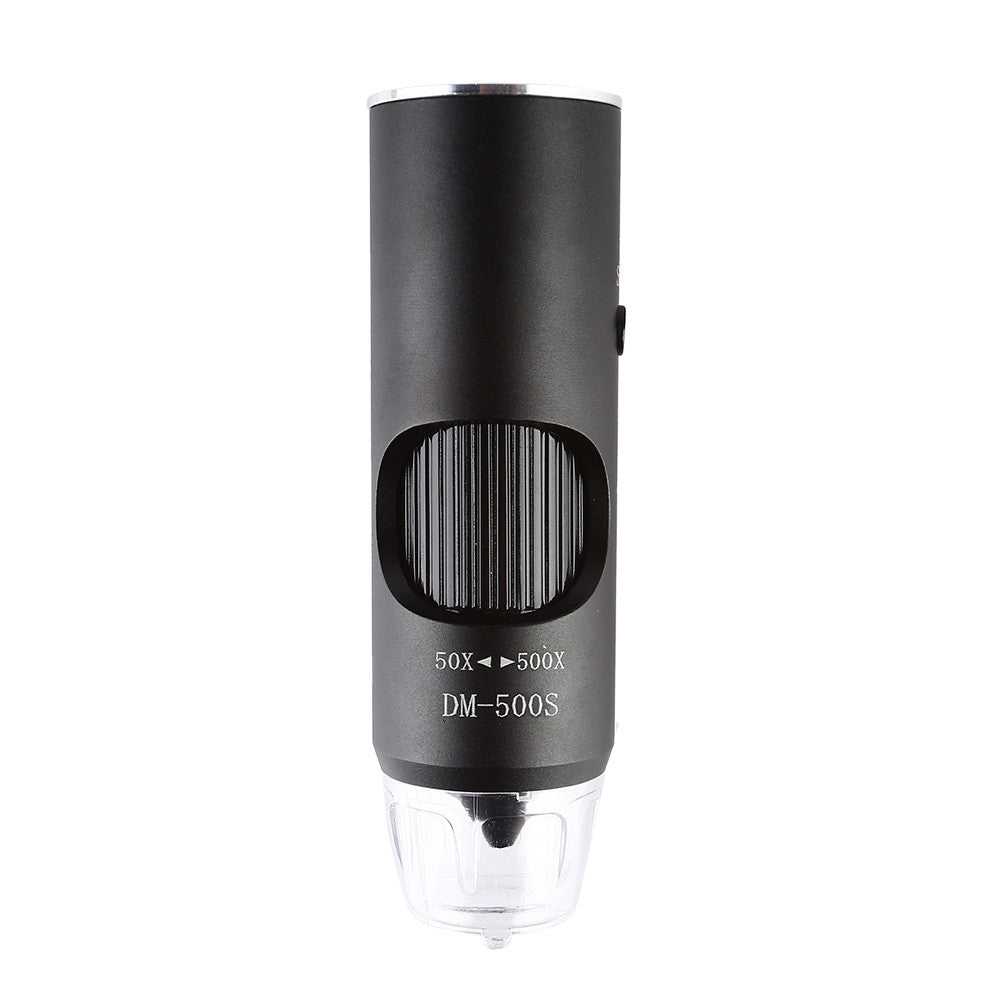

SainSmart DM-500S Digital USB Microscope, 5X-500X 2MP 8-LED

brand: SainSmart SKU: 101-92-318
Oops, 0 In Stock


  • Offers 5X-500X Magnification ratio, captures 2MP still images, streams and records live videos
  • Ultra-clear image processing technology provides excellent image and video quality
  • Compatible with Windows XP/Vista/7/8 and Mac OS (driver free)
  • User-friendly software provides advanced editing, processing and measuring features
  • Metal stand and built-in white light 8-LED ring light



  • High quality 3D digital zoom microscope with 2MP USB digital system!
  • Perfect for skin check, scalp check, hair check, ear check, visual assistance, science learning, lab equipment, medical care examination, dissection examination!
  • Excellent for printing inspection, textile inspection, jewelry inspection, PCB inspection, electronics device inspection!
  • Magnification settings: zoom 5X-500X
  • Full function microscope stand with metal base support
  • 360 degree microscope holder
  • 360 degree rotatable objective holder
  • High resolution up to 2M pixel
  • Dual focus optical system
  • Snapshot 4X digital Zoom
  • Perpendicular focus range: 4-1/2" (115mm)
  • 1600x1200 Pixel high quality color digital camera
  • USB 2.0 USB 1.1 compatible
  • Compatible with Windows XP / Vista / 7 / 8 /Mac (driver free)
  • Excellent five (5) year factory warranty
  • Unbeatable lowest price guaranteed or the difference back!
  • Satisfaction guaranteed or your money back!


  • Image sensor: color CMOS sensor
  • Controller: high speed DSP (driver free available)
  • Magnification ratio: 5X - 500X
  • Focusing range: 4-1/2" (115mm)
  • Digital Zoom: 4X sequence mode
  • Snap shot / record video: available
  • Light source: built-in white light LED x 8
  • Fix stand: all view angle available fix stand
  • Lens microscope glass lens resolution 2M Pixel
  • Interface: USB 2.0, USB 1.1 compatible
  • Frame rate: 30f/s under 600 lux brightness
  • Resolution: 1600x1200, 1280x1024, 800x600, 640x480, 352x288,320x240,176x144
  • Brightness control manual adjustment , auto W/B by software
  • System Requirement: Pentium Computer with 700M Hz Above ,1G HD Space CD ROM Driver,512MB RAM , Direct X VGA Card
  • Measurement: Straight Line, Polyline, Rectangle, Polygon, Circle, Ellipse, Arc, Distance, Dot-Line Distance, Parallel Line Distance, Angle, Calibration
  • Other function: Magnifier, Circle Label, Square Label, Diamond Label, Color Setting
  • Can be exported to MS Word, Excel, Outlook
  • Image can be saved as jpg, gif, bmp, tif, png
  • Language: English, Spanish, Portugues, Simplified Chinese, Traditional Chinese
  • CD disk driver
  • Power supply: DC 5V via USB port
  • Dimensions: 117mm (L), 33mm (R)

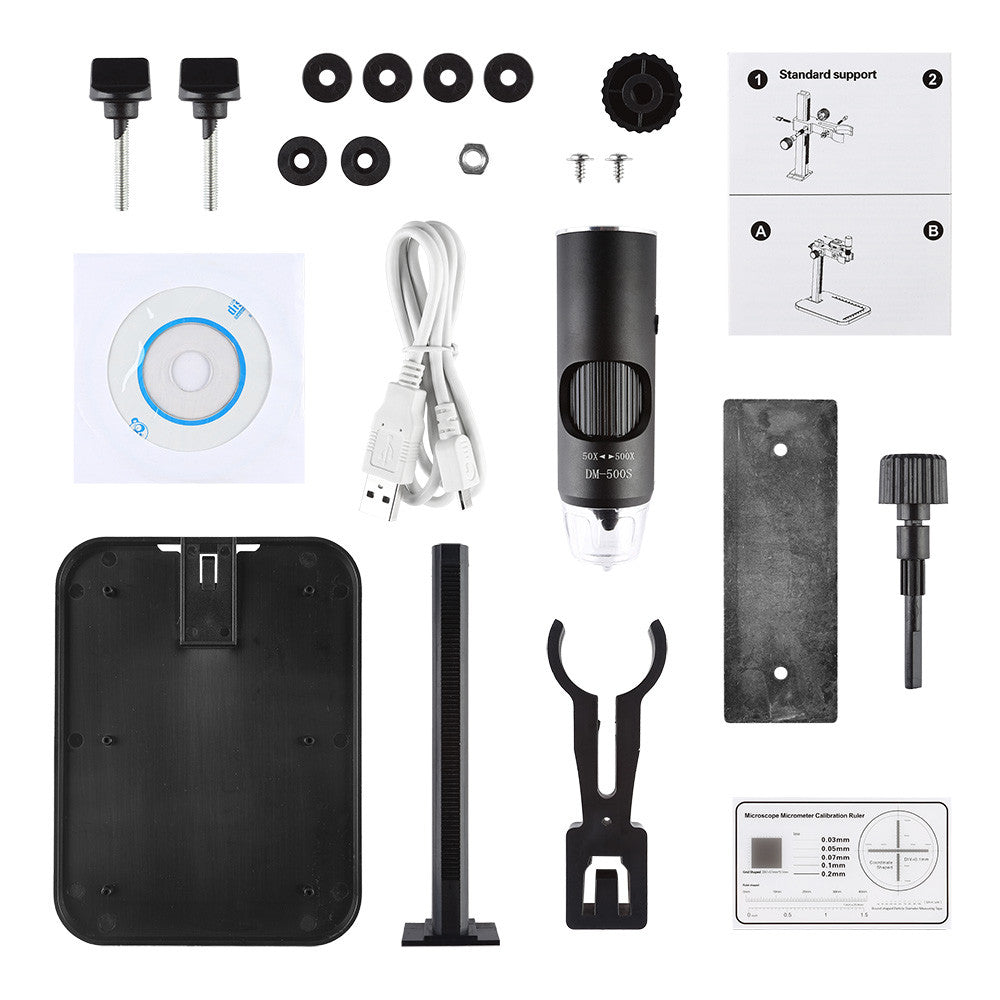

Packing List:

  • 1x microscope
  • 1x multiple direction movement stand
  • 1x User Manual
  • 1x CD (driver and software)
