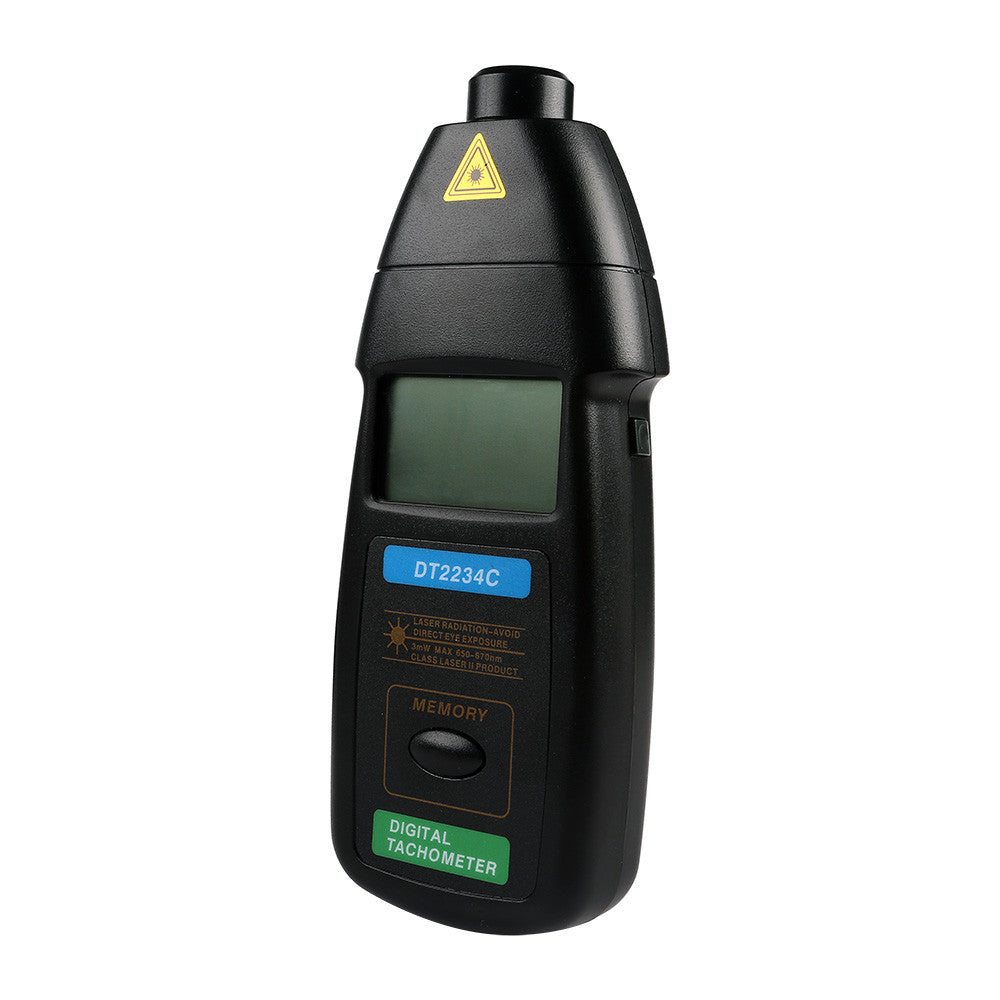

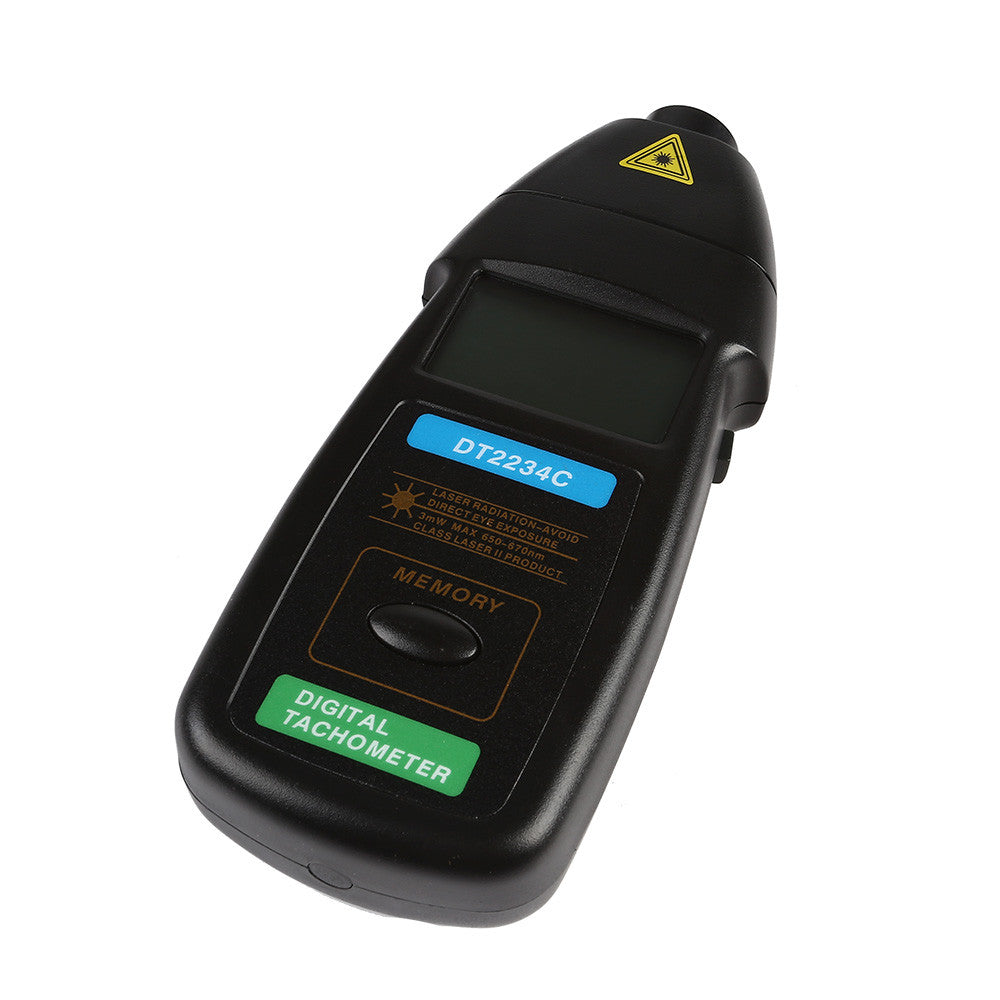

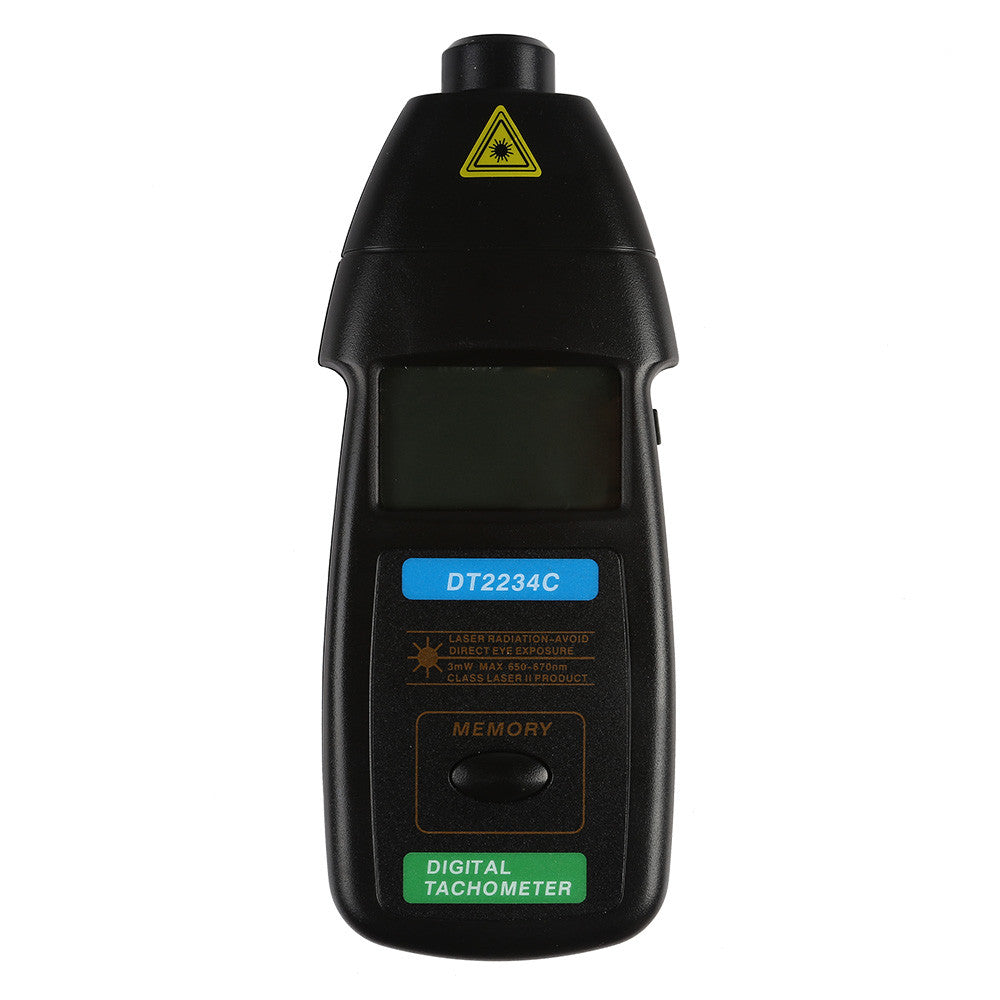

[Discontinued] SainSmart DT2234C Digital Laser Type LED Laser Non-contact RPM Tachometer

[Discontinued] SainSmart DT2234C Digital Laser Type LED Laser Non-contact RPM Tachometer

SKU:  101-92-157
$31.00
-Liquid error (snippets/price line 160): divided by 0 $31.00
Shipping calculated at checkout.
  • 101-92-157

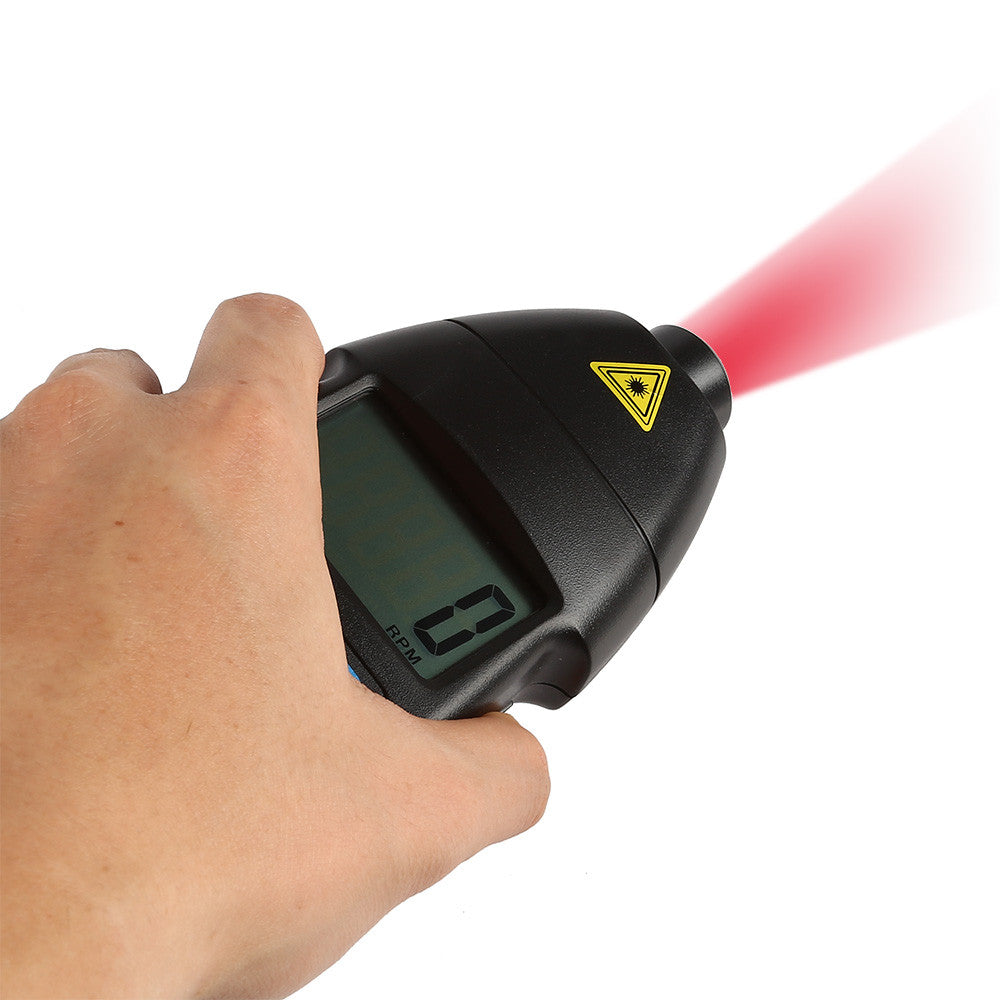

  •  Measuring RPM is safe & accurate without attachment to object.
  •  Wide measuring range & high resolution.
  •  Digital display gives exact RPM with no guessing or errors.
  •  Used the exclusive MICRO-COMPUTER  LS-Icircuit and crystal time base to offer the high accuracy measurement & fast measuring time.
  •  The last value/max. value/min. value will be automatically stored in memory and can be displayed by turn anytime.
View full details
SPECIFICATION
  • 5 digits 18mm (0.6") LCD
  • Accuracy: ±(0.05%+1 digit)
  • Sampling Time: 0.5sec(over 120RPM)
  • Range Select: Auto-Ranging
  • Memory: Max. value, Min. value, Last value
  • Test Range: 2.5~99,999RPM
  • Resolution: 0.1RPM(2.5~999.9RPM)
  • 1RPM(over 1,000RPM)
  • Detecting Distance: 50~500mm
  • Battery: 3x1.5V AAA battery
  • Time Base: 6MHz Quartz crystal
  • Time Base Accuracy: 10x10-6(0~50°C)
  • Power Consumption: Approx 40mA
  • Dimension: 184Lx76Wx30H(mm)

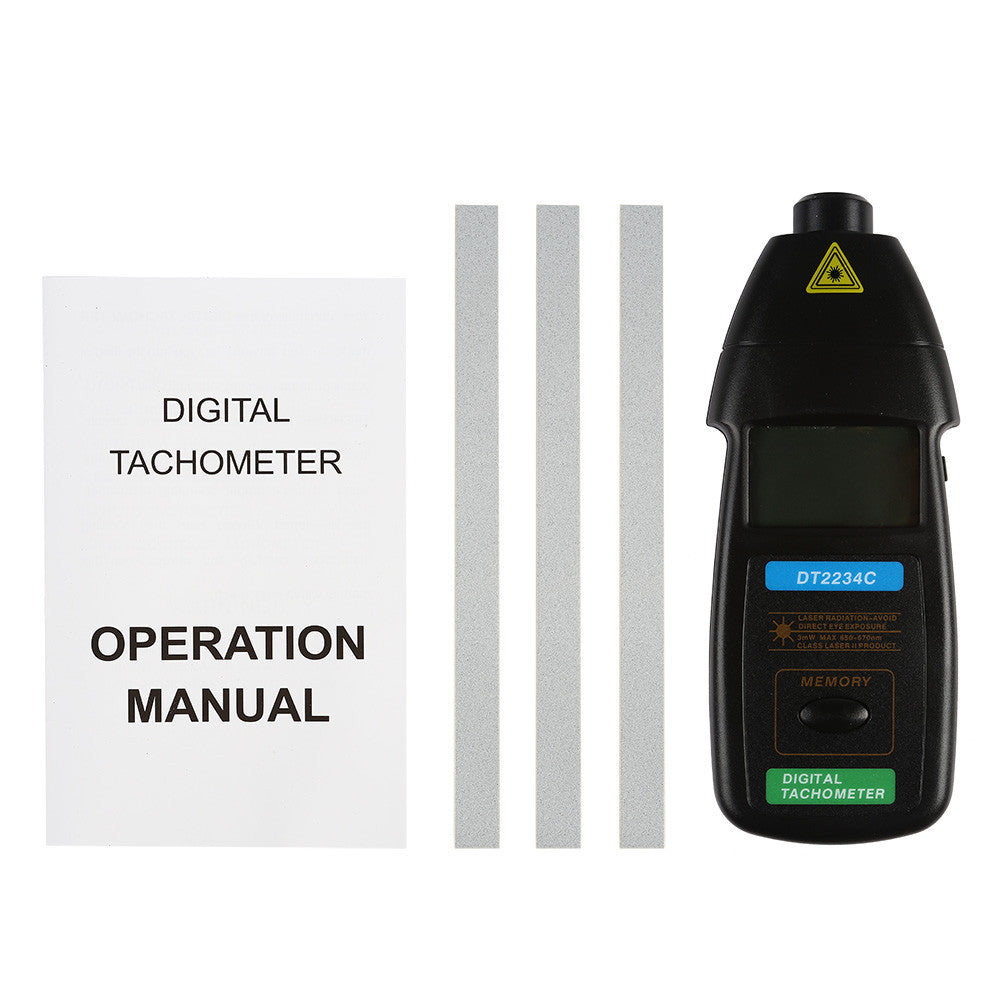

WHAT'S IN THE PACKAGE
  • 1x DT2234C Digital Laser Type LED Laser Tachometer
