Descripition:

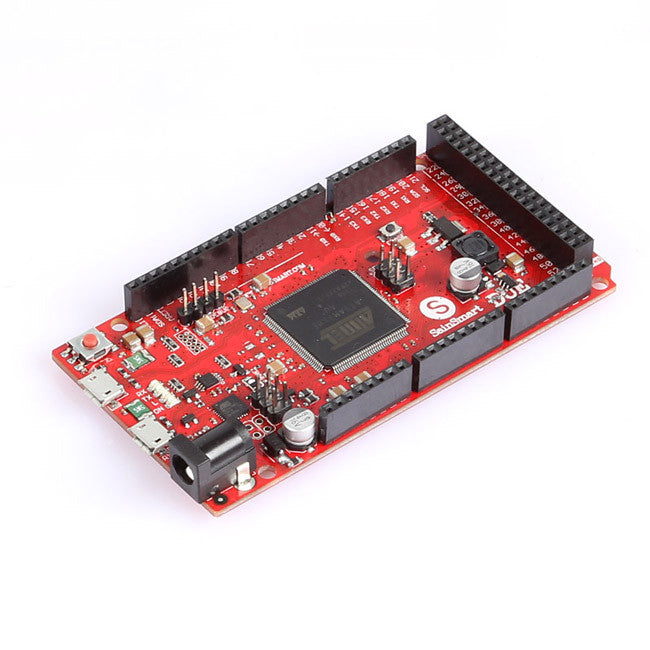

The SainSmart Due is a microcontroller board based on the Atmel SAM3X8E ARM Cortex-M3 CPU (datasheet). It is the first SainSmart board based on a 32-bit ARM core microcontroller. It has 54 digital input/output pins (of which 12 can be used as PWM outputs), 12 analog inputs, 4 UARTs (hardware serial ports), a 84 MHz clock, an USB OTG capable connection, 2 DAC (digital to analog), 2 TWI, a power jack, an SPI header, a JTAG header, a reset button and an erase button.
Unlike other SainSmart boards, the SainSmart Due board runs at 3.3V. The maximum voltage that the I/O pins can tolerate is 3.3V. Providing higher voltages, like 5V to an I/O pin could damage the board.
The board contains everything needed to support the microcontroller; simply connect it to a computer with a micro-USB cable or power it with a AC-to-DC adapter or battery to get started. The Due is compatible with all SainSmart shields that work at 3.3V and are compliant with the 1.0 Arduino pinout.
The Due follows the 1.0 pinout:
- TWI: SDA and SCL pins that are near to the AREF pin.
- The IOREF pin which allows an attached shield with the proper configuration to adapt to the voltage provided by the board. This enables shield compatibility with a 3.3V board like the Due and AVR-based boards which operate at 5V.
- An unconnected pin, reserved for future use.
Feature:
Microcontroller | AT91SAM3X8E | |
Operating Voltage | 3.3V | |
Input Voltage (recommended) | 7-12V | |
Input Voltage (limits) | 6-20V | |
Digital I/O Pins | 54 (of which 12 provide PWM output) | |
Analog Input Pins | 12 | |
Analog Outputs Pins | 2 (DAC) | |
Total DC Output Current on all I/O lines | 130 mA | |
DC Current for 3.3V Pin | 800 mA | |
DC Current for 5V Pin | 800 mA | |
Flash Memory | 512 KB all available for the user applications | |
SRAM | 96 KB (two banks: 64KB and 32KB) | |
Clock Speed | 84 MHz |

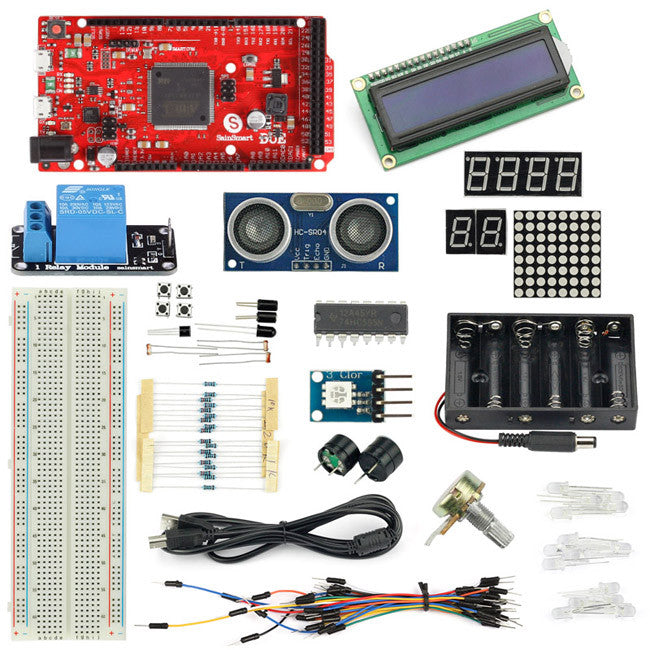

Package list:
1x SainSmart Due board

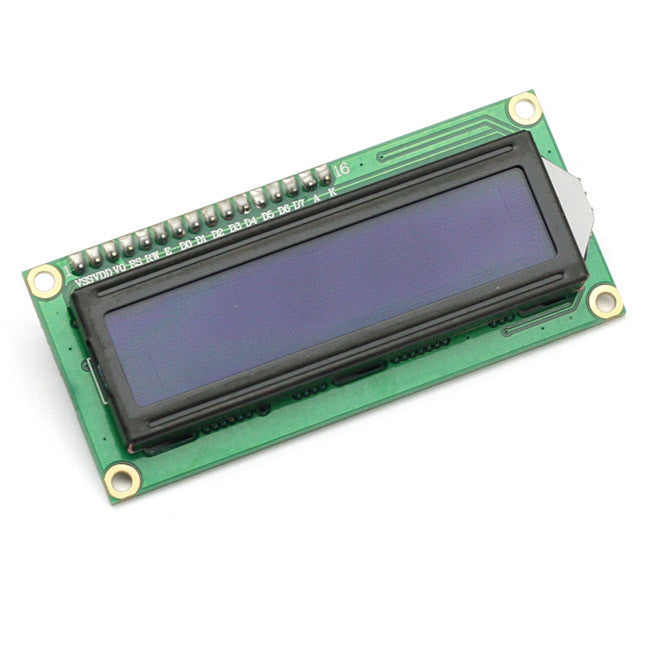

1x 1602LCD
1x USB Cable

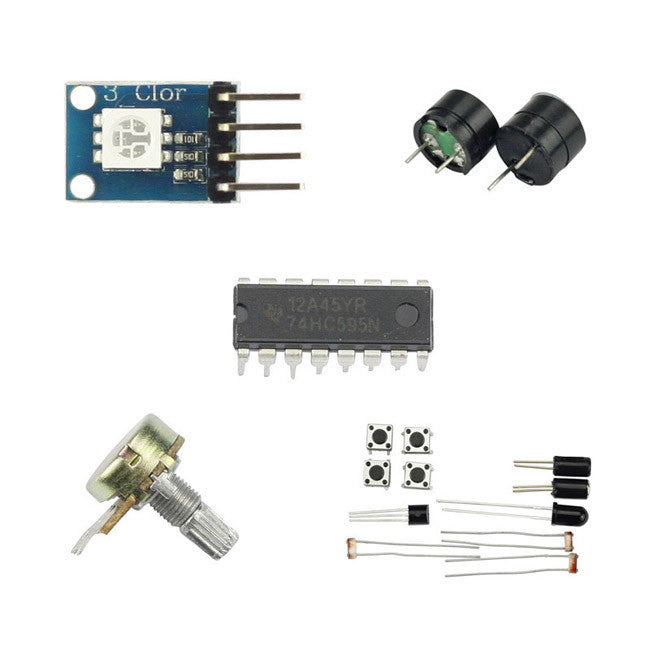

1x Buzzer
1x Nixie Tube
1x Temperature Sensor
1x 74HC595
1x Infrared Remote Control
1x Infrared Receiver
1x Photoresistor
1x Potentiometer
2x Tilt sensor
4x Pushbuttons
1x RGB
1x Flame Sensor
1x Cell Box
6X Resistors
1X Breadboard & Jumper wires
3X LEDs
Tutorials (more than 60 pages)
