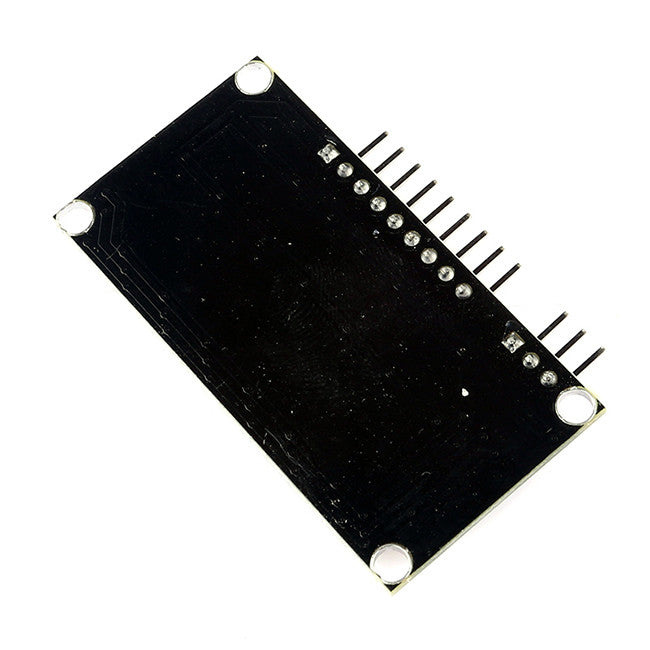

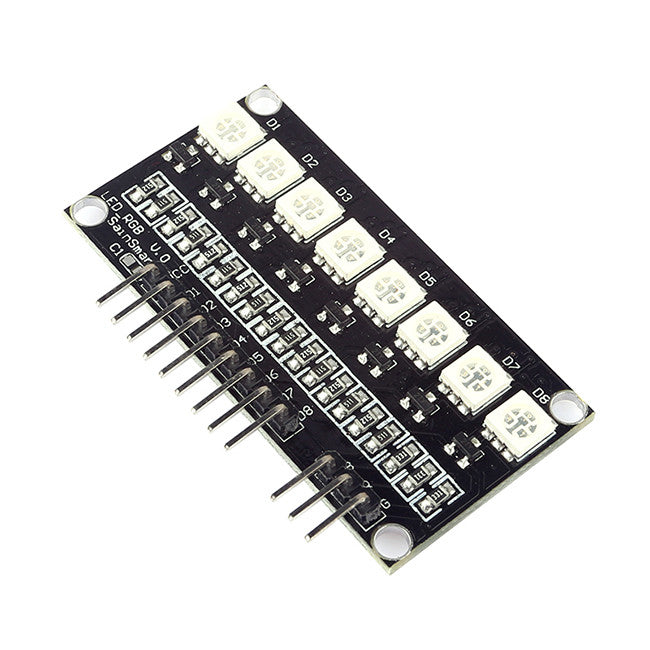

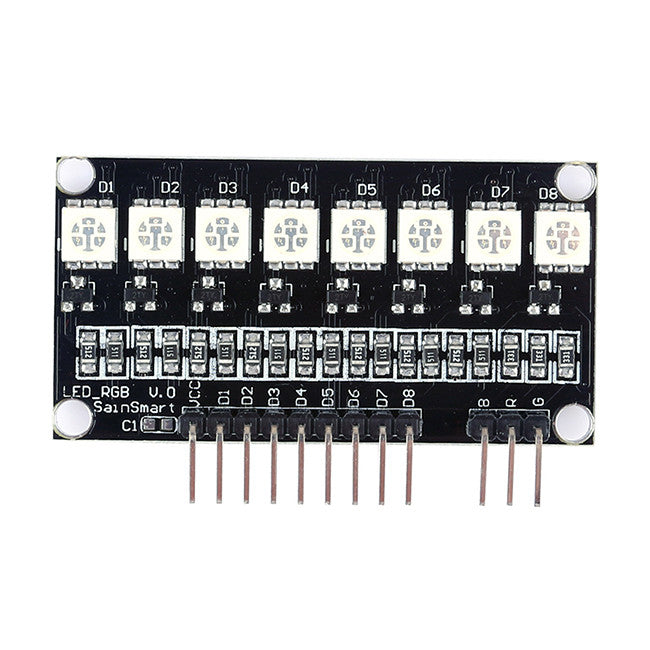

[Discontinued] SainSmart Full-Color LED Module SCM Printed Circuit Board Module 5050 for Arduino

Features:

•     Excellent PCB design, very beautiful
•     8 three primary colors (red, green and blue) full-color LED, scanning control mode;
•     The control mode is the same as Nixie Tube;
•     Different colors can be generated by different procedures changing effects
•     Suitable for a variety of platforms such as 51/AVR/AVR/ARM/arduino
•     Module Color: Red+ White+ Black
•     Size: 60 x 33mm

Wiring:

• D0 ~ D7 8-pin respectively to control 8 LED;
• Three pin RGB connect with GND, connected with R on the bright red; G bright green; B bright blue.

Package List:

• 1x Full Color LED Module LED SCM Printed Circuit Board Module 5050 for Arduino AVR
