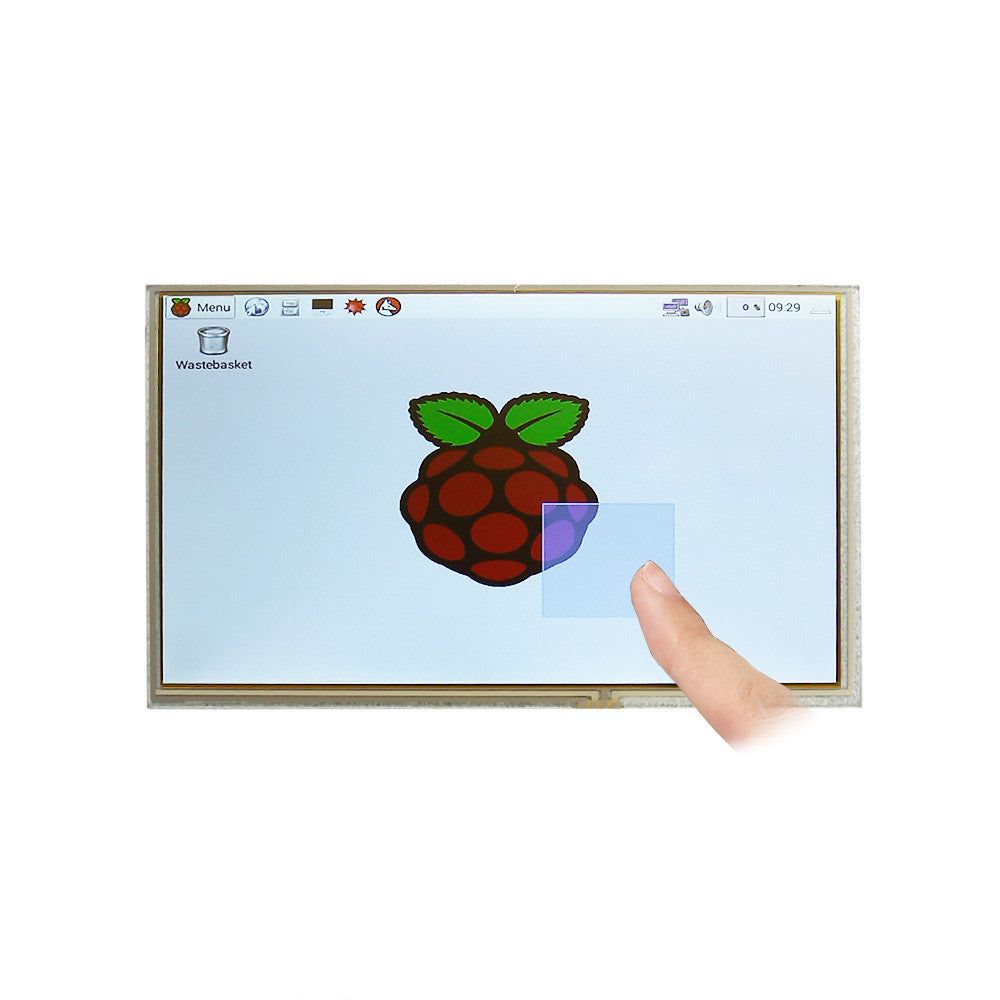

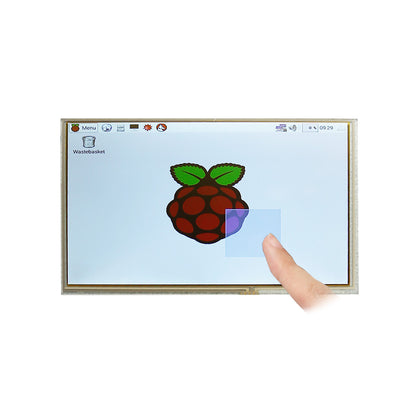

SainSmart HDMI/VGA Digital 9" 9 Inch Touch Screen LCD+Driver Board for Raspberry Pi

brand: SainSmart SKU: 20-111-961-CMS
$68.88 FREE SHIPPING
Oops, 0 In Stock

Description:

  • This product need good Manipulative ability .Before you buy ,please make sure can do it
  • Operating voltage: 5V-12V wide voltage input
  • Signal Input: HDMI + VGA + AV
  • Physical resolution: 1024 × 600



Handling Precautions: used car plus the best vehicle power supply

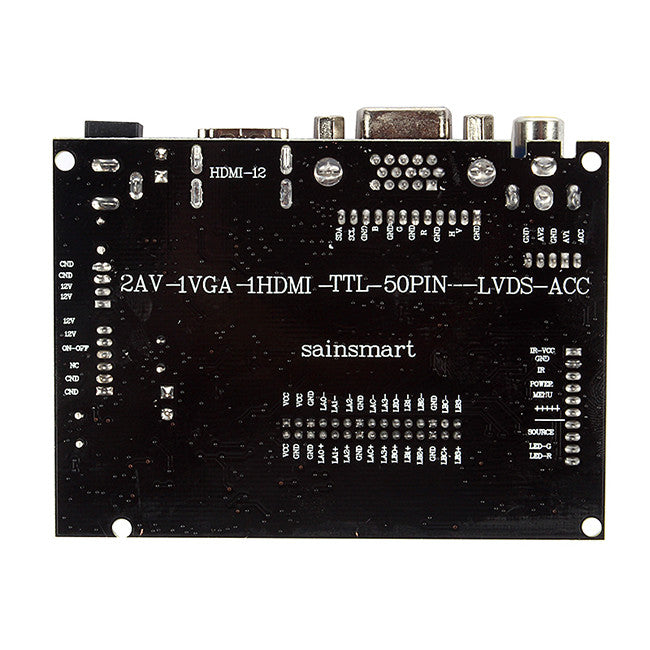

  • 1 Do not reverse the positive and negative power supply, drive plates are marked on the back of positive and negative (GND)!
  • 2 When energized, do not plug or unplug each interface, it will easily burn the main IC!
  • 3 insulation around the driver board to not touch the metal conductors such as circuit boards, touch the hand can not be free!
  • 4 Because the cable is relatively fragile test installation required attention to protecting the cable!


9.0 inches digital LCD HD Car LCD --- reversing the priority + HDMI + VGA +2 AV way

  • Operating voltage: 5V 1A power supply current requirements within the above 2A, as with the best car power plus a regulator to prevent interference
  • Rated power :6-7W
  • Signal Input: 2 AV + VGA
  • System format: PAL / NTSC



HDMI Input: HDMI 1.1 version

VGA input: physical resolution of 1024 * 600, support the resolution range can be adjusted between 640 × 480 --- 1600 × 1200!

  • AV1 video input (DVD devices can be linked or front camera)
  • AV2 video input (the car automatically switches to the camera screen)


Plug and Play: Support

  • OSD Language: Simplified Chinese, Traditional Chinese, English, Japanese, Korean, Spanish, French, German, Italian, Portuguese
  • Control: Multi OSD operation or potentiometer to adjust the brightness and color
  • Features: The maturity of the program, clear display



reversing the priority feature set:
A, the default boot last saved channel.
B, boot, reversing signal, switch to AV2, reversing the signal disappears, back to the original channel.
C, stand, reversing signal, switch to AV2, reversing the signal disappears, return to standby

  • supports vertical and horizontal image flip, image 4:3 / 16:9 display format conversion
  • Applicable range: used video intercom, onboard computer, instrumentation, industrial control, medical equipment, ** equipment, portable display equipment and other electronics fields.

LCD screen parameters:

  • 9-inch display size
  • Dimensions 206.6 (H) x 122 (W) mm
  • Viewing area 197.76 (H) x 111.735 (W) mm
  • Screen size:  11 x 6.8 x 2.1 inches
  • Dot pitch 0.0675 (W) X0.2025 (H) mm
  • Resolution: 1024 × 600
  • Viewing angle L70 ° R70 ° U50 ° D60
  • Panel Type TFT
  • Display Color 262K
  • Contrast Ratio 500:1
  • Brightness 220cd/m2
  • Interface Type Digital

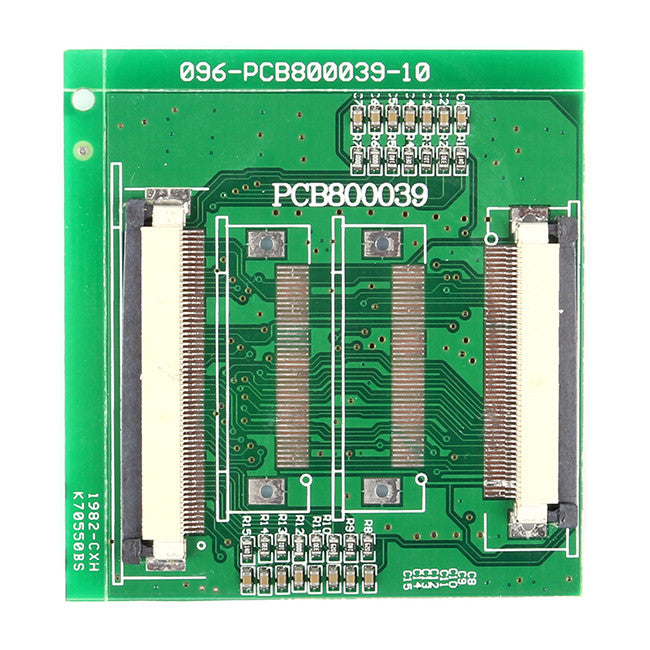

  • The number of wiring 50 PIN Digital (TTL) TCON
  • LED back light


20ms response time
Operating temperature -20 ? ~ 80 ?
Weight TBD
Application of mobile DVD, digital photo frames, car systems, multimedia applications and other audio-visual systems

Package List:

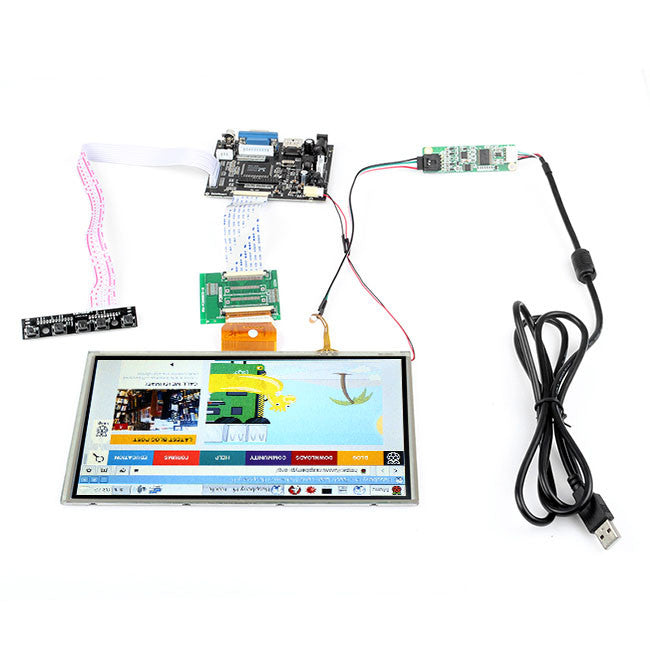

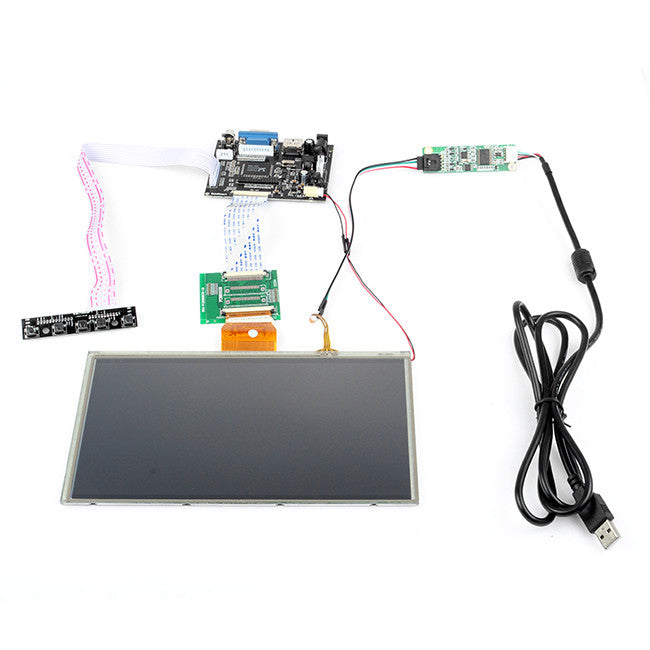

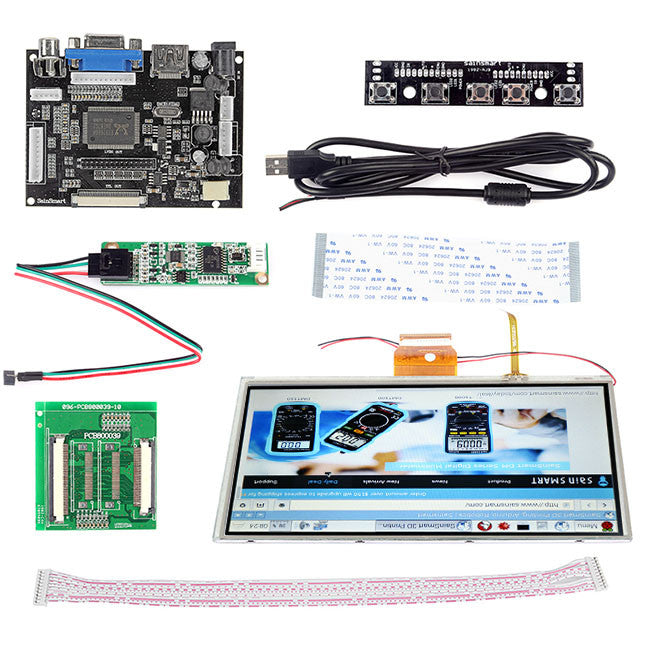

  • 1x SainSmart HDMI/VGA Digital 9" 9 Inch Touch Screen LCD+Driver Board for Raspberry Pi
