SainSmart L3G4200D Triple-Axis Digital Output Gyro Sensor for Arduino

brand: SainSmart SKU: 101-60-101
$15.99
Only 9 in stock. Order now!

Description:

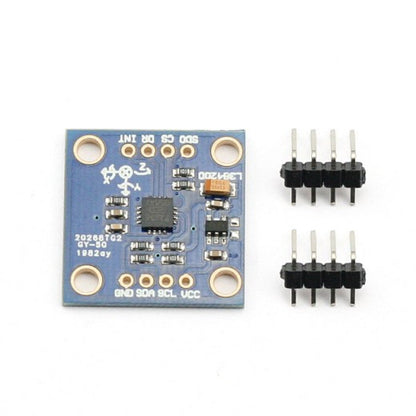

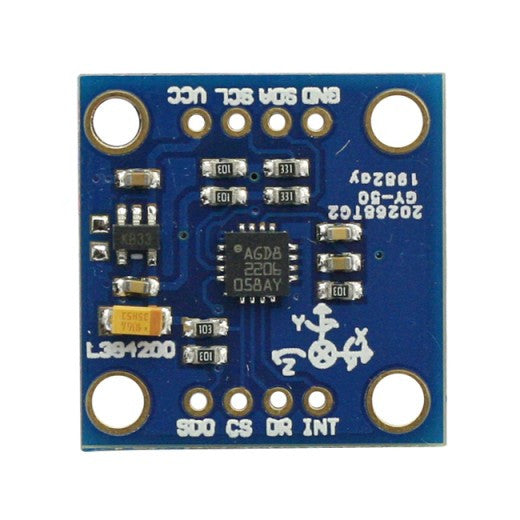

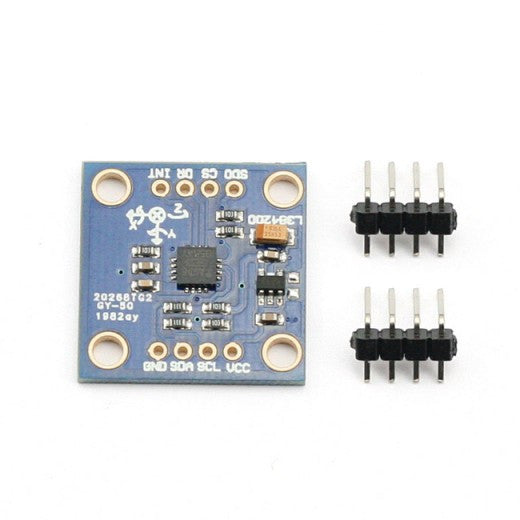

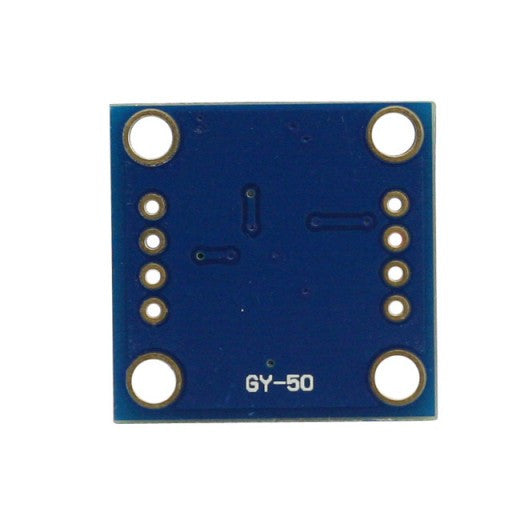

This is a breakout board for the L3G4200D low-power three-axis angular rate sensor. The L3G4200D has a full scale of ±250/±500/±2000 dps and is capable of measuring rates with a user-selectable bandwidth. These work great in gaming and virtual reality input devices, GPS navigation systems and robotics.


L3G4200D Features:

  •   Three selectable full scales (250/500/2000 dps)
  •   I2C/SPI digital output interface
  •   16 bit-rate value data output
  •   8-bit temperature data output
  •   Two digital output lines (interrupt and data ready)
  •   Integrated low- and high-pass filters with user selectable bandwidth
  •   Ultra-stable over temperature and time
  •   Wide supply voltage: 2.4 V to 3.6 V
  •   Low voltage-compatible IOs (1.8 V)
  •   Embedded power-down and sleep mode
  •   Embedded temperature sensor
  •   Embedded FIFO
  •   High shock survivability
  •   Extended operating temperature range (-40 °C to +85 °C)


Board Features:

  •   Three selectable full scales (250/500/2000 dps)
  •   I2C and SPI digital output interface avail.
  •   Two I2C address you can select by jumpers
  •   16 bit-rate value data output
  •   8-bit temperature data output
  •   Wide supply voltage: 2.4 V to 3.6 V
  •   Low voltage-compatible IO (1.8 V)
  •   Embedded power-down and sleep mode
  •   Embedded temperature sensor
  •   High shock survivability
